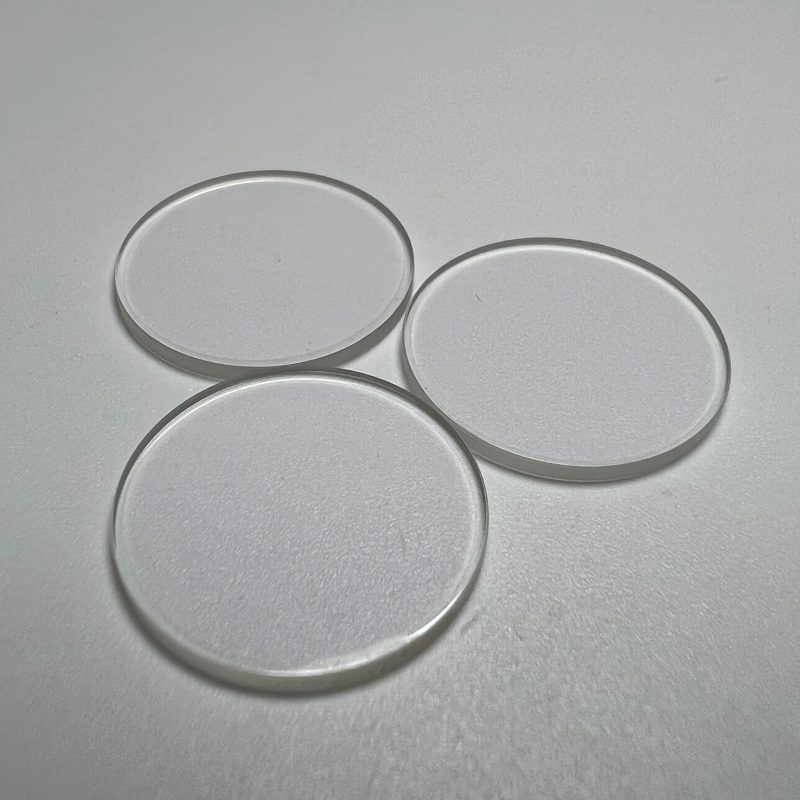

Custom Size Sapphire Optical Window, AR Coated
Sapphire Window for 400-700 nm applications, customizable thickness, and AR coatings for optimal optical performance.
Core attributes
- Material
- Sapphire
- Thickness
- 0.5–50 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Sapphire
- Thickness
- 0.5–50 mm
- Coating
- ar
Product description
The Sapphire Window offers exceptional optical protection across the 400-700 nm wavelength range, ideal for applications in IR imaging, LIDAR, and laser systems. Its single crystal structure ensures high hardness and thermal stability, making it suitable for demanding environments. The window features customizable thickness from 0.5 mm to 50 mm and can be tailored with AR coatings for enhanced performance.
Key Features
- Broadband transmission from 400-700 nm ensures compatibility with various optical applications.
- Customizable thickness (0.5 mm to 50 mm) allows for tailored solutions to meet specific project requirements.
- 99% clear aperture maximizes light transmission for optimal performance in imaging and sensing applications.

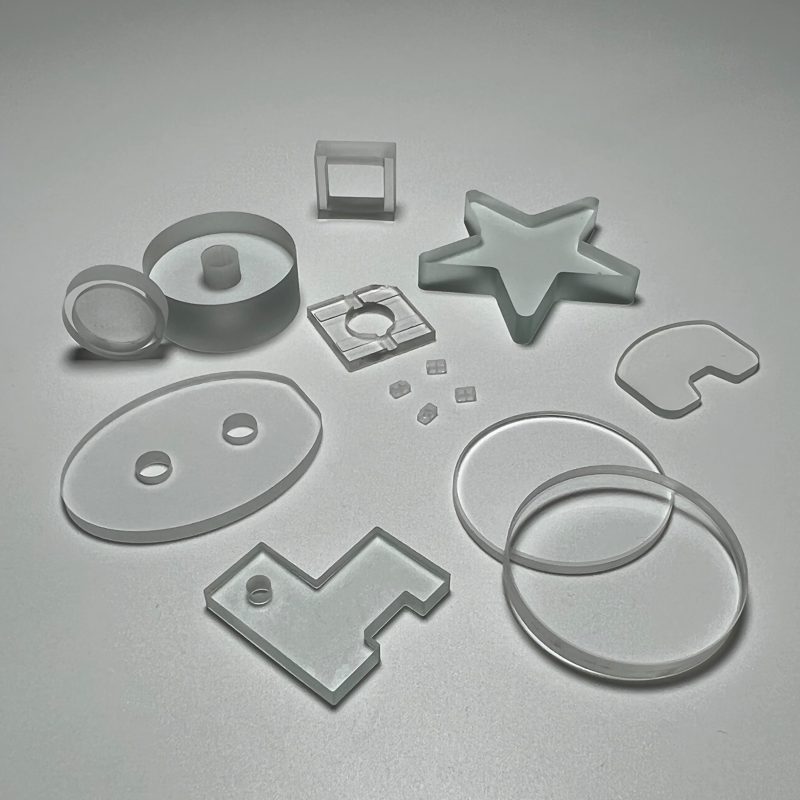

- OEM, ODM, and OBM support for customized sizing and edge treatments to fit specific equipment needs.
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Diameter | Custom |
| Thickness | 0.5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Power | none |
| Clear Aperture | 99% |
FAQ
What are the available thickness options?
The sapphire window thickness ranges from 0.5 mm to 50 mm.
Can I get custom sizes?
Yes, the sapphire window can be customized in diameter, thickness, shape, and edge treatment.
