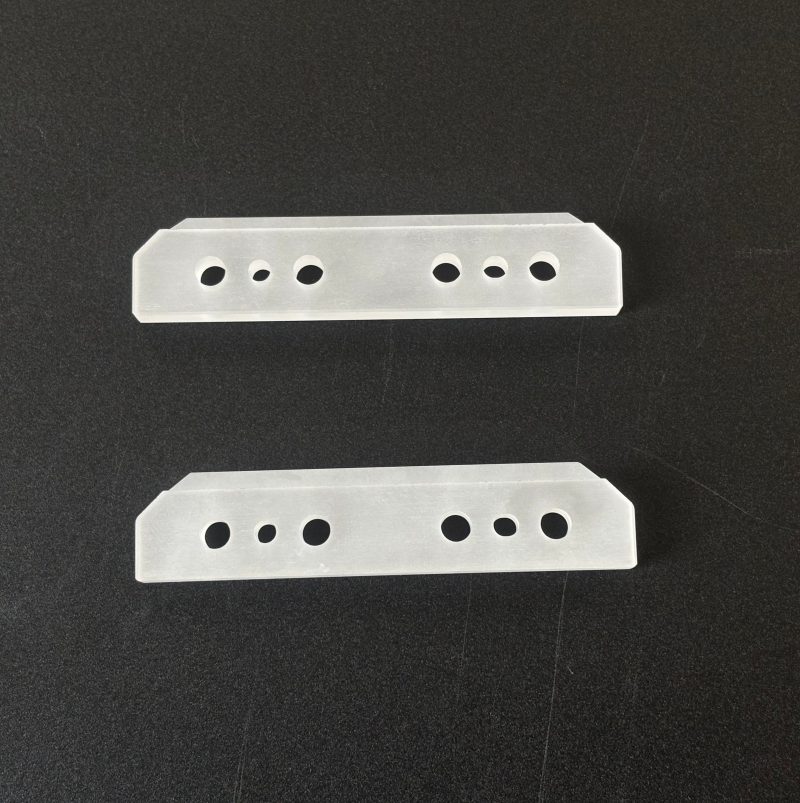

Custom Size Sapphire Optical Window

Product description

Sapphire optical components are essential for applications in semiconductor and medical fields, offering high durability and excellent transmission across multiple wavelength bands, including 0.7-1.7 μm and 3-5 μm. With a thickness range of 0.5 to 100 mm, these components provide flexibility for various designs. Manufactured by Jingjing Technology in Hubei, they ensure high purity and reliable performance, making them suitable for demanding environments.

Key Features

Transmittance of approximately 80% in the 0.3-5 μm range enhances optical performance.
Thickness options from 0.5 mm to 100 mm allow for tailored solutions for specific applications.
High purity (99.9999%) ensures minimal contamination and optimal performance in sensitive environments.
Custom support available for OEM, ODM, and OBM projects, facilitating unique design requirements.
Roughness of Ra≤0.5 nm guarantees superior surface quality for critical optical applications.

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Sapphire
Diameter	Custom
Thickness	0.5 mm
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	2 Years
Customized Support	OEM, ODM, OBM
S/D	80/50, 60/40, 40/20, 20/10
Roughness	Ra≤0.5nm

FAQ

What is the minimum order quantity (MOQ) for sapphire components?

The minimum order quantity (MOQ) is not specified in the provided data.

Can I get sapphire components in custom sizes?

Yes, customized support is available for OEM, ODM, and OBM projects.
