0.5 mm Sapphire Plano-convex Lens, AR Coated
Explore plano-convex sapphire lenses for medical imaging and high-performance optics. Customizable with superior durability.
Core attributes
- Material
- Sapphire
- Shape
- Plano-convex
- Diameter
- 0.5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Sapphire
- Shape
- Plano-convex
- Diameter
- 0.5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The plano-convex sapphire lens is ideal for applications in medical imaging and high-performance optical systems. With a broad transmission range from UV to mid-IR (0.2 - 5.5 μm) and anti-reflection coatings, this lens minimizes optical aberrations while ensuring high transmittance. Its exceptional thermal and chemical stability makes it suitable for demanding environments, providing reliable performance in high-energy laser systems and other critical applications.
Key Features
- Broadband optical transmission from 0.2 - 5.5 μm for versatile application fit.
- Scratch-resistant and autoclavable sapphire material ensures durability and longevity.
- Customizable specifications including focal length, curvature, and coatings for tailored solutions.
- High thermal conductivity minimizes thermal focal shift for stable performance in lasers.
- Precision surface accuracy up to lambda/4 - lambda/20 for high-resolution imaging.
Applications
Medical, Imaging

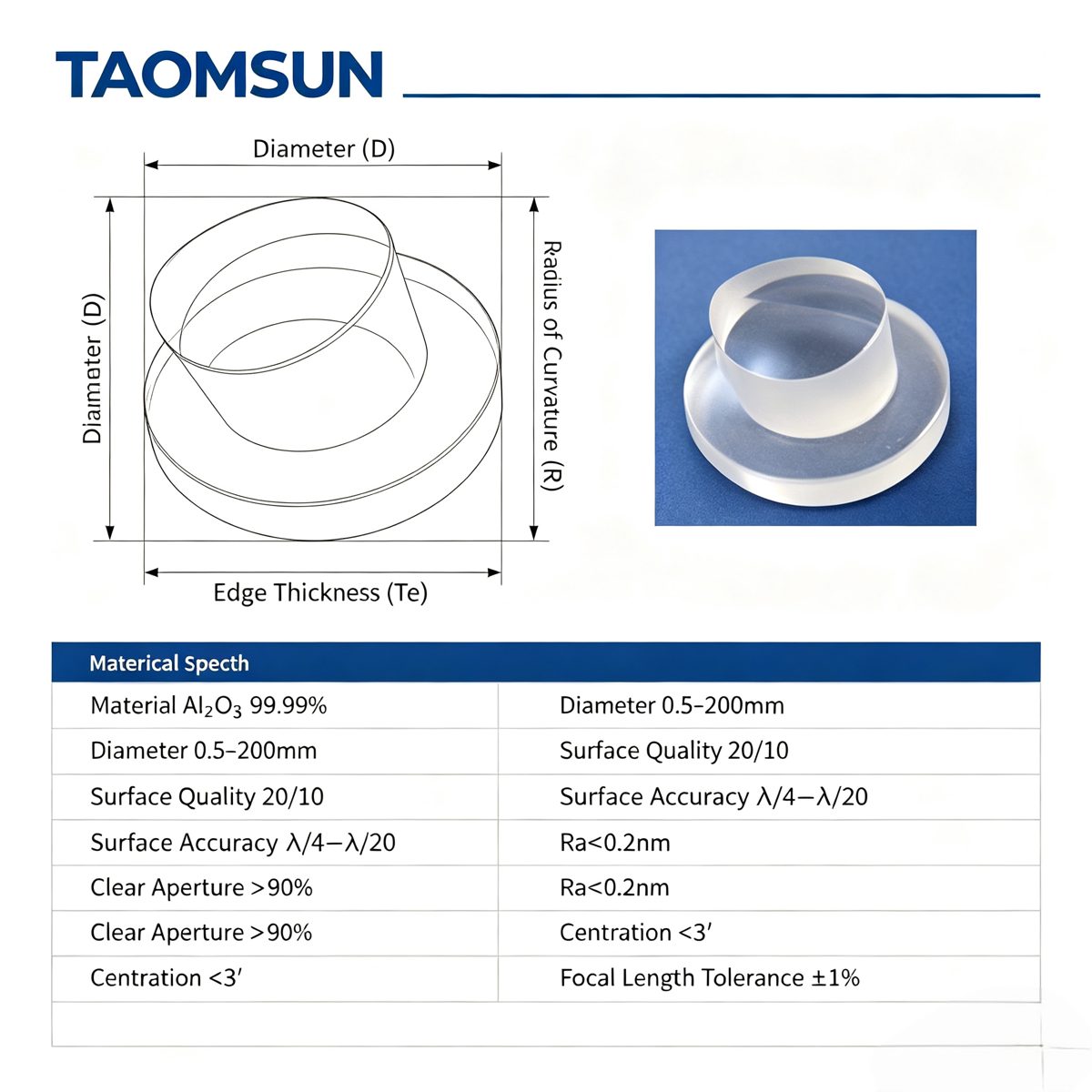

Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Shape | Plano-convex |
| Diameter | 0.5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens, Convex Lens, Plano Convex Lens, Biconvex Lens |
| Weight | 10g(0.35oz) |
FAQ
What are the minimum and maximum sizes available?
The minimum diameter available is 0.5 mm, with no specified maximum size.
Is rapid prototyping available for custom designs?
Yes, rapid prototyping is available for fully customizable specifications.
