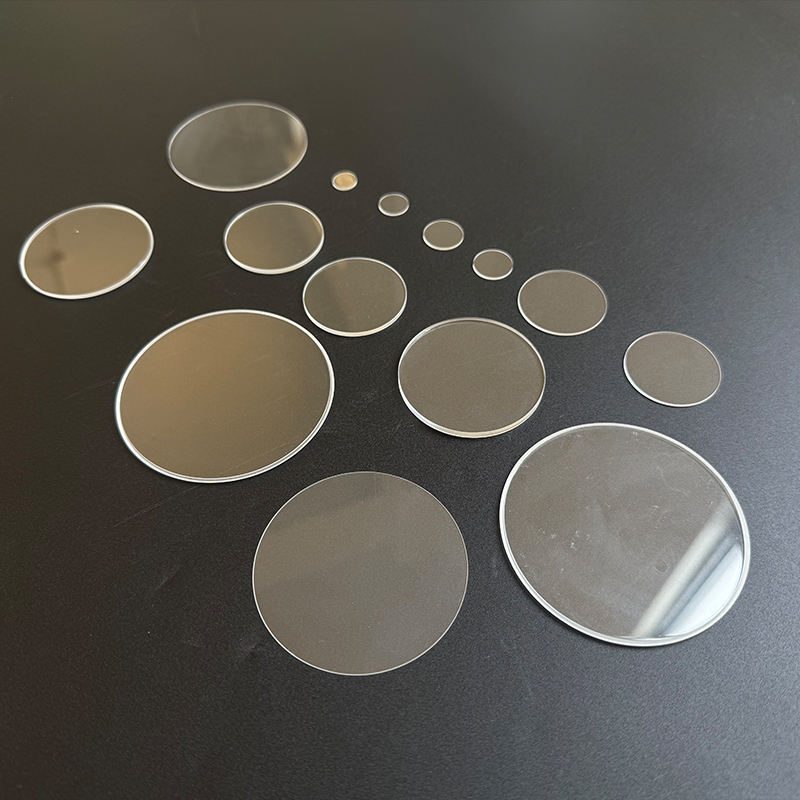

0.5x0.1 mm Sapphire Round Optical Window

Product description

Sapphire optical windows provide exceptional performance across multiple spectral bands, including 0.7-1.7 μm and 3-5 μm, making them ideal for applications in semiconductor and medical fields. With a wide diameter range from 0.5 mm to 750 mm and thickness options from 0.1 mm to 350 mm, these windows can be tailored to fit specific requirements. The high purity of 99.9999% ensures minimal contamination, while the superior hardness and thermal stability enhance their reliability in demanding environments.

Key Features

Wide diameter range (0.5 mm to 750 mm) for versatile application fit.
Thickness options from 0.1 mm to 350 mm accommodate various design needs.
High purity (99.9999%) ensures optimal performance and minimal contamination.
Excellent thermal conductivity (25.12 W/m·K at 100°C) for effective heat management.
Custom support available for OEM and ODM projects to meet specific requirements.

Available Sizes

Diameter x Thickness (mm)
375.2 x 175.1

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	0.5 mm
Thickness	0.1 mm
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	1 Year
Customized Support	OEM, ODM
Purity	99.9999%
Length	0.1-700mm
Roughness	Ra<0.3nm
S/D	10/5,40/20,60/40, 80/50

FAQ

What custom sizes are available?

Custom sizes can be provided with diameter options ranging from 0.5 mm to 750 mm and thicknesses from 0.1 mm to 350 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified; please inquire for details.
