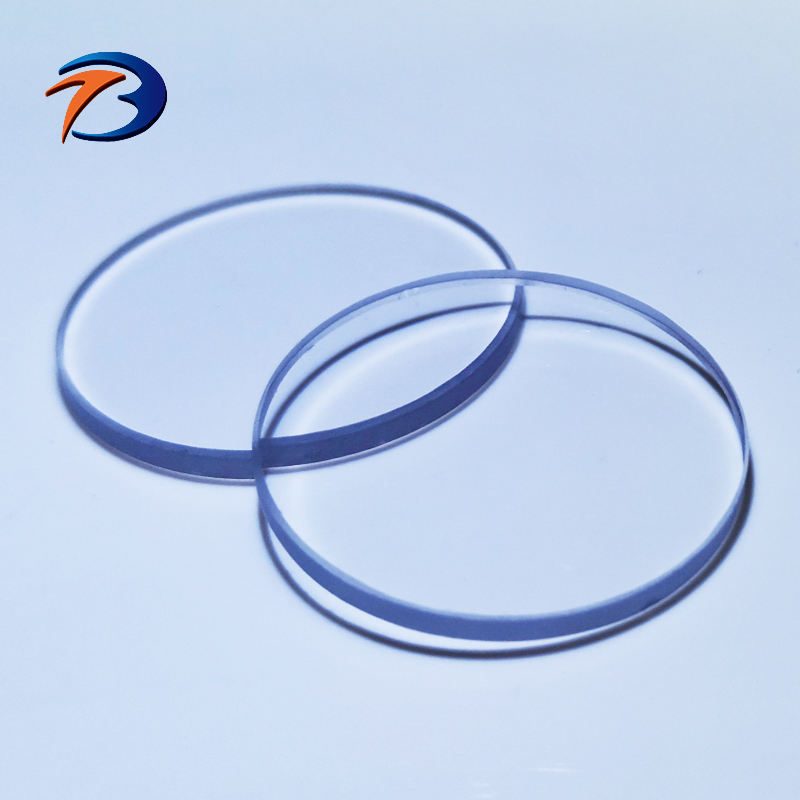

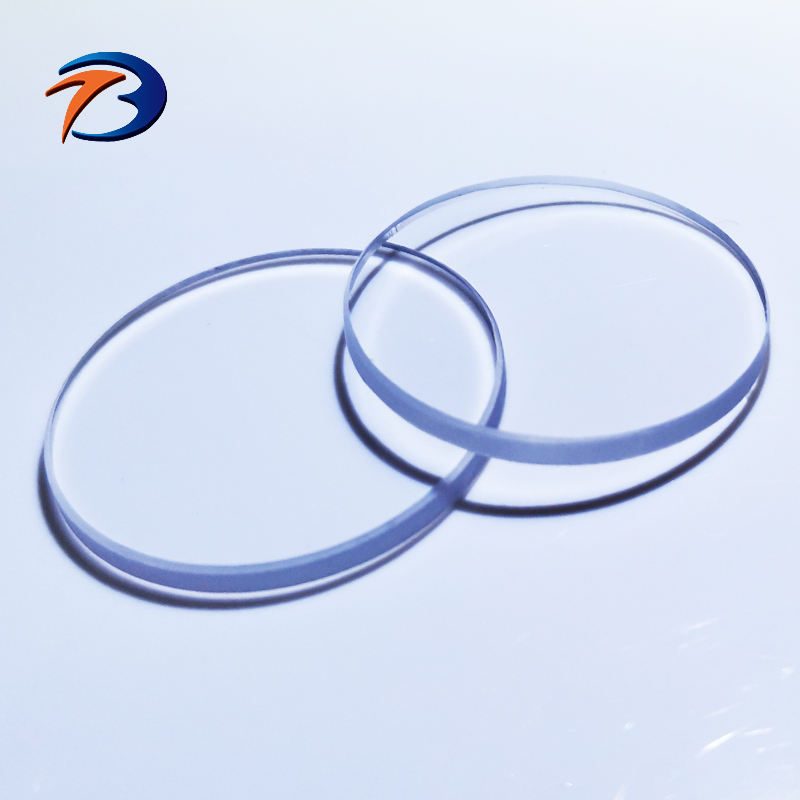

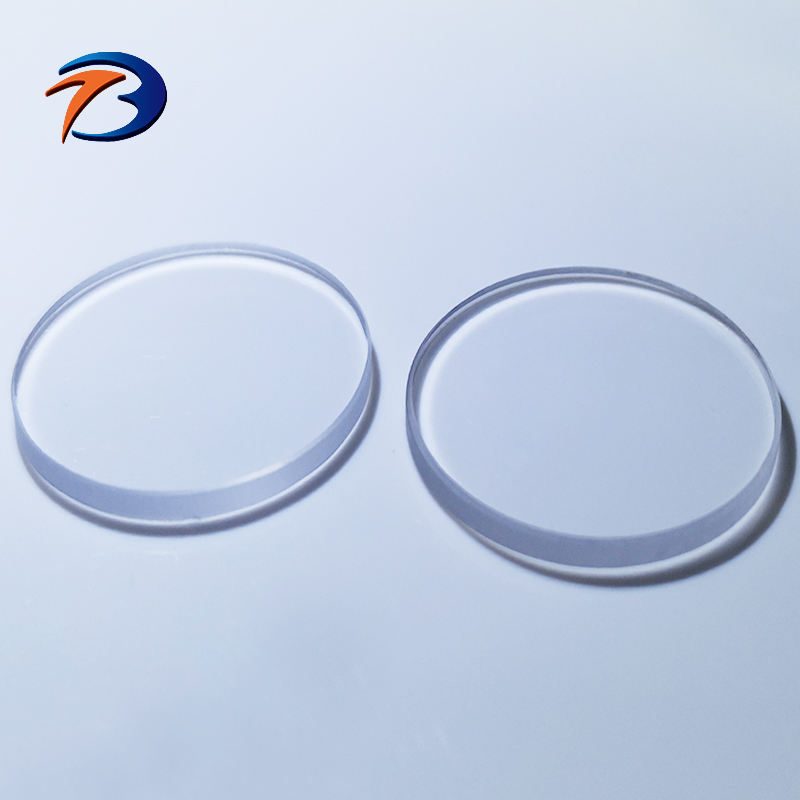

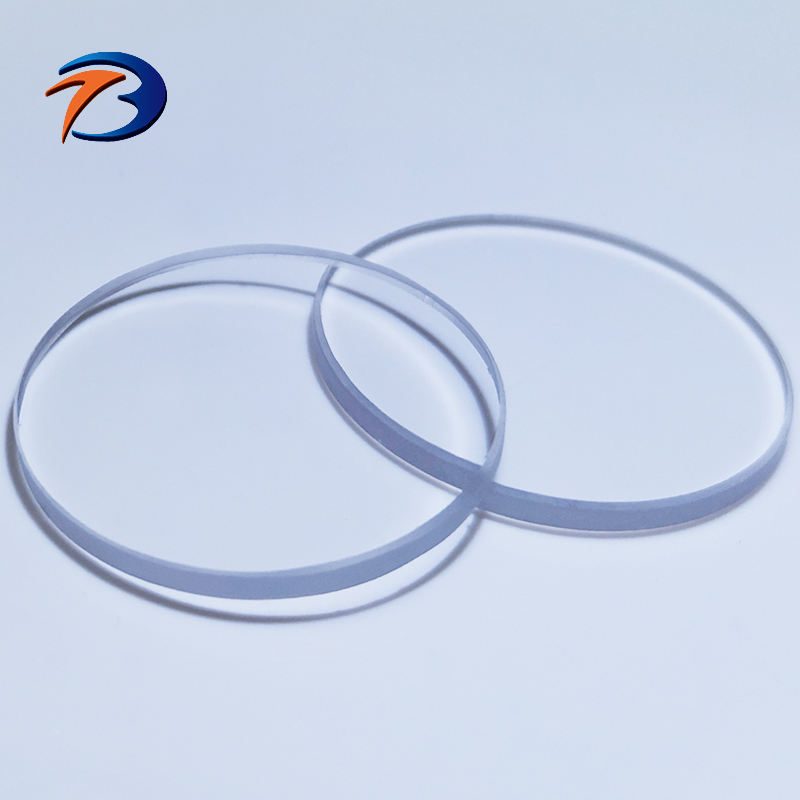

0.5x0.3 mm Sapphire Round Optical Window, AR Coated

Product description

Sapphire windows provide exceptional performance for demanding applications such as laser systems, thanks to their extreme hardness and high thermal conductivity. With a transmission range from 0.2 to 5.5 μm, these windows are suitable for various wavelengths, including 3-5 μm and 1.7-3 μm bands. Their structural strength allows for thinner designs, enhancing transmittance while maintaining durability. Custom sizes and thicknesses are available to meet specific application requirements.

Key Features

Transmission range: 0.2 - 5.5 μm for versatile application fit.
Thickness tolerance of +/-0.02 mm ensures precision in custom sizes.
High thermal conductivity supports reliable performance in laser systems.
Surface accuracy of λ/10 enhances optical performance.
Custom dimensions available to meet specific project needs.

Available Sizes

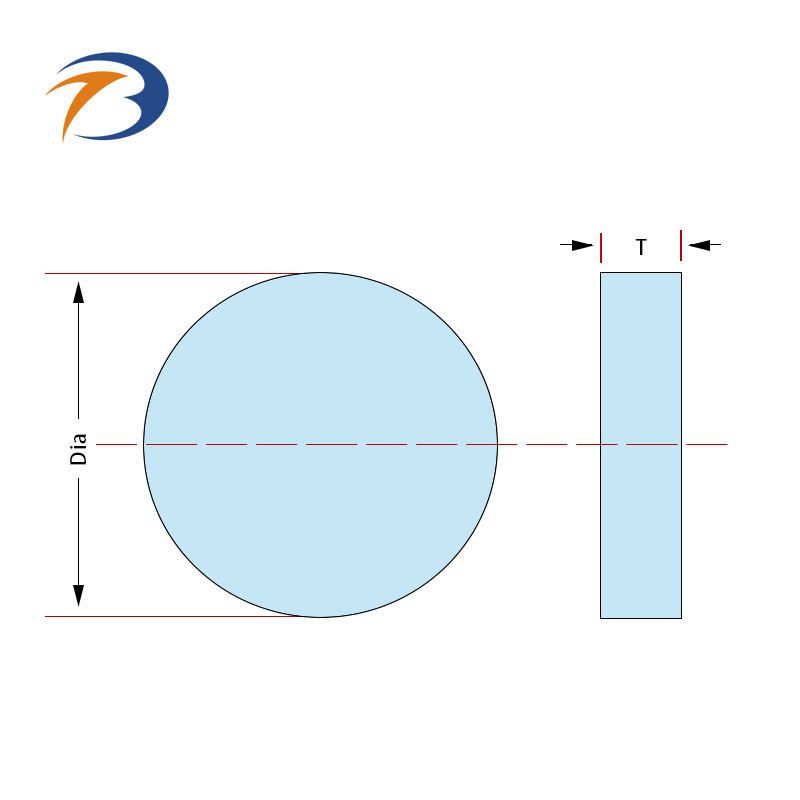

Diameter x Thickness (mm)
300.2 x 25.1

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	0.5 mm
Thickness	0.3 mm
Coating	anti-reflective (AR)
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	3 Years
Customized Support	OEM
Thickness Tolerance	+/-0.02mm
Parallelism	+/-3’,+/-30''
Bevel	0.1~0.3mm x 45 degree
Dimension	custom

FAQ

What is the minimum order quantity (MOQ) for sapphire windows?

The MOQ is not specified; please inquire for details.

Can I get sapphire windows in custom sizes?

Yes, custom dimensions are available to fit specific application requirements.
