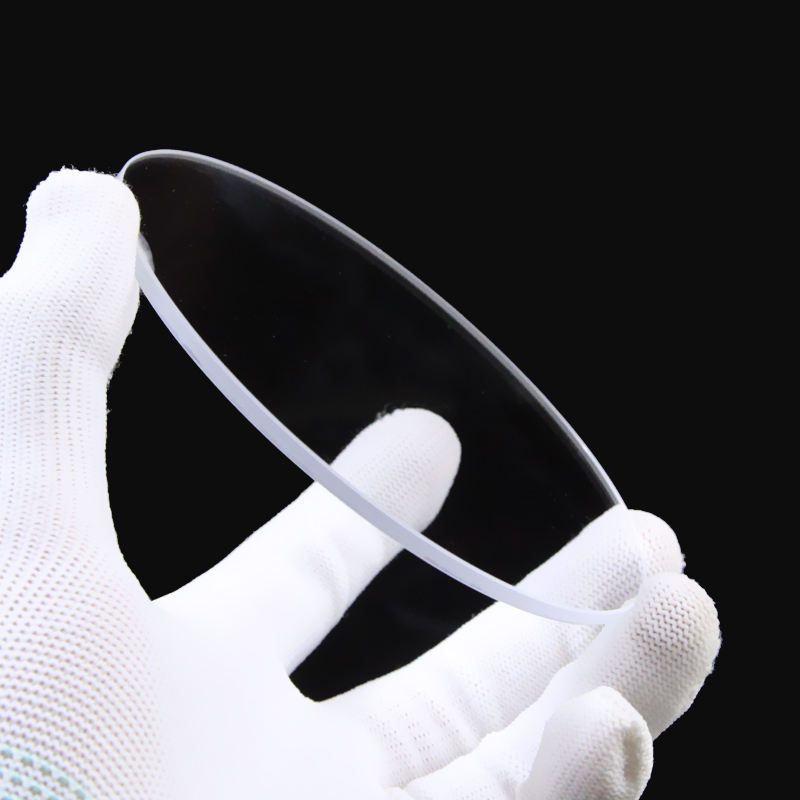

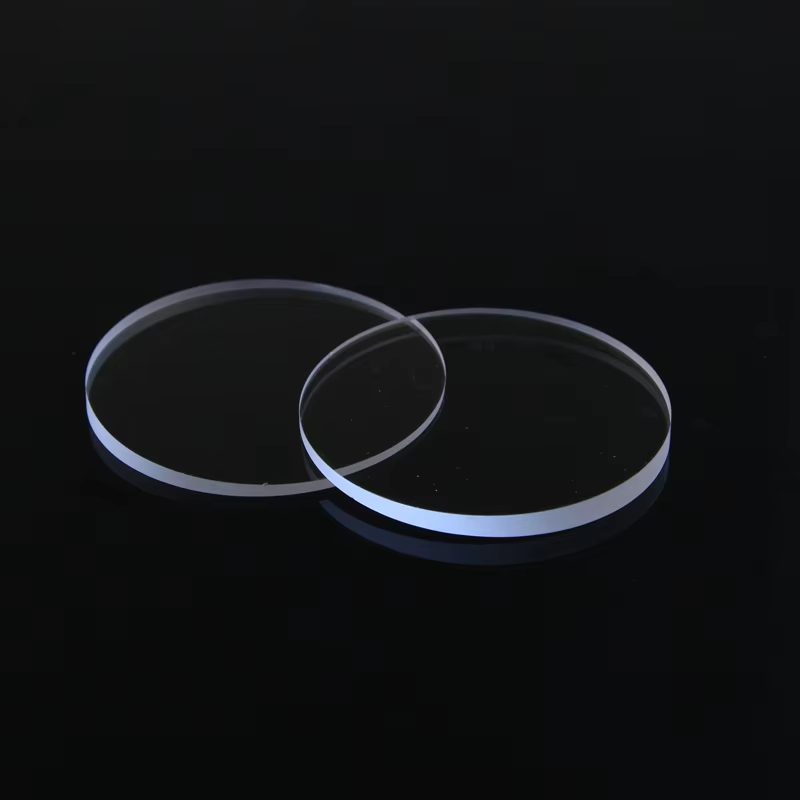

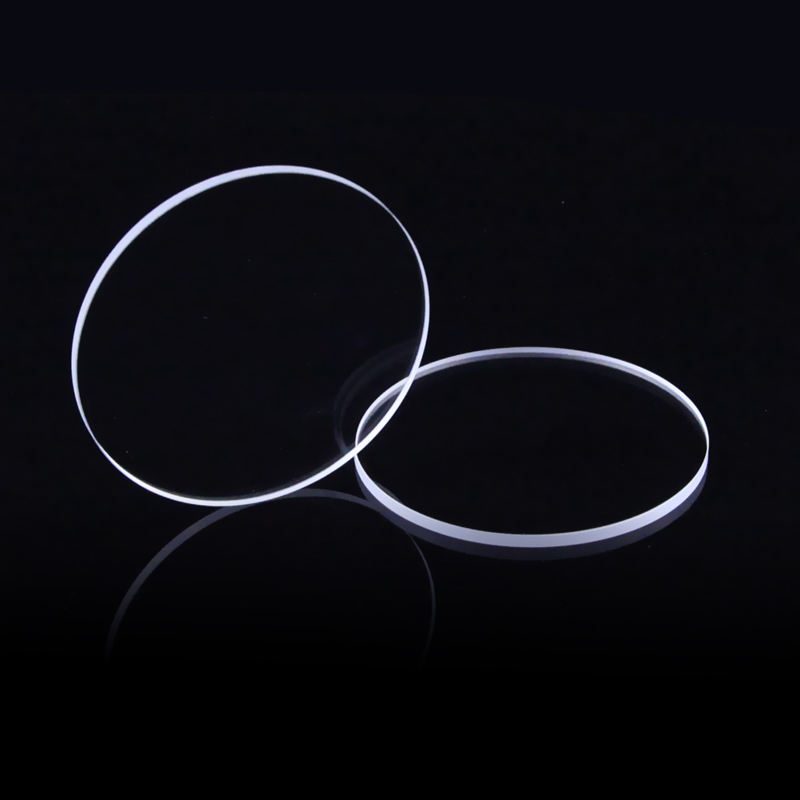

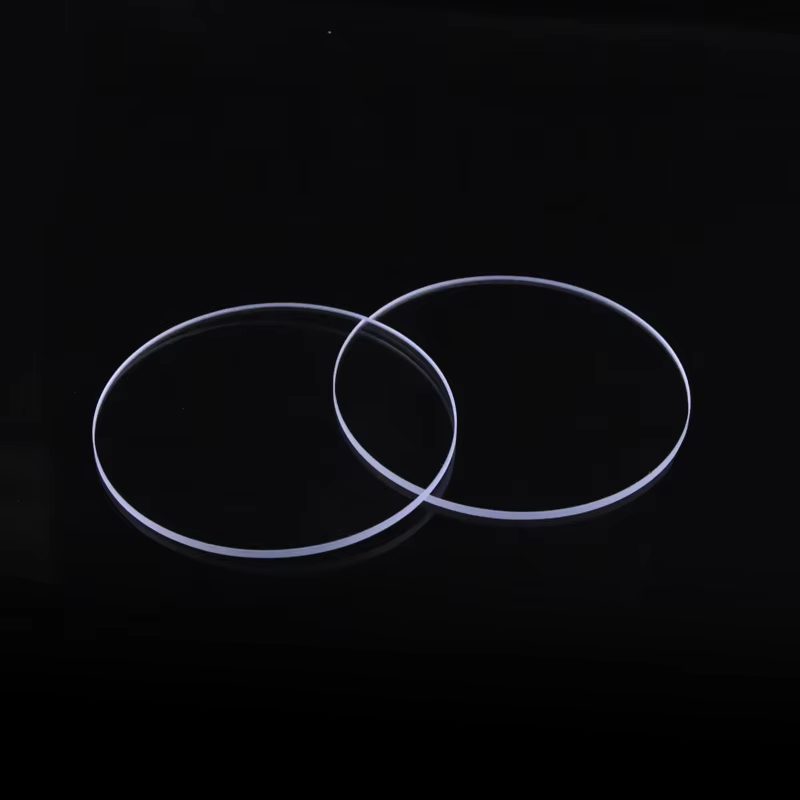

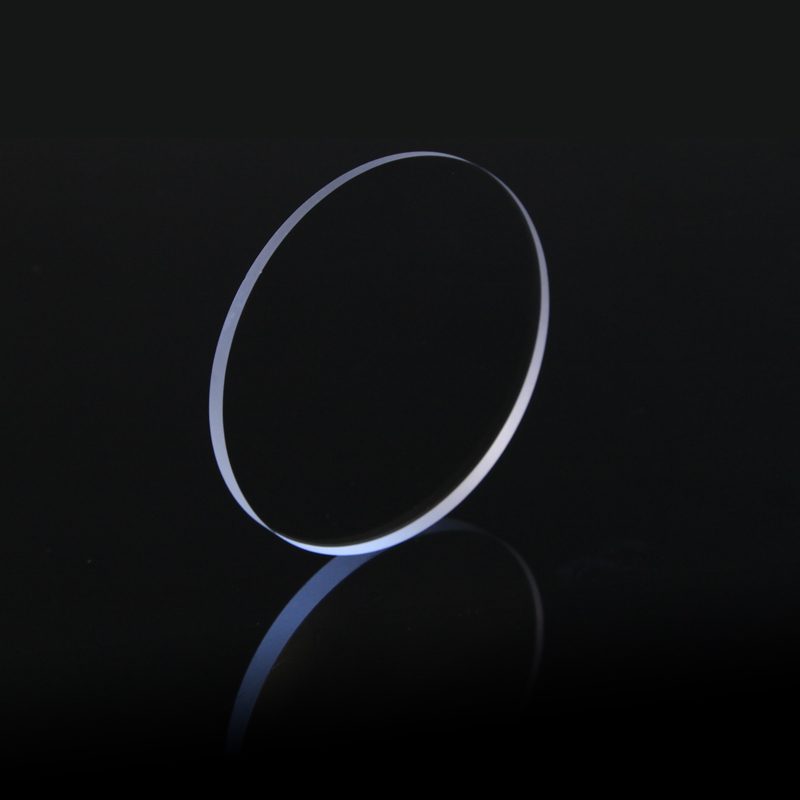

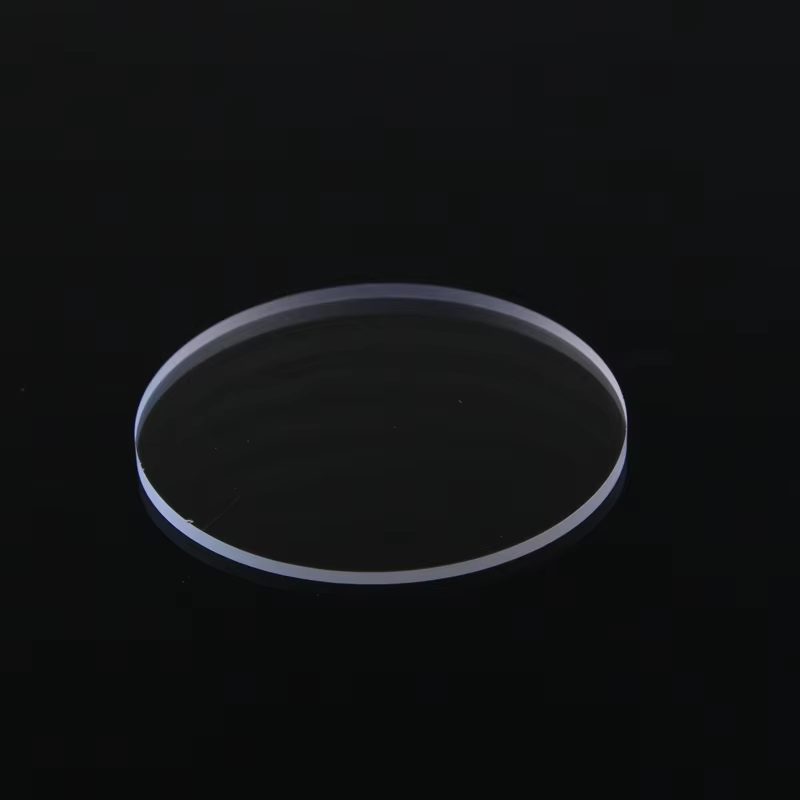

10x1 mm Sapphire Round Optical Window, AR Coated

Product description

This round sapphire plano-convex lens is ideal for applications in semiconductor and medical fields, operating effectively across multiple bands including 0.4-3 μm. With a diameter of 10 mm and a thickness of 1 mm, it provides high transmittance and low loss, making it suitable for precision optical systems. The lens can be customized to meet specific application needs, ensuring compatibility with various optical setups.

Key Features

Diameter: 10 mm, Thickness: 1 mm for compact integration in optical systems.
Surface Flatness: λ/4 ensures minimal wavefront distortion for high-quality imaging.
Parallelism: ≤30 arcsec for precise alignment in optical applications.
Clear Aperture: >90% maximizes light transmission for enhanced performance.
Customizable options available for OEM, ODM, and OBM to meet specific requirements.

Available Sizes

Diameter x Thickness (mm)
10 x 1

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	10 mm
Thickness	1 mm
Coating	anti-reflective (AR), uncoated
Transmission bands	SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.03
Dimension Tolerance	±0.1mm
Parallelism	≤30 arcsec
Surface Flatness	Lambda/4
Clear Aperture	>90%
Bevel	0.2 x 45 degrees

FAQ

What are the available custom sizes?

Currently, the standard size is a diameter of 10 mm and thickness of 1 mm, with potential for custom dimensions.

What are the tolerances for this lens?

The diameter and thickness tolerances are both ±0.1 mm.
