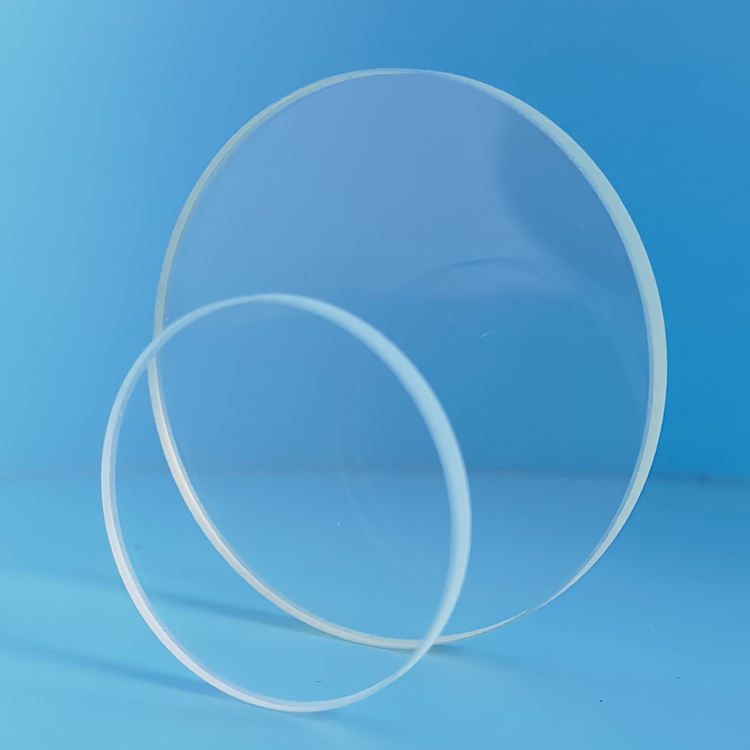

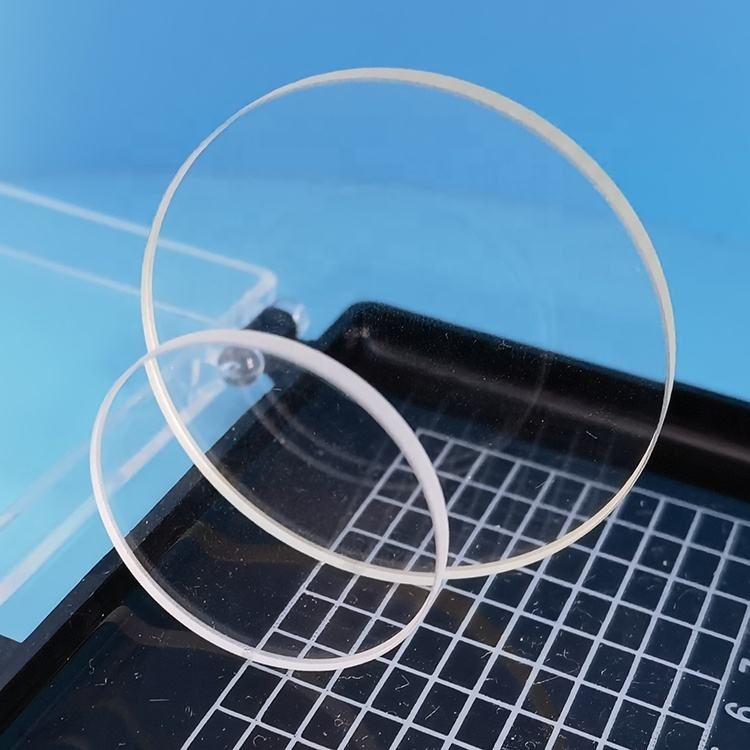

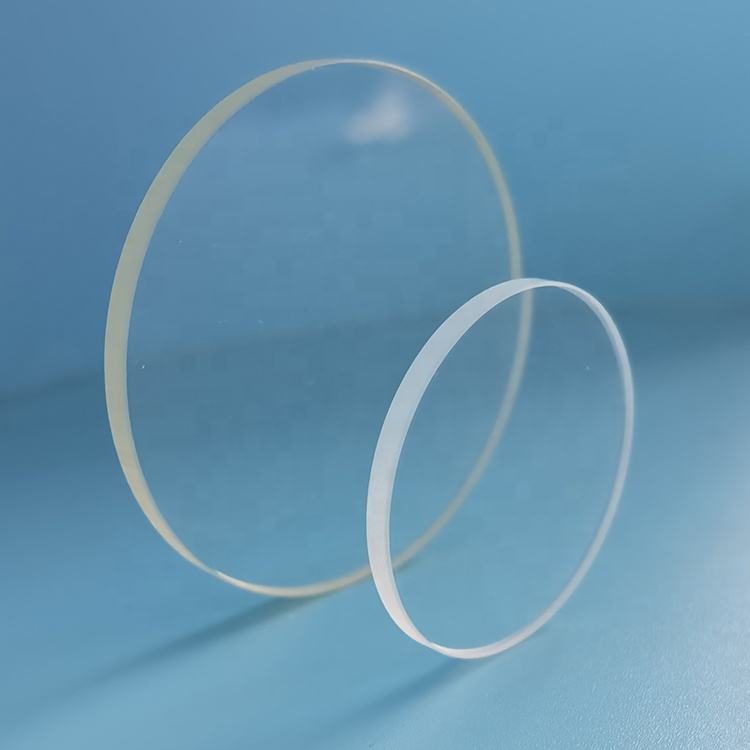

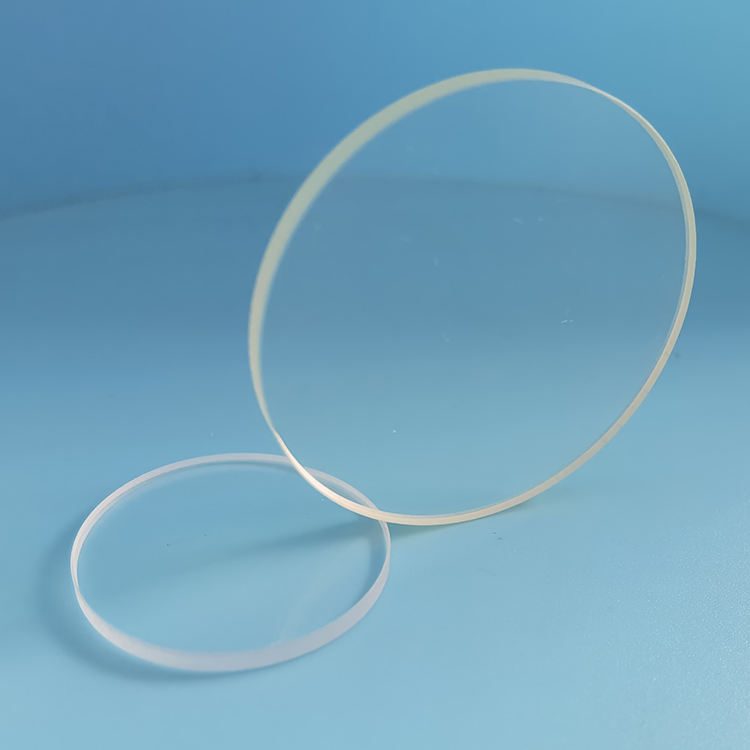

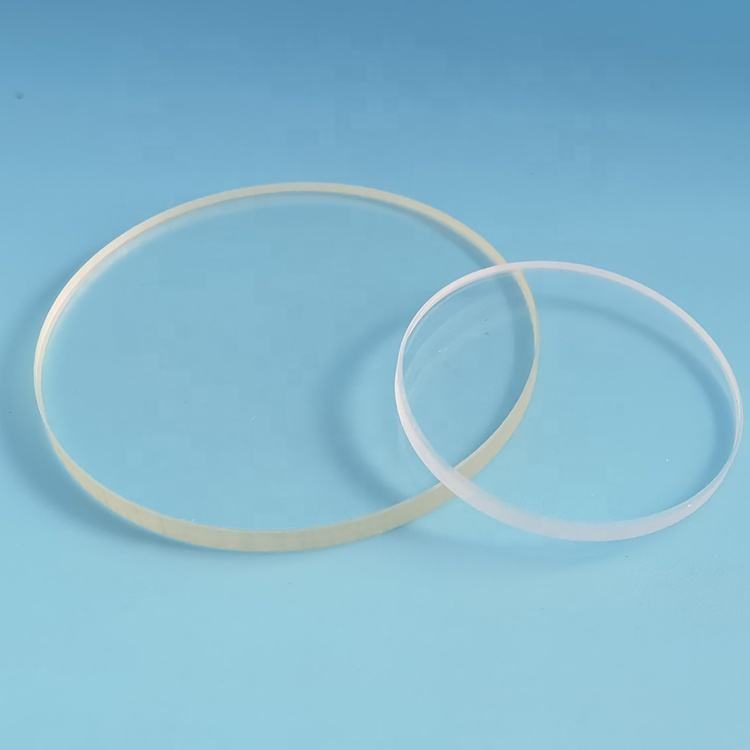

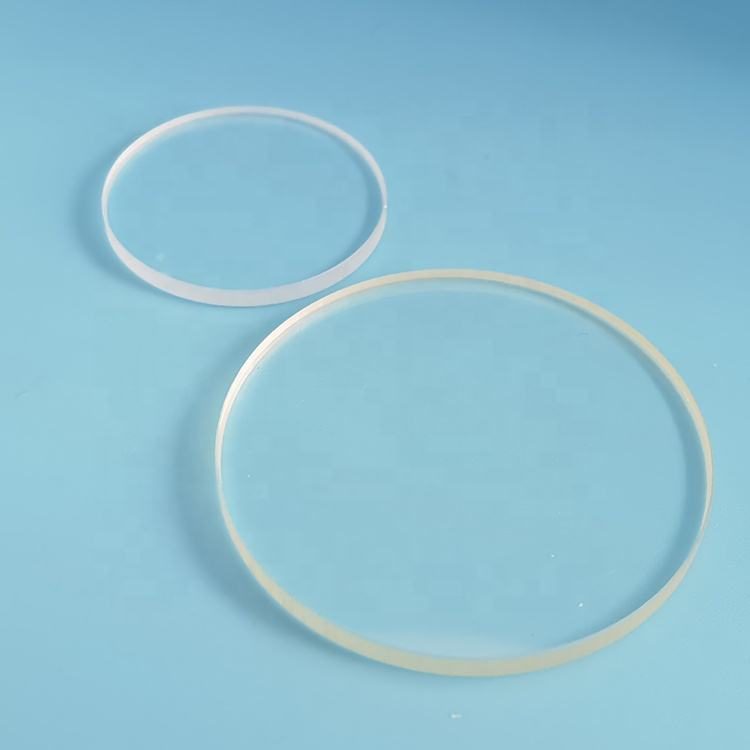

1x1 mm Sapphire Round Optical Window

Product description

This round sapphire window is designed for medical applications, offering high durability and excellent optical performance. With a diameter range of 1.0 to 250.0 mm and thickness options from 1.0 to 50.0 mm, it meets diverse requirements. The sapphire material ensures high resistance to scratches and environmental factors, making it ideal for sensitive medical devices. Its specifications, including a surface quality of 60/40 and a clear aperture greater than 98%, ensure optimal performance in various optical systems.

Key Features

Diameter range: 1.0 to 250.0 mm for versatile application fit.
Thickness options: 1.0 to 50.0 mm to accommodate different design needs.
Surface quality of 60/40 ensures minimal optical distortion.
Clear aperture greater than 98% maximizes light transmission.
Flatness of λ/4 provides high precision for demanding applications.

Available Sizes

Diameter x Thickness (mm)
125.5 x 25.5

Applications

Medical

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	1 mm
Thickness	1 mm
Surface Quality	60/40
MOQ	—

Full Specifications

Parameter	Value
Diameter Tolerance	+/-0.1mm
Clear Aperture	> 98%
Flatness	L/4
Bevel	0.25 mm*45°

FAQ

What are the tolerances for custom sizes?

Diameter tolerance is +/-0.1 mm, ensuring precise fitting for applications.

Is there a minimum order quantity (MOQ) for these windows?

The MOQ is not specified, allowing for flexible ordering options.
