1 / 6Optical Windows

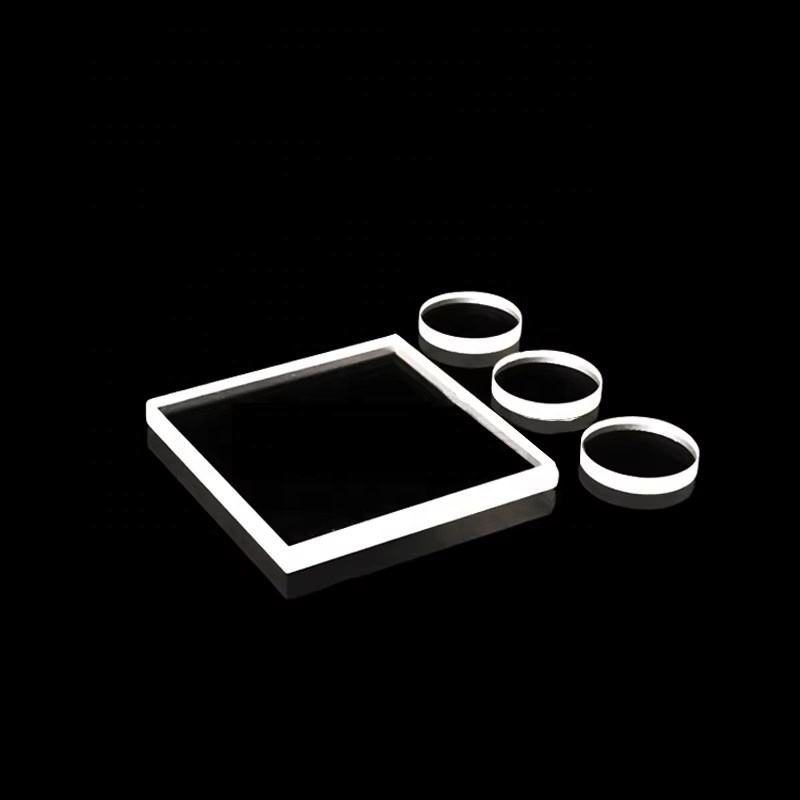

1 mm Sapphire Round Optical Window
Round sapphire optical window plates with customizable sizes and high clarity for precision applications.
Core attributes
- Material
- Sapphire
- Shape
- round
- Diameter range
- 1–500 mm
Product facts
Key attributes
- Material
- Sapphire
- Shape
- round
- Diameter range
- 1–500 mm
Product description
This round sapphire optical window plate is designed for high-clarity applications requiring superior transmission. With a surface quality of 60/40 and customizable sizes ranging from 1.0 mm to 500.0 mm in diameter, it is suitable for various optical equipment needs. The product ensures a clear aperture of at least 80% of the central area, making it ideal for precision applications in IR imaging, LIDAR, and medical devices.
Key Features
- Diameter range: 1.0 mm to 500.0 mm, accommodating various application requirements.
- Surface quality of 60/40, ensuring high clarity and optical precision.
- Clear aperture of at least 80% for optimal performance in critical applications.
- Customizable options available for OEM, ODM, and OBM projects.
- Surface flatness options of 1/4 or 1/8 at 633 nm for enhanced optical performance.
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Shape | Round |
| Diameter | 1 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | optical window |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Surface Flatness | 1/4 or 1/8@633nm |
| Clear Aperture | >/=central 80% |
| Package | Common Box |
FAQ
What custom sizes are available?
Sizes can be customized from 1.0 mm to 500.0 mm in diameter.
What are the surface flatness options?
Surface flatness options include 1/4 or 1/8 at 633 nm.
