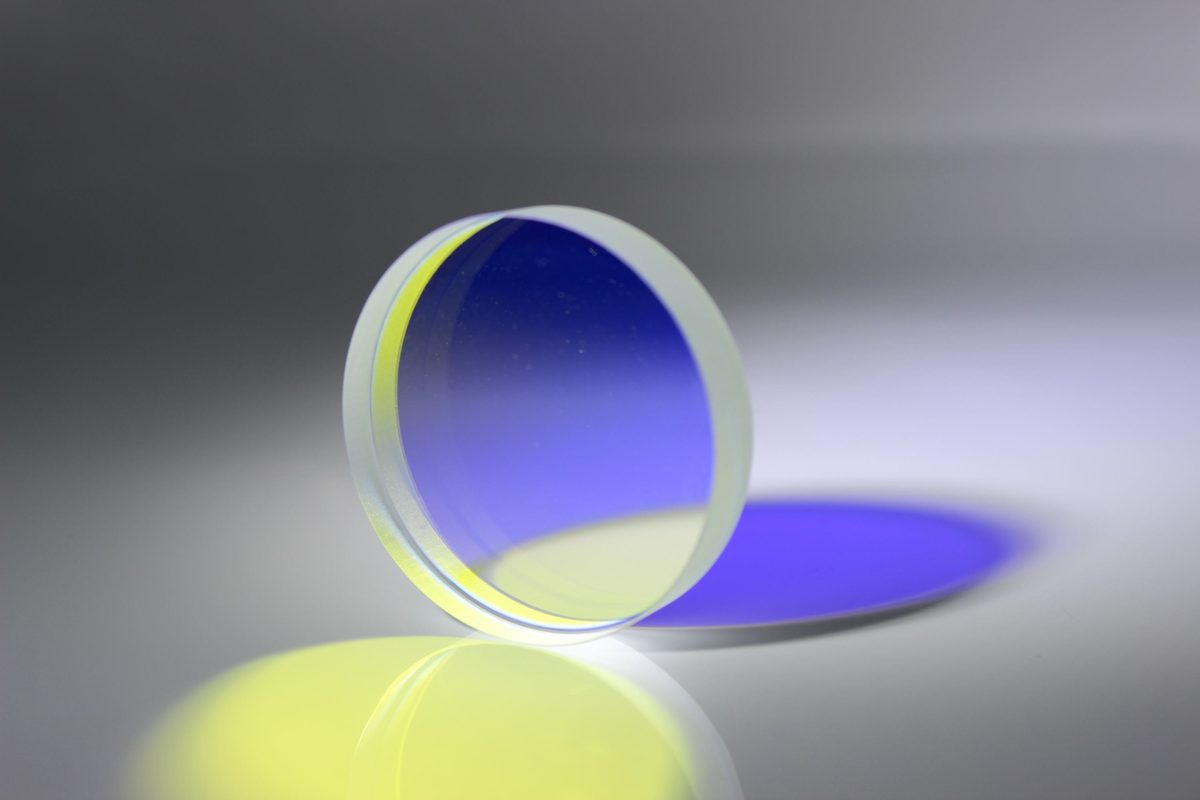

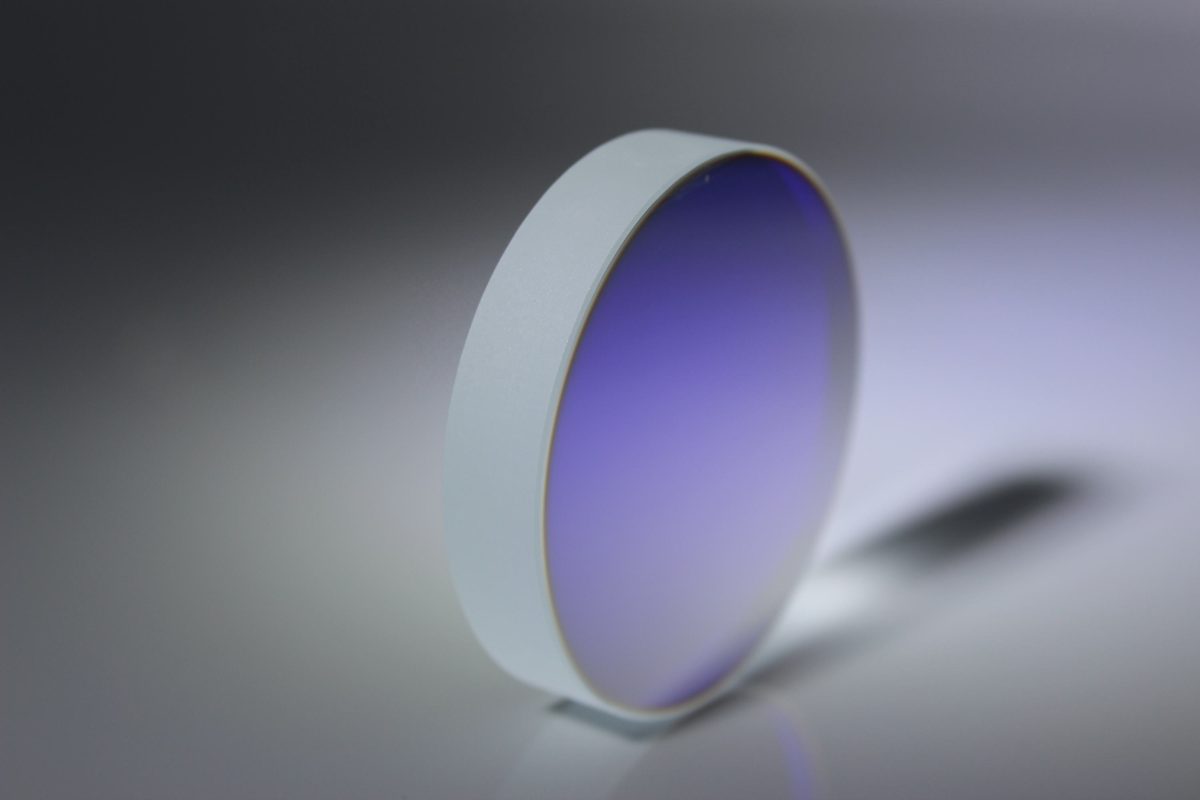

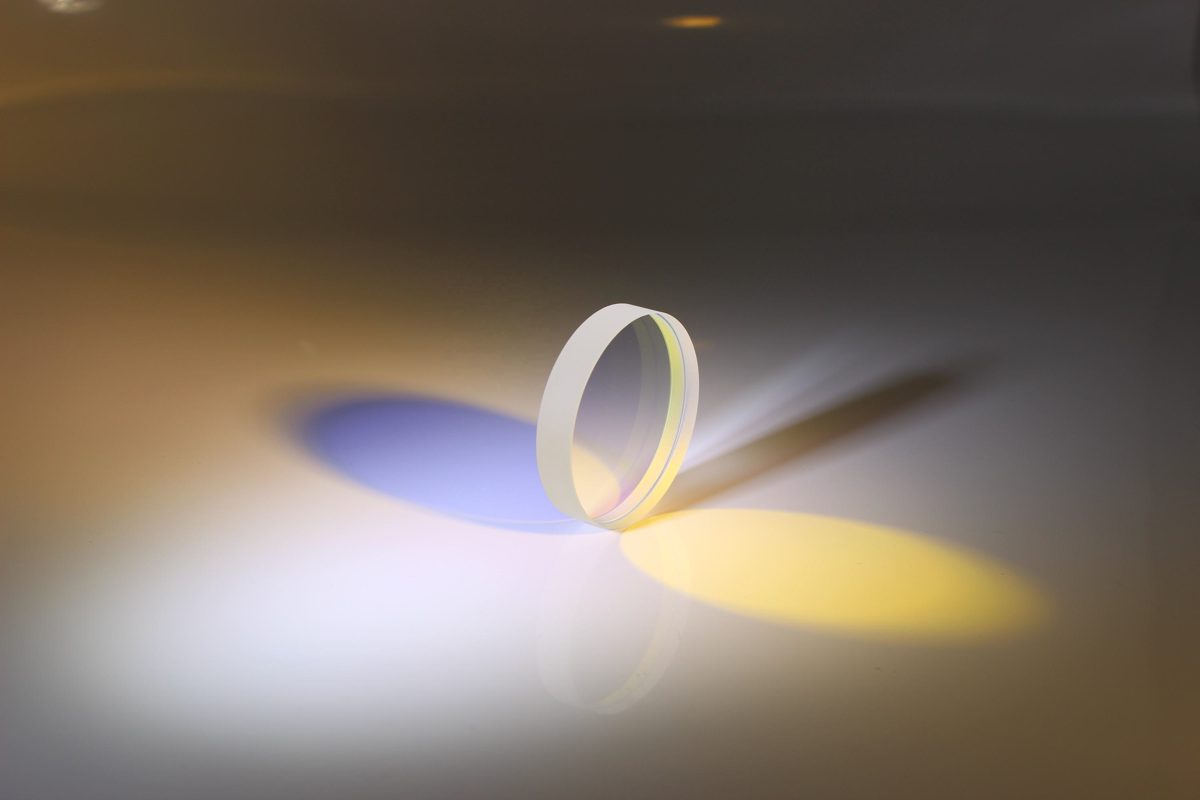

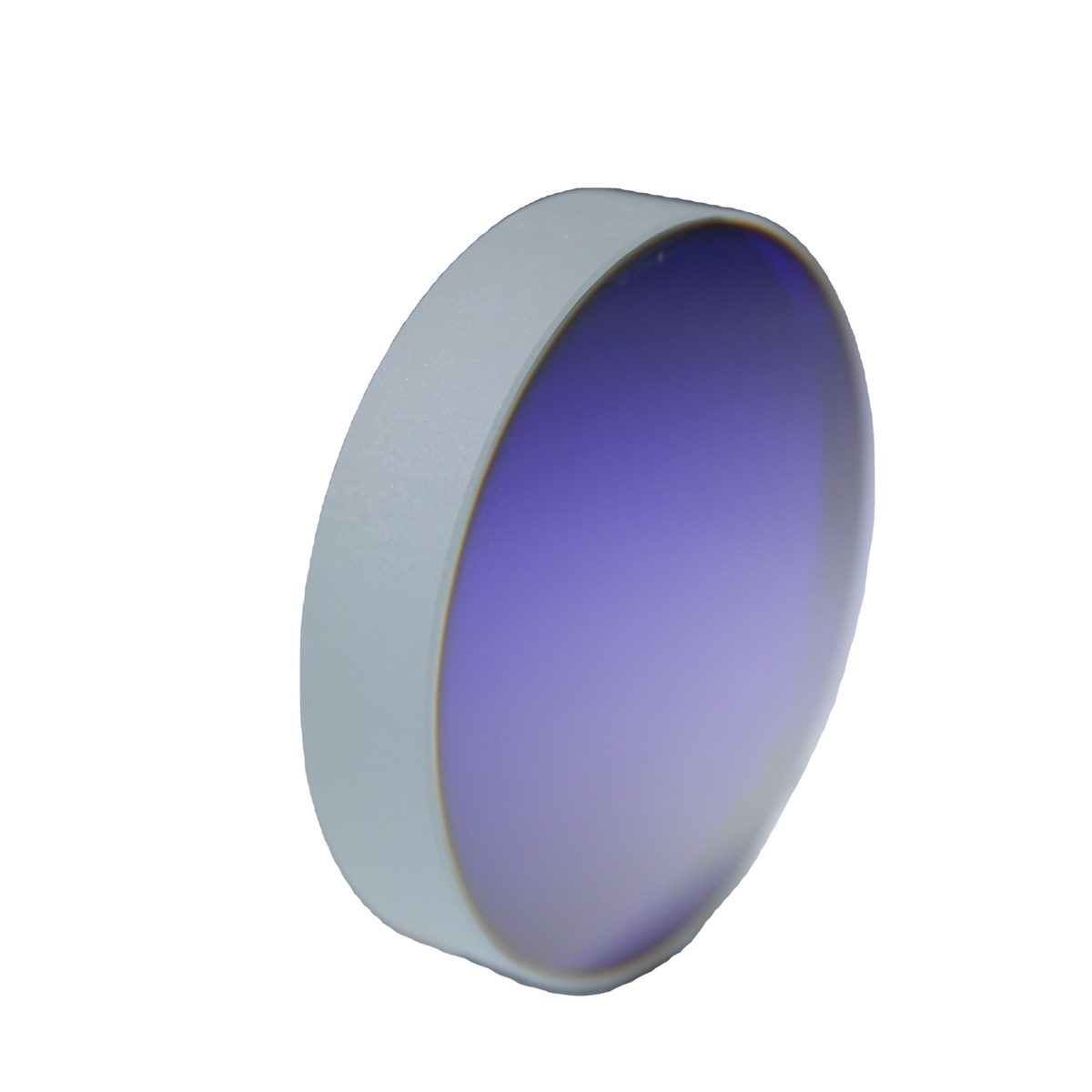

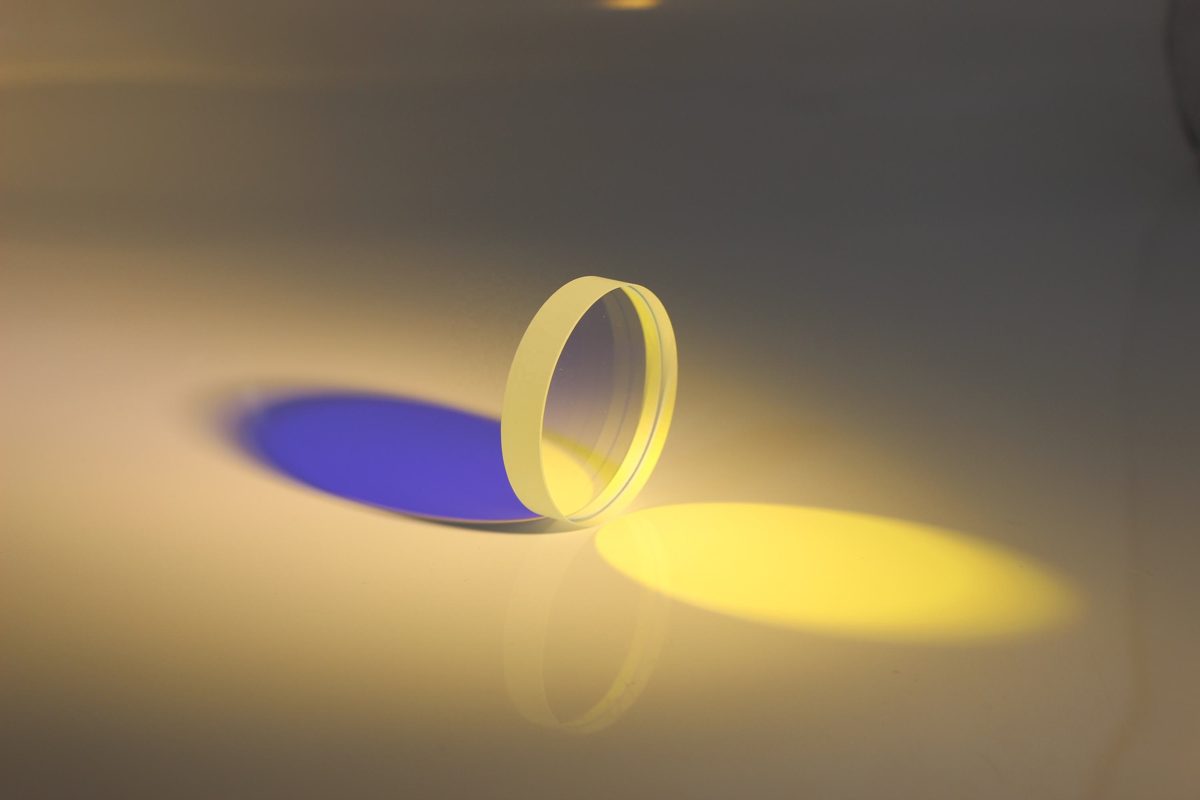

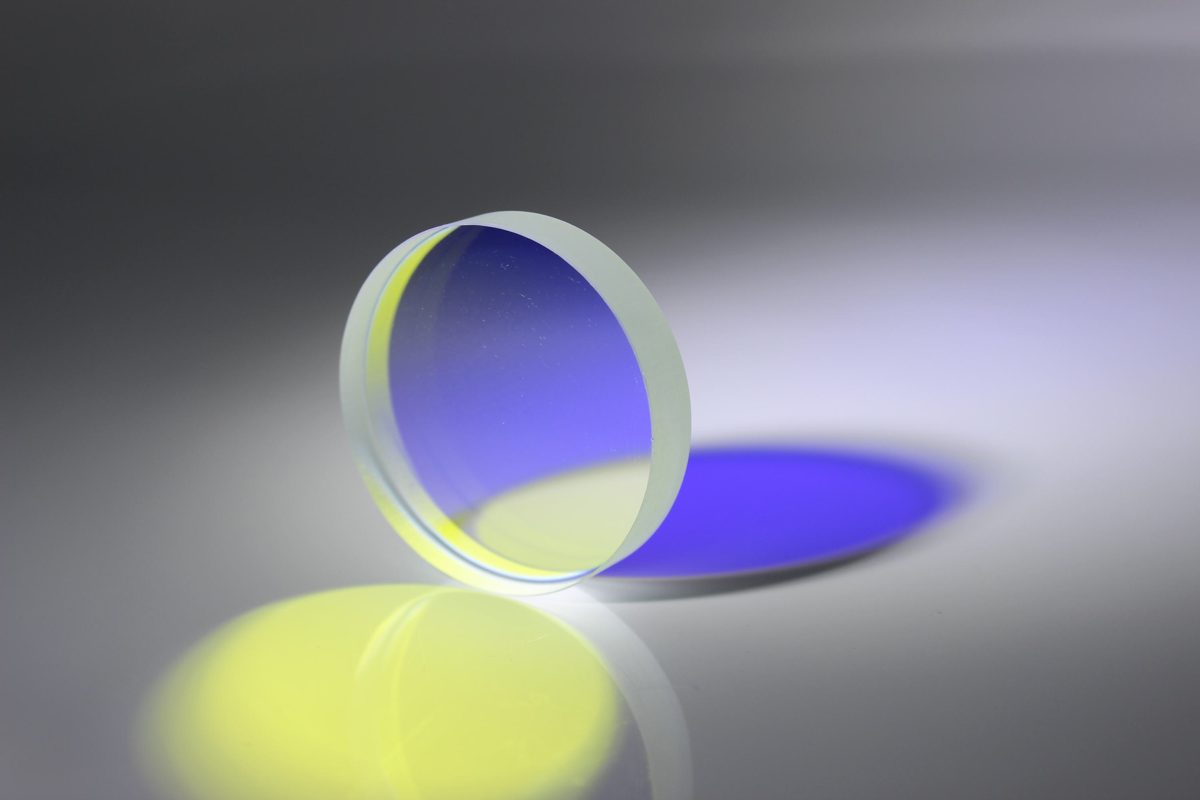

1 mm Sapphire Round Optical Window, AR Coated

Product description

Sapphire optical windows provide a robust solution for security applications, allowing light transmission while isolating environments. With a diameter range of 1.0 mm to 460.0 mm and a surface quality of 60/40, these windows are ideal for demanding optical needs. The anti-reflective coatings enhance performance, ensuring minimal light loss. Their high durability makes them suitable for various environmental conditions.

Key Features

Diameter range: 1.0 mm to 460.0 mm for versatile applications.
Surface quality of 60/40 ensures reliable optical performance.
Parallelism tolerance of +/- 3’ and +/- 30’’ for precise alignment.
Customized support available for OEM and ODM projects.
Bevel specifications of 0.1-0.3 mm x 45 degrees for enhanced edge quality.

Applications

Security

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Warranty	1 year
Customized Support	OEM, ODM
Parallelism	+/- 3’,+ / - 30"
Thickness Tolerance	±0.1mm,+/- 0.02mm
Bevel	0.1-0.3mm x45 degree

FAQ

What are the thickness tolerances for these windows?

Thickness tolerance is ±0.1 mm or +/- 0.02 mm.

Can I request custom sizes for the sapphire windows?

Yes, custom sizes are available upon request.
