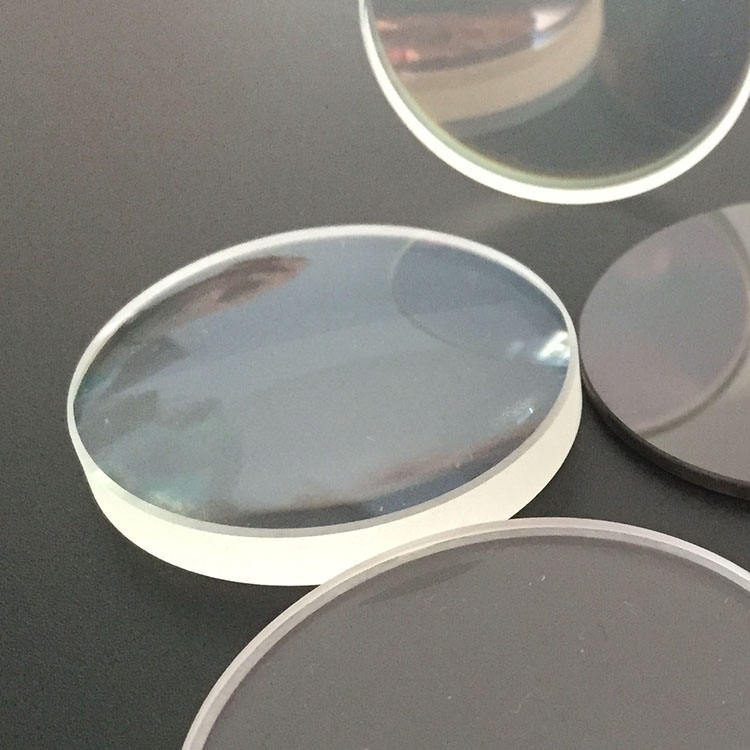

1 mm Sapphire Round Optical Window, AR Coated

Product description

This round sapphire flat lens provides exceptional optical performance with a surface quality of 60/40 and a clear aperture exceeding 92%. Ideal for applications in IR imaging and lasers, it offers reliable performance across various wavelengths. With custom length options and a high degree of parallelism, this lens is suitable for precision applications where clarity and durability are paramount.

Key Features

Surface quality of 60/40 ensures minimal distortion, enhancing image clarity.
Clear aperture greater than 92% maximizes light transmission for optimal performance.
Parallelism of 2 arc seconds supports precise alignment in optical systems.
Custom length options available to fit specific application requirements.
Lightweight design at 0.01 kg allows for easy integration into various systems.

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
MOQ	—

Full Specifications

Parameter	Value
Type	Flat lens
Customized Support	OEM
Warranty	3 month
Weight	0.01kg(0.02lb)
Parallelism	2 arc seconds
Centering	30 arc min
Irregularity	L/4
Clear Aperture	>92%
Length	custom

FAQ

Can I get custom sizes for this lens?

Yes, custom length options are available to meet specific application needs.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
