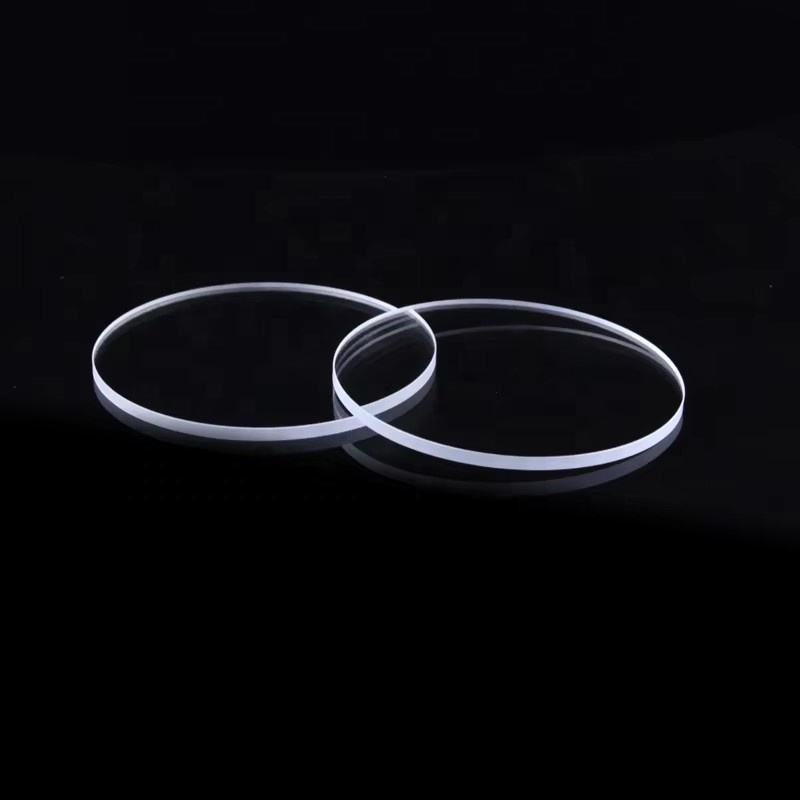

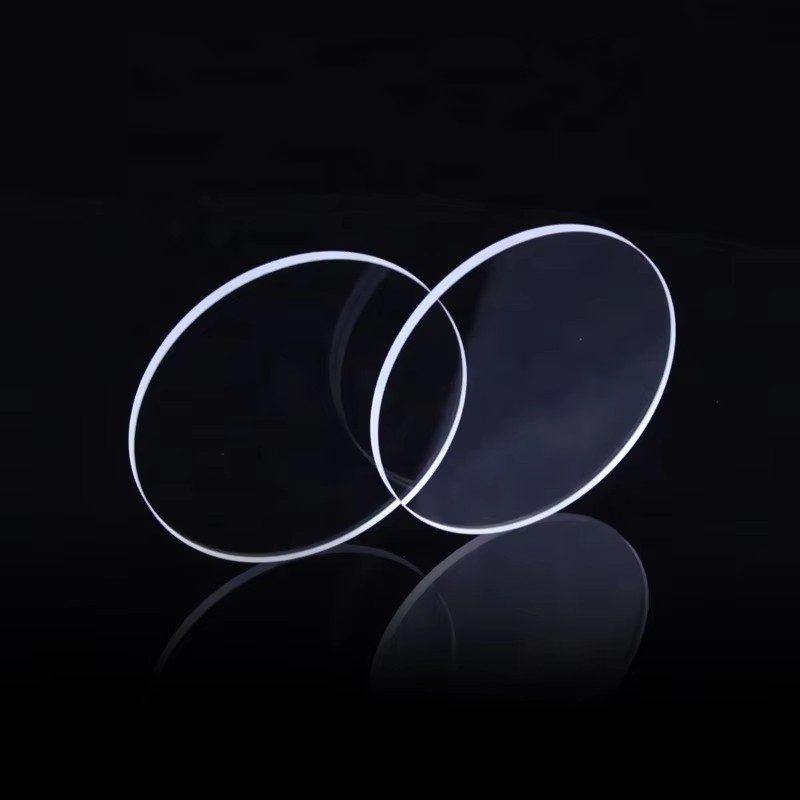

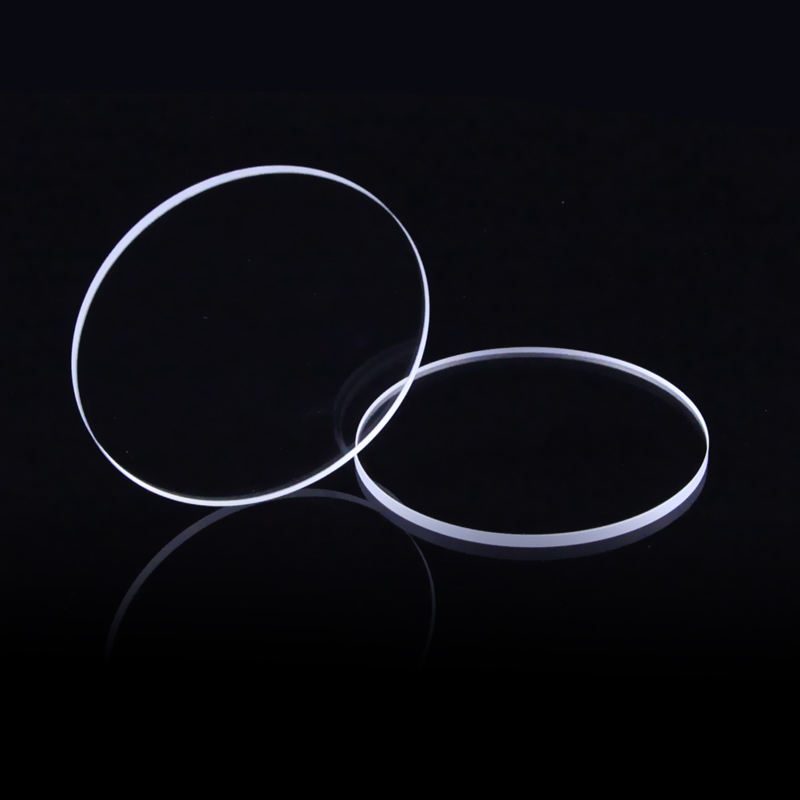

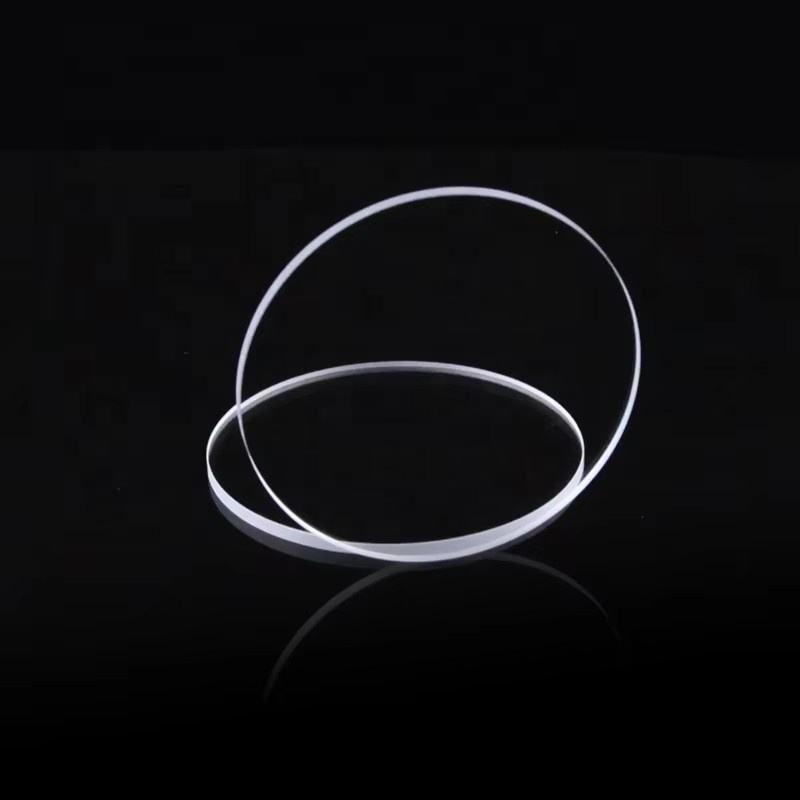

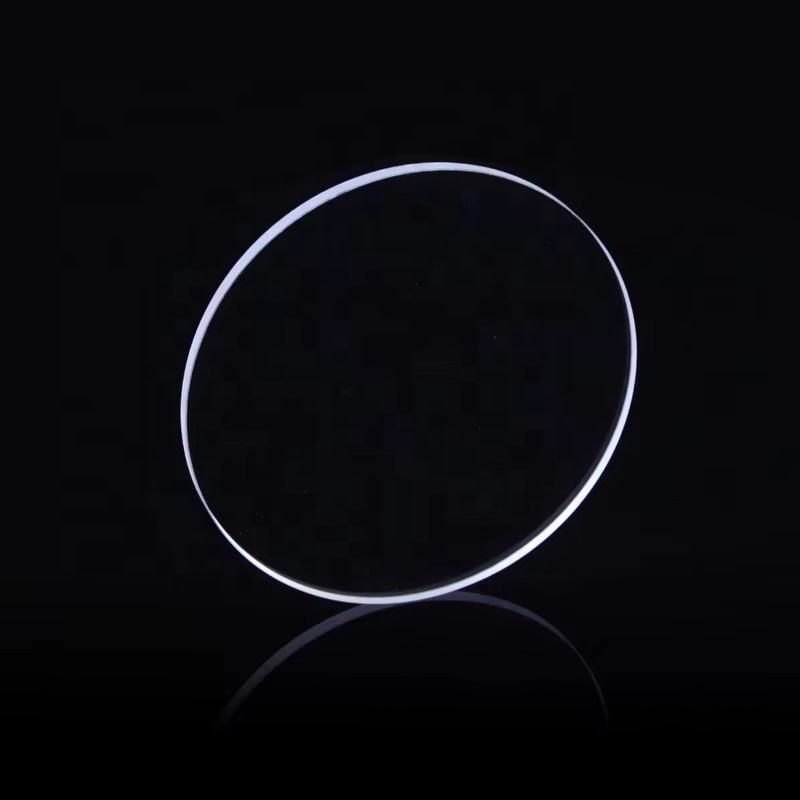

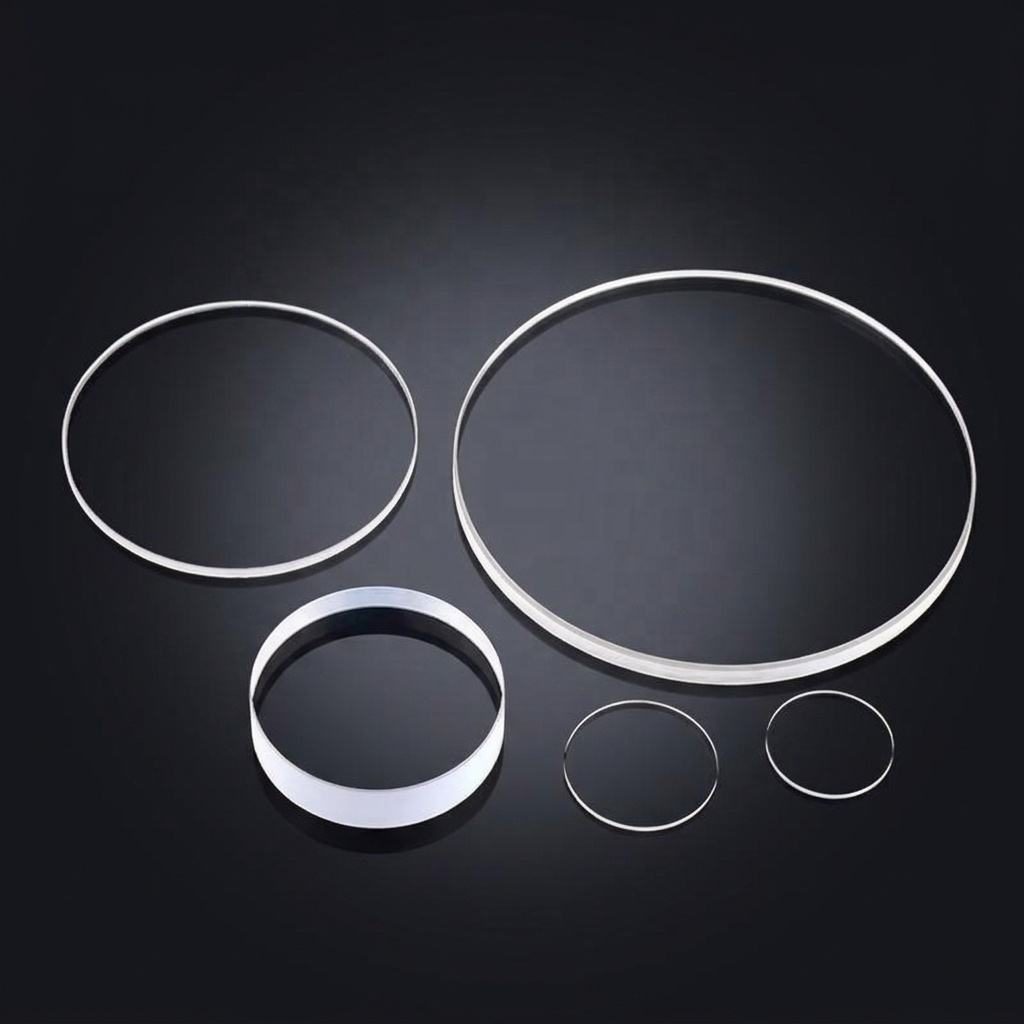

1 mm Sapphire Round Optical Window

Product description

This optical sapphire window is designed for applications requiring high durability and transparency across the 0.7-1.7 μm and 400-700 nm bands. With a diameter range from 1.0 mm to 500.0 mm, it provides excellent surface quality (40/20) and a clear aperture of at least 80% of the diameter. Ideal for optical equipment, it offers customization options to meet specific project needs.

Key Features

High hardness and scratch resistance enhance durability for demanding applications.
Surface quality of 40/20 ensures minimal distortion and high clarity.
Diameter tolerance of +/-0.1 mm allows for precise fitting in optical systems.
Custom sizing options available, supporting OEM, ODM, and OBM requests.
Clear aperture of >=80% maximizes light transmission for effective performance.

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	1 mm
Thickness	Custom
Surface Quality	40/20
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Prism Type	optical window
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Diameter Tolerance	+/-0.1
Surface Flatness	1/4@633nm
Clear Aperture	>=central 80% of diameter

FAQ

What custom sizes are available?

Diameters range from 1.0 mm to 500.0 mm, with options for custom dimensions.

What is the diameter tolerance?

The diameter tolerance is +/-0.1 mm, ensuring accurate fitting for your applications.
