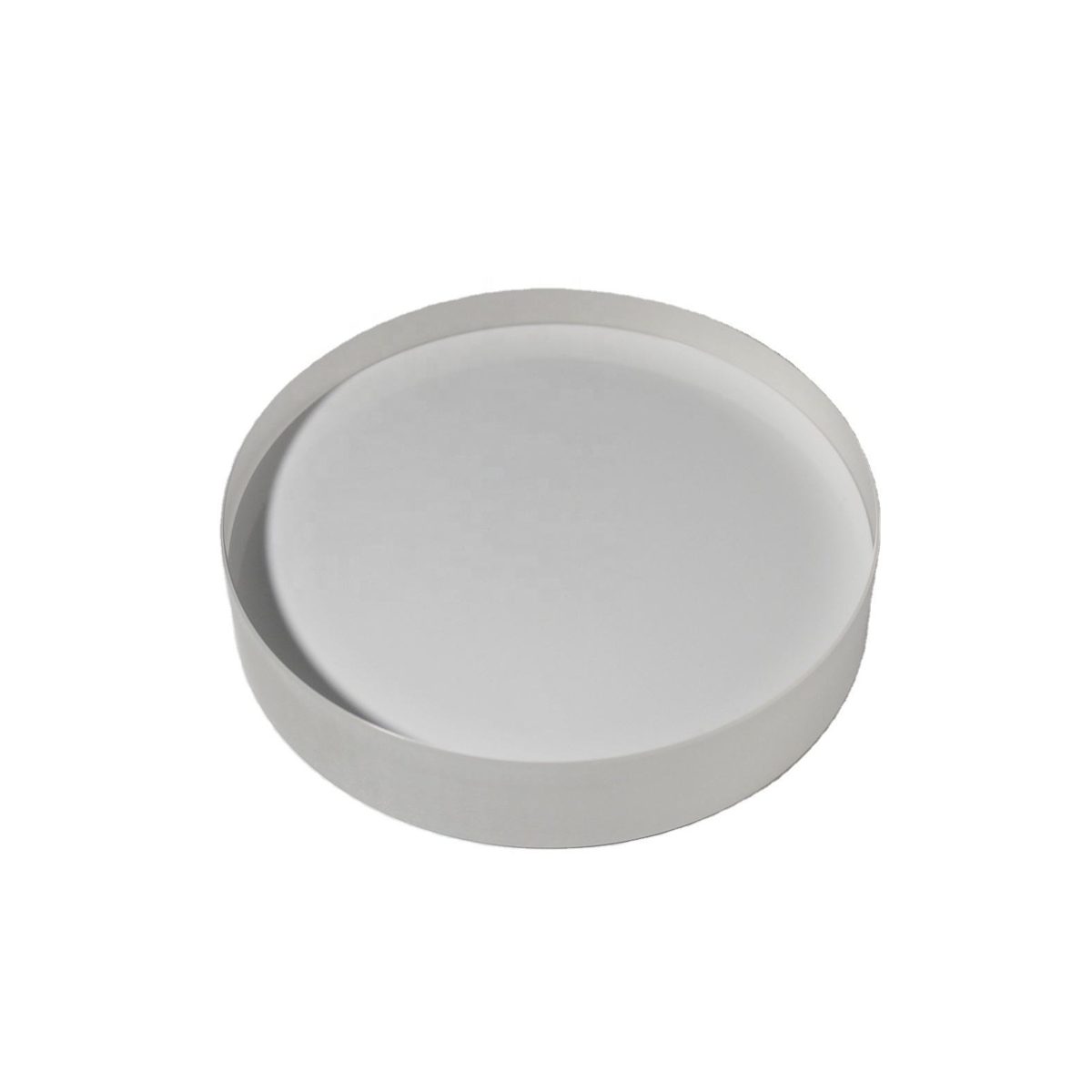

3x0.1 mm Sapphire Round Optical Window, AR Coated

Product description

This sapphire window is designed for security applications, providing excellent optical performance with a surface quality of 10/5. Its round shape and anti-reflective coating enhance transmittance, making it ideal for various optical systems. With a diameter of 3.0 mm and a thickness of 0.15 mm, it meets precise dimensional requirements, ensuring reliable integration into your devices.

Key Features

Surface quality of 10/5 ensures minimal distortion, enhancing image clarity.
Diameter tolerance of +/-0.01 mm allows for precise fitting in optical assemblies.
Thickness tolerance of +/-0.1 mm supports consistent performance across applications.
Customizable options available for OEM and ODM projects to meet specific needs.
Surface figure of λ/10 enables high precision, suitable for demanding optical applications.

Available Sizes

Diameter x Thickness (mm)
3 x 0.1

Applications

Security

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	3 mm
Thickness	0.1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Dome Lens; optical window
Customized Support	OEM, ODM
Weight	as request
Name	sapphire Windows
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.1mm
Surface Figure	lamda/10(PV flat surface can achieve 0.03um per 150mm)

FAQ

Can I get custom sizes for the sapphire window?

Yes, customizable options are available for OEM and ODM projects.

What are the tolerances for diameter and thickness?

The diameter tolerance is +/-0.01 mm, and the thickness tolerance is +/-0.1 mm.
