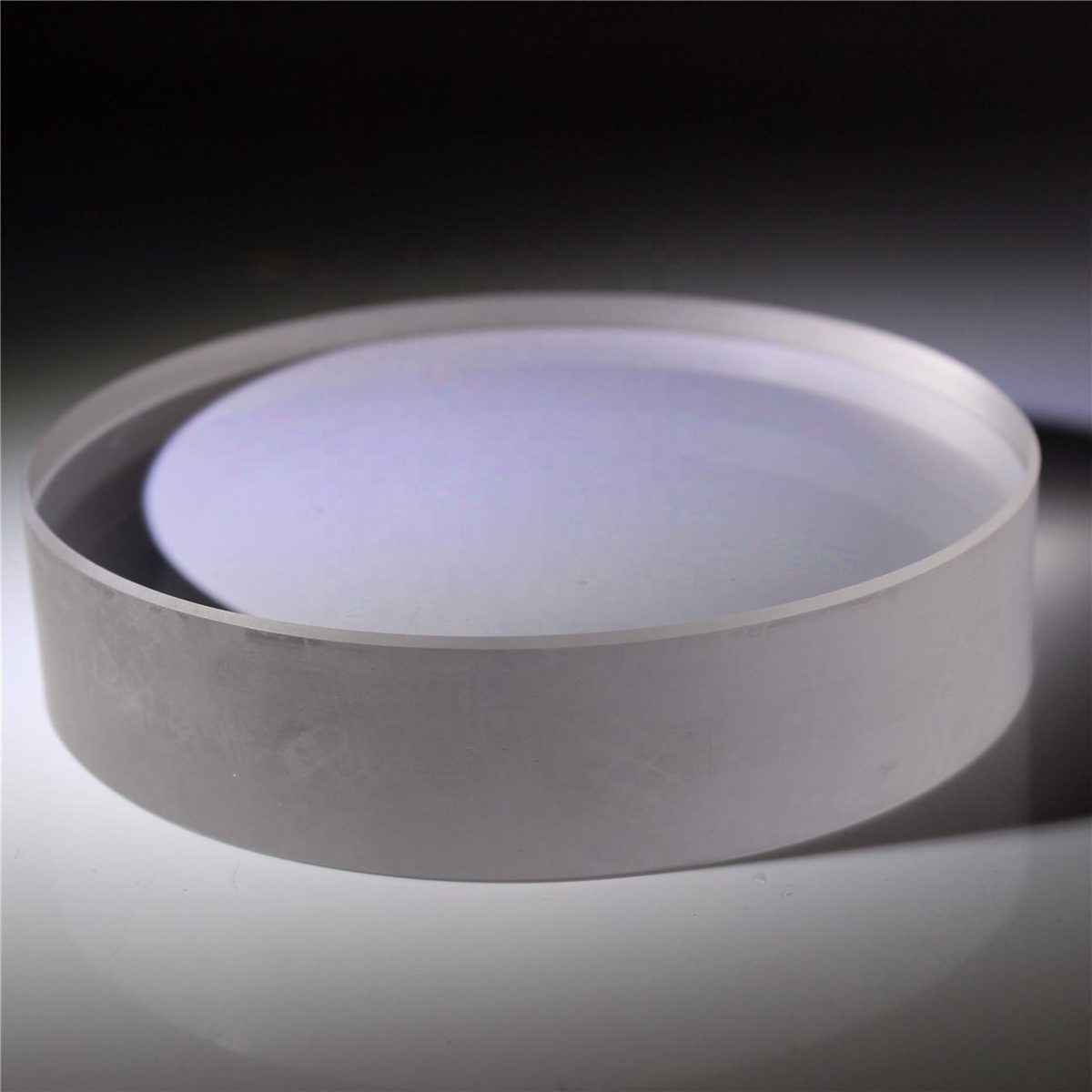

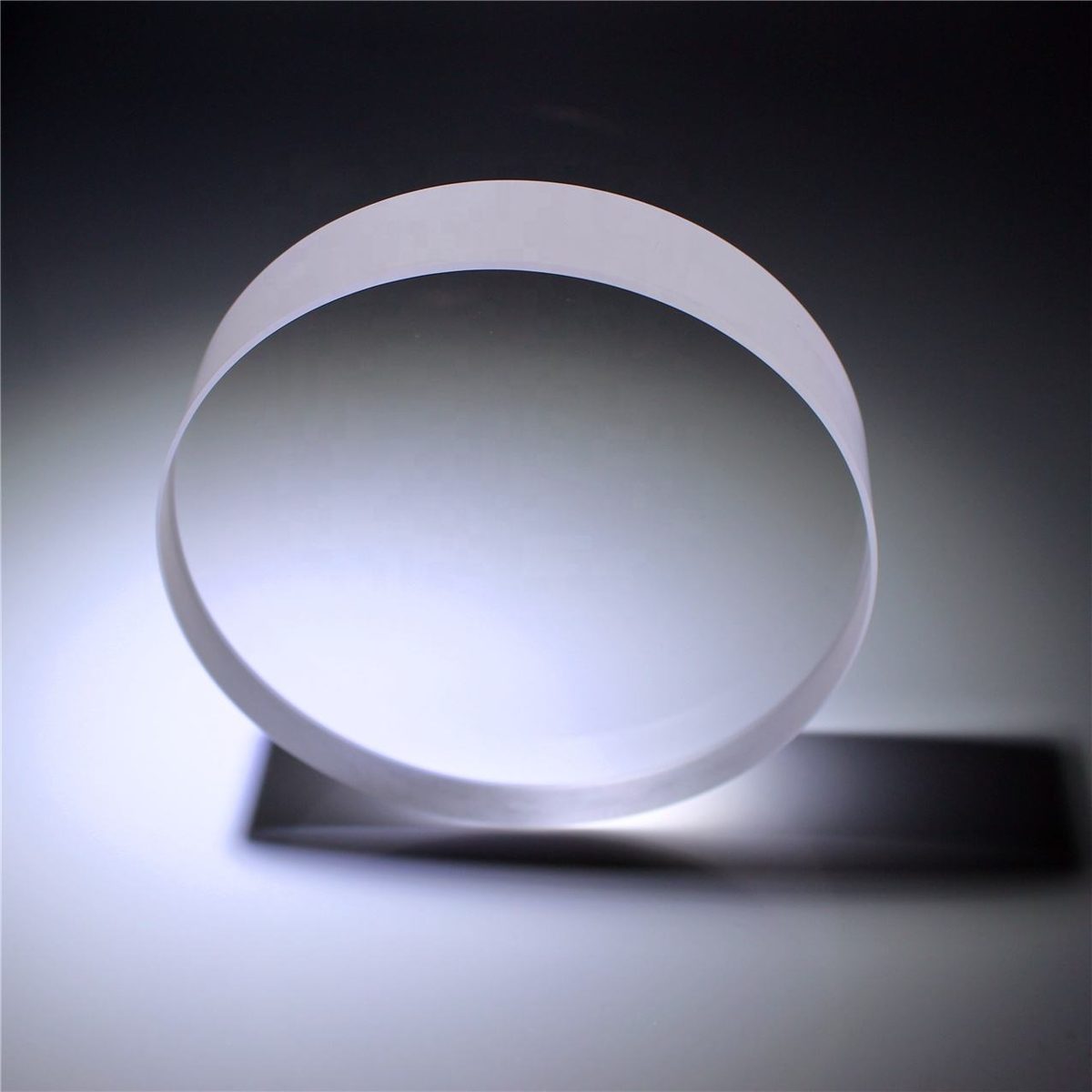

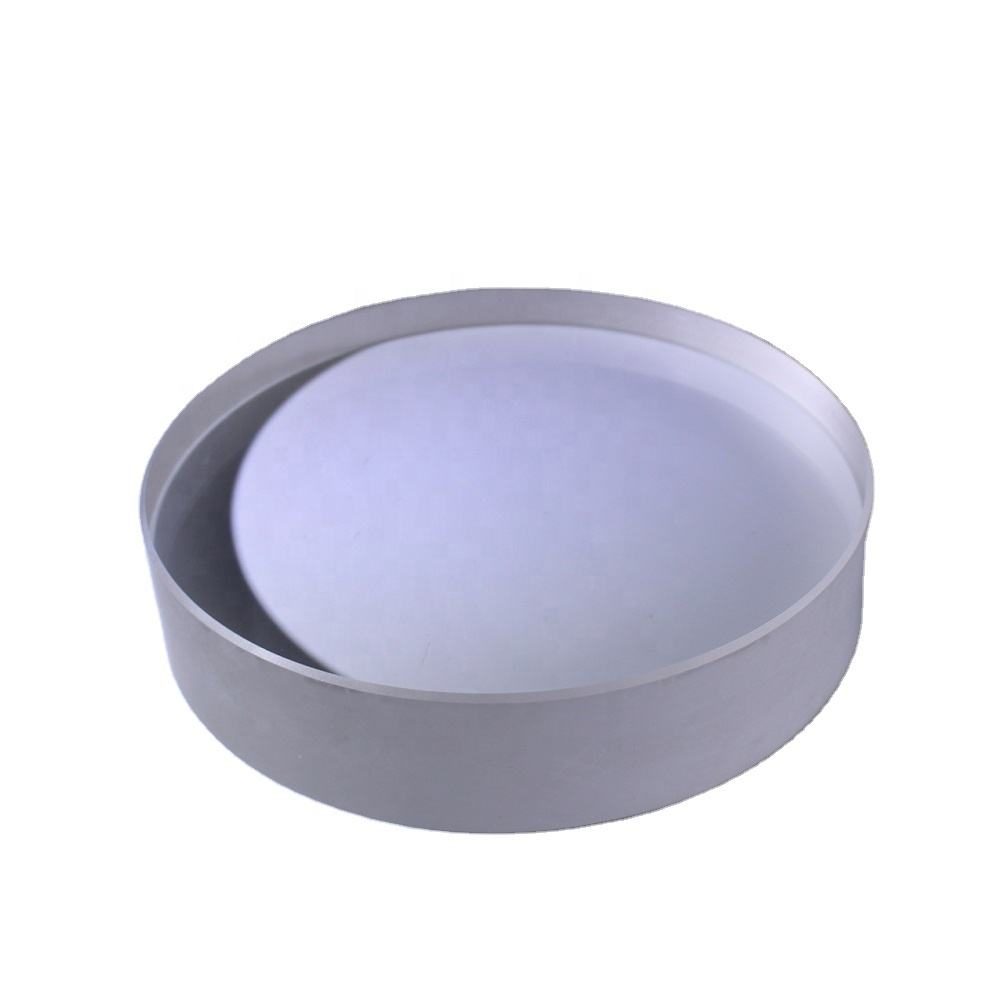

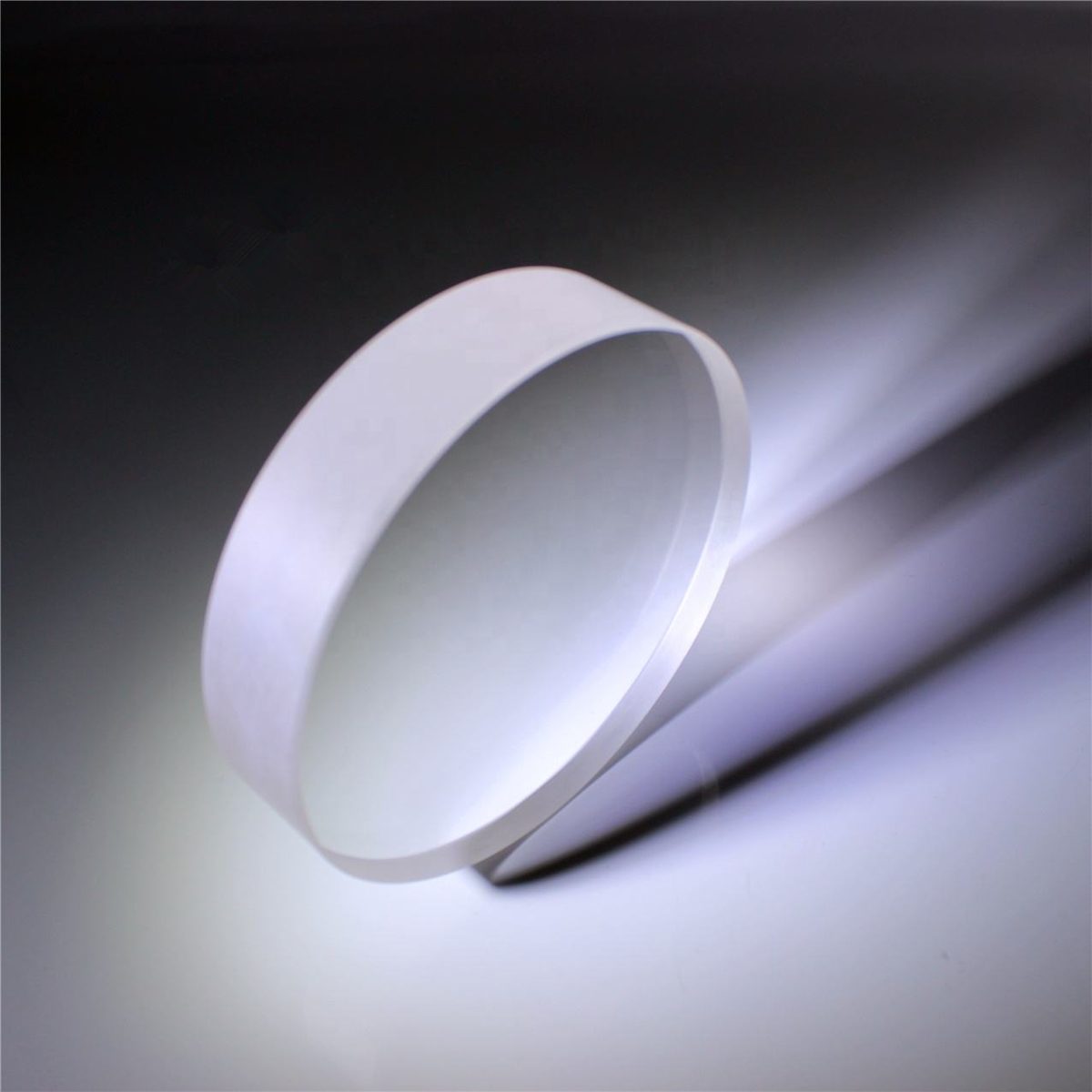

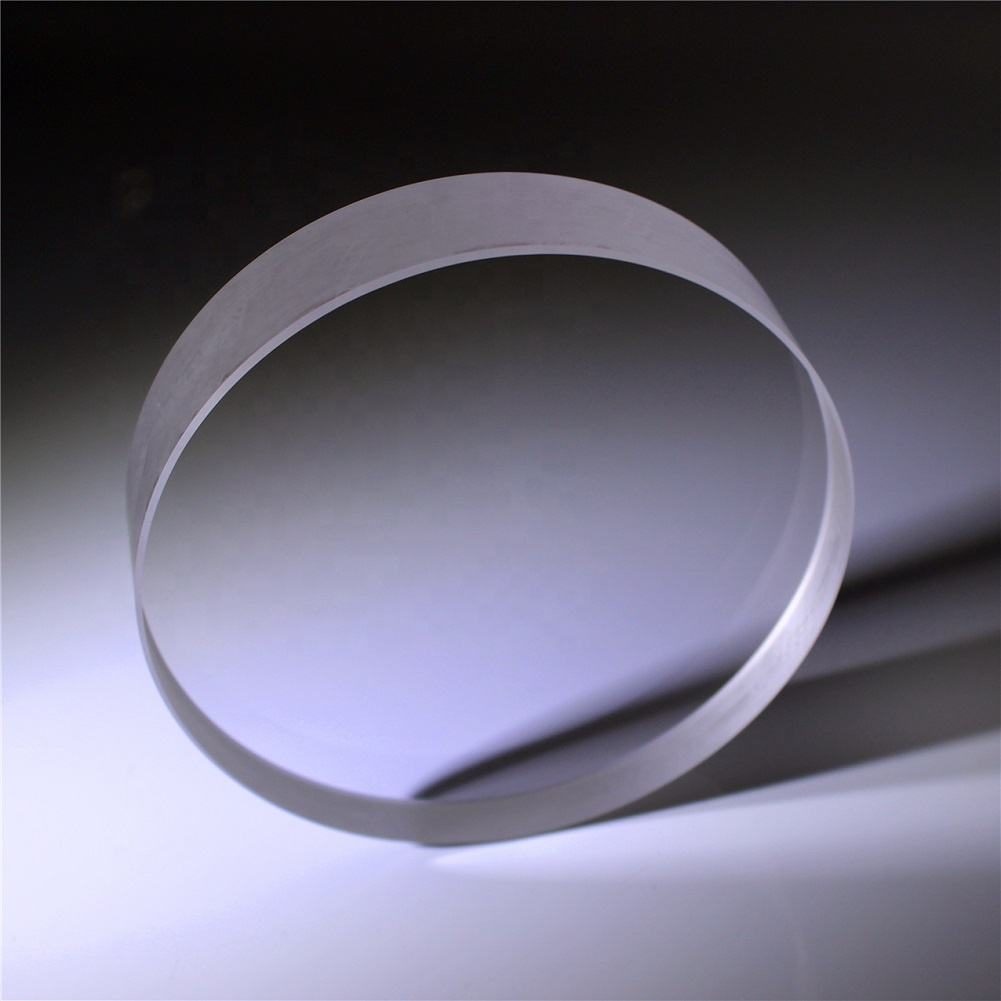

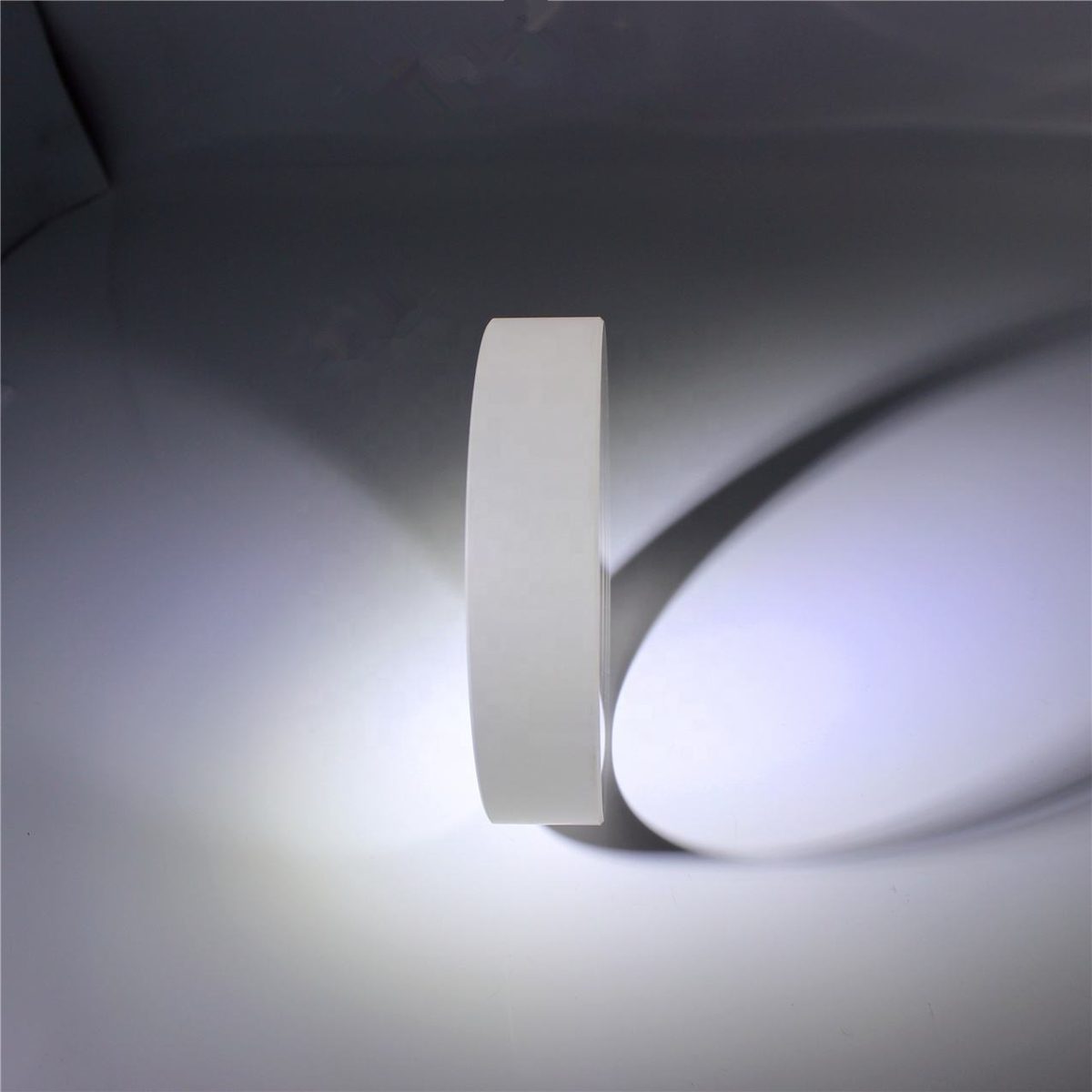

3x0.5 mm Sapphire Round Optical Window, AR Coated

Product description

Sapphire windows provide exceptional durability and clarity, making them ideal for demanding applications such as security and aerospace. With a diameter range from 3.0 mm to 460.0 mm and thickness options from 0.5 mm to 50.0 mm, these optical components are designed to withstand extreme environments while allowing optimal light transmission. Their robust construction ensures minimal wear and tear, making them a reliable choice for high-pressure and high-abrasion applications.

Key Features

Diameter range: 3.0 mm to 460.0 mm for versatile application fit.
Thickness options: 0.5 mm to 50.0 mm to meet specific design needs.
Surface quality of 20/10 ensures high clarity and minimal distortion.
Clear aperture greater than 90% maximizes light transmission.
Customizable with OEM and ODM support for tailored solutions.

Available Sizes

Diameter x Thickness (mm)
231.5 x 25.2

Applications

Security

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	3 mm
Thickness	0.5 mm
Surface Quality	20/10
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	plano
Customized Support	OEM, ODM
Warranty	None
Weight	0.1
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+0.01mm
Clear Aperture	>90%
Sample	Support
Certification	ISO9001

FAQ

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.01 mm, while thickness tolerance is +0.01 mm.

Is there a minimum order quantity (MOQ) for these windows?

The minimum order quantity (MOQ) is not specified.
