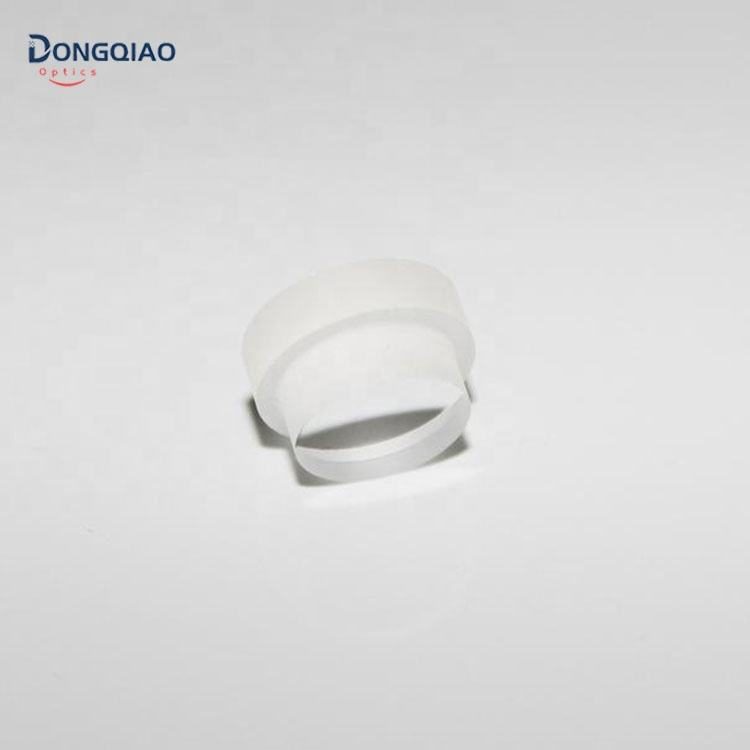

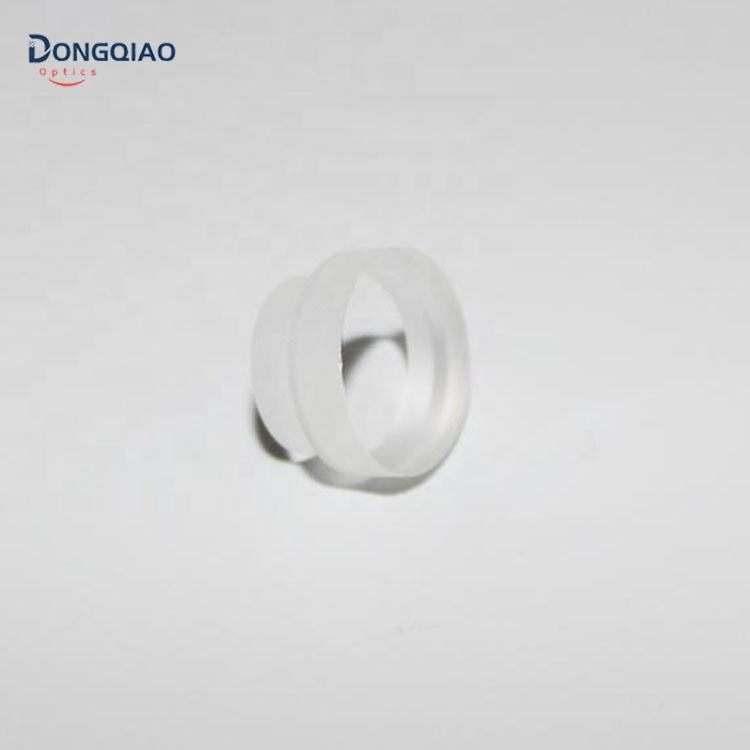

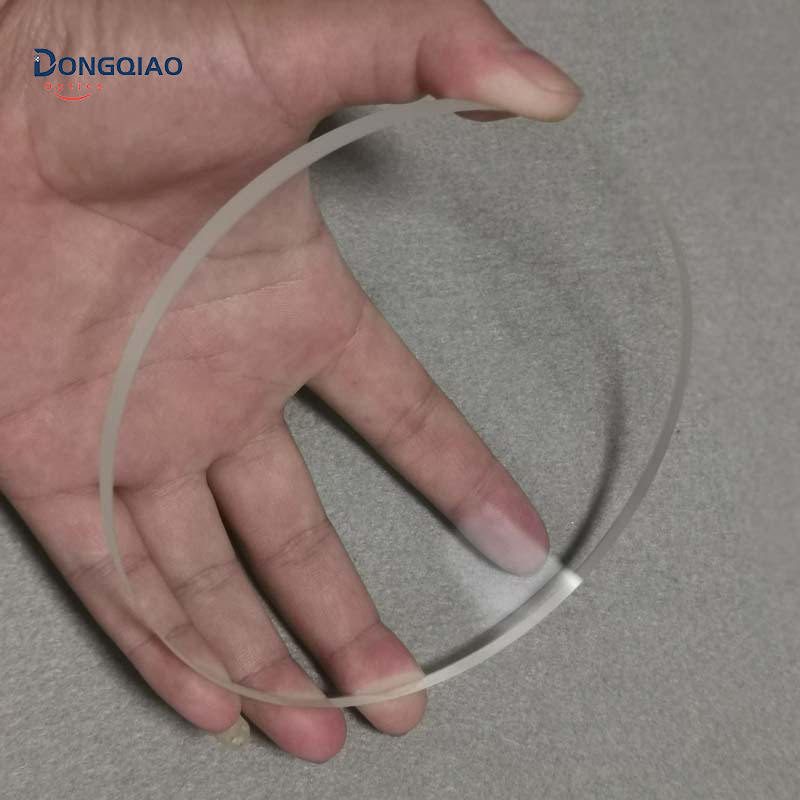

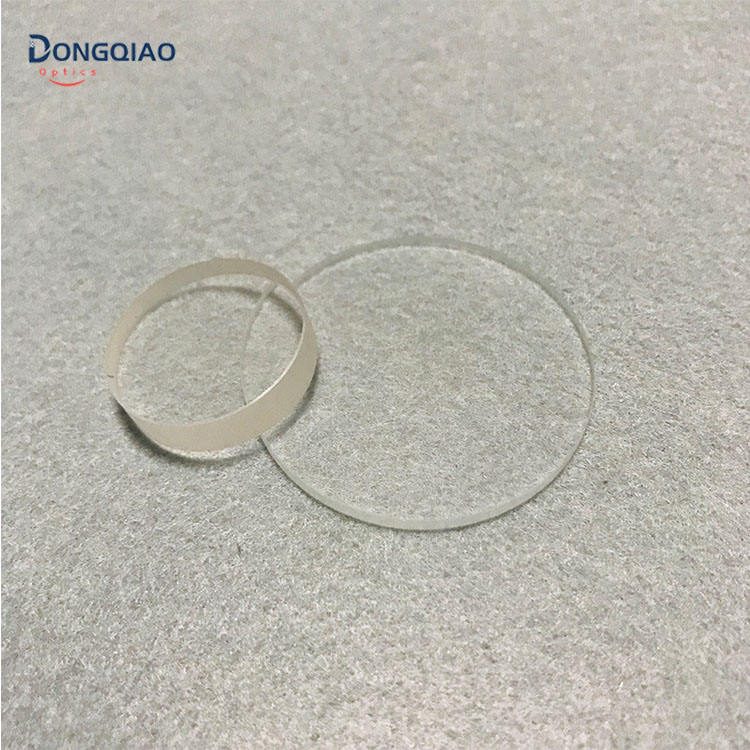

3 mm Sapphire Round Optical Window

Product description

Optical sapphire windows are engineered for demanding applications in medical and high-tech environments. With a wide transmission range from 400-700 nm and below 400 nm, these windows provide exceptional durability and optical clarity. Their high mechanical strength and chemical resistance make them suitable for harsh conditions, ensuring reliability in critical applications. Available in diameters from 3.0 mm to 500.0 mm, these windows can be customized to fit specific requirements, with a minimum order quantity of just one piece.

Key Features

High mechanical strength ensures durability in demanding environments.
Excellent optical clarity with a clear aperture of over 90%.
Custom sizes available, accommodating diameters from 3.0 mm to 500.0 mm.
Surface quality rated at 10/5 for superior performance.
Low MOQ of 1 piece allows for prototyping and small batch orders.

Applications

Medical

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	3 mm
Thickness	Custom
Surface Quality	10/5
Coating	uncoated
Transmission bands	VIS (400-700 nm), UV (<400 nm)
MOQ	1 piece for sapphire window

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	3 Years
Name	Optical sapphire window
Parallelism	30 arc sec
Clear Aperture	>90%
Moq	1 piece for sapphire window
Bevel	0.1-0.5mm
Flatness	1/4lambda

FAQ

Can I get custom sizes for the sapphire windows?

Yes, sapphire windows are available in diameters ranging from 3.0 mm to 500.0 mm.

What is the minimum order quantity?

The minimum order quantity is 1 piece for sapphire windows.
