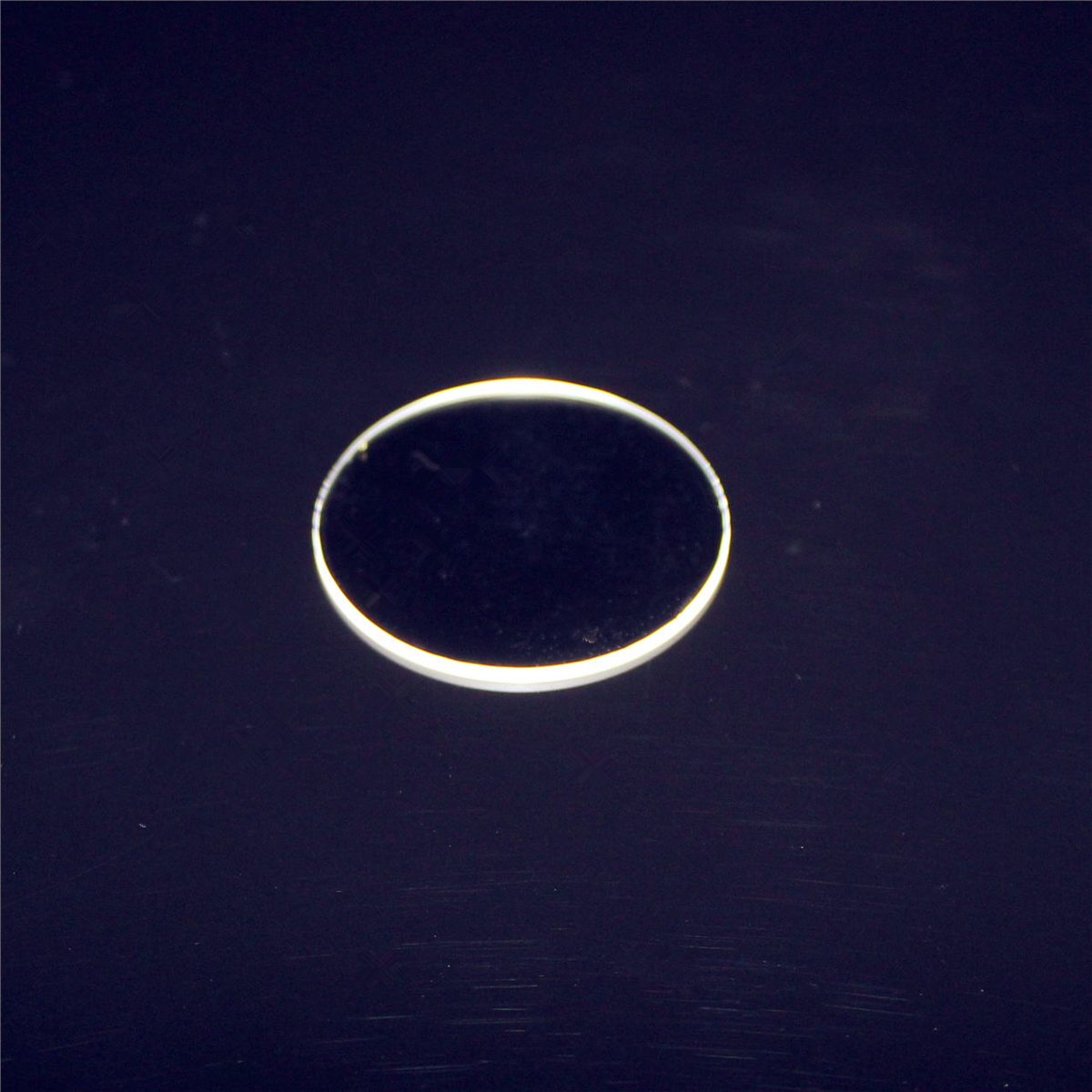

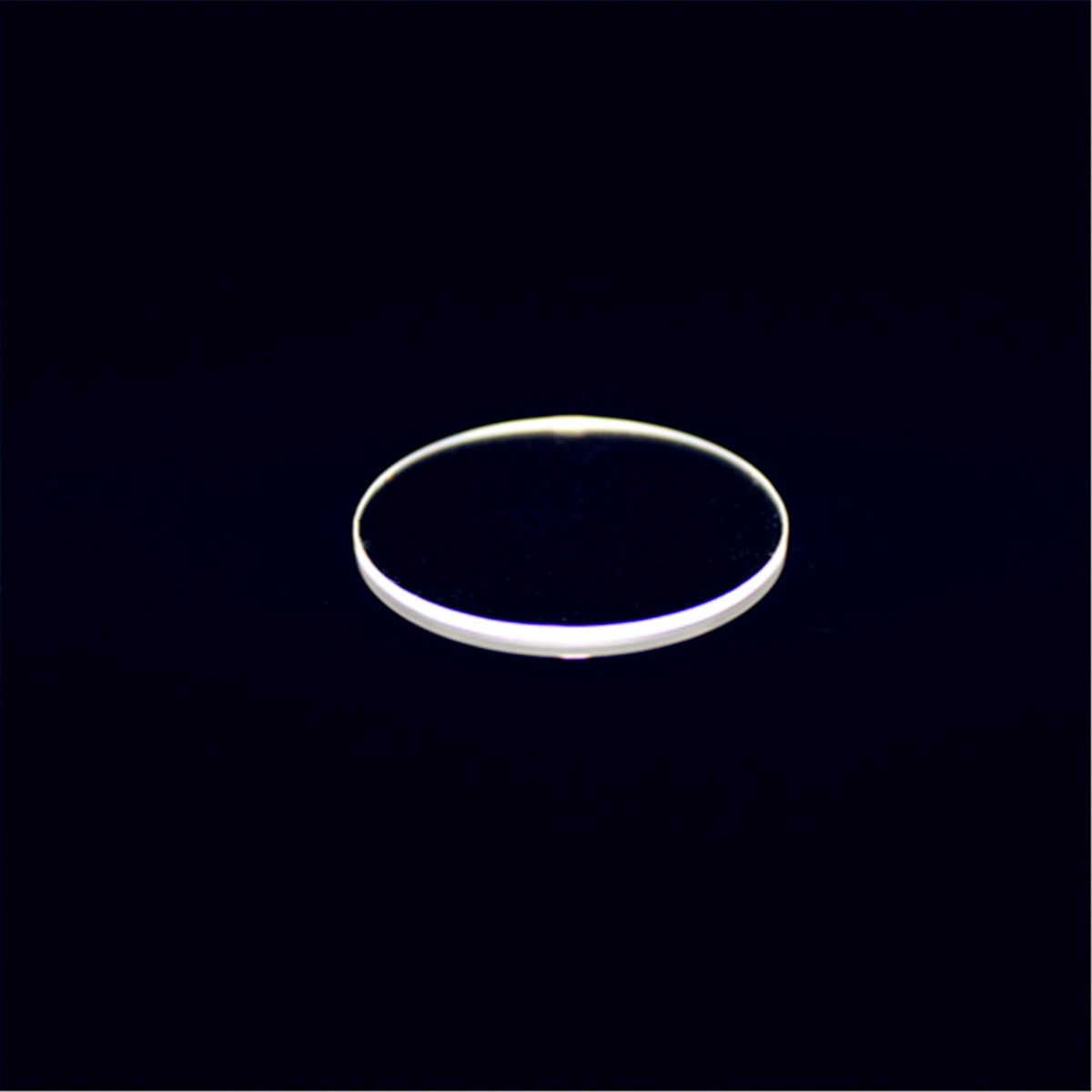

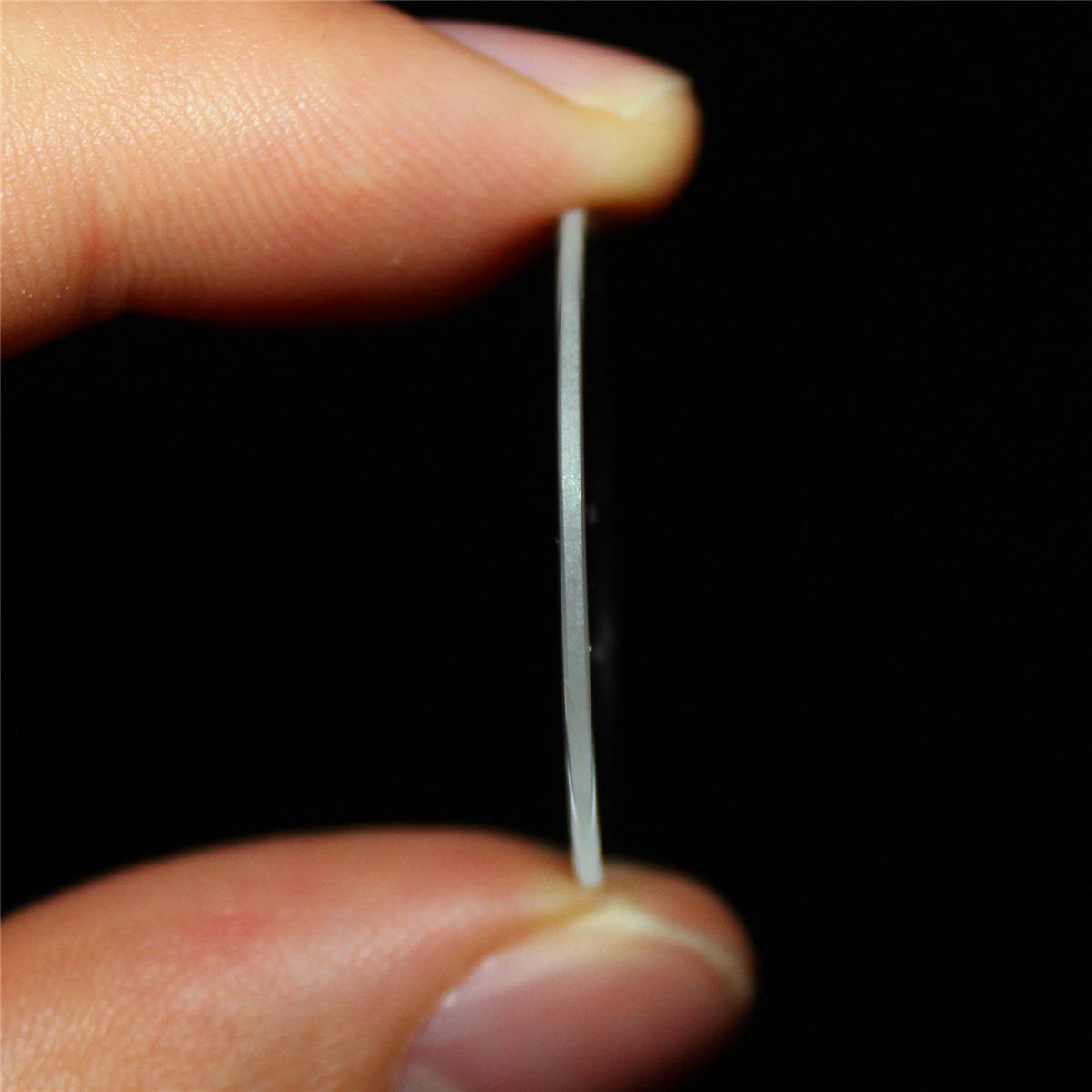

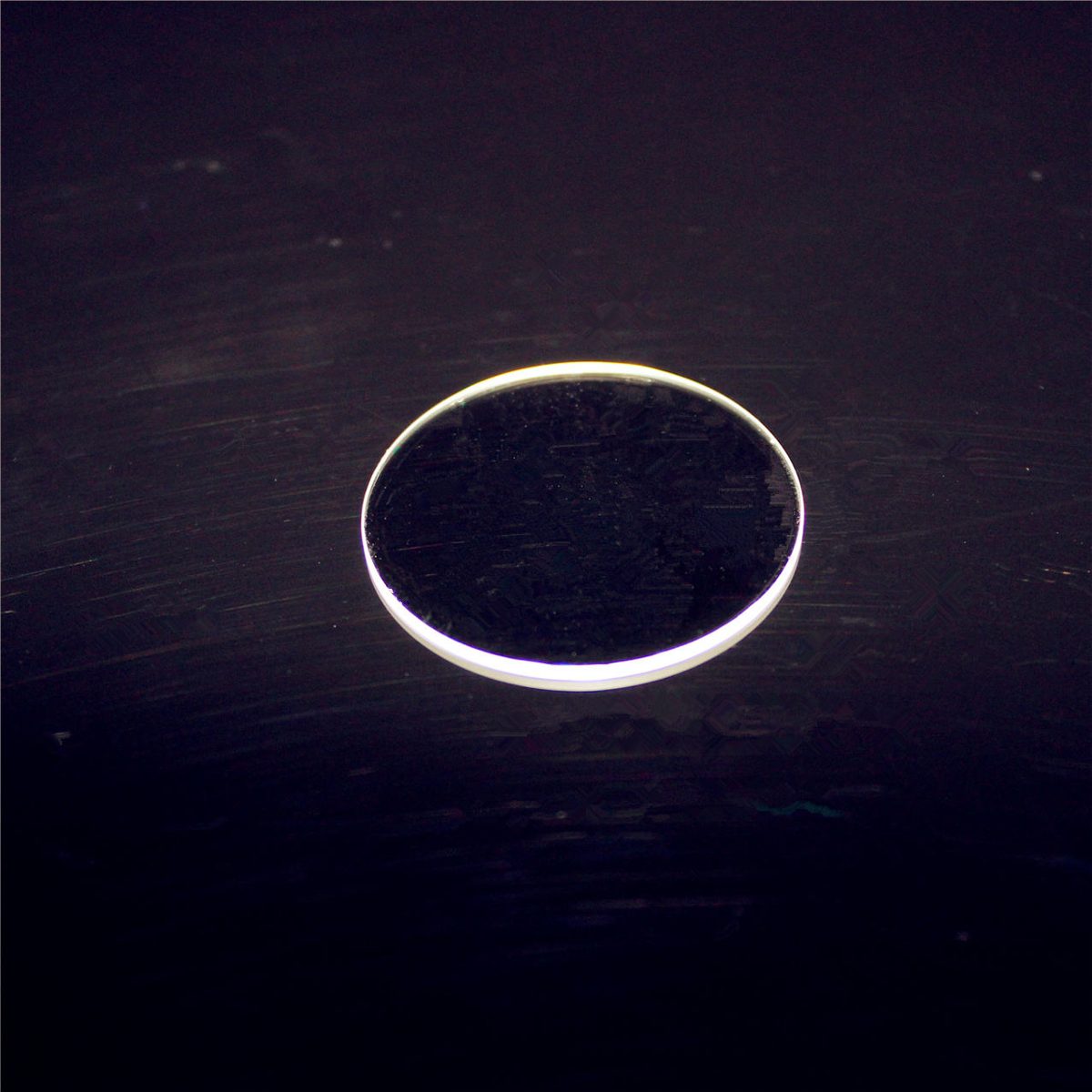

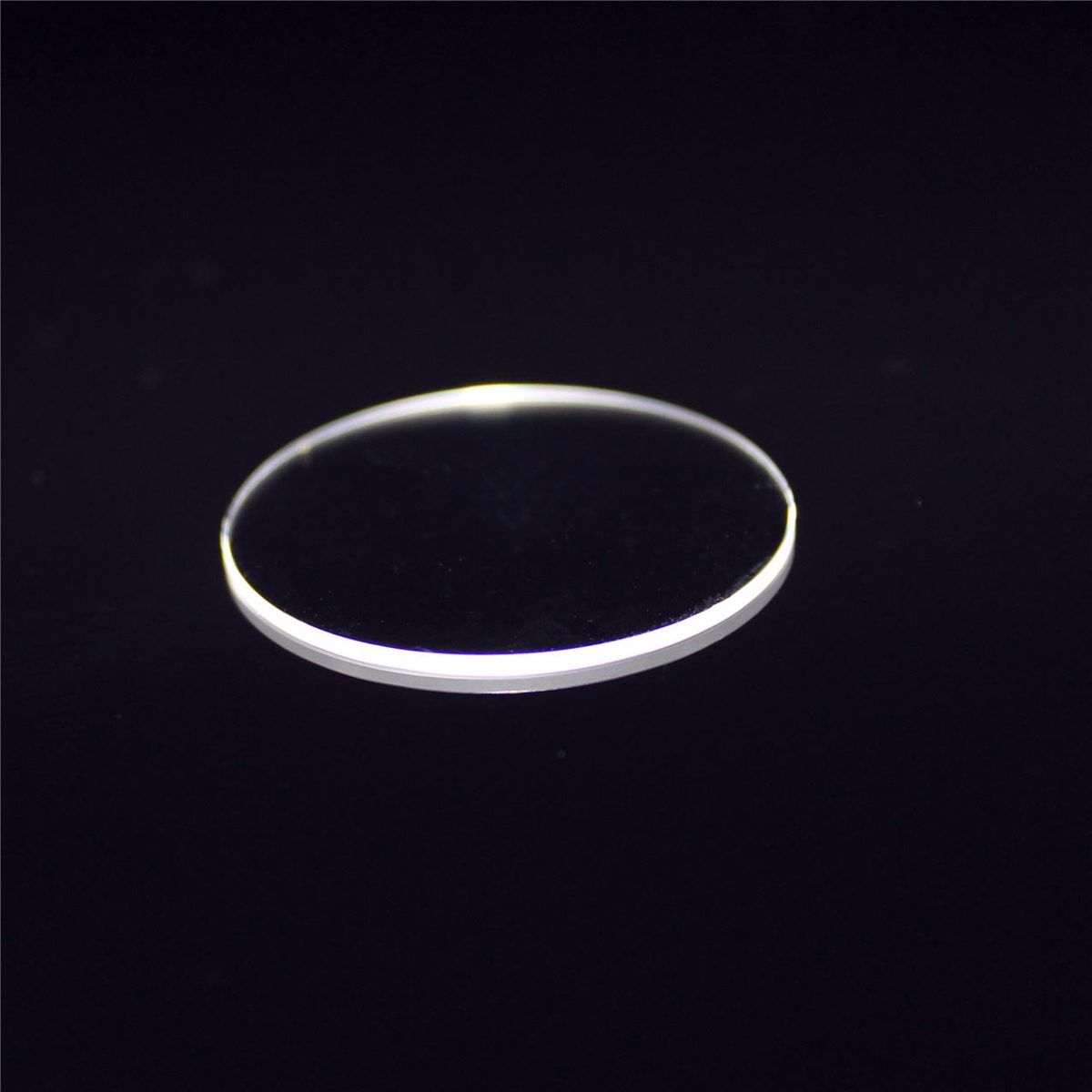

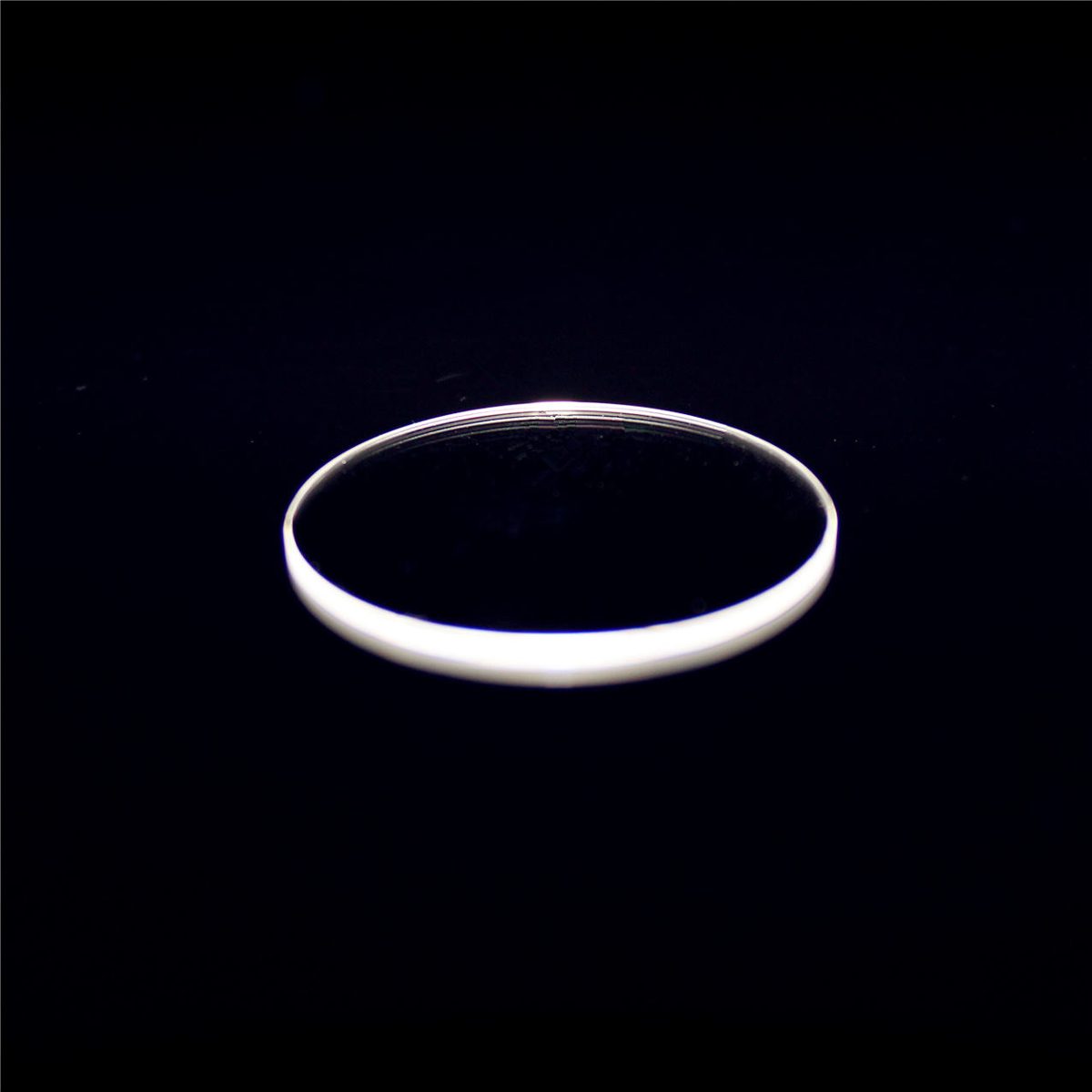

3 mm Sapphire Round Optical Window

Product description

This round sapphire optical window is designed for applications requiring high transmittance in the visible range (400-700 nm). With a diameter ranging from 3.0 mm to 460.0 mm, it provides excellent image sharpness and chemical stability, making it ideal for various optical applications. Its flat structure ensures minimal distortion while isolating different environments.

Key Features

Diameter range: 3.0 mm to 460.0 mm for versatile application fit.
Thickness tolerance of 0.15-30 mm ensures precise fitting.
Diameter tolerance of +/- 0.1 mm for consistent batch quality.
High transmittance in the 400-700 nm range for optimal performance.
Customizable options available through OEM and ODM support.

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	3 mm
Thickness	Custom
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	flat lens
Customized Support	OEM, ODM
Warranty	None
Weight	0.02
Thickness Tolerance	0.15-30mm
Diameter Tolerance	+/- 0.1mm
Structure	flat
Color	tansparent

FAQ

What are the available custom sizes?

Custom sizes can be accommodated within the diameter range of 3.0 mm to 460.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
