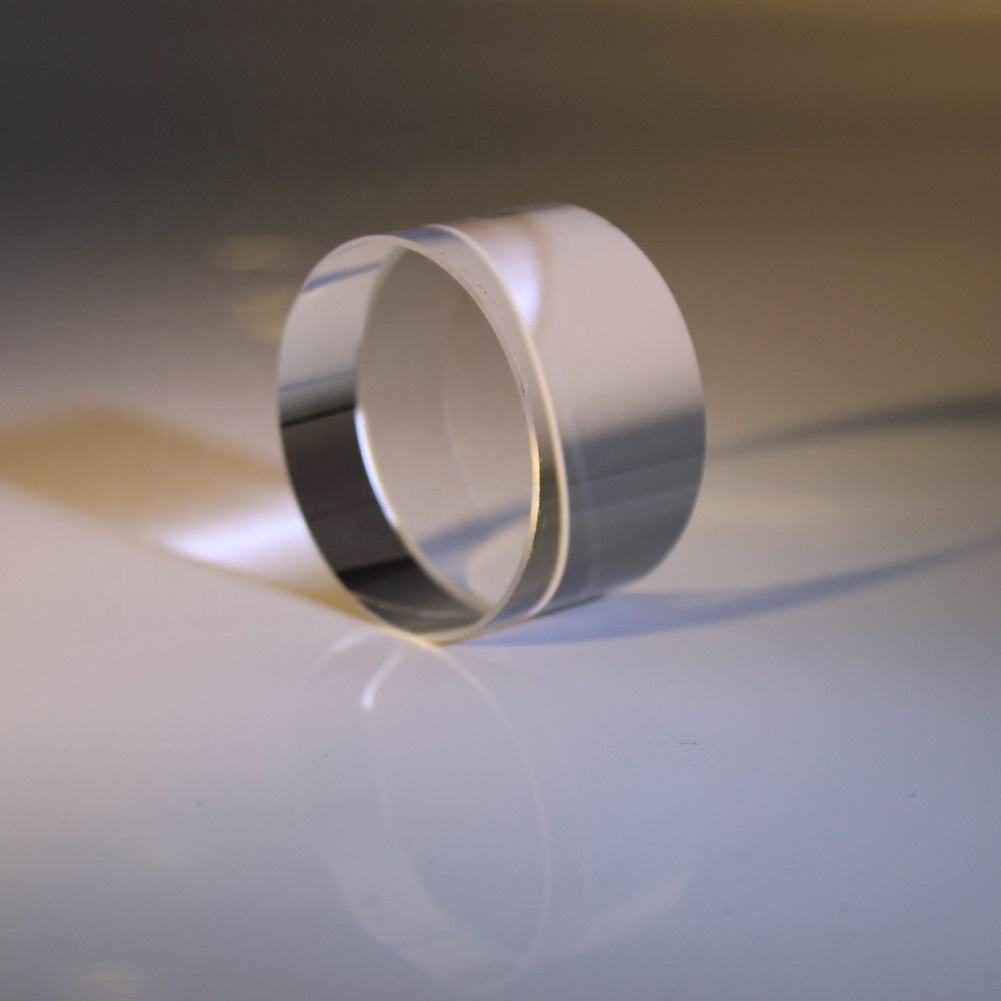

460x0.1 mm Sapphire Round Optical Window, AR Coated

Product description

This round sapphire optical window is designed for applications requiring high durability and transmittance in the <400 nm wavelength range. With a thickness of 0.15 mm and a diameter of 460 mm, it is ideal for infrared applications. The high surface quality of 20/10 ensures minimal distortion, making it suitable for precision instruments and protective equipment. Its anti-reflective coating enhances performance by reducing reflection losses, ensuring optimal transmission.

Key Features

Diameter of 460 mm and thickness of 0.15 mm for compatibility with large optical setups.
Surface quality rated at 20/10 for minimal distortion in high-precision applications.
Anti-reflective coating improves transmittance for enhanced optical performance.
Dimension tolerance of +/-0.01 mm and thickness tolerance of +/-0.1 mm for consistent batch quality.
Customizable options available for OEM and ODM projects.

Available Sizes

Diameter x Thickness (mm)
460 x 0.1

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	460 mm
Thickness	0.1 mm
Surface Quality	20/10
Coating	anti-reflective (AR)
Transmission bands	UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	flat lens
Customized Support	OEM, ODM
Warranty	According to practical application
Weight	0.2
Dimension Tolerance	+/-0.01mm
Thickness Tolerance	+/- 0.1mm
Color	purple
Use	Infrared

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including a variant size of 460 mm with a thickness of 0.1 mm.

What are the tolerances for dimensions?

The dimension tolerance is +/-0.01 mm, and the thickness tolerance is +/-0.1 mm.
