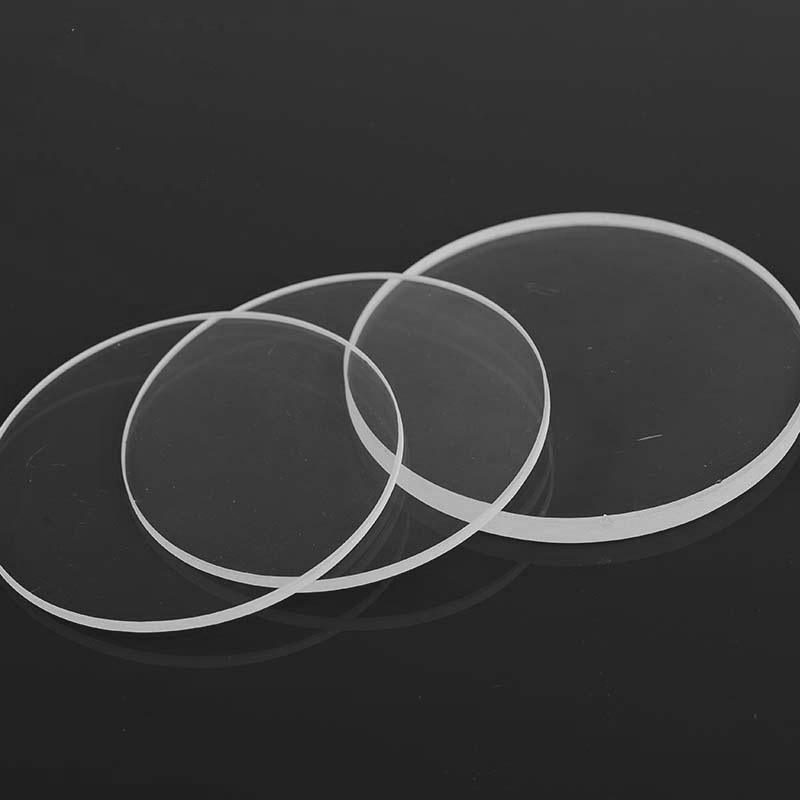

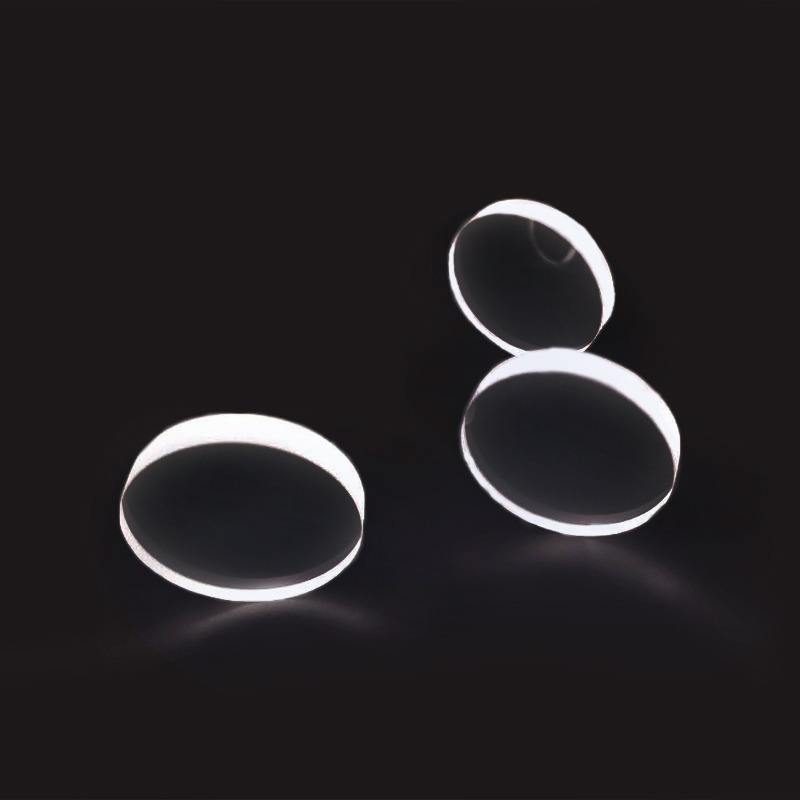

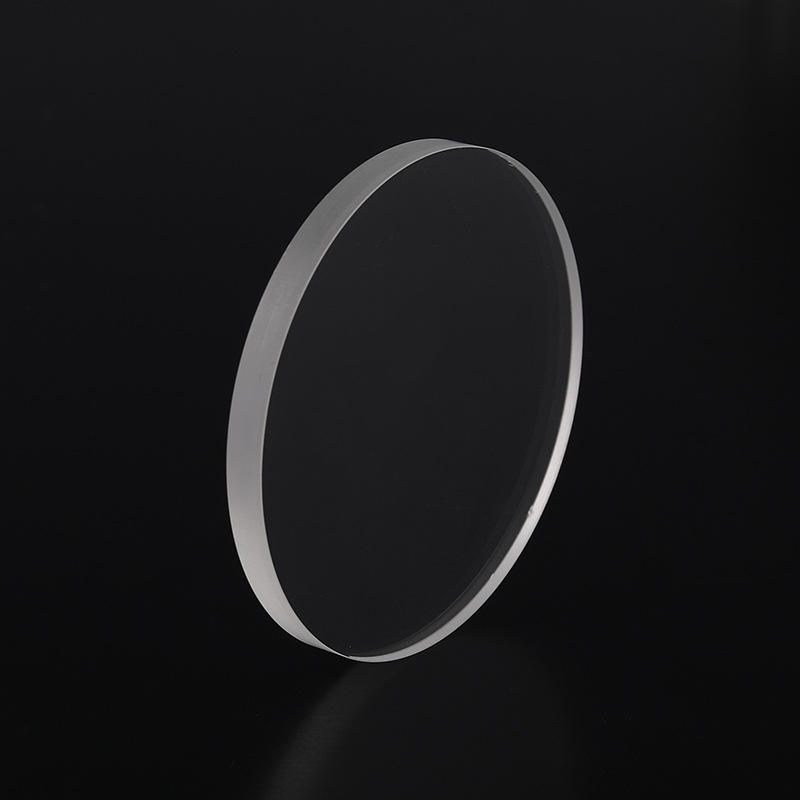

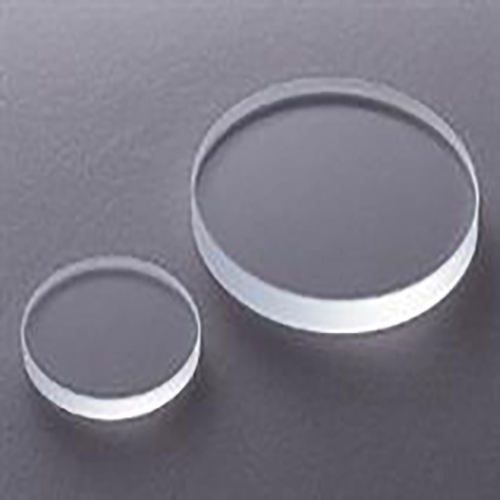

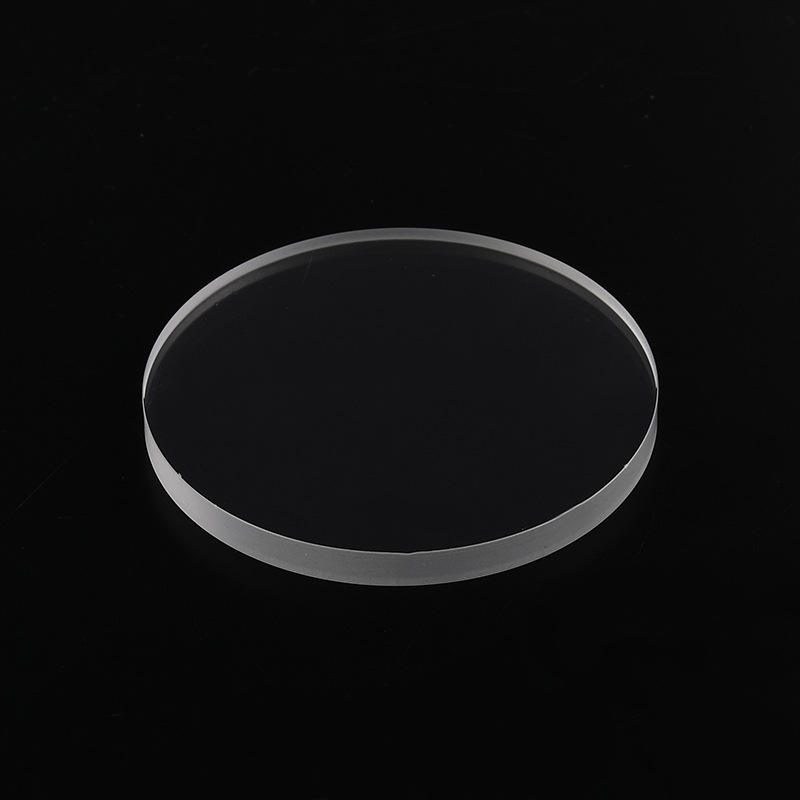

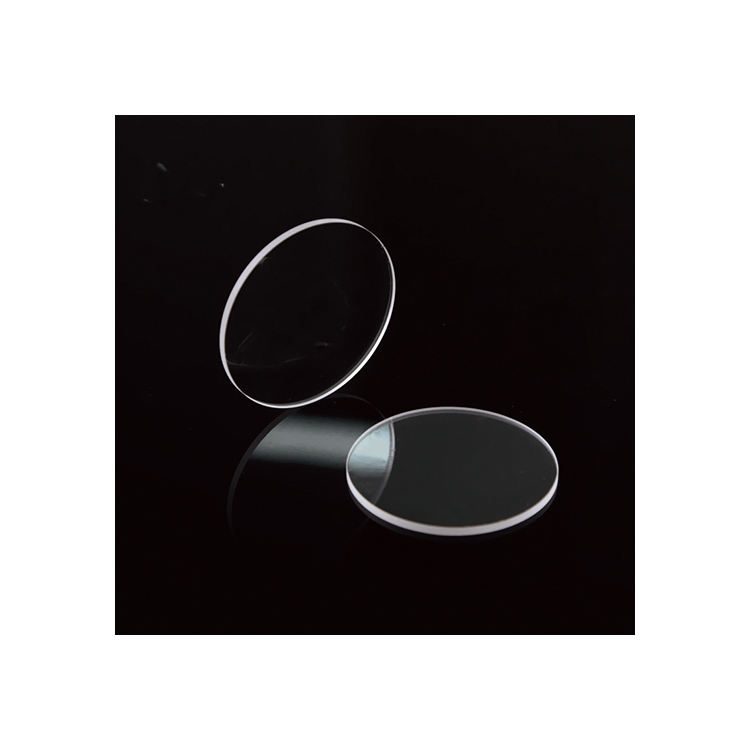

5x0.5 mm Sapphire Round Optical Window, AR Coated

Product description

Sapphire optical windows provide exceptional performance for applications in the 400-700 nm wavelength range. With a diameter range of 5.0 mm to 300.0 mm and thicknesses from 0.5 mm to 50.0 mm, these windows are ideal for various optical systems requiring high durability and clarity. The anti-reflective coating enhances transmittance, making them suitable for demanding environments in imaging, LIDAR, and medical devices.

Key Features

Diameter range: 5.0 mm to 300.0 mm for versatile application fit.
Thickness options from 0.5 mm to 50.0 mm to meet specific design requirements.
Surface quality of 40/20 ensures minimal distortion and high clarity.
Clear aperture of 90% maximizes light transmission for optimal performance.
Customizable options available for OEM and ODM projects.

Available Sizes

Diameter x Thickness (mm)
152.5 x 25.2

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	5 mm
Thickness	0.5 mm
Surface Quality	40/20
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	optical Windows
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.5kg
Clear Aperture	90%
Tolerance	0.01-0.02mm
Surface Flatness	1/4@633nm

FAQ

What are the available custom sizes?

Custom sizes can be provided, with a variant size example of 152.5 mm diameter and 25.2 mm thickness.

What are the tolerances for these windows?

The tolerances range from 0.01 mm to 0.02 mm, ensuring precision in manufacturing.
