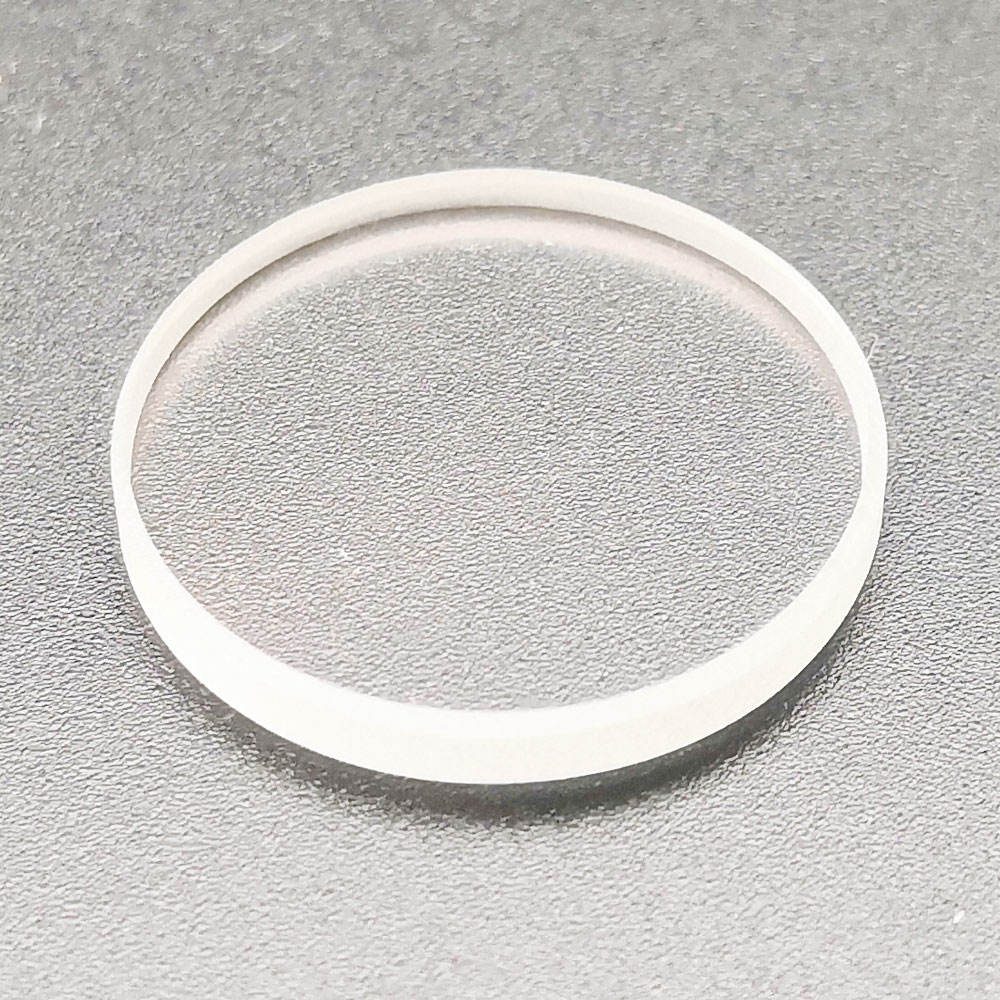

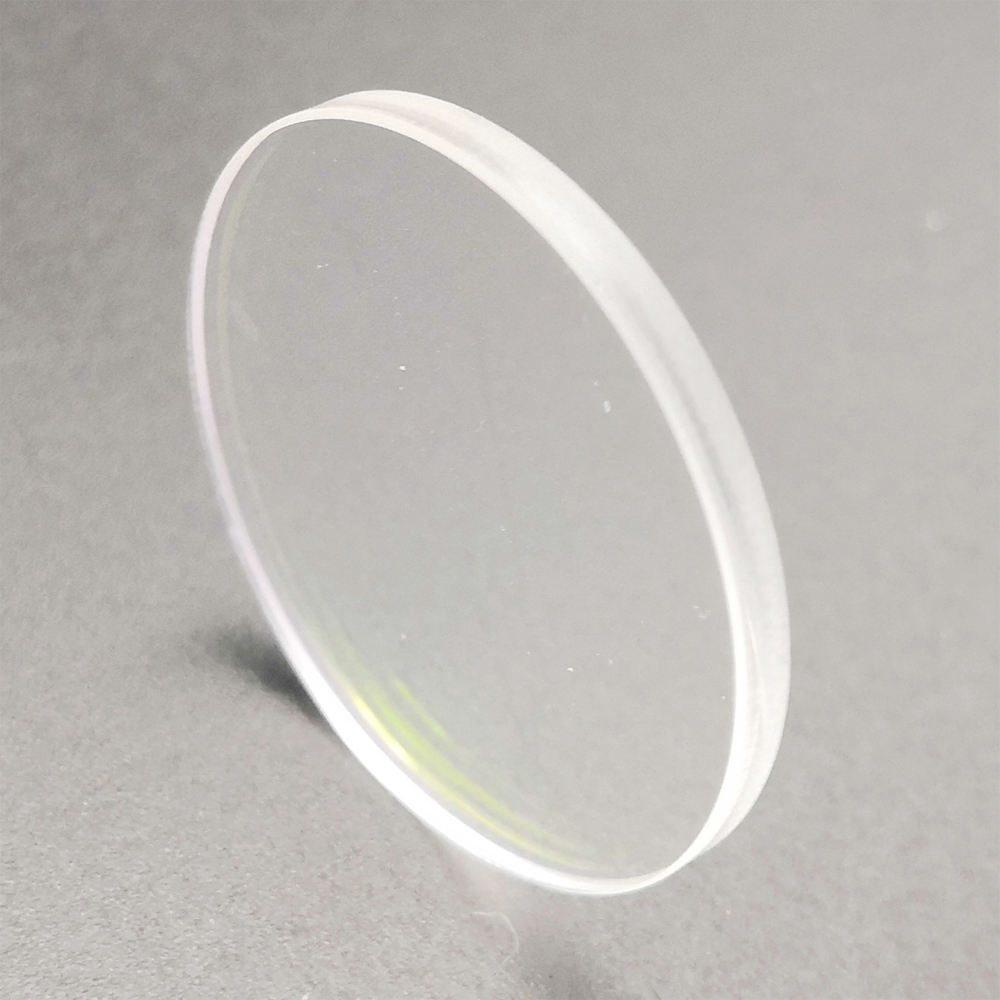

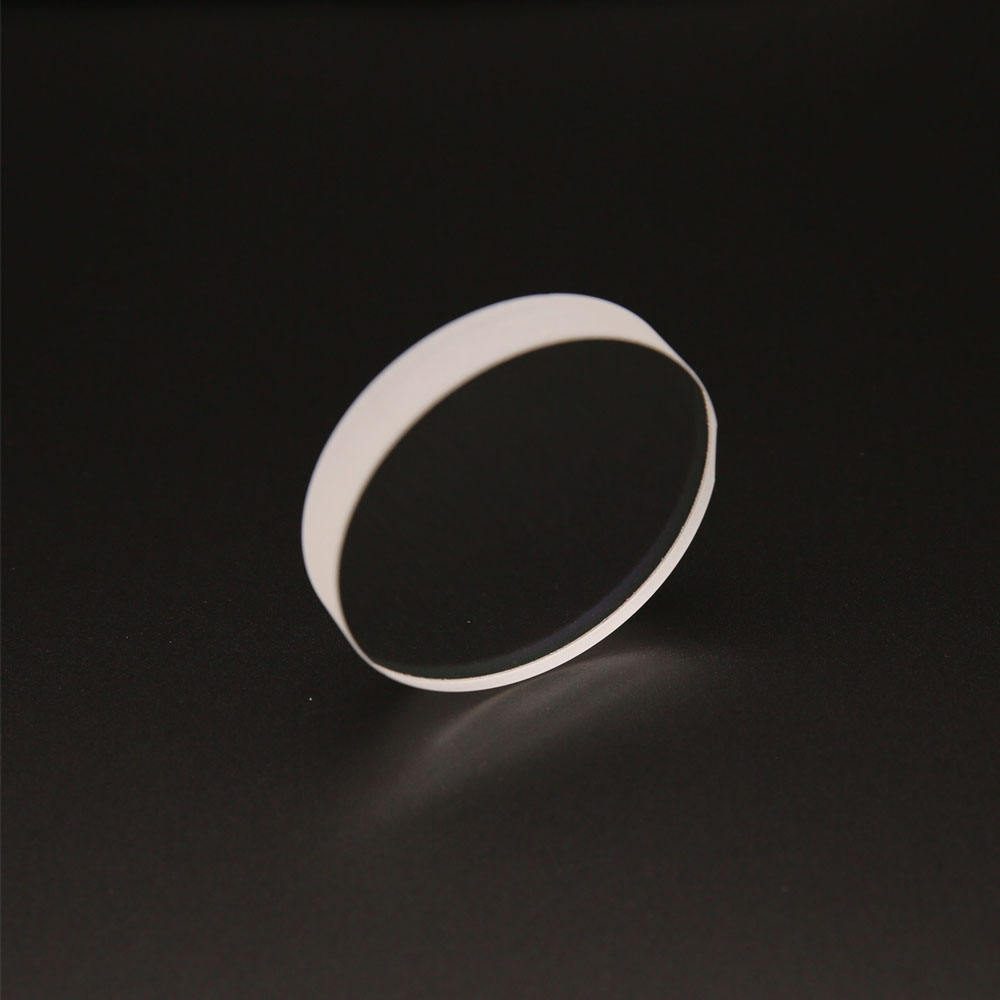

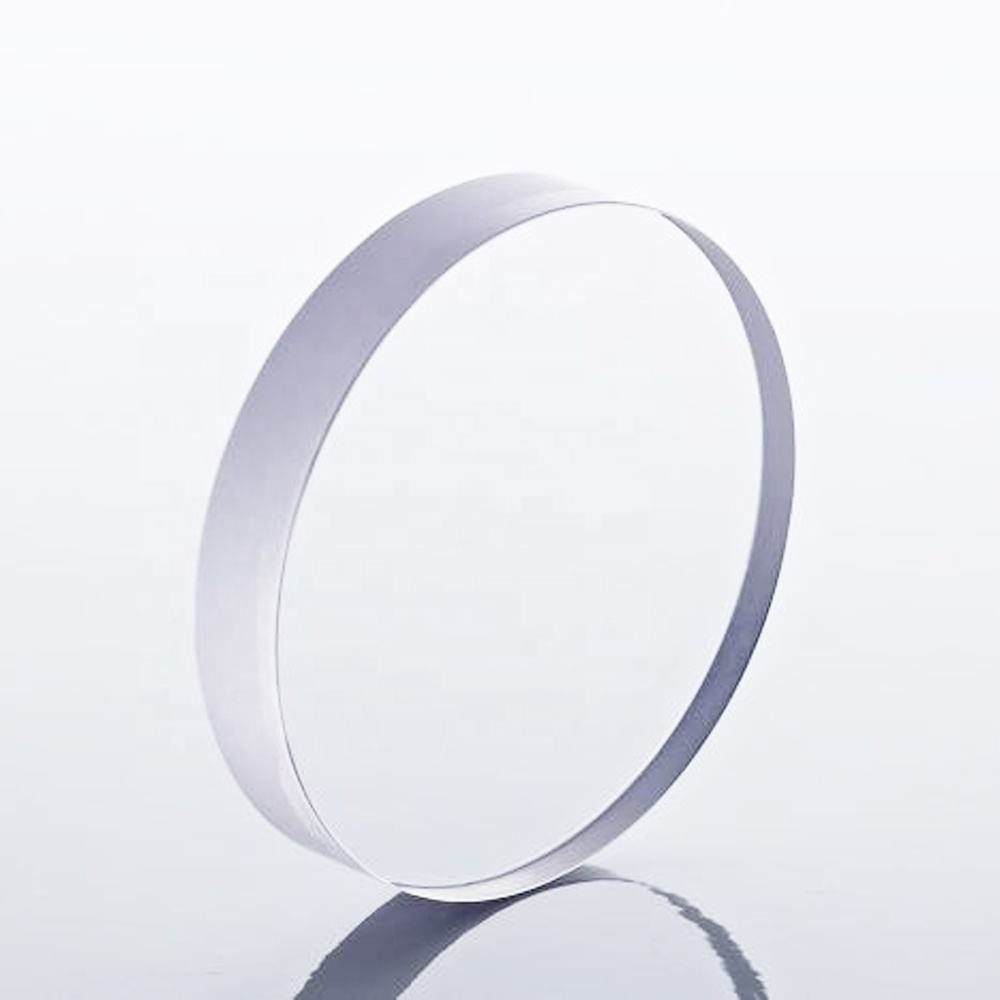

5 mm Sapphire Round Optical Window, AR Coated

Product description

Sapphire windows provide exceptional durability and optical performance for demanding applications in IR imaging, LIDAR, and medical devices. With a transmittance range of 400-700 nm, these windows are ideal for environments requiring high pressure or corrosive conditions. Their robust mechanical properties and customizable dimensions make them suitable for various specialized applications, ensuring reliability and efficiency.

Key Features

Diameter options from 5.0 mm to 300.0 mm for versatile application fit.
Surface quality of 60/40 ensures high clarity and performance.
Dimension tolerance of ±0.1 mm guarantees precision in custom projects.
Clear aperture of 90% maximizes light transmission for optimal imaging.
Available in AR and uncoated finishes to suit different application needs.

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	5 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM, ODM
Warranty	6 months
Dimension Tolerance	±0.1mm
Flatness	2 Lambda-Lambda/4
Parallelism	< 3 arcmin
Clear Aperture	90%
Bevel	Protective bevel

FAQ

What are the available sizes for sapphire windows?

Sapphire windows are available in diameters ranging from 5.0 mm to 300.0 mm.

What is the dimension tolerance for custom sizes?

The dimension tolerance for custom sizes is ±0.1 mm.
