1 / 6Optical Windows

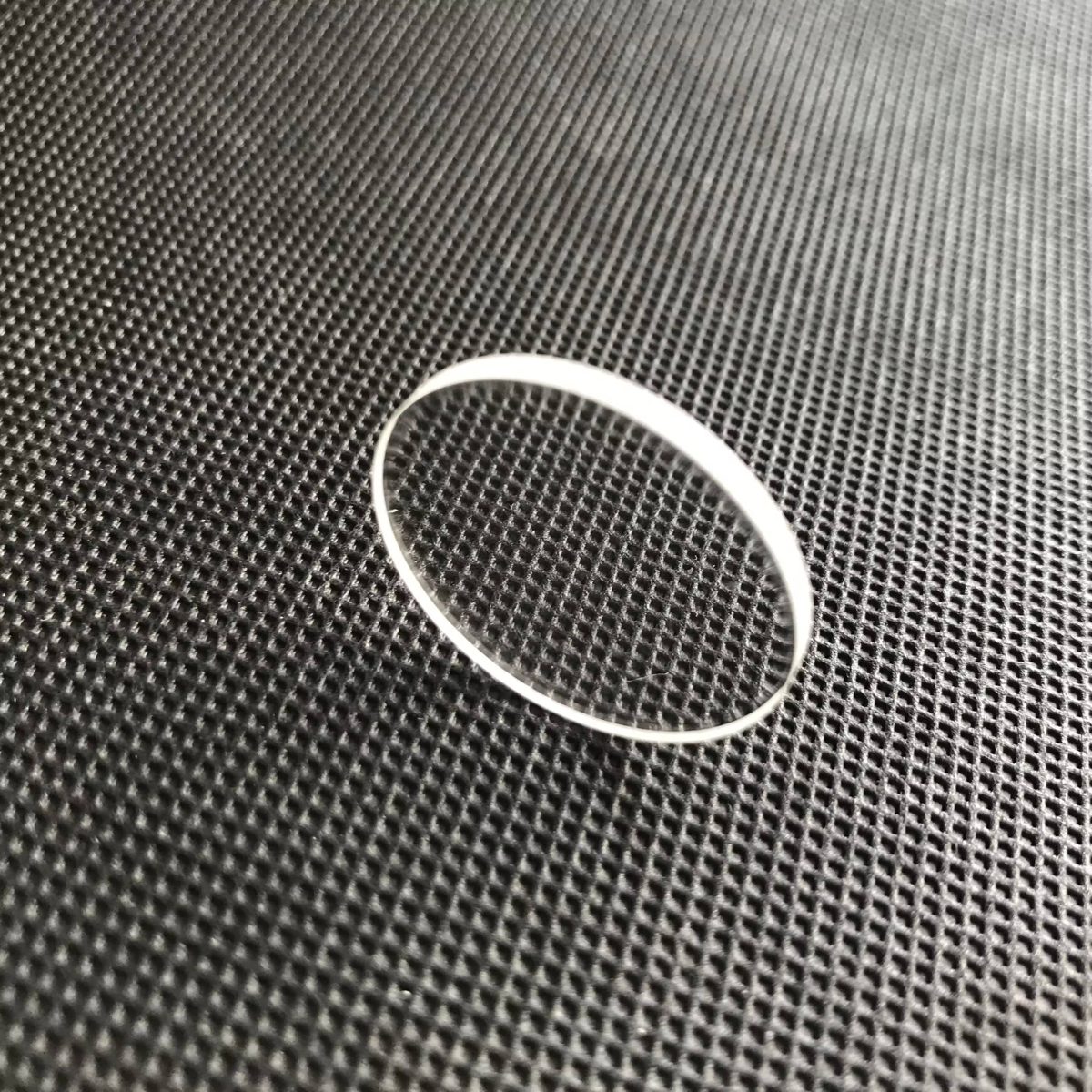

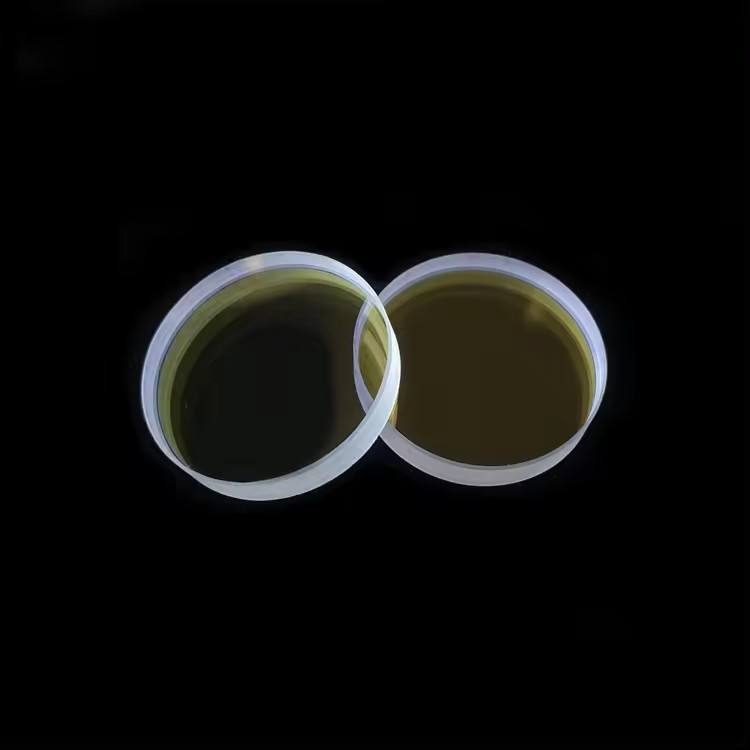

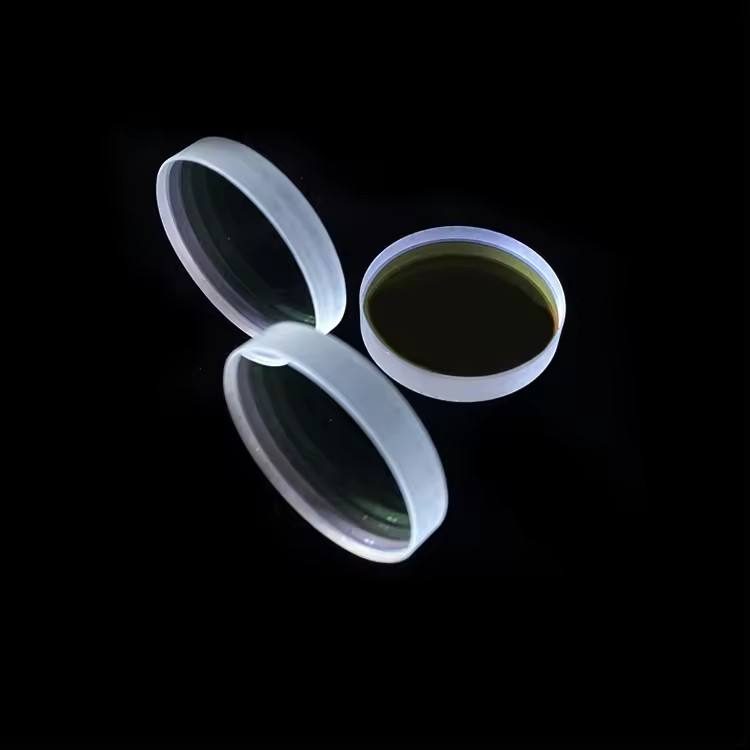

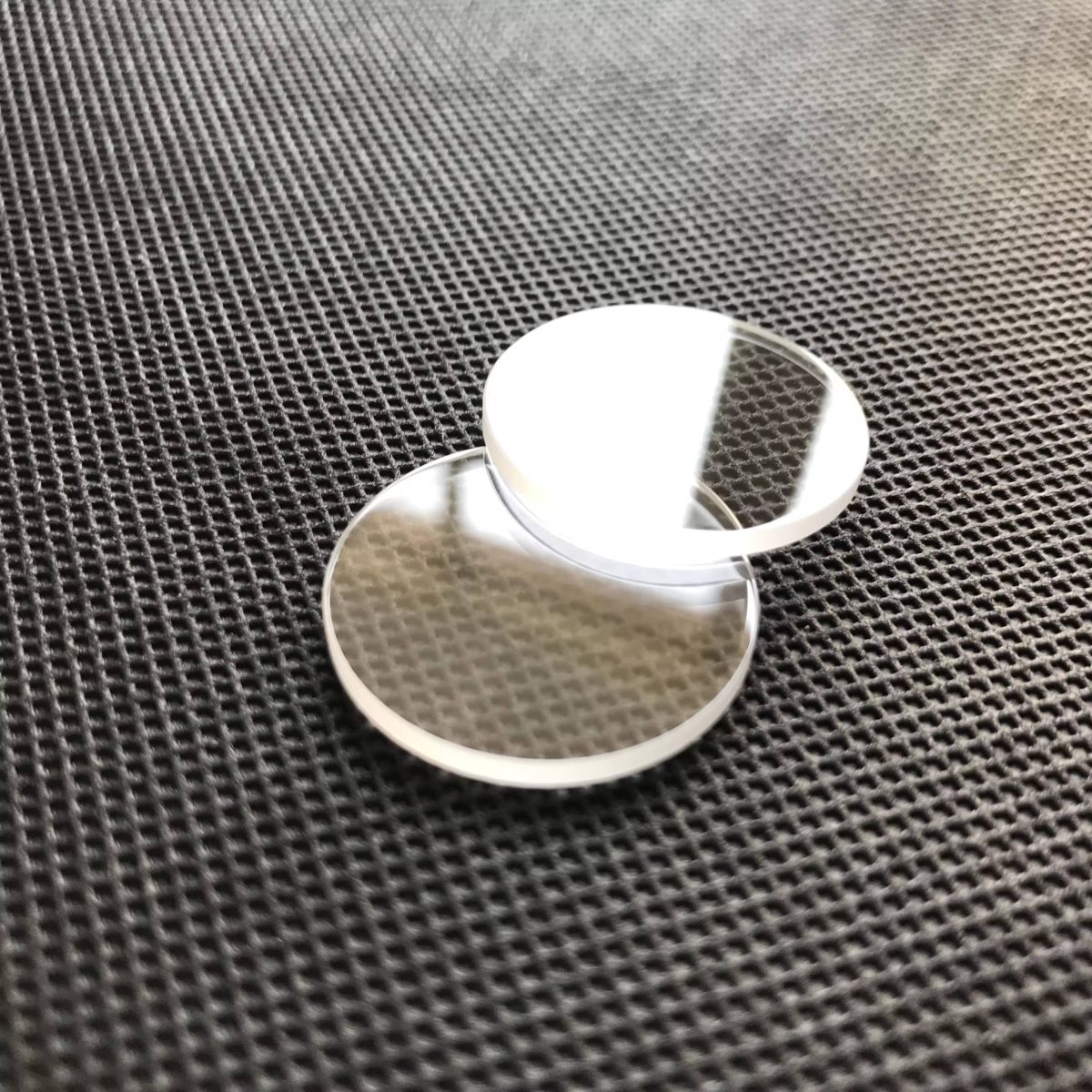

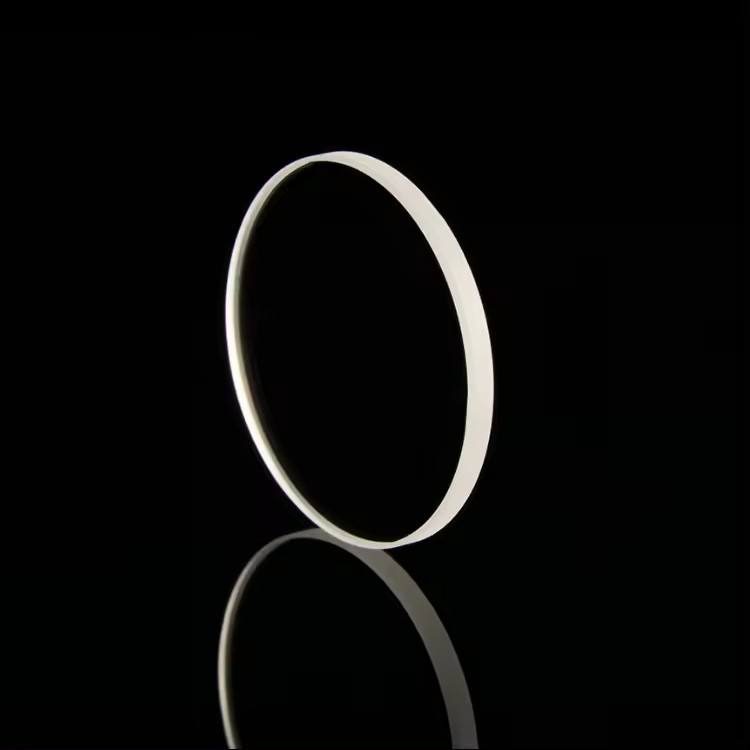

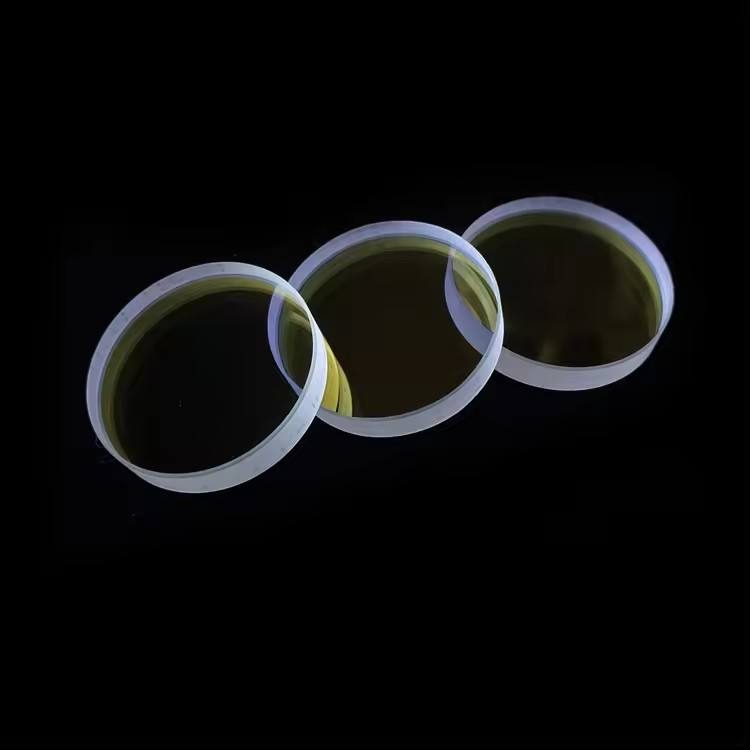

Custom Size Sapphire Round Optical Window, AR Coated
Explore high-performance sapphire windows with exceptional transmittance and durability for demanding applications.
Core attributes
- Material
- Sapphire
- Shape
- round
- Thickness
- 0.5 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Sapphire
- Shape
- round
- Thickness
- 0.5 mm
- Coating
- ar
Product description
Sapphire windows are engineered for demanding applications, including vacuum chambers and harsh environments. With a transmission range from 0.17 to 5.5 μm, these windows excel in optical clarity and mechanical strength, making them suitable for high-pressure and corrosive settings. The sapphire’s extreme hardness and chemical resistance ensure durability, while the anti-reflective coatings enhance performance across various wavelengths, including UV to mid-infrared. Custom sizes and configurations are available to meet specific project needs.
Key Features
- Transmits wavelengths from 0.17 to 5.5 μm for versatile application compatibility.
- High transmittance of >90% ensures optimal light transmission.
- Able to withstand temperatures up to 1100°C, suitable for extreme environments.
- High strength and chemical resistance provide durability in harsh conditions.
- Customizable options available to fit specific project requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Shape | Round |
| Diameter | Custom |
| Thickness | 0.5 mm |
| Transmittance | 90% |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Technique | Tempered Glass |
| Structure | Solid |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Onsite Training |
| Feature | High Strength |
| Project Solution Capability | graphic design |
| Type | Sapphire glass |
| Edge | Grinding/Polished |
| Color | Clear, customized |
| Certificate | RoHs, REACH |
| Work Temperature | 1100 ℃ |
| Transmittance | >90% |
FAQ
Can I get custom sizes for sapphire windows?
Yes, sapphire windows can be customized according to customer specifications.
What is the minimum order quantity (MOQ) for sapphire windows?
The minimum order quantity is not specified; please inquire for details.
