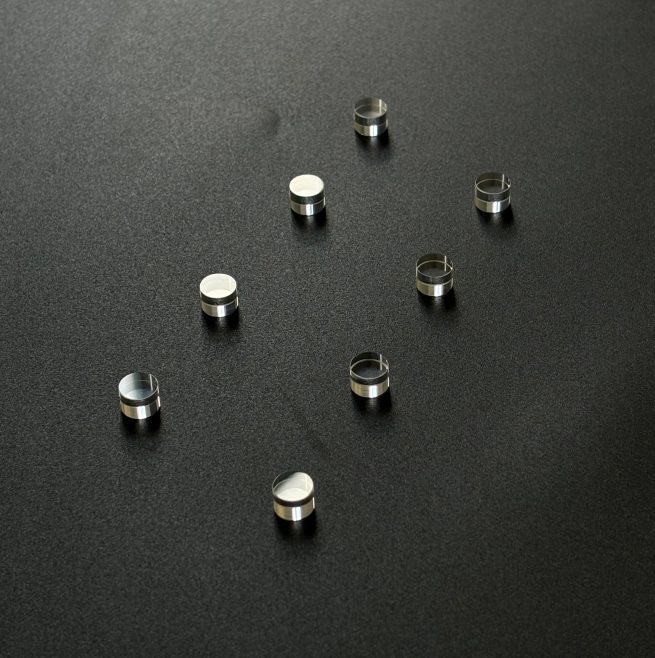

Custom Size Sapphire Round Optical Window, AR Coated

Product description

Sapphire optical windows are ideal for applications in semiconductor and medical fields, offering exceptional durability and thermal stability. With a wide transmittance range from <400 nm to 5 μm, these windows are suitable for various wavelengths. The high purity (99.9999%) and hardness (Mohs 9) ensure reliability in demanding environments, making them a preferred choice for R&D and procurement engineers seeking robust optical solutions.

Key Features

Wide transmittance range: <400 nm to 5 μm for versatile application fit.
High purity (99.9999%) ensures minimal contamination in sensitive applications.
Exceptional hardness (Mohs 9) provides durability and resistance to scratches.
Customizable options available for OEM, ODM, and OBM support.
Roughness of Ra≤0.5nm for superior surface quality.

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Sapphire
Shape	Round
Diameter	Custom
Thickness	0.5 mm
Coating	anti-reflective (AR)
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	3 Years
Customized Support	OEM, ODM, OBM
S/D	80/50, 60/40, 40/20, 20/10
Roughness	Ra≤0.5nm

FAQ

Are custom sizes available?

Yes, customizable options are available for OEM, ODM, and OBM support.

What are the tolerances for this sapphire window?

Standard tolerances include S/D values of 80/50, 60/40, 40/20, and 20/10.
