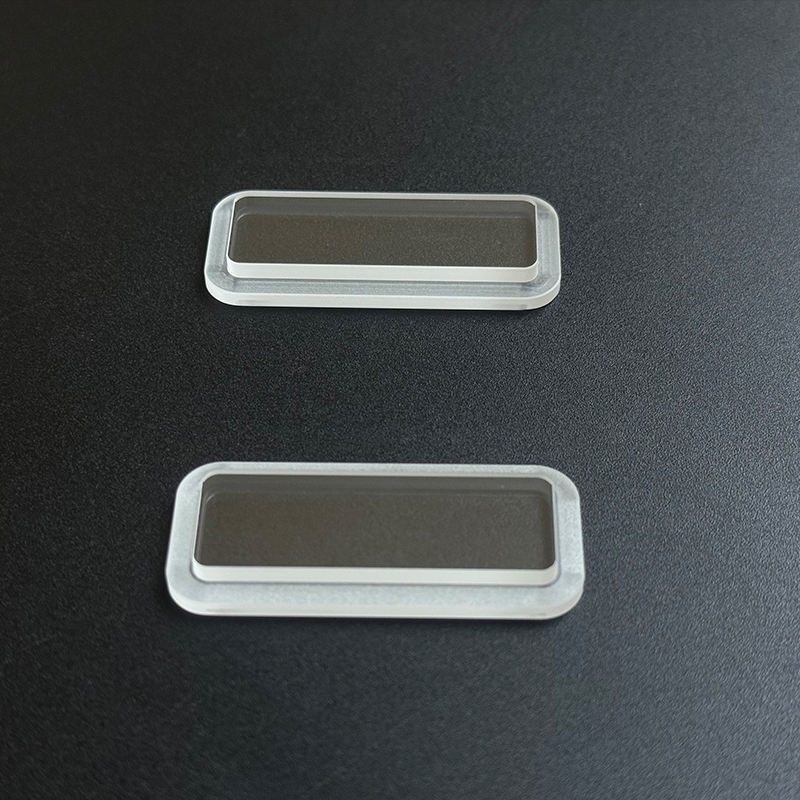

0.5x0.1 mm Sapphire Square Optical Window

Product description

Sapphire optical windows provide exceptional performance across various applications, including semiconductor and medical fields. With a broad transmission range from <400 nm to 5 μm, these windows accommodate diverse optical requirements. Their high purity (99.999%) and robust physical properties make them ideal for demanding environments, ensuring reliability and consistency in critical applications.

Key Features

Wide transmission range: Supports applications from <400 nm to 5 μm, fitting various optical needs.
High purity: 99.999% purity ensures minimal contamination and high performance.
Custom sizes available: Lengths from 0.1 mm to 700 mm, catering to specific project requirements.
Durable material: Sapphire’s Mohs hardness of 9 provides excellent scratch resistance.
OEM/ODM support: Customization options available to meet unique specifications.

Available Sizes

Diameter x Thickness (mm)
375.2 x 175.1

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Sapphire
Shape	Square
Diameter	0.5 mm
Thickness	0.1 mm
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	1 Year
Customized Support	OEM, ODM
Power	400w
Purity	99.999%
Length	0.1-700mm
Roughness	Ra<0.3nm
S/D	10/5,40/20,60/40, 80/50

FAQ

Can I get custom sizes?

Yes, sapphire windows are available in lengths from 0.1 mm to 700 mm, allowing for tailored dimensions.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, providing flexibility for orders.
