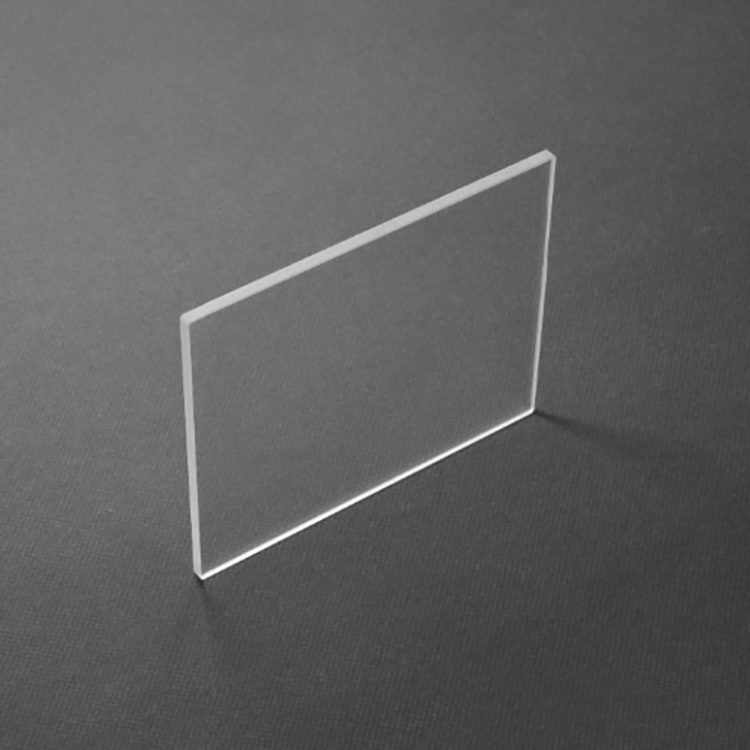

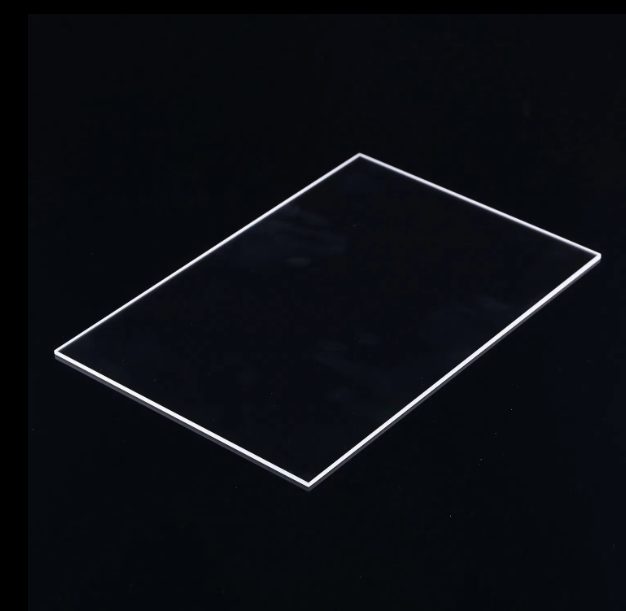

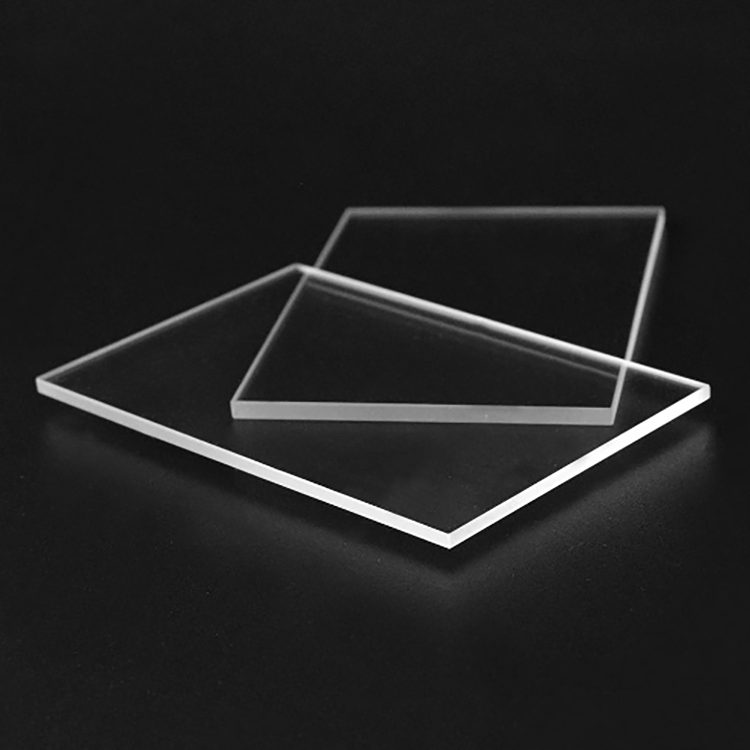

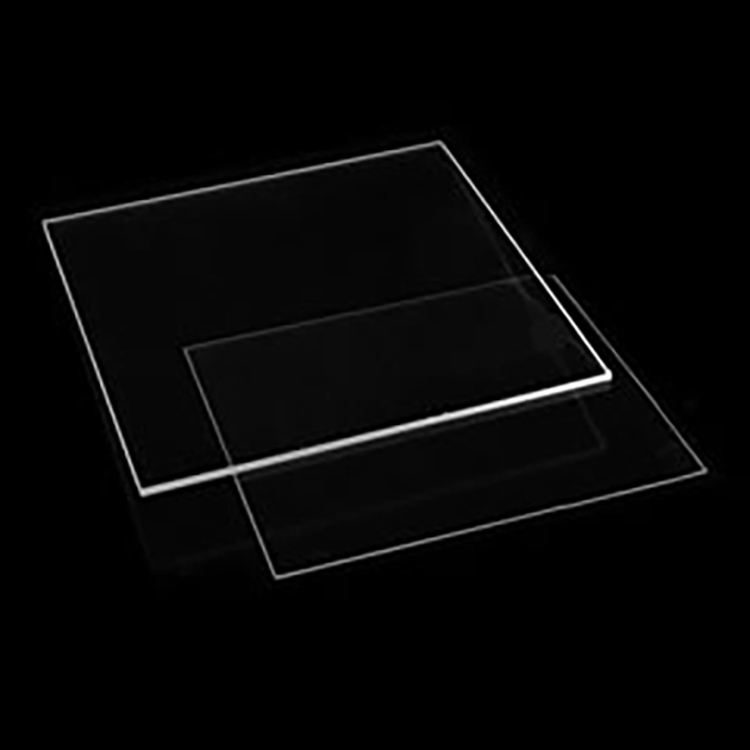

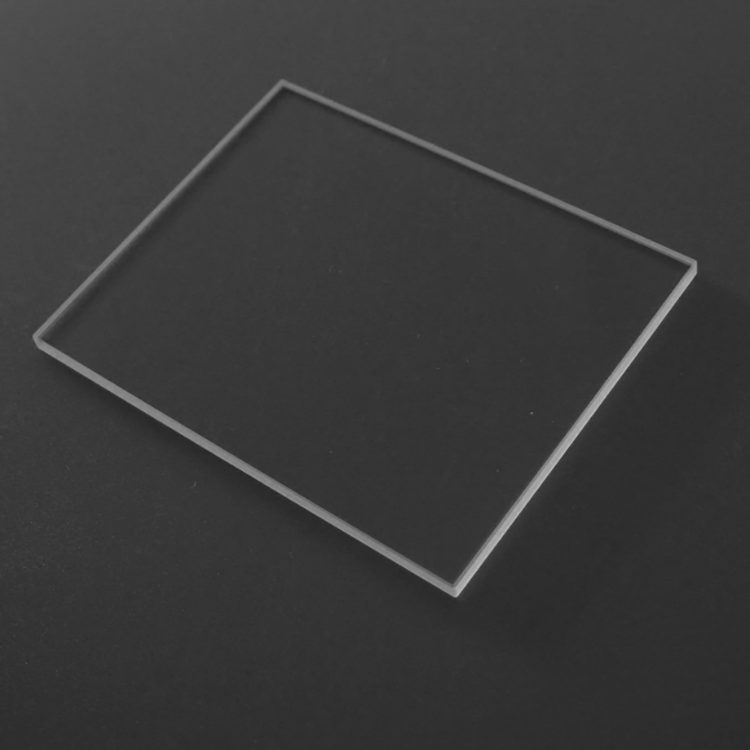

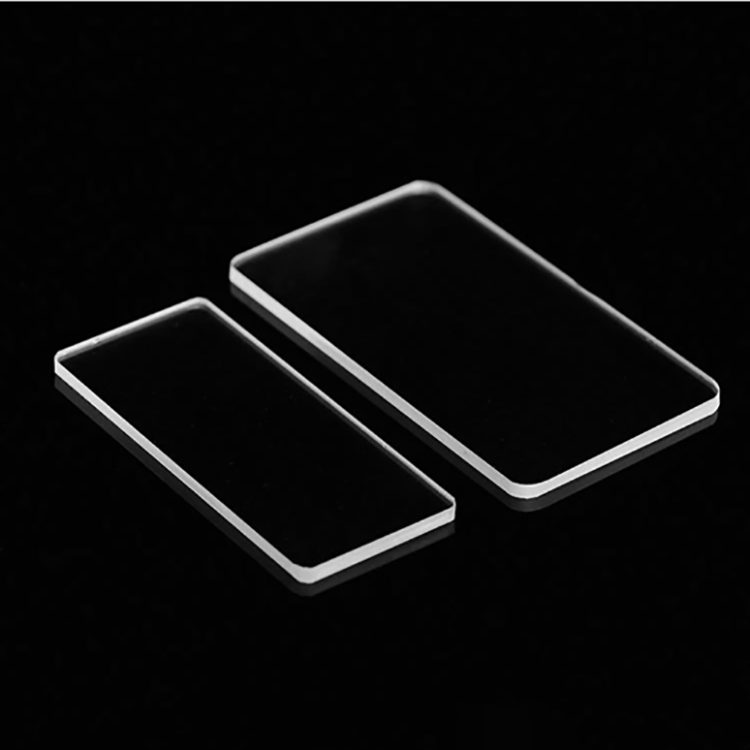

5x0.5 mm Sapphire Square Optical Window, AR Coated

Product description

Sapphire optical windows are designed for applications requiring high durability and optical clarity in the 400-700 nm wavelength range. With a broad diameter range of 5 to 300 mm and thickness options from 0.5 to 50 mm, these windows are ideal for IR imaging, LIDAR, and laser applications. The AR coating enhances transmittance, making them suitable for various optical systems.

Key Features

Diameter range: 5.0 to 300.0 mm, accommodating diverse application needs.
Thickness options: 0.5 to 50.0 mm for tailored performance.
Surface quality of 40/20 ensures high clarity and minimal distortion.
Centration accuracy of <3 arc for precise alignment in optical setups.
Customizable with OEM and ODM support to meet specific requirements.

Available Sizes

Diameter x Thickness (mm)
152.5 x 25.2

Specification Summary

Item	Value
Material	Sapphire
Shape	Square
Diameter	5 mm
Thickness	0.5 mm
Surface Quality	40/20
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	optical windows
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.5kg(1.10lb)
Clear Aperture	90%
Color	transparent
Tolerance	0.01-0.02mm
Surface Flatness	1/4@633nm

FAQ

What is the minimum order quantity (MOQ) for these windows?

The minimum order quantity (MOQ) is not specified.

Can I get these windows in custom sizes?

Yes, custom sizes are available, including variant sizes like 152.5 mm diameter and 25.2 mm thickness.
