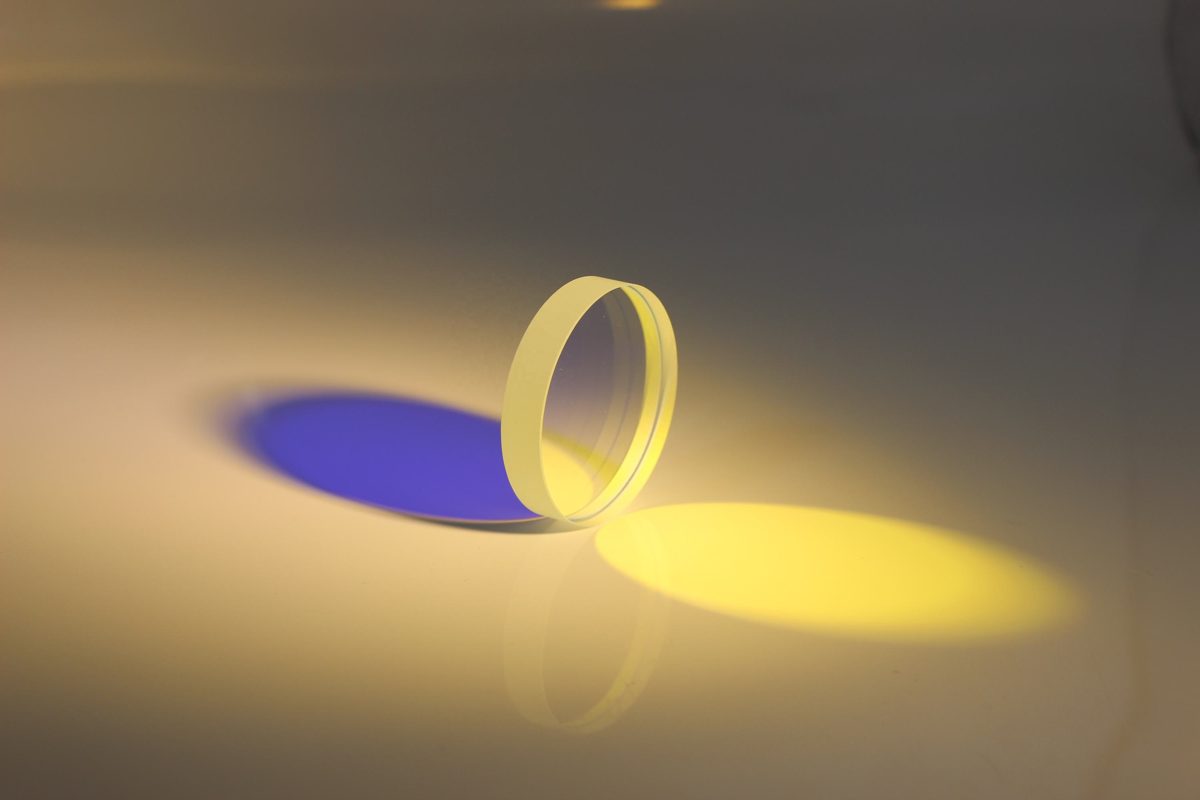

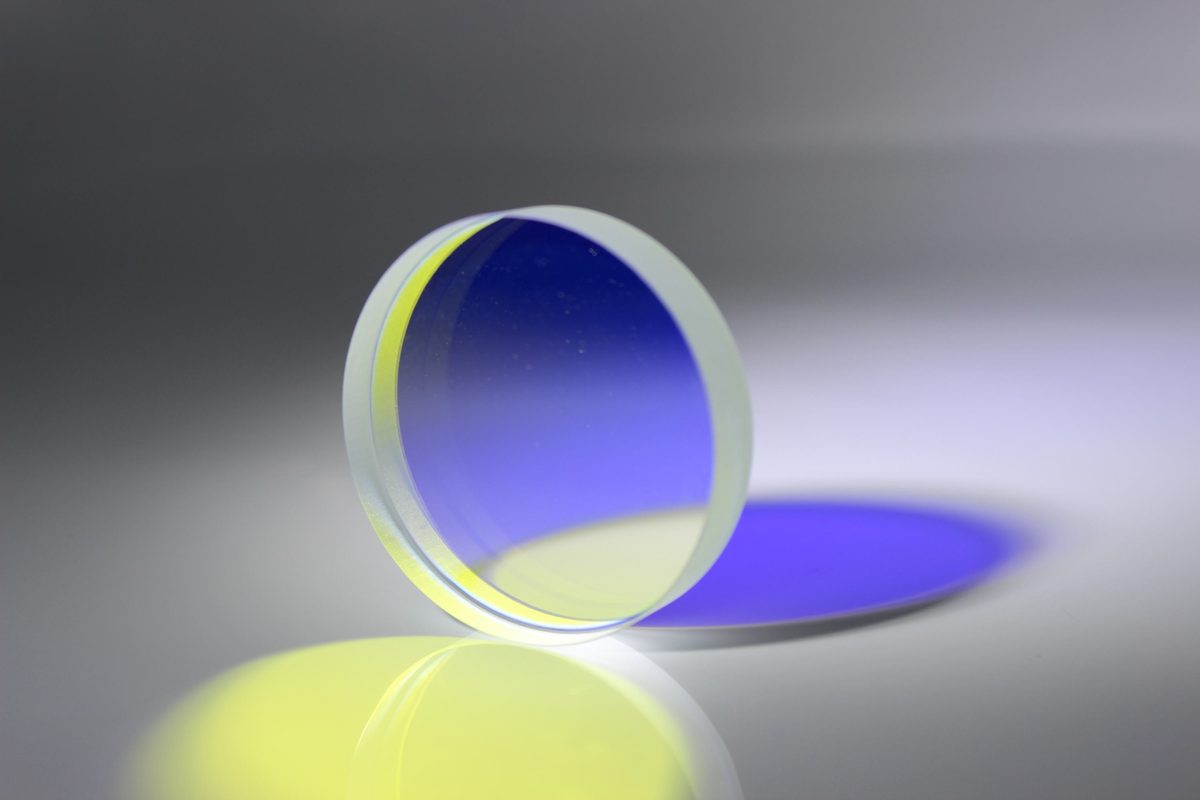

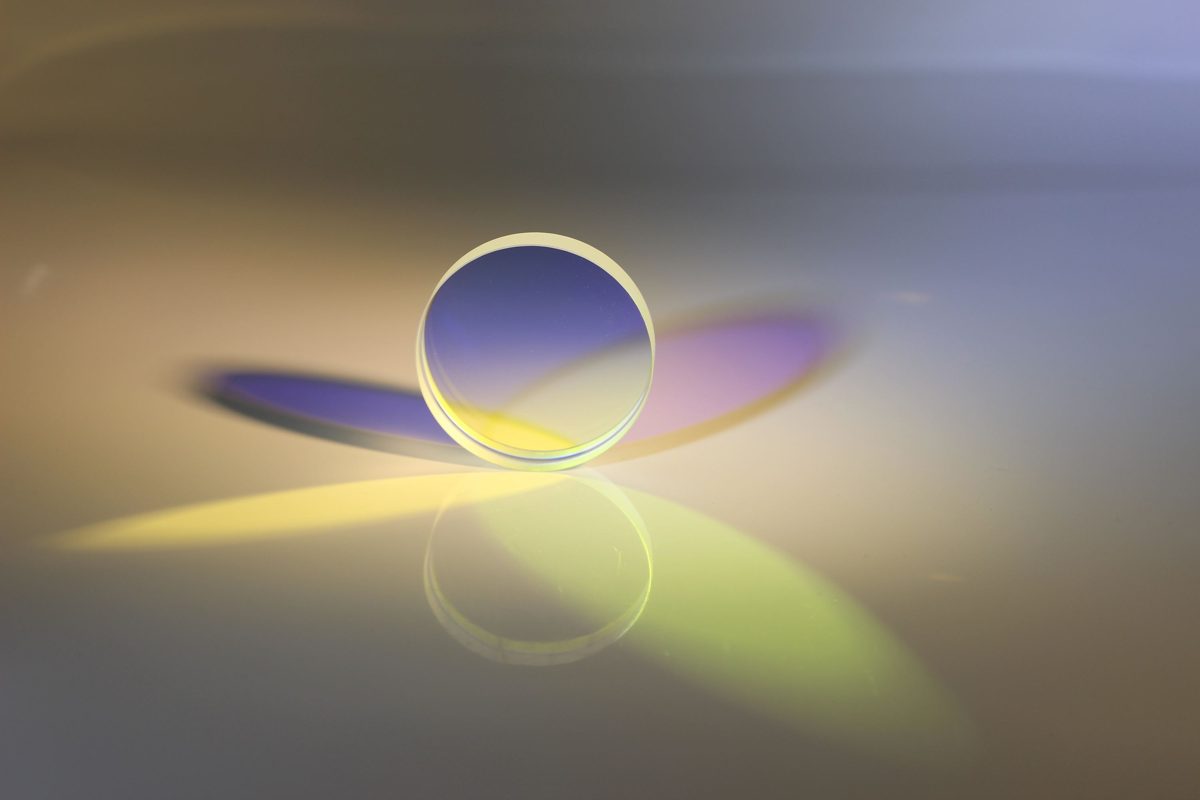

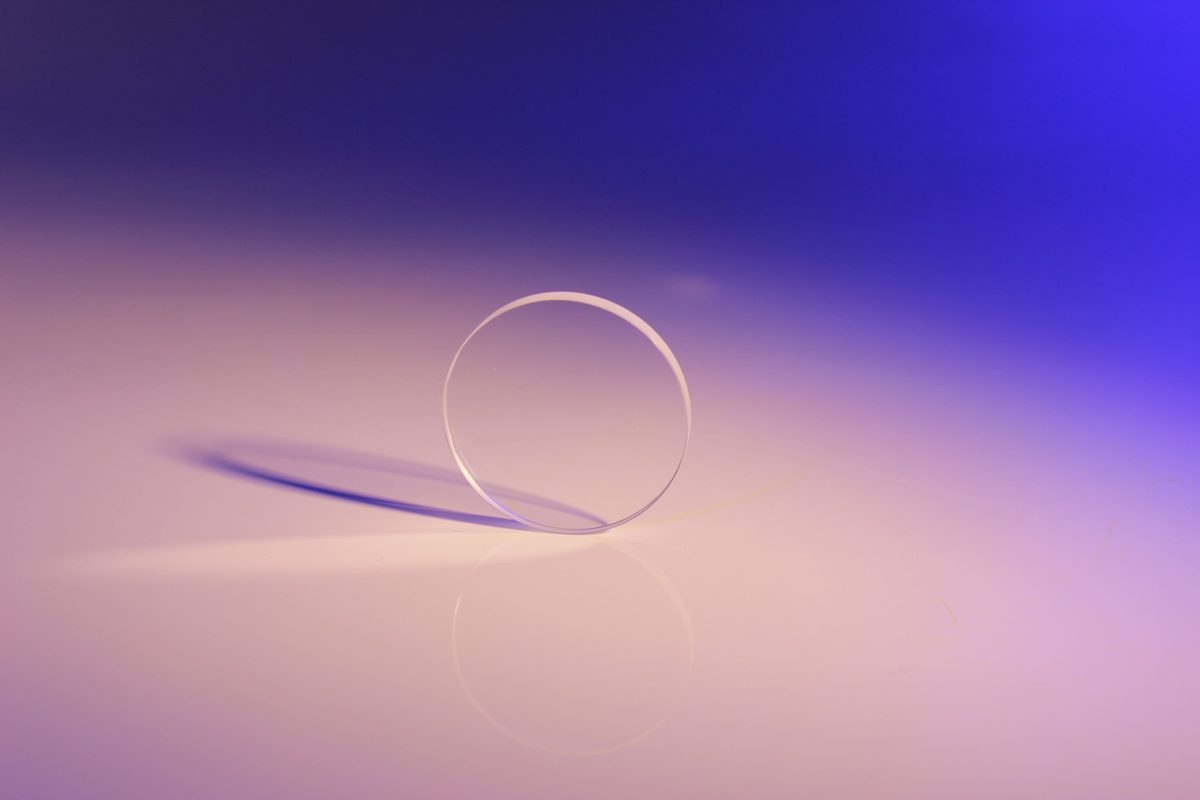

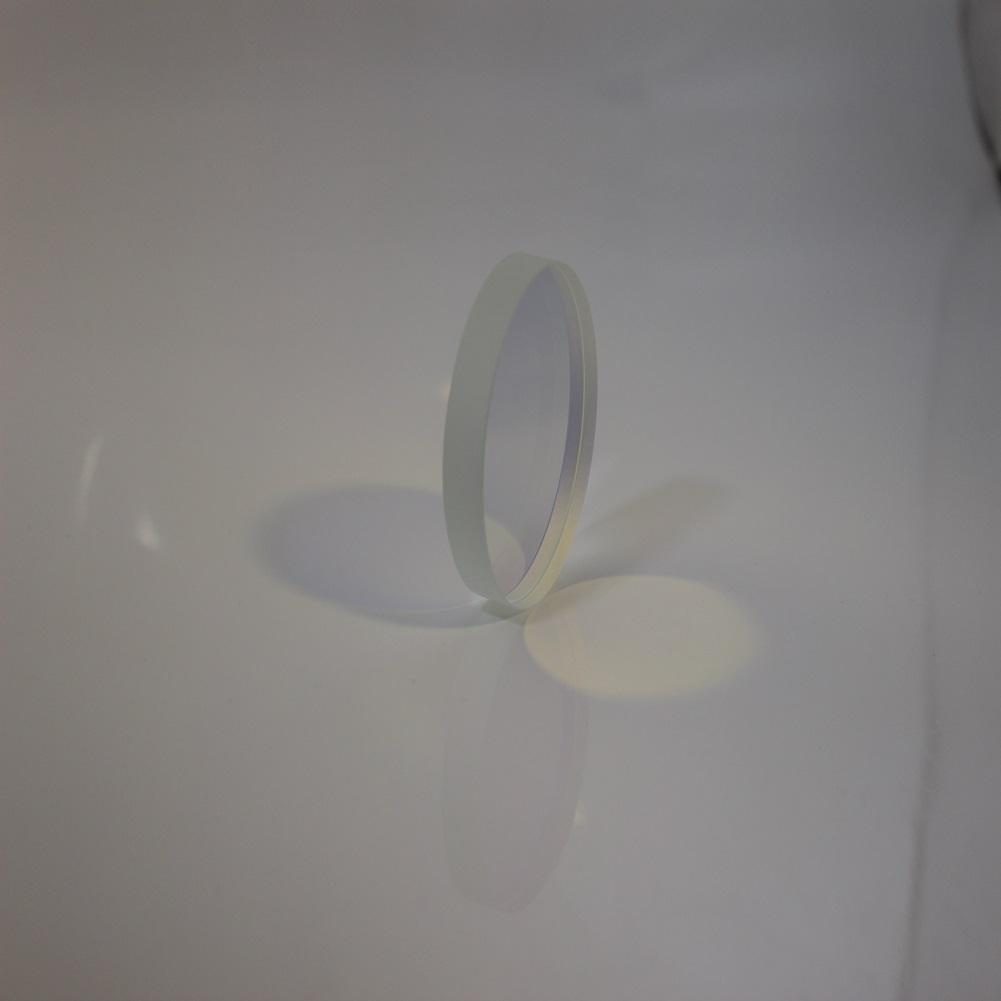

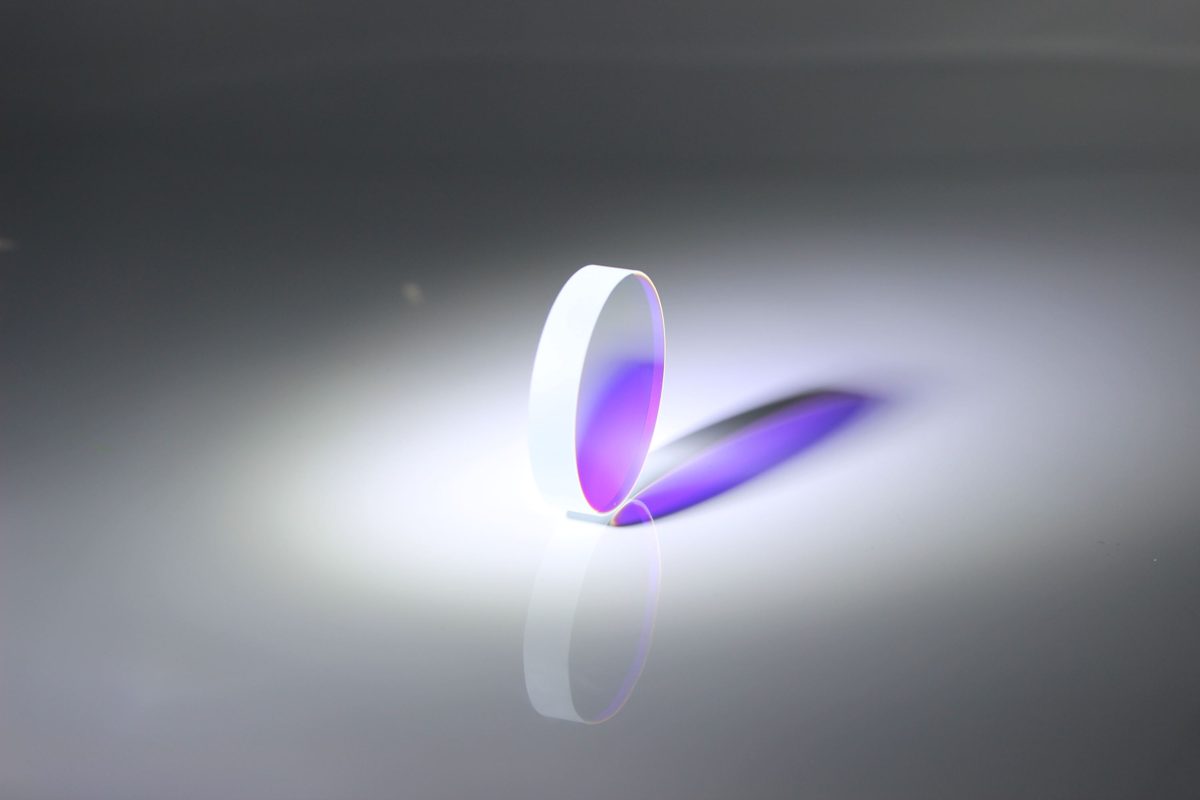

1 mm Sapphire Step Optical Window, AR Coated

Product description

This sapphire optical window is designed for applications in security and other fields requiring high durability and optical clarity. With a transmission range of 0.7-1.7 μm and coatings for anti-reflection, it ensures minimal signal loss. The window is available in diameters ranging from 1.0 mm to 460.0 mm, making it versatile for various setups. Its robust construction and surface quality of 60/40 enhance reliability in demanding environments.

Key Features

Diameter options from 1.0 mm to 460.0 mm for versatile applications.
Surface quality of 60/40 ensures high optical performance.
AR coatings reduce reflectance, enhancing transmittance in critical bands.
Custom OEM and ODM support available for tailored solutions.
Parallelism tolerance of +/- 3’ ensures precise alignment in systems.

Applications

Security

Specification Summary

Item	Value
Material	Sapphire
Shape	Step
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Convex Lens, Fresnel Lens, Aspherical Lens, Concave Lens
Customized Support	OEM, ODM
Warranty	None
Weight	0.02
Parallelism	+/- 3’,+ / - 30"
Thickness Tolerance	±0.1mm,+/- 0.02mm
Bevel	0.1-0.3mm x45 degree

FAQ

Can I get custom sizes?

Yes, the sapphire optical window can be customized in diameter from 1.0 mm to 460.0 mm.

What are the thickness tolerances?

The thickness tolerance is ±0.1 mm or +/- 0.02 mm.
