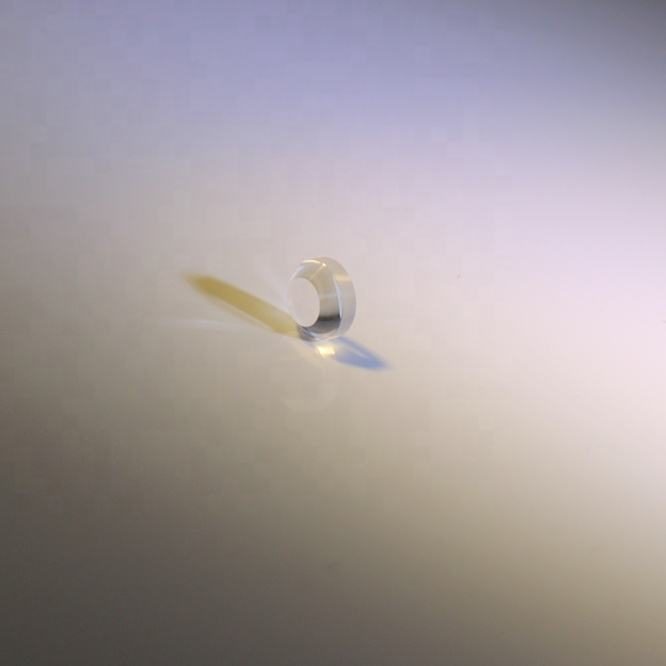

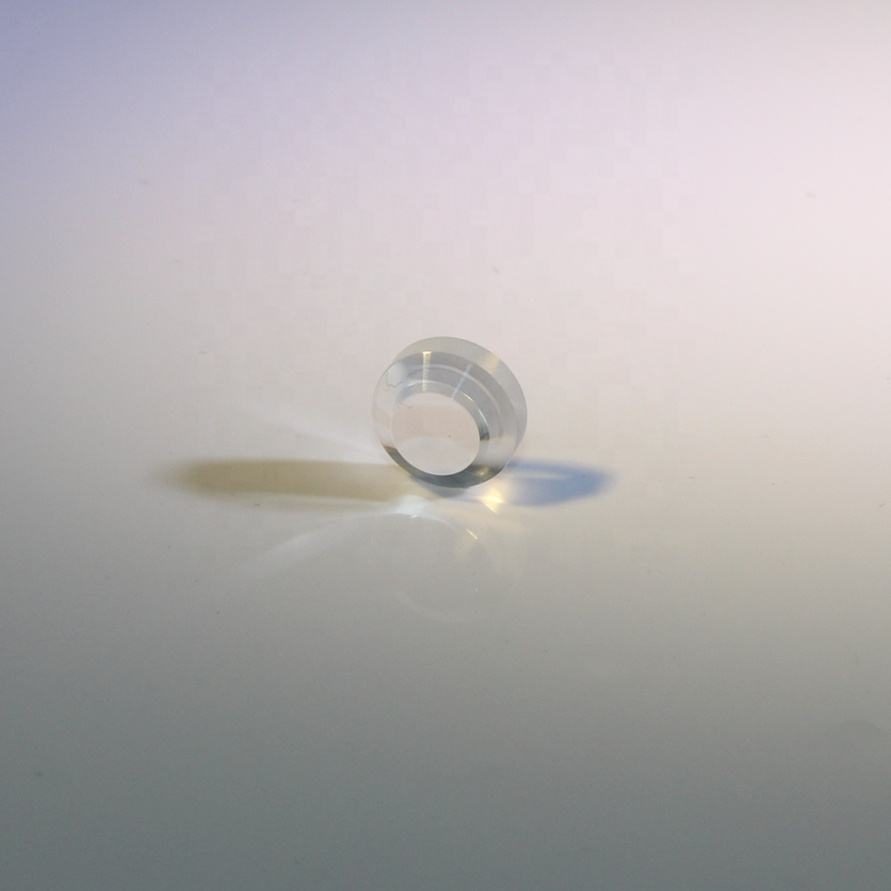

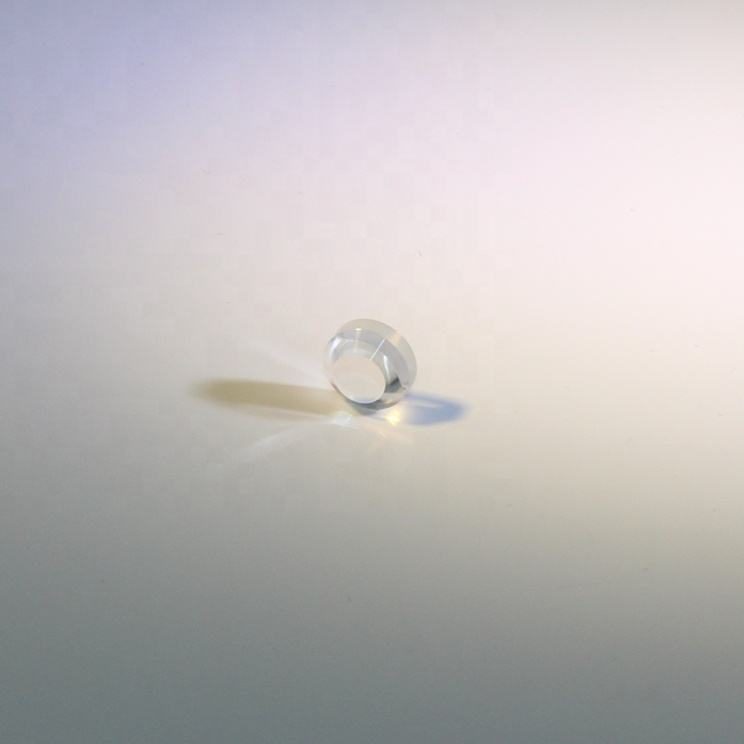

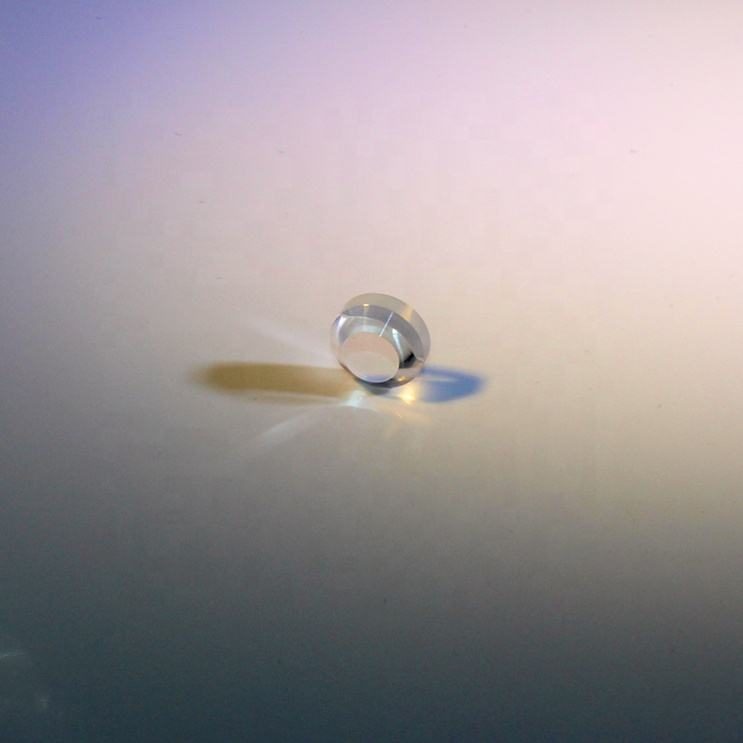

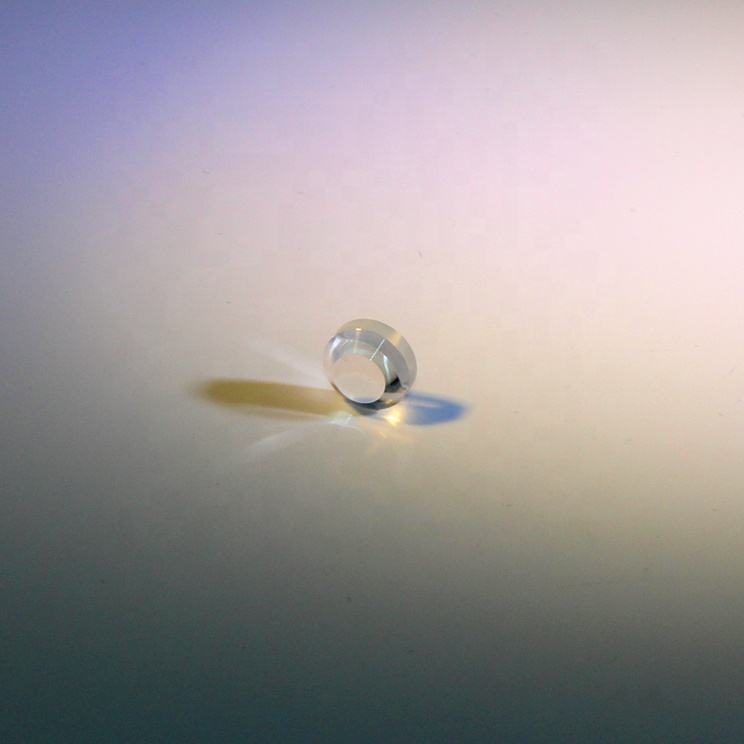

3x0.1 mm Sapphire Step Optical Window, AR Coated

Product description

The Sapphire Step Lens is designed for security applications, providing superior durability and clarity. Made from synthetic sapphire, this optical window features exceptional surface quality and flatness, ensuring optimal performance in demanding environments. With a diameter of 3.0 mm and a thickness of 0.15 mm, it is ideal for various optical setups. The lens is available with anti-reflective coatings to enhance transmittance and minimize glare.

Key Features

Diameter of 3.0 mm with a tolerance of +/-0.01 mm ensures precise fitting for optical systems.
Thickness of 0.15 mm with a tolerance of +/-0.1 mm allows for compatibility with various applications.
Surface quality rated at 10/5 provides exceptional clarity and minimizes distortion.
Custom sizes available, including variants down to 3.0 mm diameter and 0.1 mm thickness.
OEM and ODM support for tailored solutions to meet specific project requirements.

Available Sizes

Diameter x Thickness (mm)
3 x 0.1

Applications

Security

Specification Summary

Item	Value
Material	Sapphire
Shape	Step
Diameter	3 mm
Thickness	0.1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	step lens; optical window
Customized Support	OEM, ODM
Warranty	as per usage
Weight	0.021
Name	Sapphire glass
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.1mm
Surface Figure	lamda/10(PV flat surface can achieve 0.03um per 150mm)

FAQ

Is custom sizing available?

Yes, custom sizes are available, including variants down to 3.0 mm diameter and 0.1 mm thickness.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.01 mm, and thickness tolerance is +/-0.1 mm.
