1 / 6Optical Windows

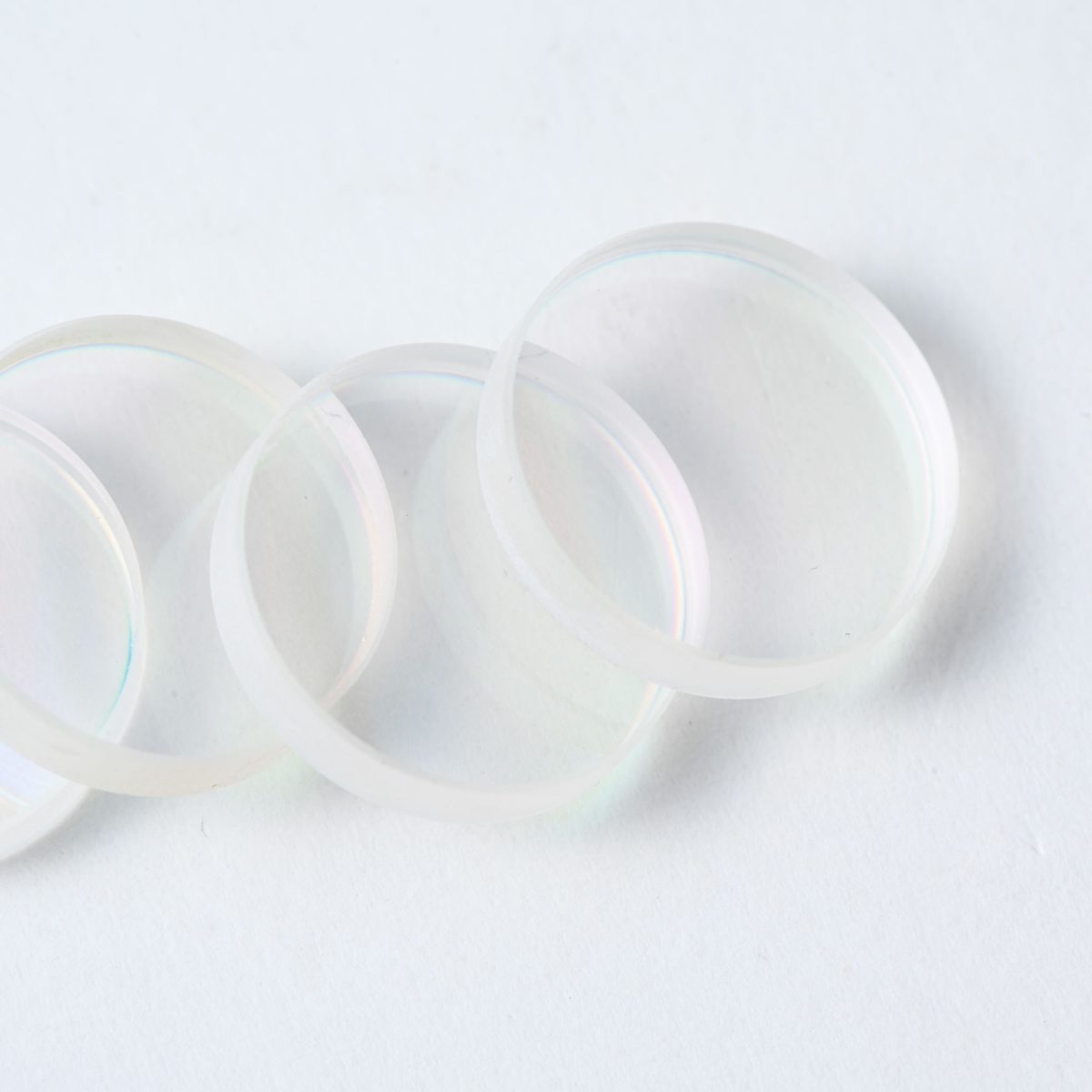

Custom Size Sapphire Step Optical Window, AR Coated
Sapphire Window for medical applications, featuring double AR coating and customizable options for precision imaging.
Core attributes
- Material
- Sapphire
- Shape
- step
- Thickness
- 1–50 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Sapphire
- Shape
- step
- Thickness
- 1–50 mm
- Coating
- ar
Product description
The Sapphire Window is designed for medical applications, providing high precision and clarity essential for intricate imaging tasks. With a thickness range of 1.0 to 50.0 mm and double anti-reflective (AR) coatings, it enhances transmittance while minimizing reflections. This window is ideal for high-resolution imaging, ensuring superior viewing quality in demanding environments.
Key Features
- Thickness range: 1.0 to 50.0 mm for versatile application fit.
- Double AR coating enhances clarity and reduces reflections.
- Optically grade sapphire ensures superior viewing quality.
- Clear aperture of >90% for optimal light transmission.
- Customizable support for OEM, ODM, and OBM projects.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Shape | Step |
| Diameter | Custom |
| Thickness | 1 mm |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Sapphire Window |
| Customized Support | OEM, ODM, OBM; OBM OEM ODM |
| Warranty | 3 Years |
| Weight | 0.05kg |
| Diameter Tolerance | +0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Clear Aperture | >90% |
FAQ
What is the thickness tolerance?
The thickness tolerance is ±0.1 mm.
Is custom sizing available?
Yes, the Sapphire Window supports OEM, ODM, and OBM customization.
