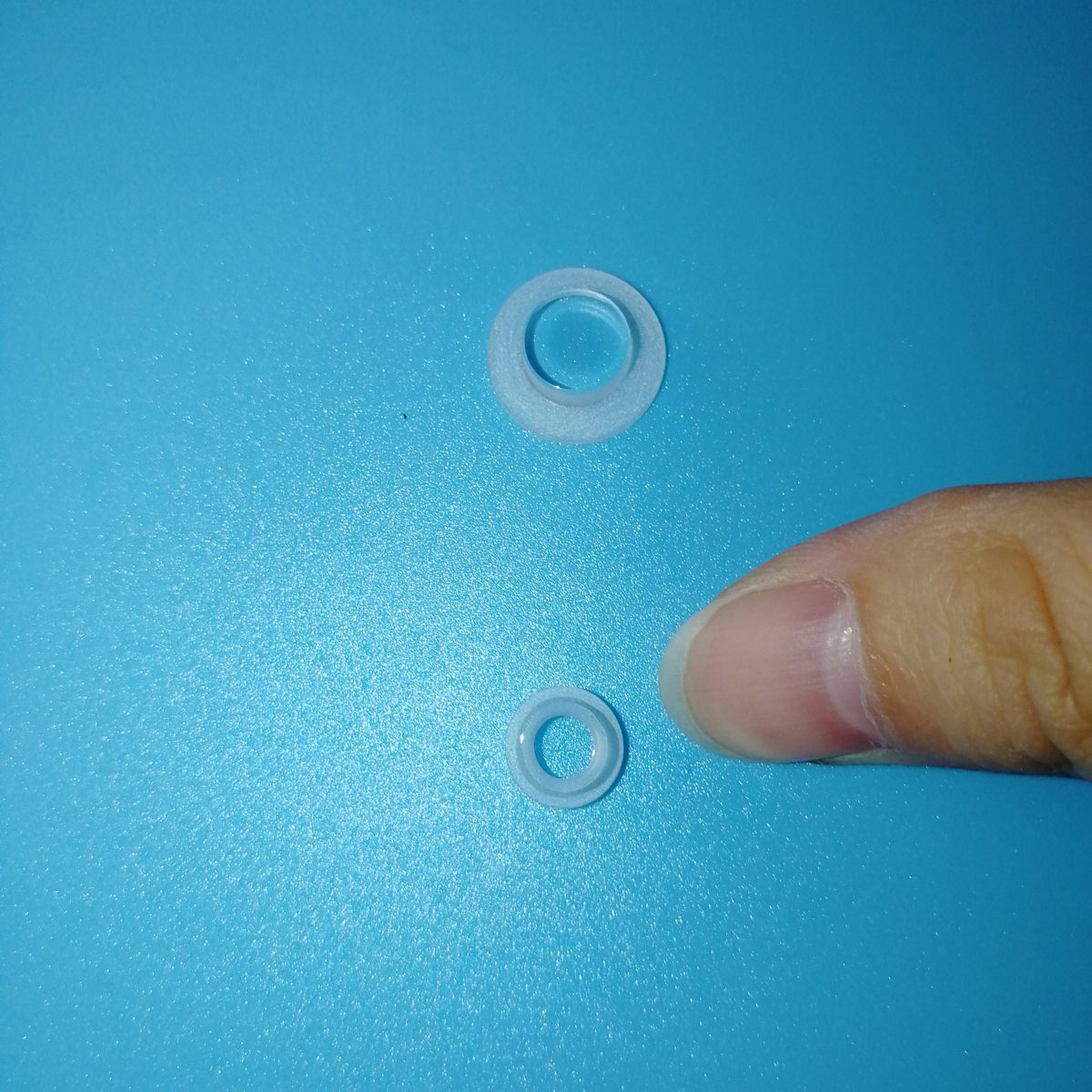

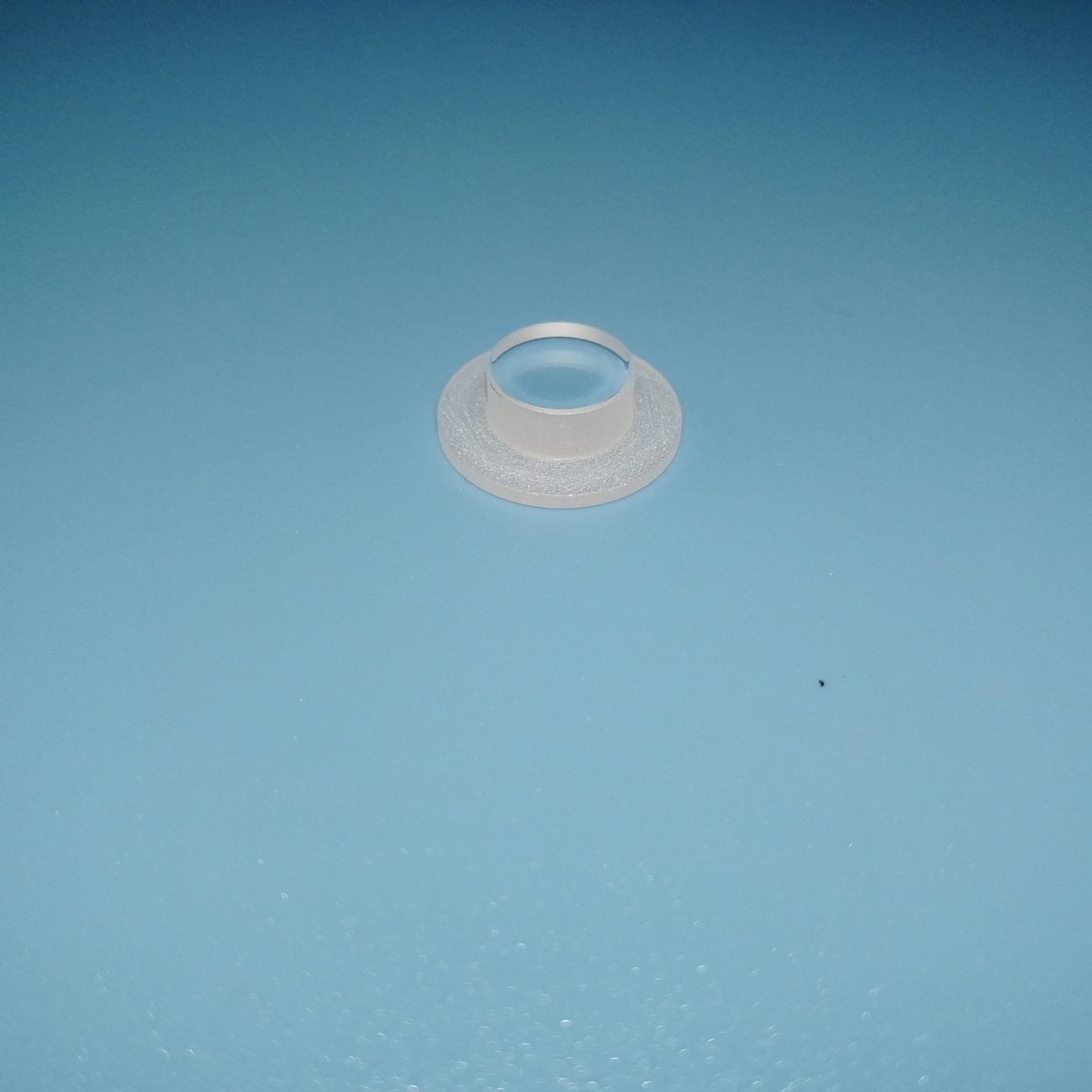

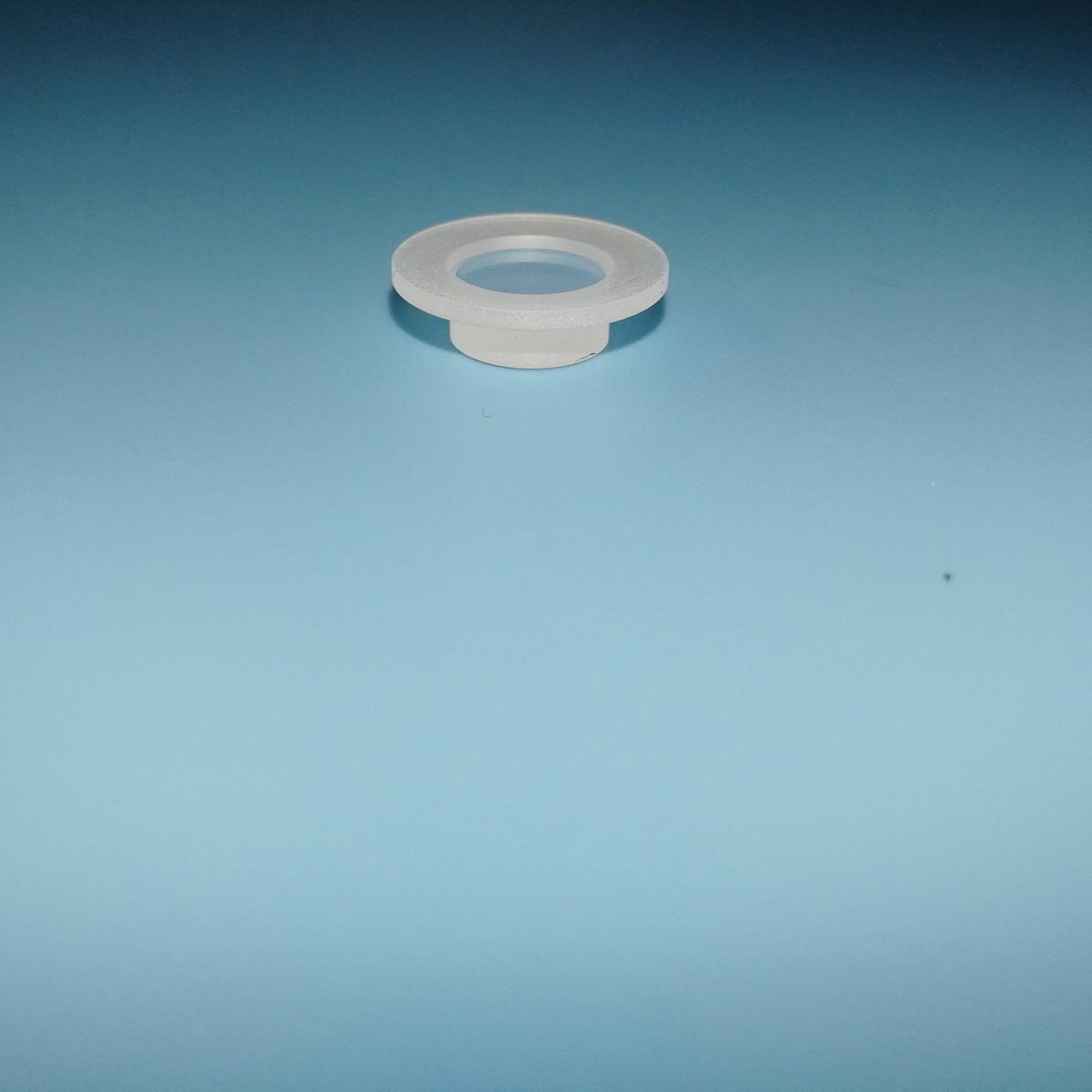

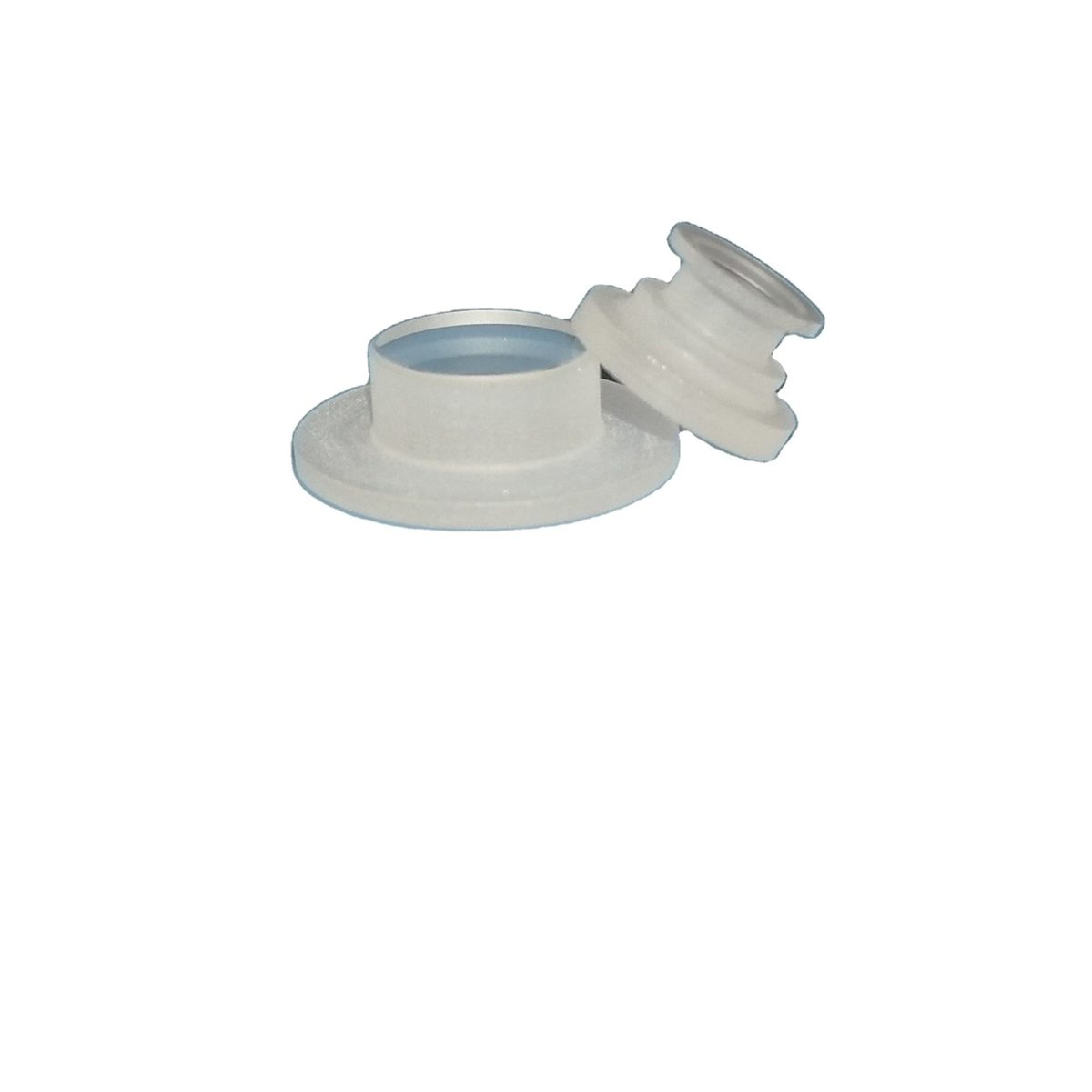

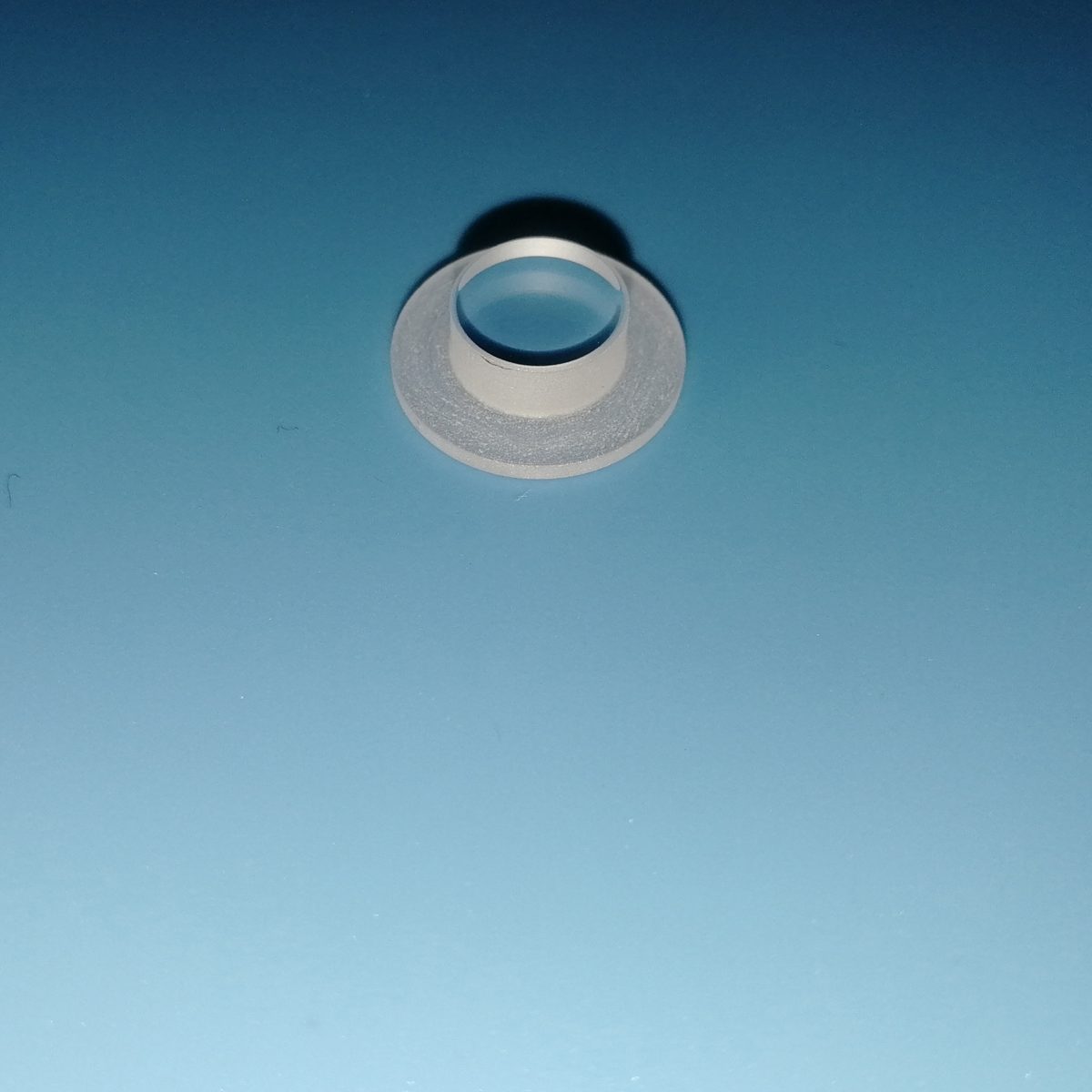

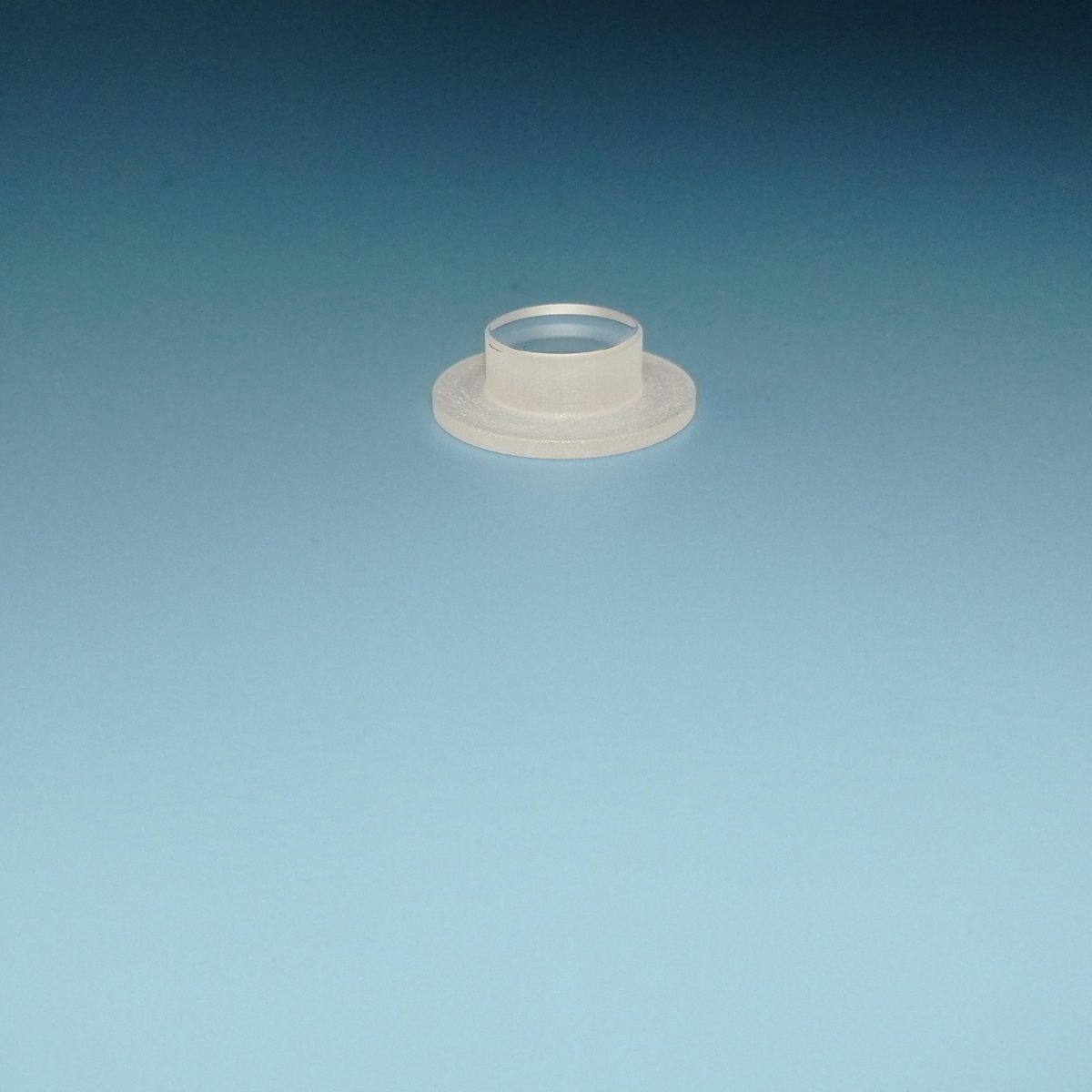

Custom Size Sapphire Step Optical Window, AR Coated

Product description

Sapphire step windows are ideal for applications in medical devices and IR laser systems, providing exceptional durability and chemical resistance. With a transmittance range covering UV to IR (150 nm - 4.5 µm), these windows ensure high performance across various wavelengths. The hardness of sapphire allows for thinner optics, making them suitable for compact designs. Customization options are available to meet specific application requirements.

Key Features

Thickness range: 2.0 mm to 100.0 mm for versatile applications.
Tolerance of +/- 0.1 mm ensures precision in manufacturing.
Clear aperture greater than 90% maximizes light transmission.
Available coatings: AR or uncoated to suit different needs.
Chemically inert and temperature resistant up to 1,000 °C.

Applications

Medical

Specification Summary

Item	Value
Material	Sapphire
Shape	Step
Diameter	Custom
Thickness	2 mm
Coating	anti-reflective (AR), uncoated
Transmission bands	MWIR (3-5 μm), NIR (0.7-1.7 μm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Tolerance	+/- 0.1mm
Clear Aperture	>90%
Color	Transparent Clear
Chamfer	0.2*45°

FAQ

What is the minimum order quantity (MOQ) for these windows?

The minimum order quantity is not specified.

Can I get custom sizes for the sapphire step windows?

Customization options are available, including specific thickness and coating requests.
