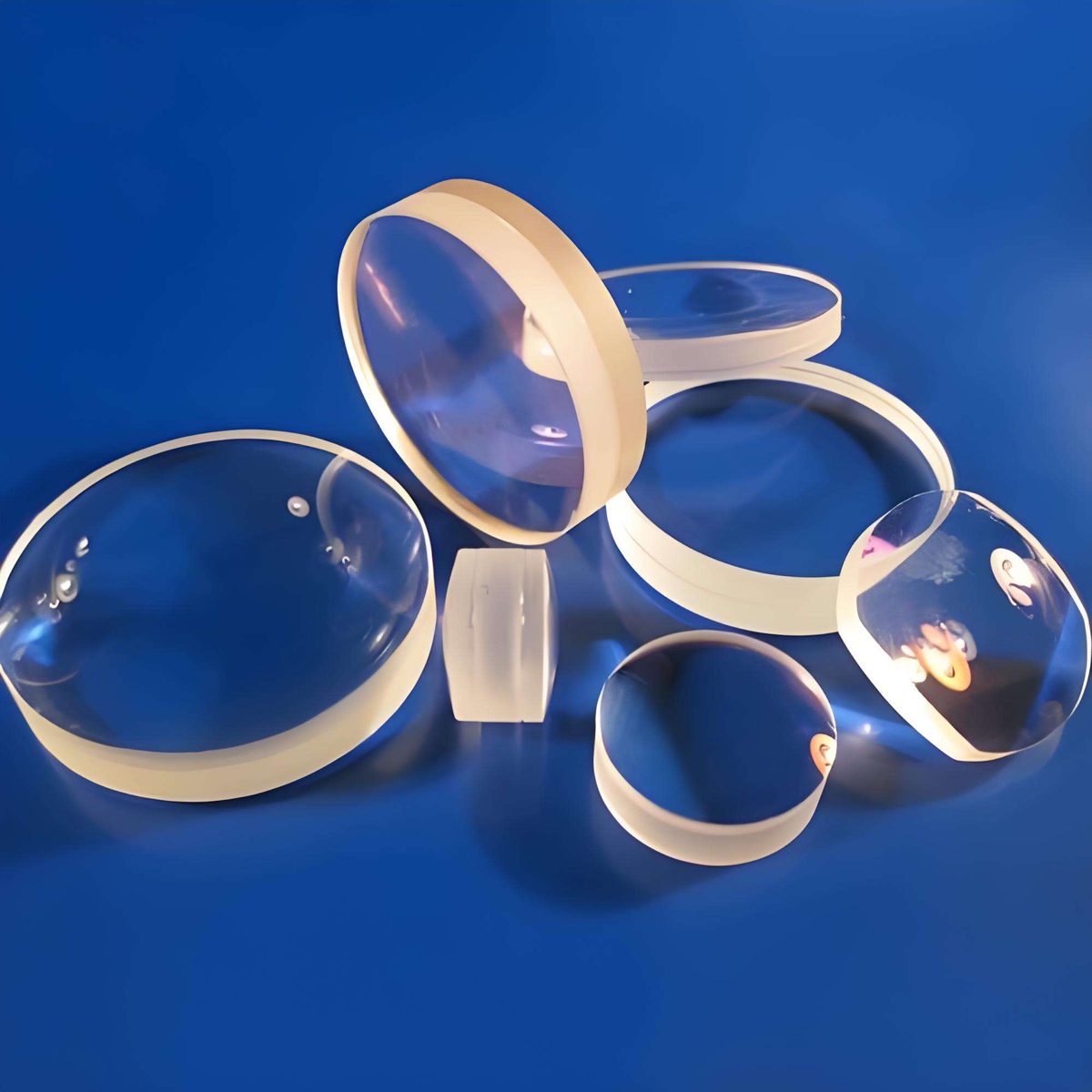

10x20 mm SF Flint Glass Achromatic Lens, AR Coated

Product description

The Achromatic Lens made from SF Flint Glass is designed for applications requiring high precision in the <400 nm wavelength range. Its exceptional surface quality of 60/40 and low centration error of 3~5 arcmin make it ideal for IR imaging, LIDAR, and other optical systems where clarity and accuracy are paramount. With a focal length of 20 mm and a diameter of 10 mm, this lens provides reliable performance in demanding environments.

Key Features

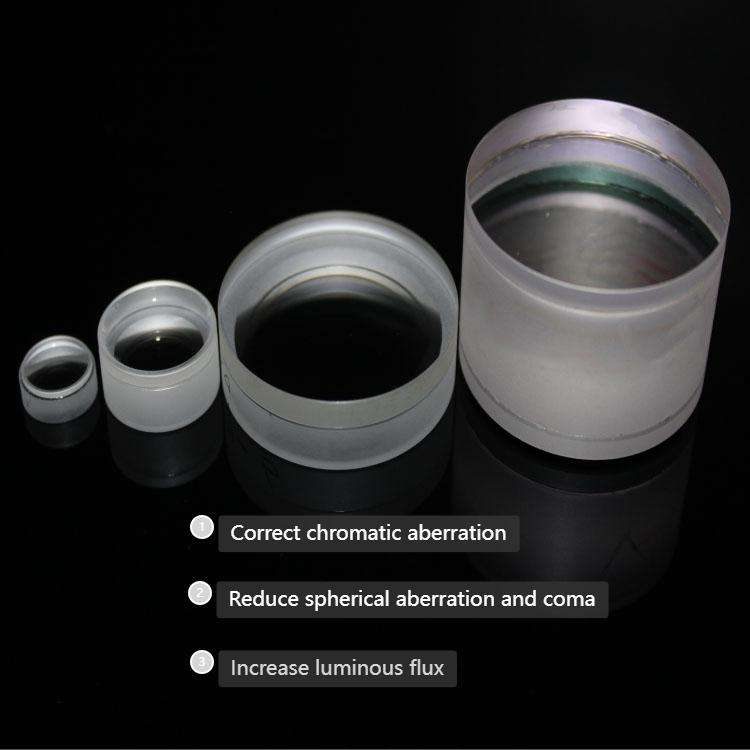

Achromatic design minimizes chromatic aberration, enhancing image clarity.
Surface quality rated at 60/40 ensures high optical performance.
Centration tolerance of 3~5 arcmin supports precise alignment in optical assemblies.
Custom sizes available from 5 mm to 400 mm, accommodating diverse applications.
OEM/ODM support enables tailored solutions for specific project needs.

Available Sizes

Diameter x Focal Length (mm)
10 x 20

Specification Summary

Item	Value
Material	SF Flint Glass
Shape	Achromatic
Diameter	10 mm
Focal Length	20 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	UV (<400 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM
Warranty	3years
Weight	0.5kg
Centration	3~5 arcmin
Center Thickness Tolerance	±0.01mm
Surface Flatness	1/4@633nm

FAQ

Can I get custom sizes for this lens?

Yes, custom sizes are available ranging from 5 mm to 400 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement.
