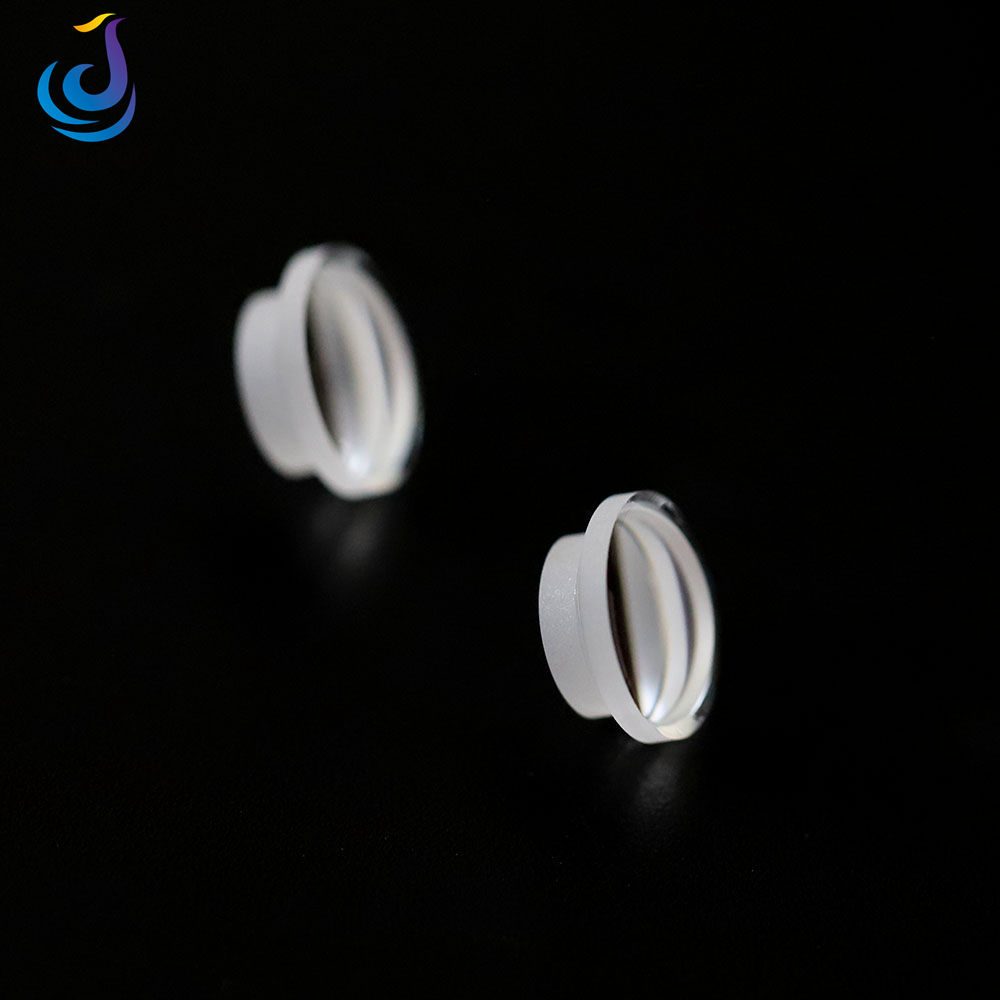

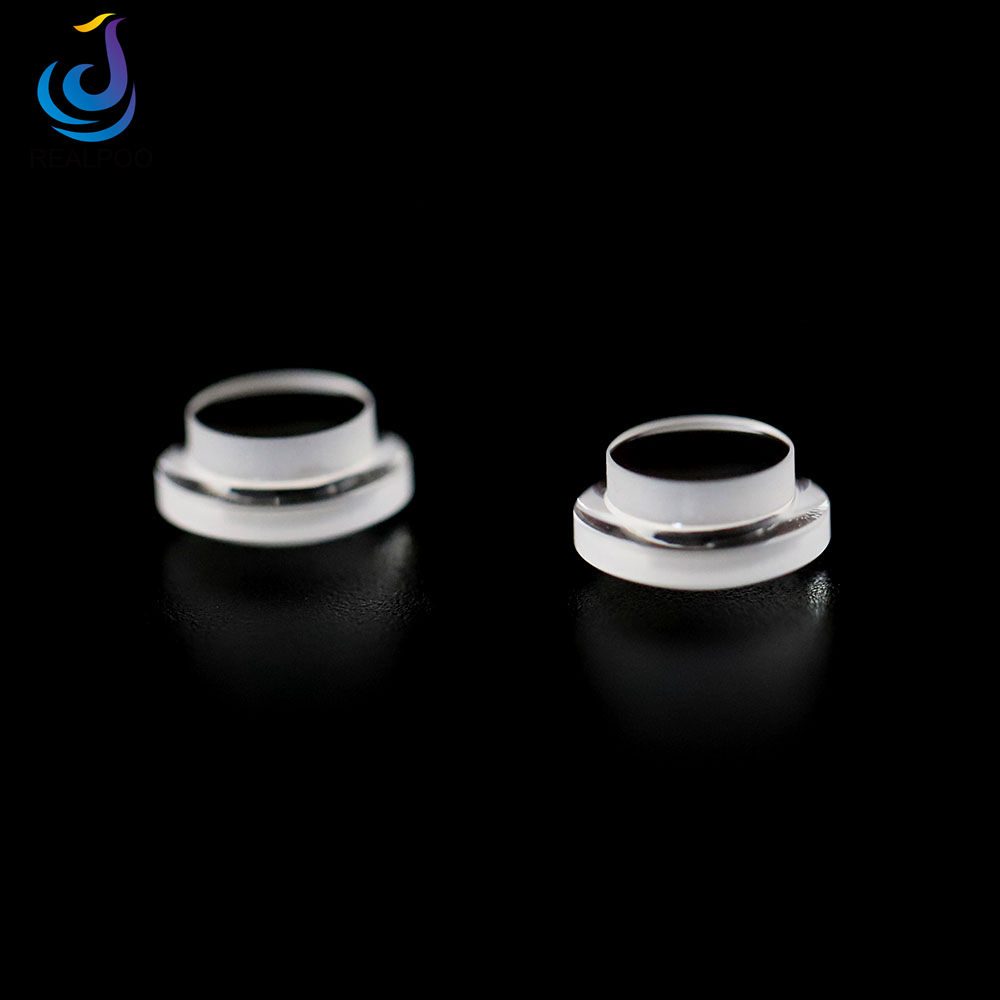

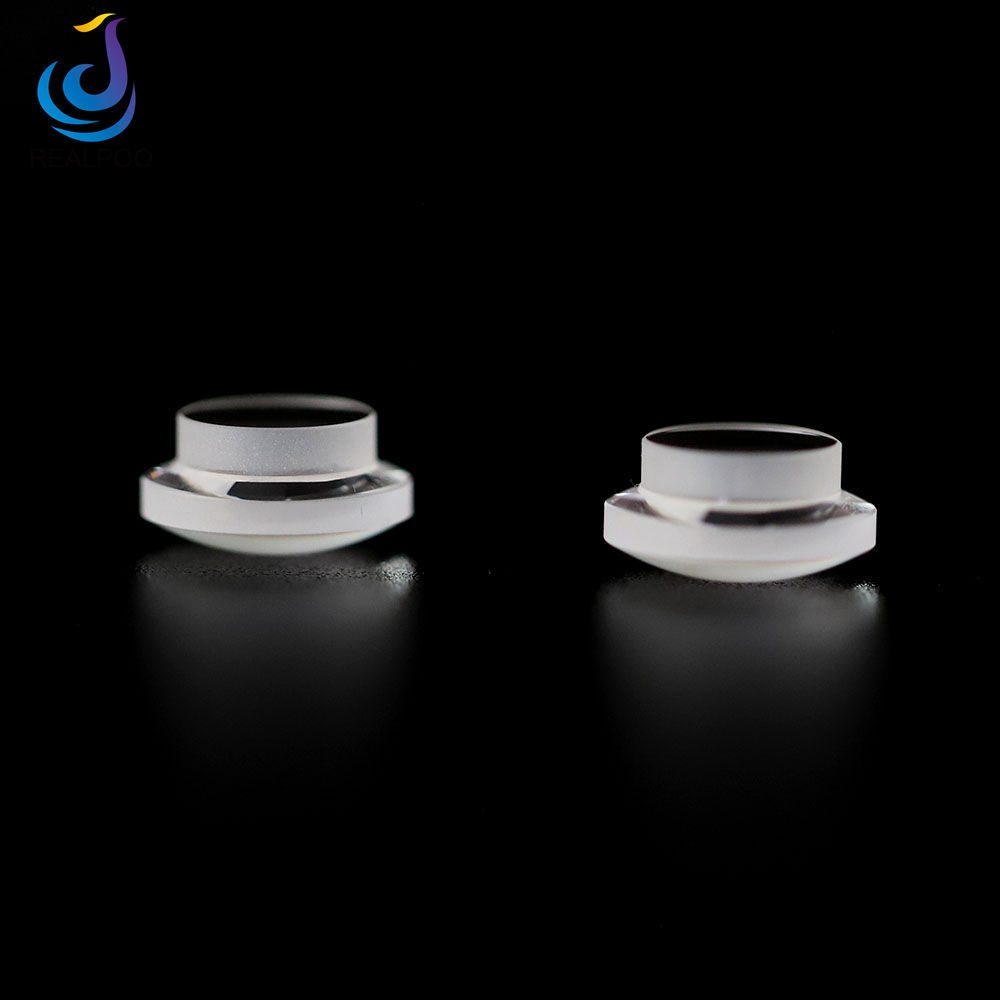

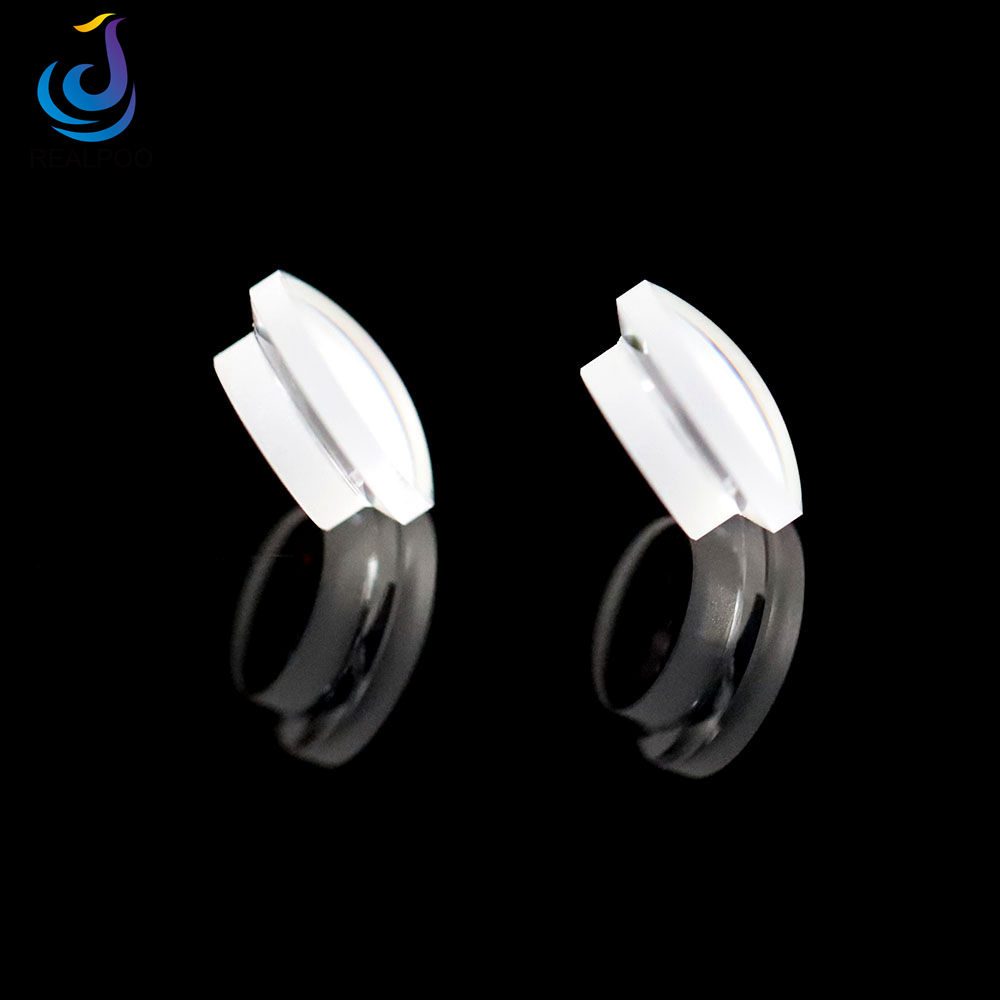

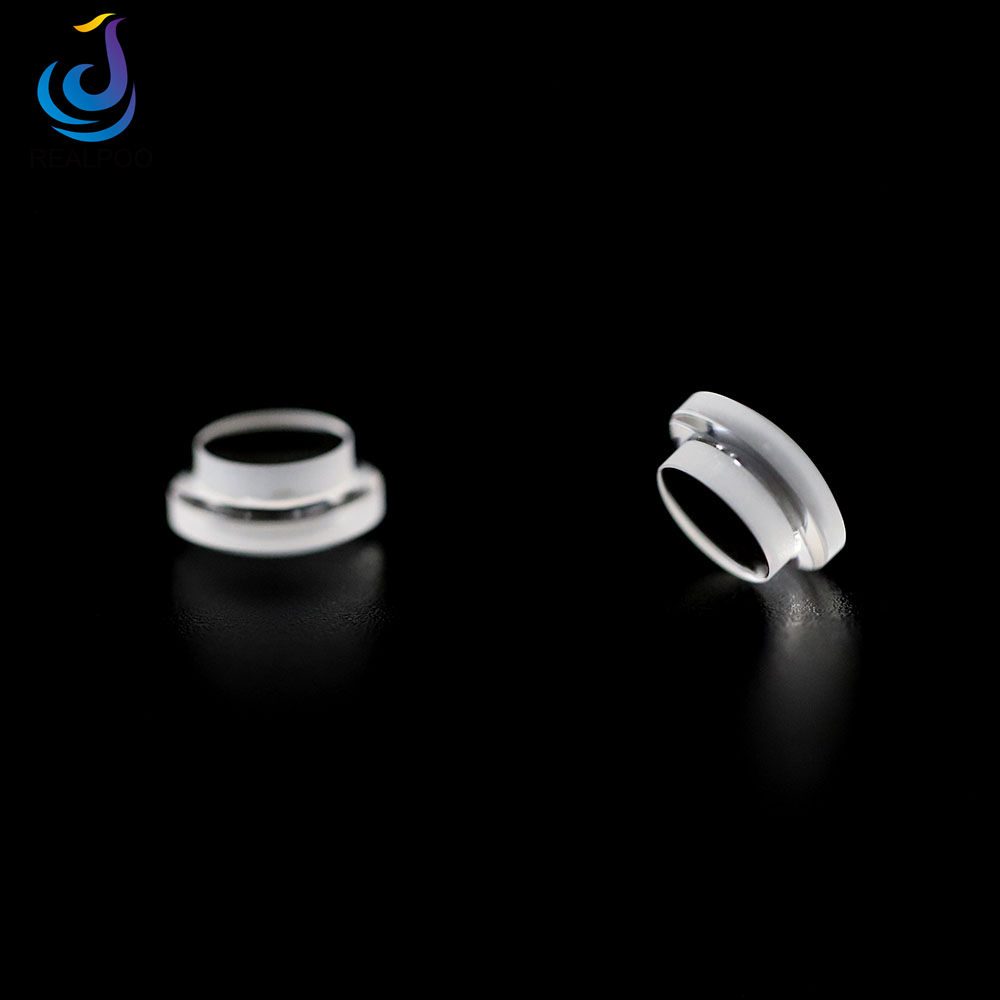

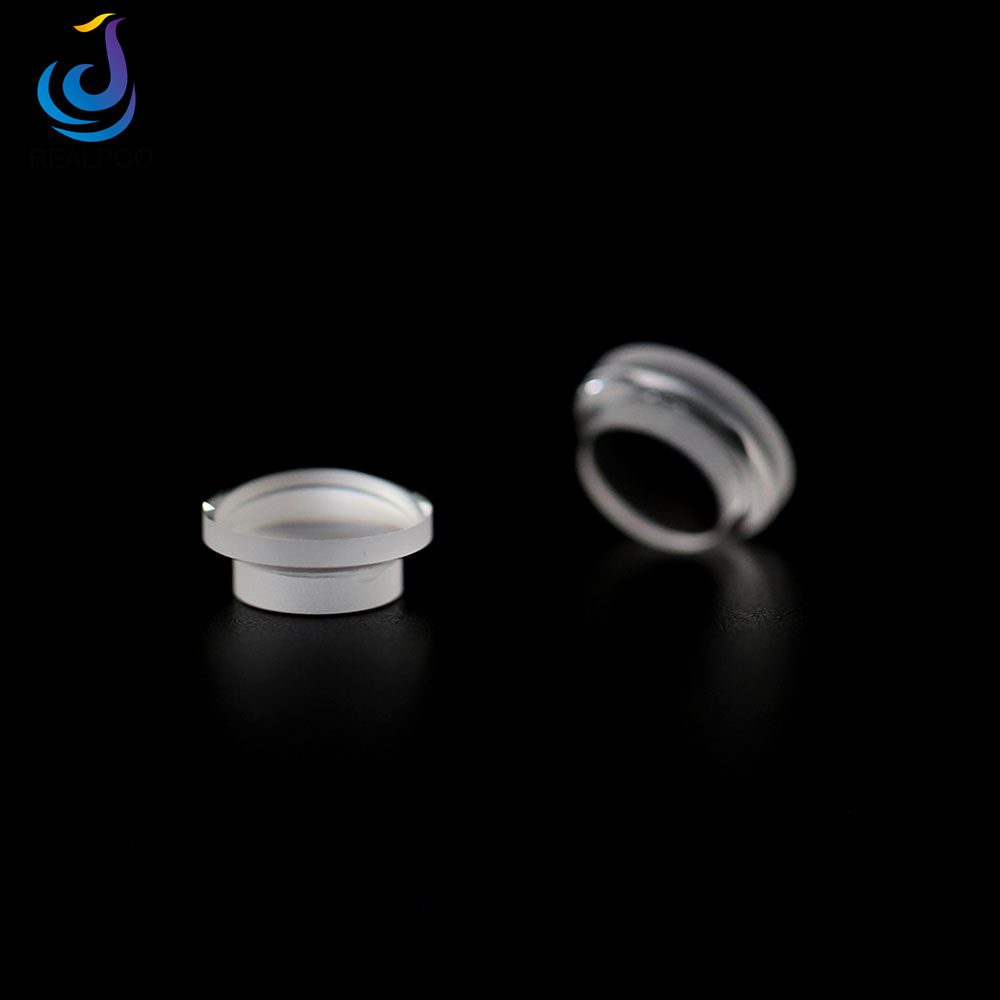

12x6 mm SF Flint Glass Achromatic Lens, AR Coated

Product description

The achromatic lens made from SF Flint Glass is designed to minimize chromatic and spherical aberrations, making it ideal for applications in microscopy, fluorescence imaging, and spectroscopy. With a focal length of 6.0 mm and a diameter of 12.0 mm, this lens operates effectively across the 0.7-1.7 μm and 400-700 nm wavelength bands. Its doublet design offers enhanced performance over single lenses, providing users with greater design flexibility and improved optical quality.

Key Features

Achromatic design reduces chromatic and spherical aberrations, enhancing image clarity.
Operating wavelengths from 0.7-1.7 μm and 400-700 nm, suitable for various applications.
Diameter tolerance of +0.0, -0.03 mm ensures precise fitting in optical systems.
Centration tolerance of ±1 arc minutes allows for accurate alignment in assemblies.
OEM support available for customized solutions to meet specific project needs.

Available Sizes

Diameter x Focal Length (mm)
12 x 6

Applications

Microscopy

Specification Summary

Item	Value
Material	SF Flint Glass
Shape	Achromatic
Diameter	12 mm
Focal Length	6 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM
Weight	0.1
Diameter Tolerance	+0.0, -0.03mm
Center Thickness Tolerance	±0.1mm
Centration	±1 arc minutes

FAQ

Can I get custom sizes for this lens?

Yes, the lens is available in variant sizes, including a diameter of 12.0 mm and focal length of 6.0 mm.

What are the tolerances for this lens?

The diameter tolerance is +0.0, -0.03 mm, and the center thickness tolerance is ±0.1 mm.
