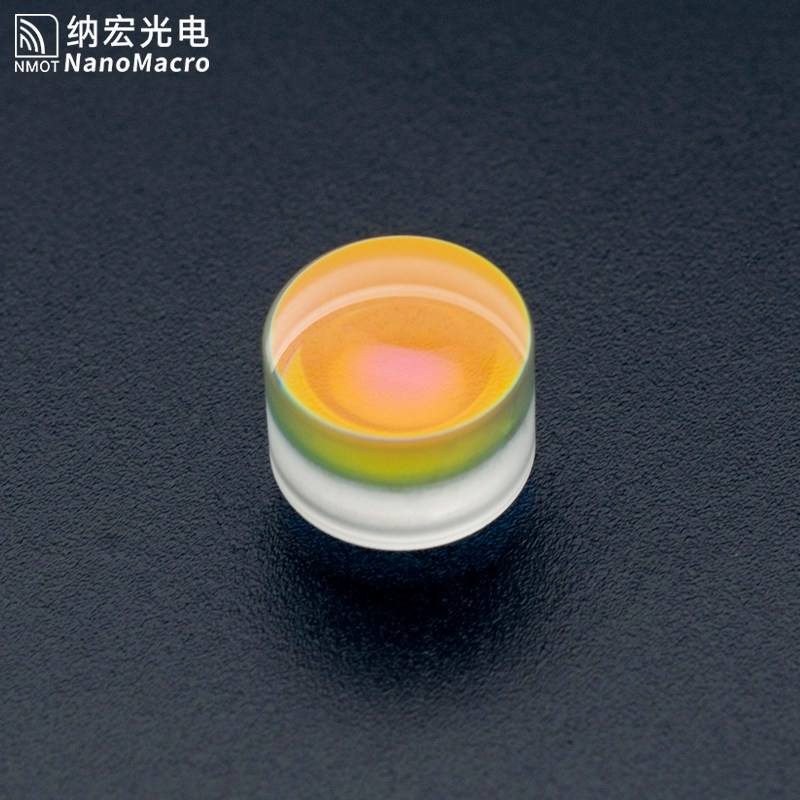

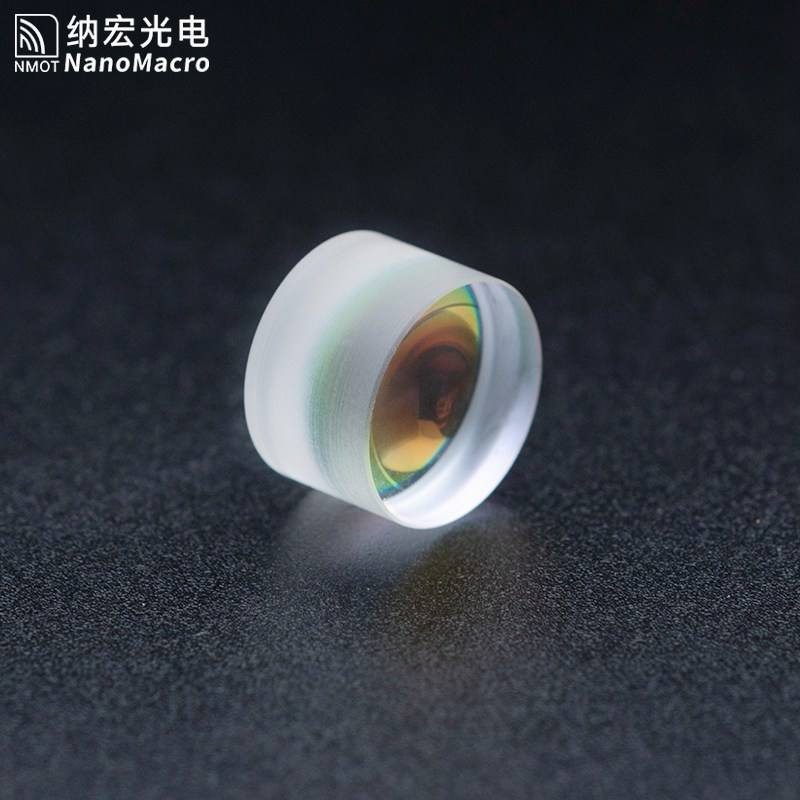

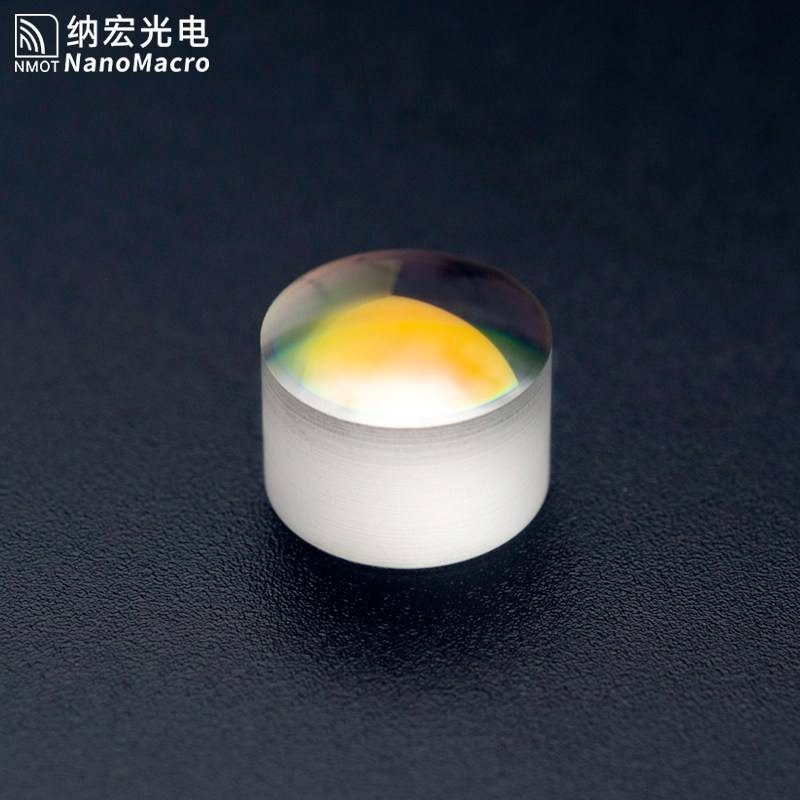

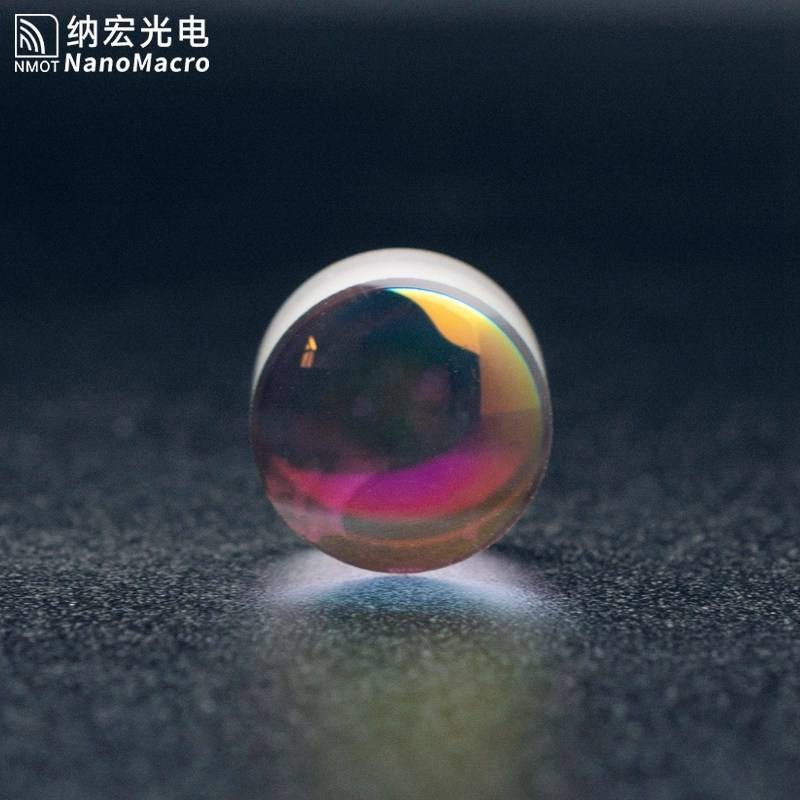

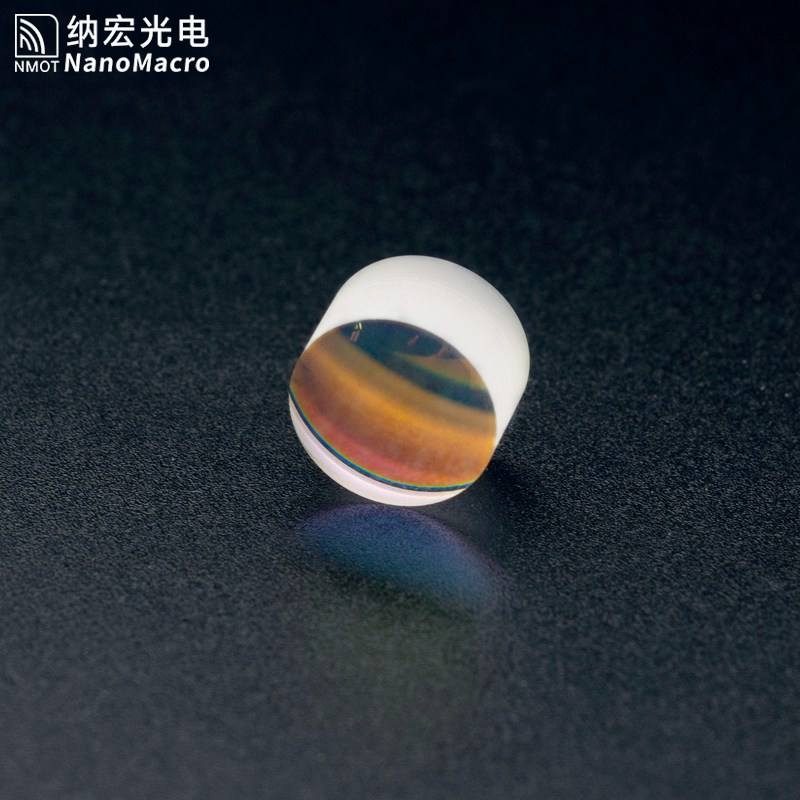

1x9 mm SF Flint Glass Achromatic Lens, AR Coated
Achromatic lens for medical and imaging applications, customizable sizes, and wide wavelength support.
Core attributes
- Material
- SF Flint Glass
- Shape
- Achromatic
- Diameter
- 1 mm
- Focal Length
- 9 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- SF Flint Glass
- Shape
- Achromatic
- Diameter
- 1 mm
- Focal Length
- 9 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This achromatic lens is designed for applications in medical, imaging, and collimation, effectively transmitting light across a wide wavelength range of 0.7-1.7 μm and 400-700 nm. With a surface quality rating of 40/20, it ensures minimal distortion and high clarity. The lens is available in various diameters from 1.0 mm to 100.0 mm and focal lengths from 9.0 mm to 200.0 mm, making it adaptable for diverse optical setups. Custom sizes and prototypes can be provided to meet specific project requirements.
Key Features
- Achromatic design minimizes chromatic aberration for clearer imaging.
- Transmits wavelengths from 0.7-1.7 μm and 400-700 nm, suitable for various applications.
- Available diameters from 1.0 mm to 100.0 mm for versatile integration.
- Focal lengths ranging from 9.0 mm to 200.0 mm for flexible optical configurations.
- OEM and ODM support available for customized solutions.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 50.5 x 104.5 |
Applications
Medical, Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | SF Flint Glass |
| Shape | Achromatic |
| Diameter | 1 mm |
| Focal Length | 9 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens; Achromatic Lenses |
| Customized Support | OEM, ODM |
| Weight | 0.1KG(0.22lb) |
| Sample | Offered |
| Wavelength | 750-1550nm |
FAQ
Can I get custom sizes?
Yes, custom sizes are available to meet specific project requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
