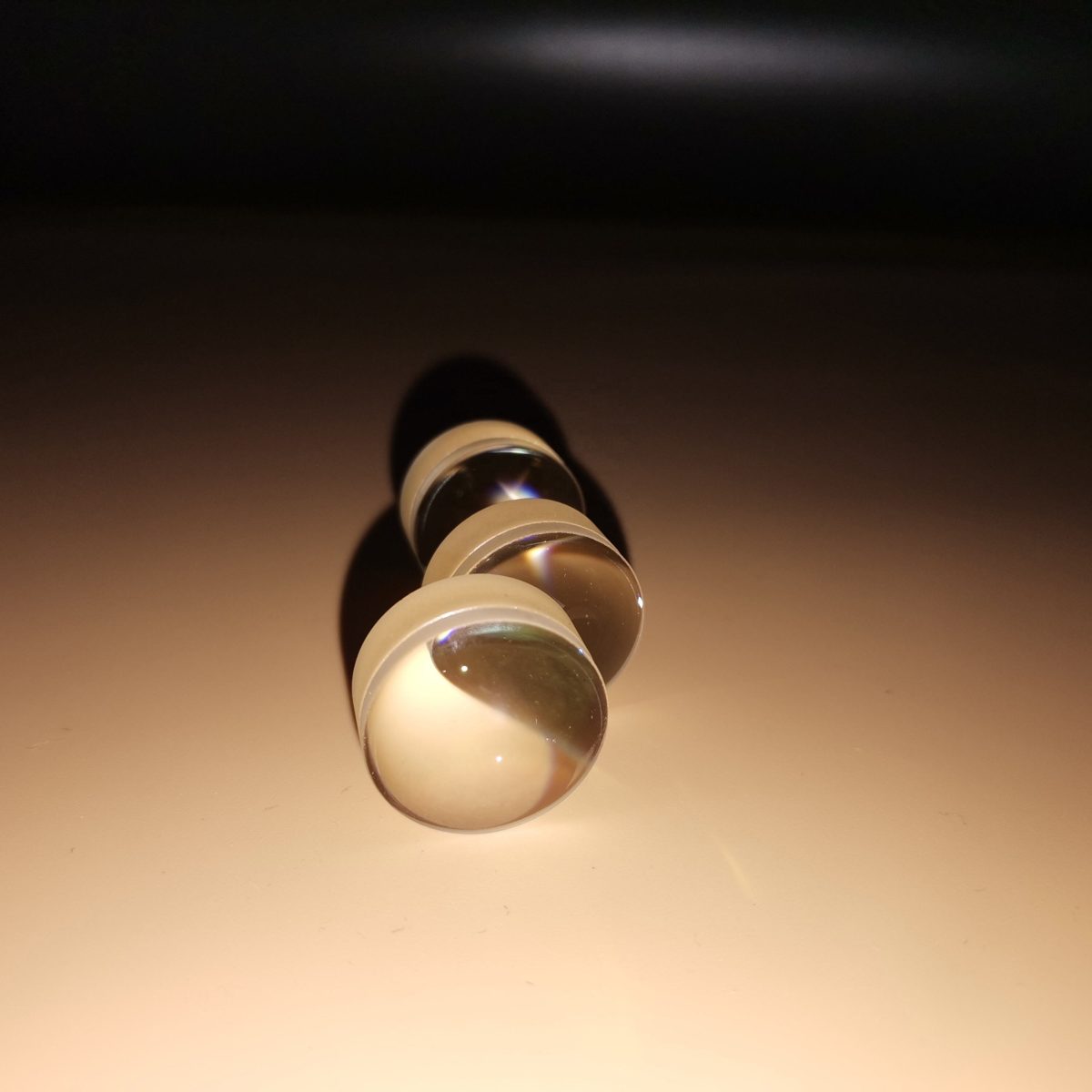

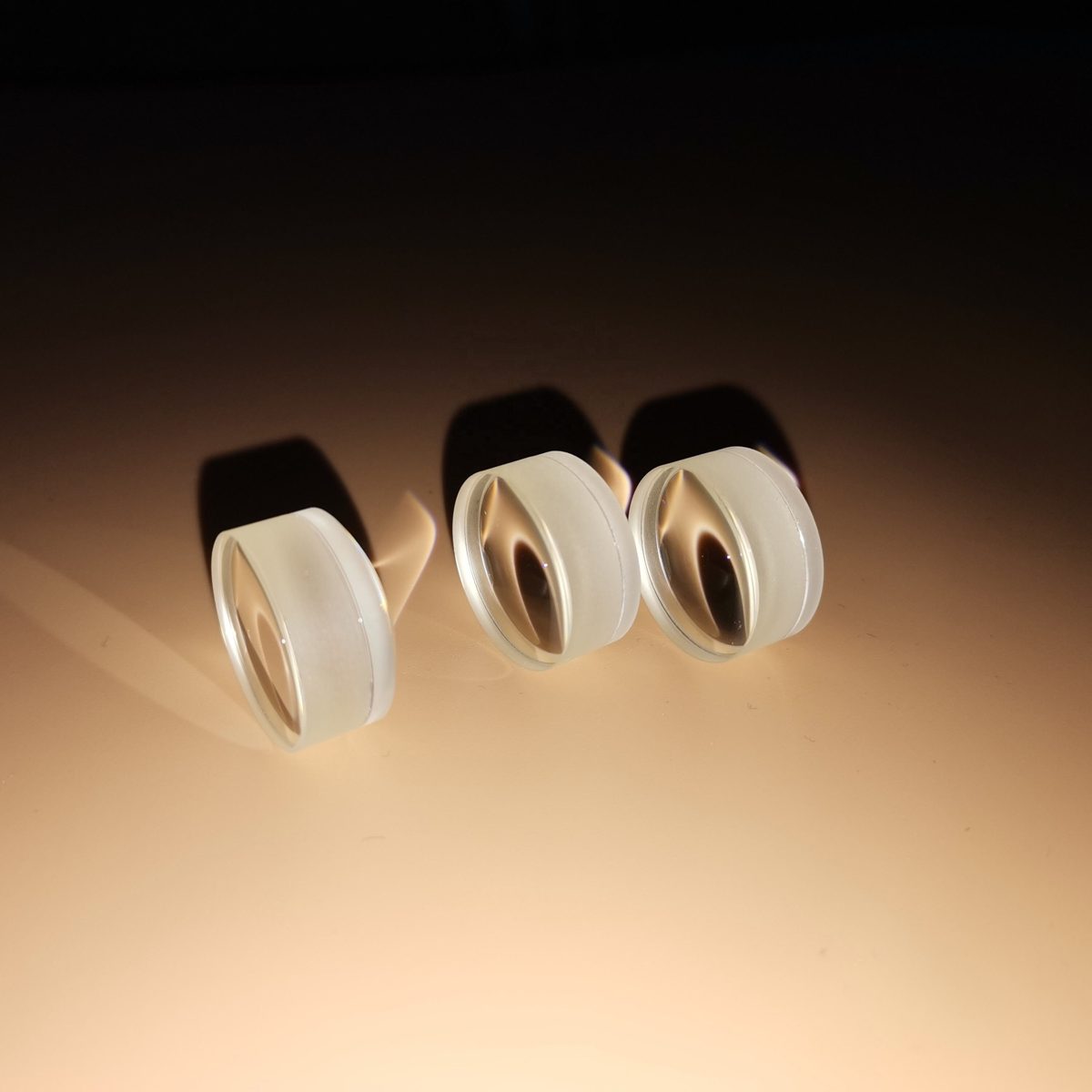

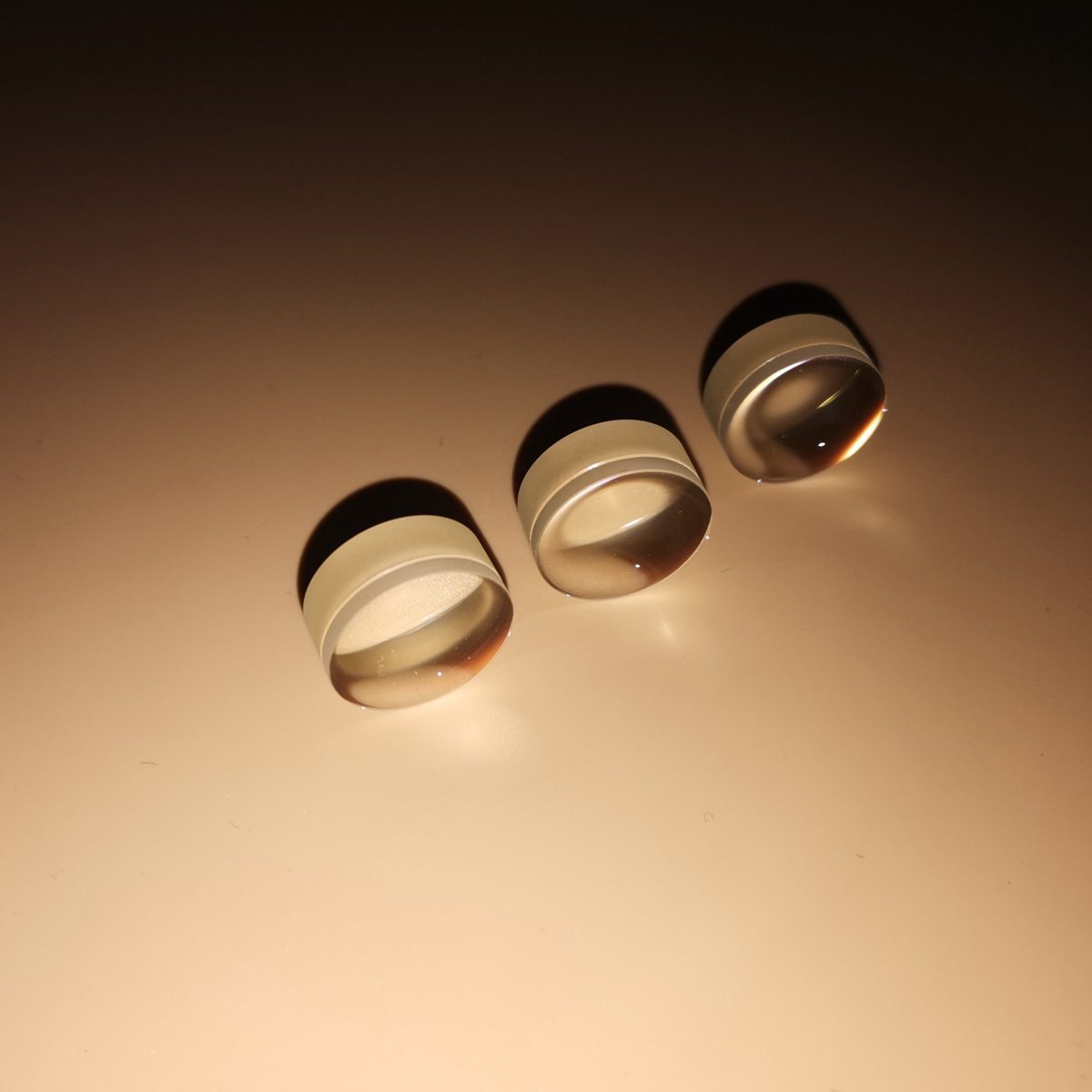

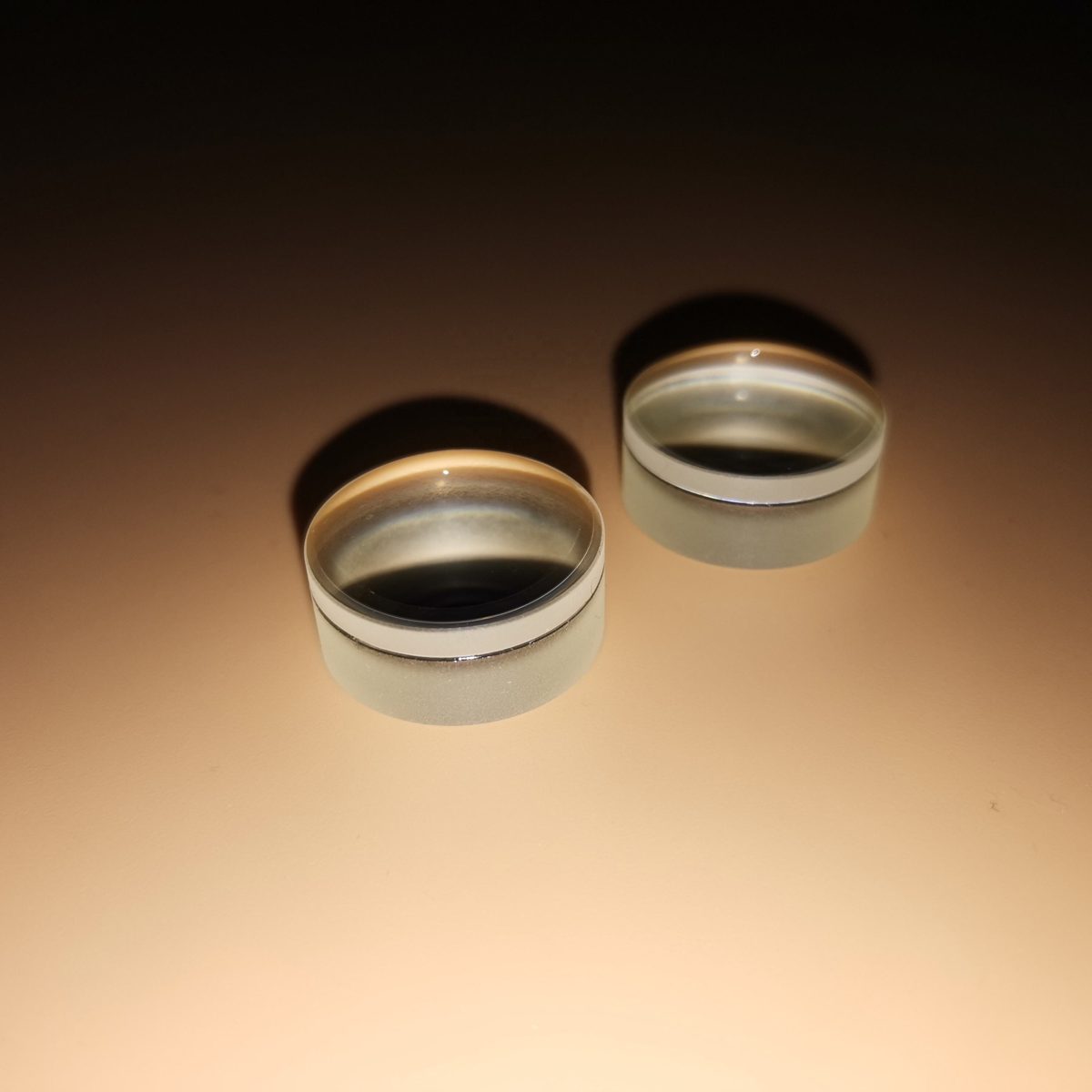

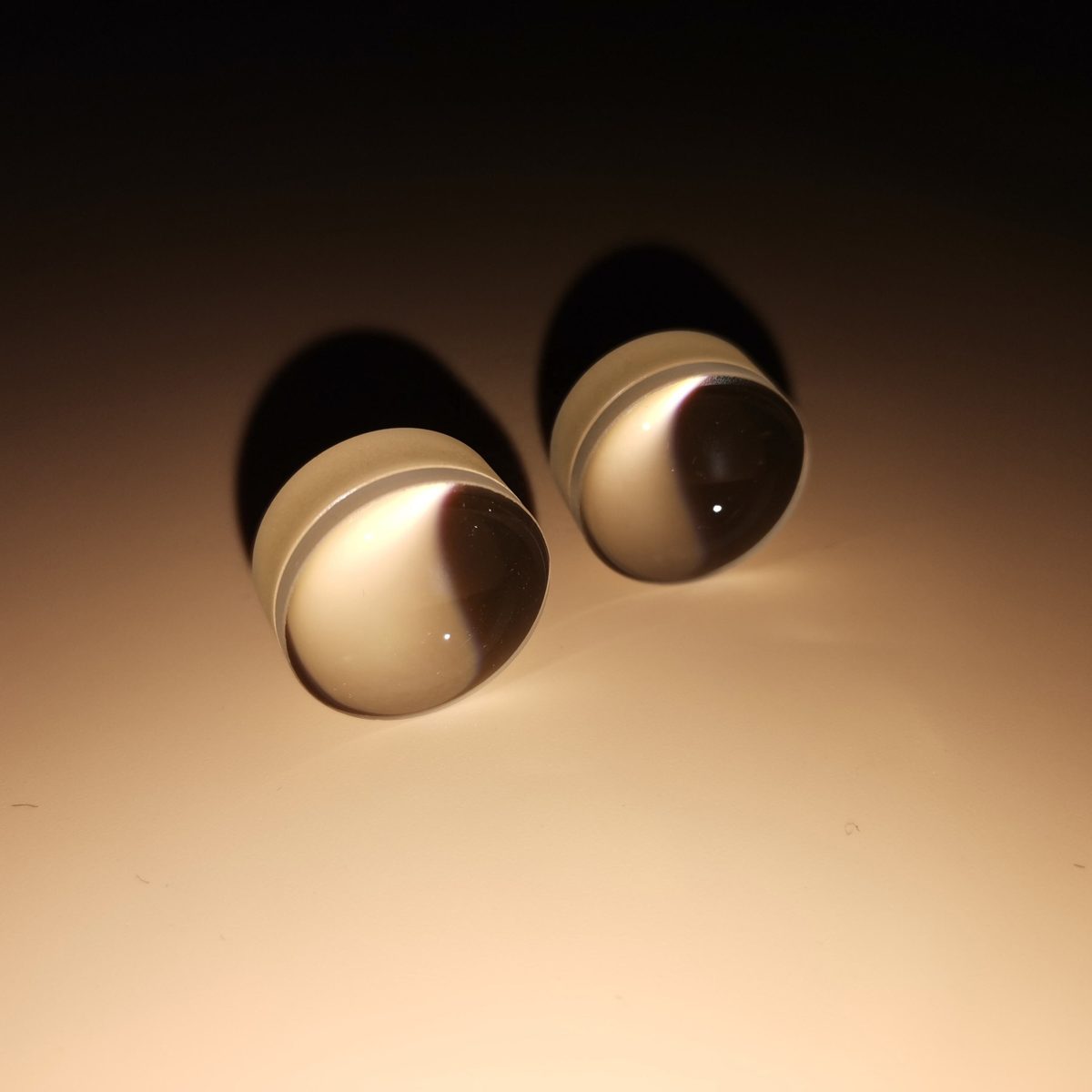

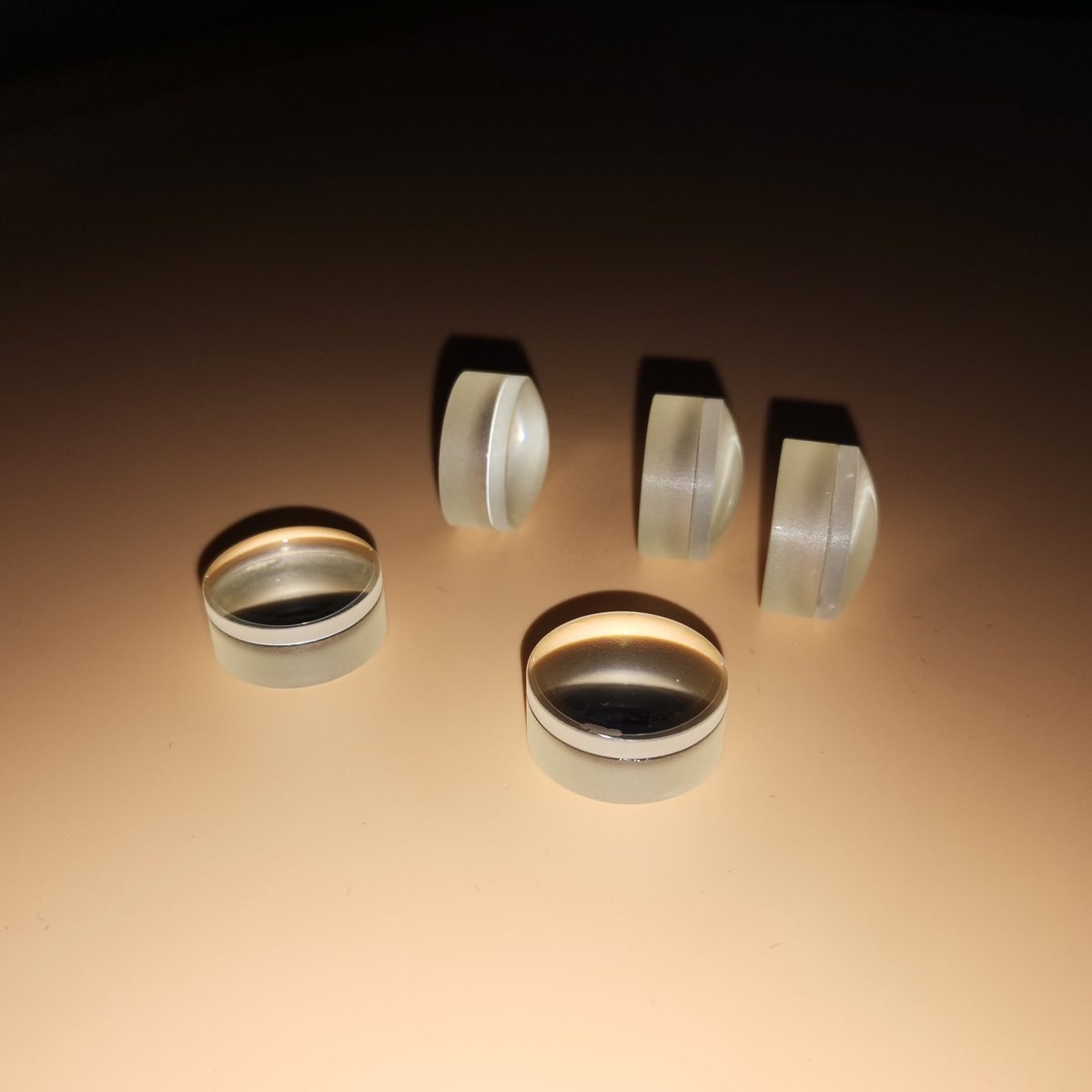

2 mm SF Flint Glass Achromatic Lens
Achromatic lenses in SF Flint Glass for medical imaging and collimation, with diameters from 2 mm to 200 mm.
Core attributes
- Material
- SF Flint Glass
- Shape
- Achromatic
- Diameter
- 2 mm
- Surface Quality
- 60/40
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- SF Flint Glass
- Shape
- Achromatic
- Diameter
- 2 mm
- Surface Quality
- 60/40
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
Achromatic lenses made from SF Flint Glass are designed for applications in medical imaging, collimation, and other optical systems operating across multiple bands, including 400-700 nm, 0.7-1.7 μm, and 1.7-3 μm. These lenses minimize spherical aberration and provide superior performance for polychromatic light, making them ideal for high-precision tasks. With a diameter range from 2 mm to 200 mm and a clear aperture of over 95%, these lenses cater to a wide variety of optical needs.
Key Features
- Diameter range: 2 mm to 200 mm, accommodating diverse applications.
- Surface quality of 60/40 ensures reliable optical performance.
- Clear aperture greater than 95% maximizes light transmission.
- Standard chamfers for easy integration into optical systems.
- Designed for multiple wavelength bands, enhancing versatility.
Applications
Medical, Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | SF Flint Glass |
| Shape | Achromatic |
| Diameter | 2 mm |
| Surface Quality | 60/40 |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Diameter Tolerance | +0/-0.1mm |
| Chamfer | Standard chamfers |
| Clear Aperture | 95% |
FAQ
Can I get custom sizes?
The lenses are available in a diameter range from 2 mm to 200 mm.
What are the tolerances for diameter?
Diameter tolerance is +0/-0.1 mm, ensuring precise fitting.
