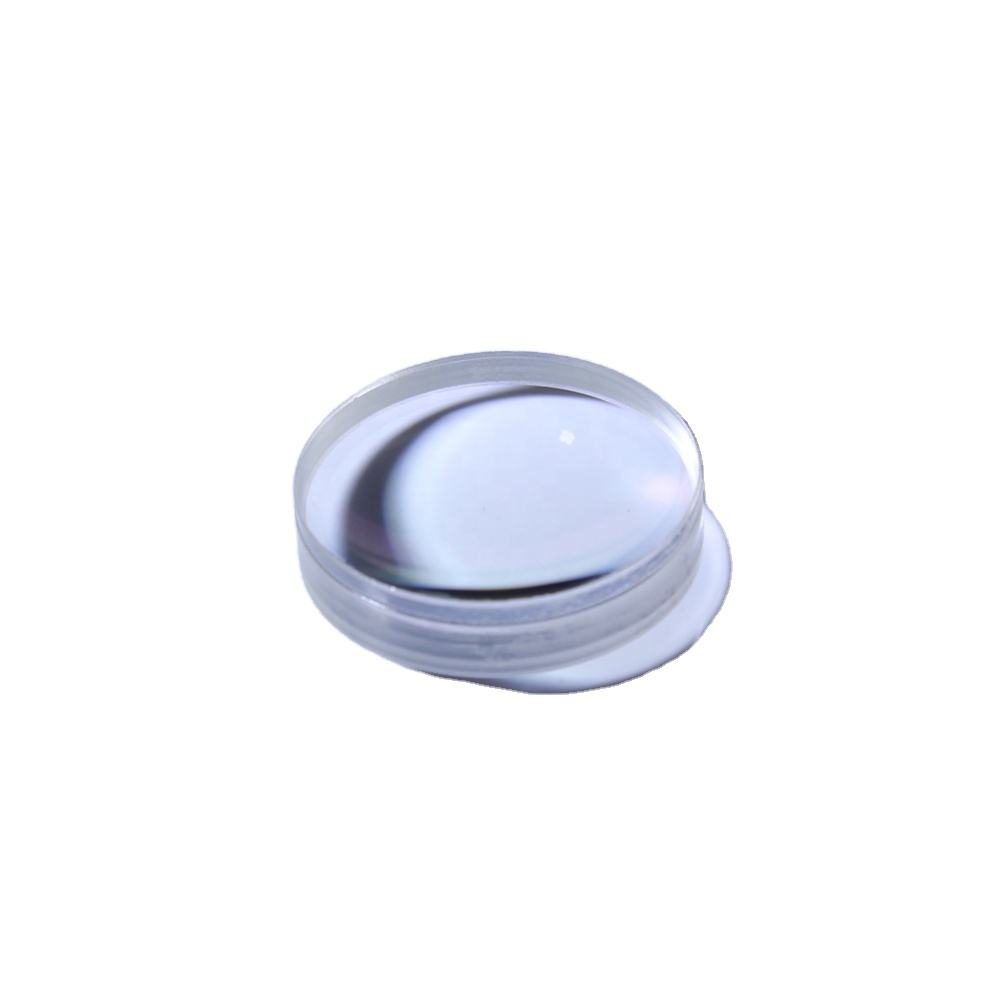

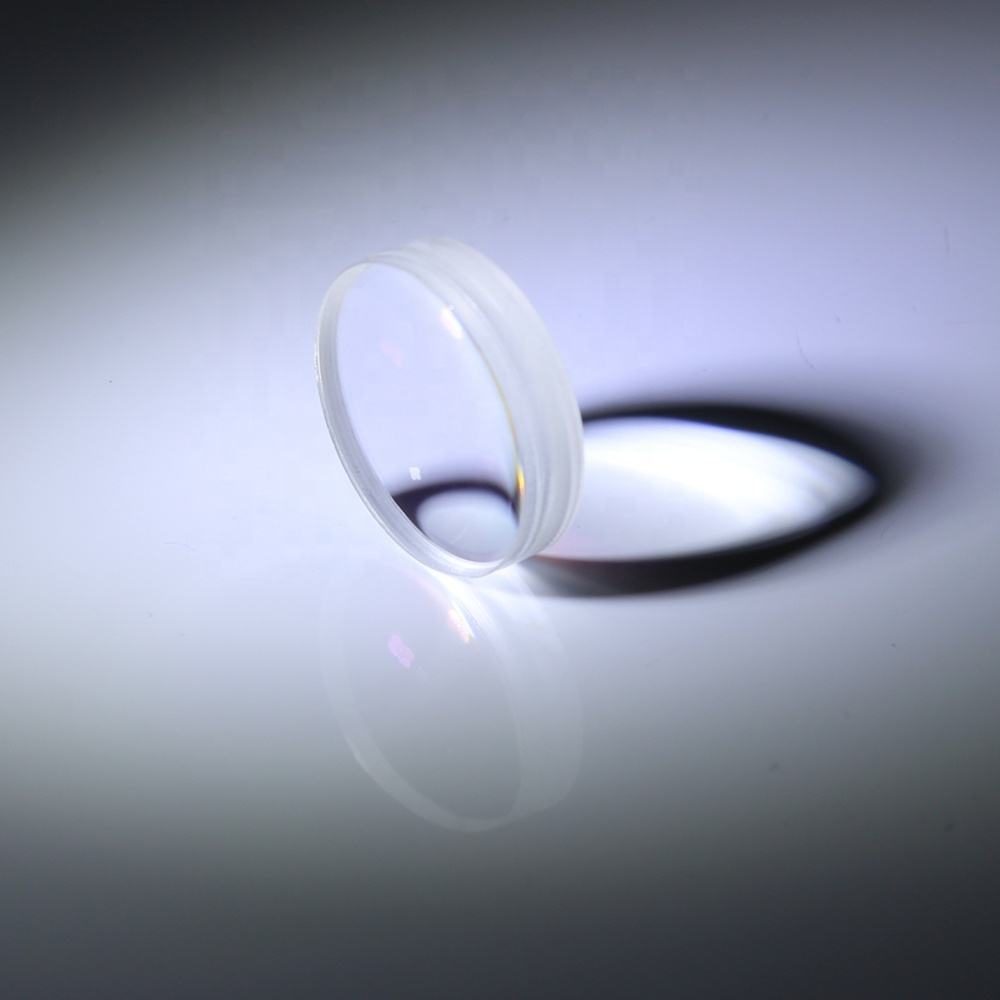

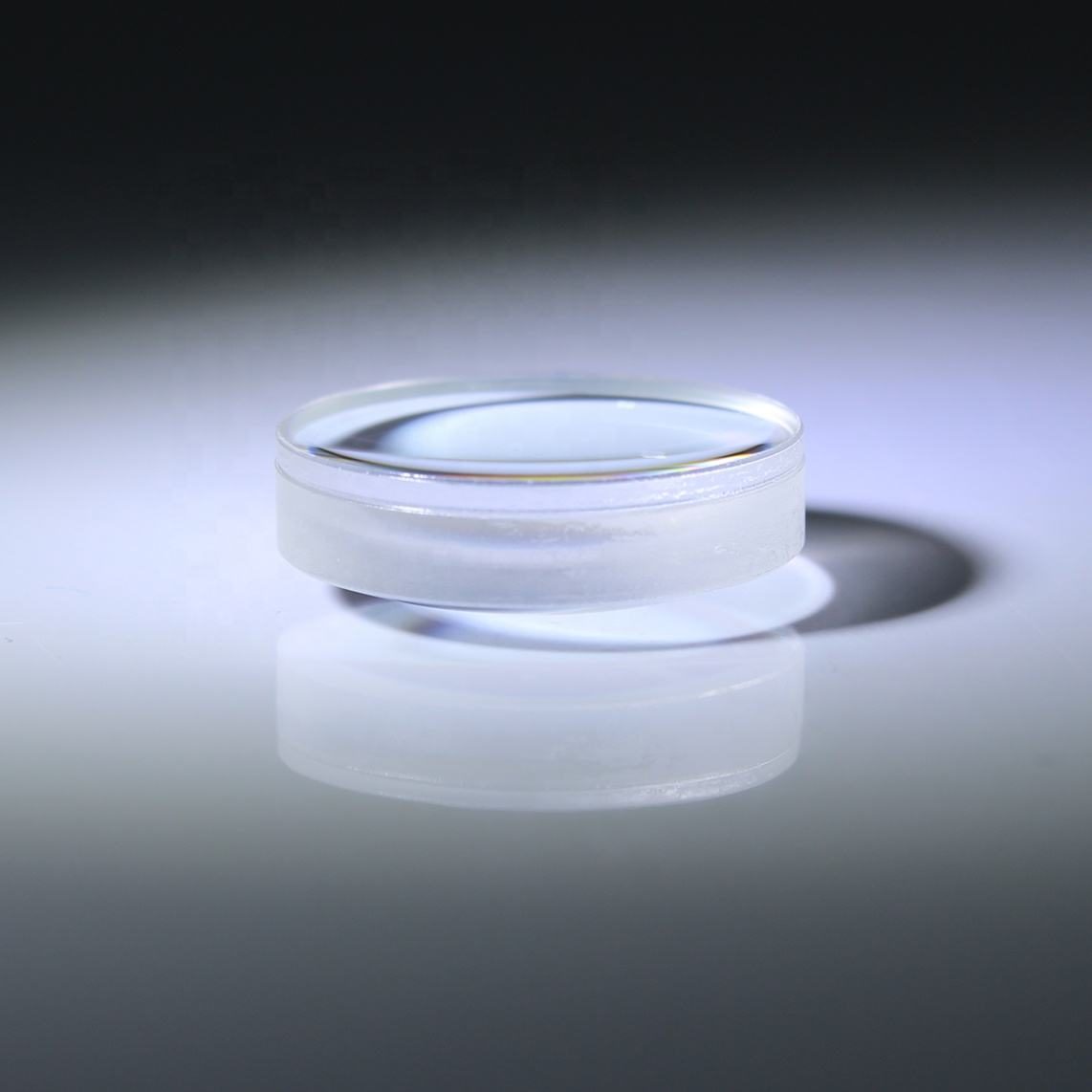

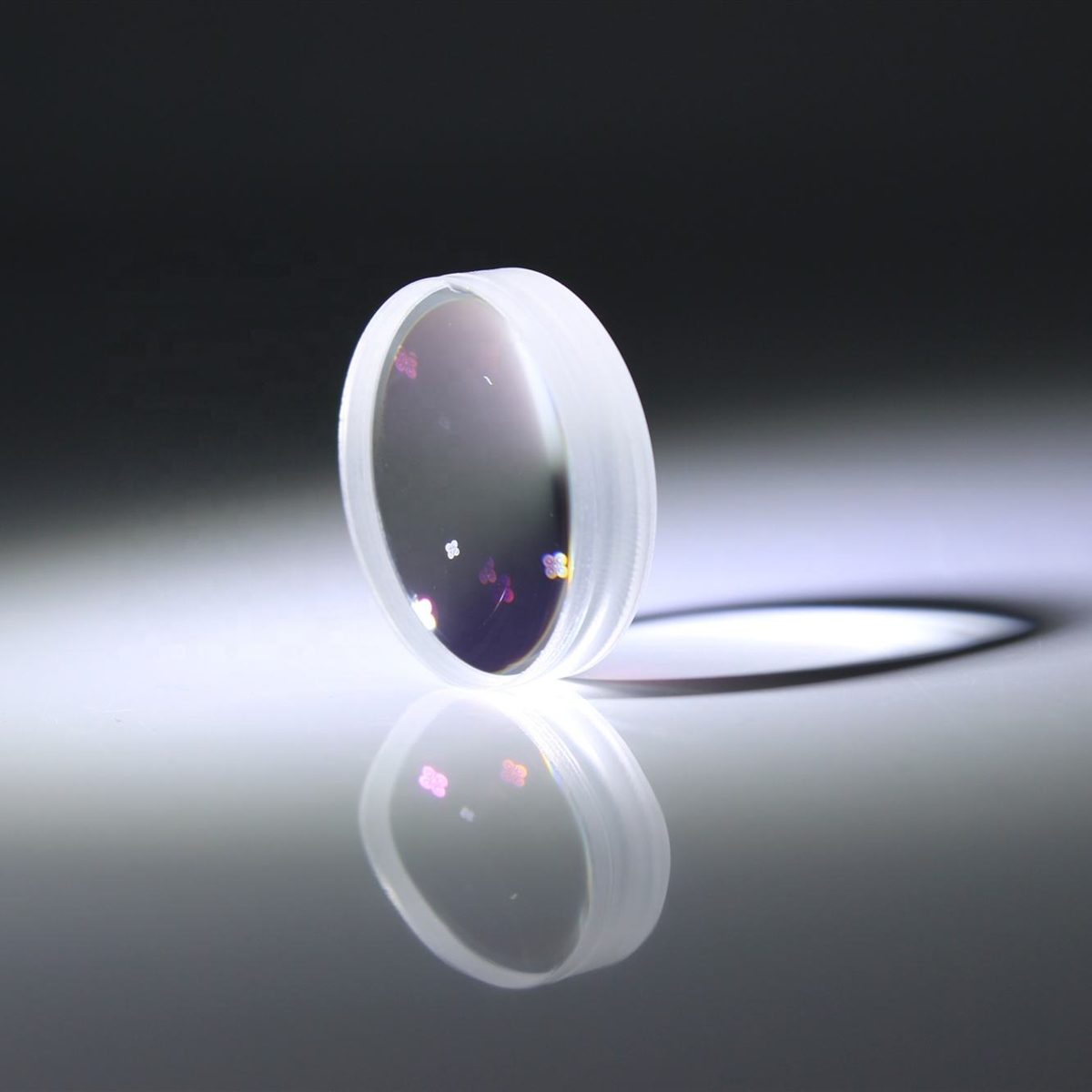

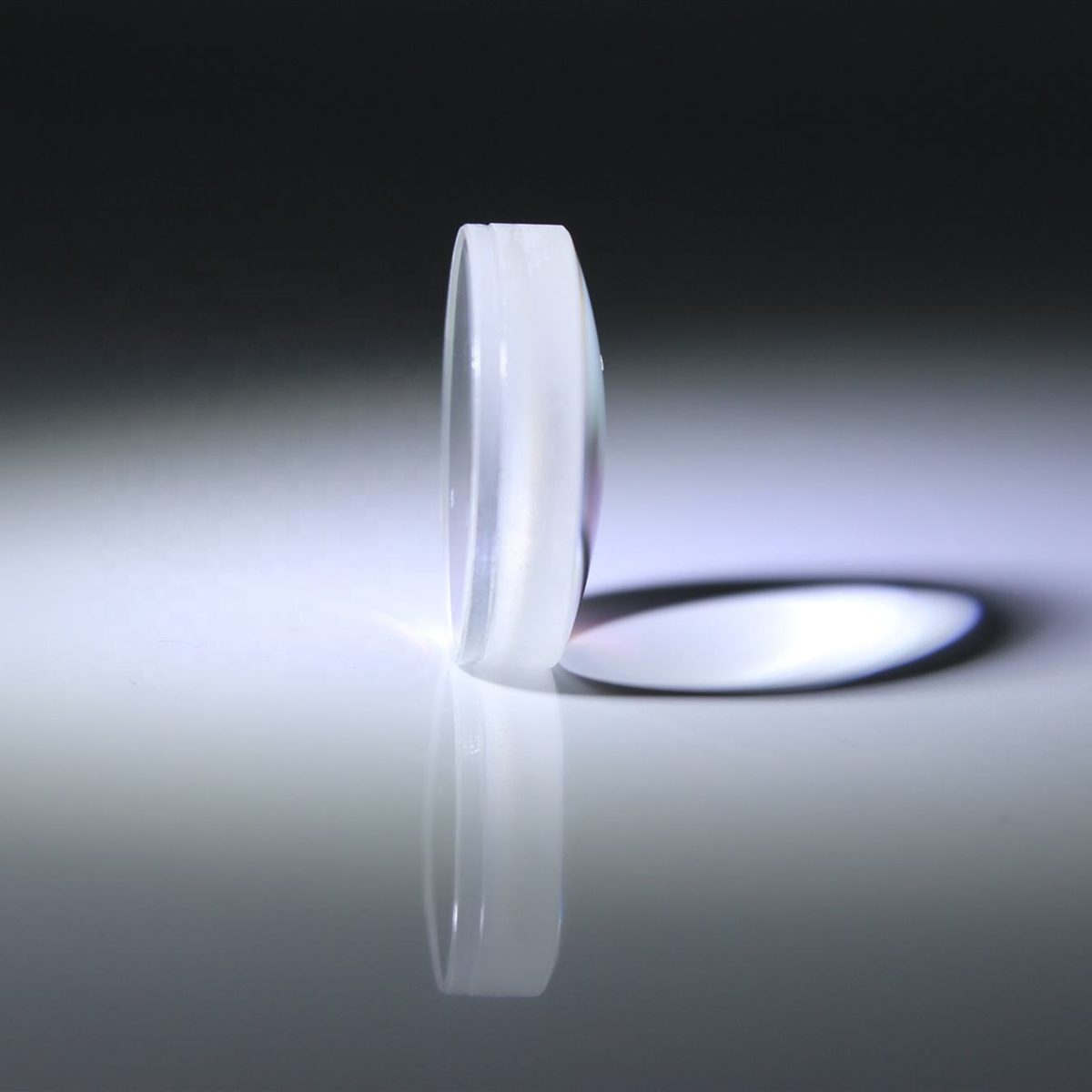

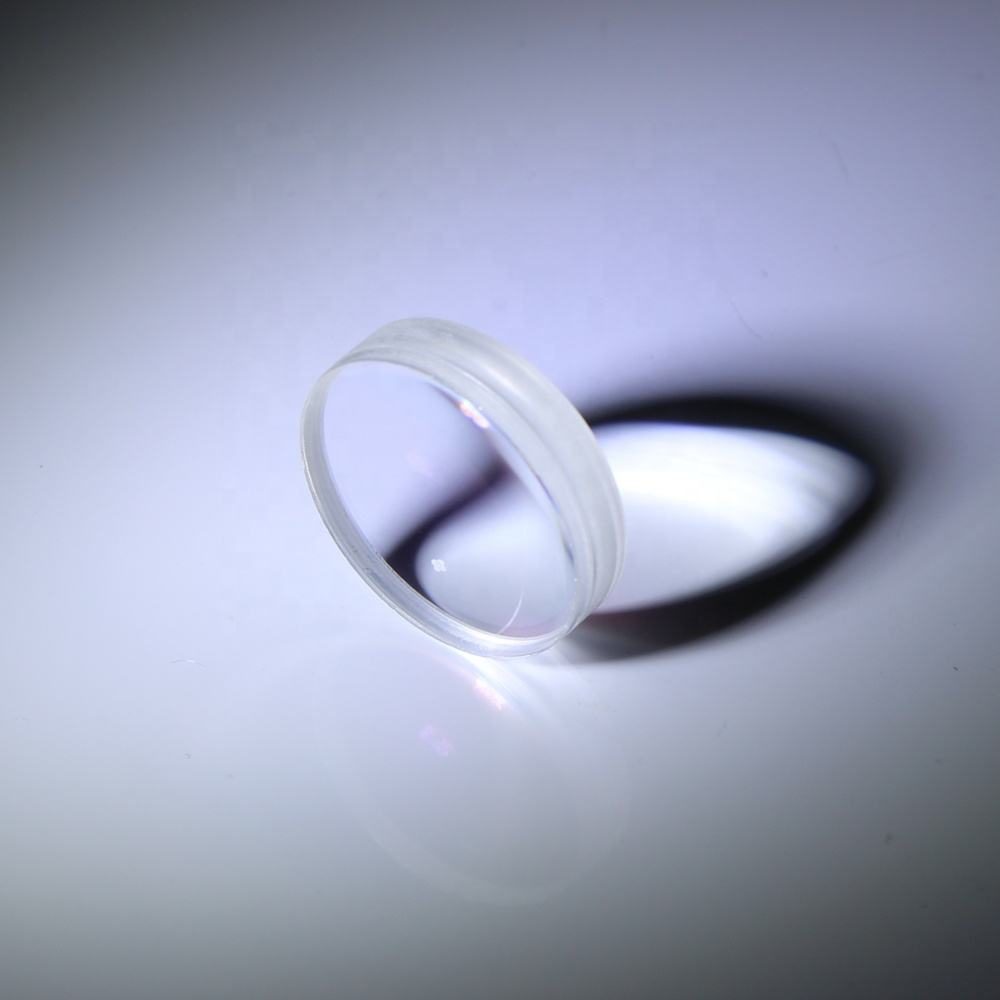

3 mm SF Flint Glass Achromatic Lens, AR Coated

Product description

The Achromatic Lens made from SF Flint Glass is designed to minimize chromatic and spherical aberrations, making it ideal for applications in IR imaging, LIDAR, and other optical systems operating within the 0.7-1.7 μm and 400-700 nm bands. This lens provides high clarity and performance, ensuring that your optical systems achieve optimal results without distortion. With customizable options available, it can meet specific project requirements for various applications.

Key Features

Achromatic design reduces chromatic aberration, enhancing image clarity.
Diameter options from 3.0 mm to 500.0 mm for versatile applications.
Clear aperture of ≥95% ensures high light transmission.
Customizable support for OEM, ODM, and OBM projects.
Diameter tolerance of ±0.1 mm for precise fitting.

Specification Summary

Item	Value
Material	SF Flint Glass
Shape	Achromatic
Diameter	3 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM, OBM
Warranty	Available
Weight	Custom
Diameter Tolerance	±0.1mm
Clear Aperture	≥95%or better
Color	Clear

FAQ

Can I get custom sizes for the lens?

Yes, the lens is available in various diameters from 3.0 mm to 500.0 mm and can be customized.

What is the diameter tolerance for this lens?

The diameter tolerance is ±0.1 mm, ensuring precise fitting for your applications.
