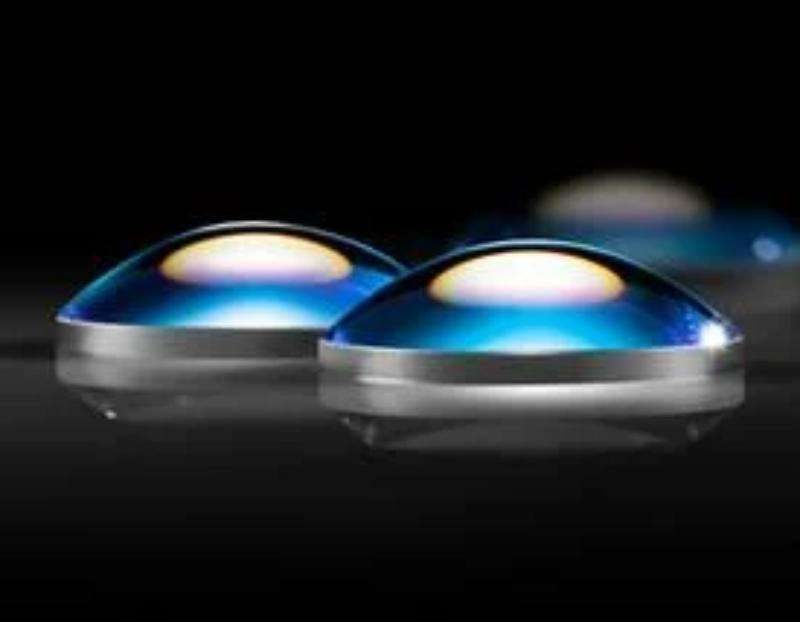

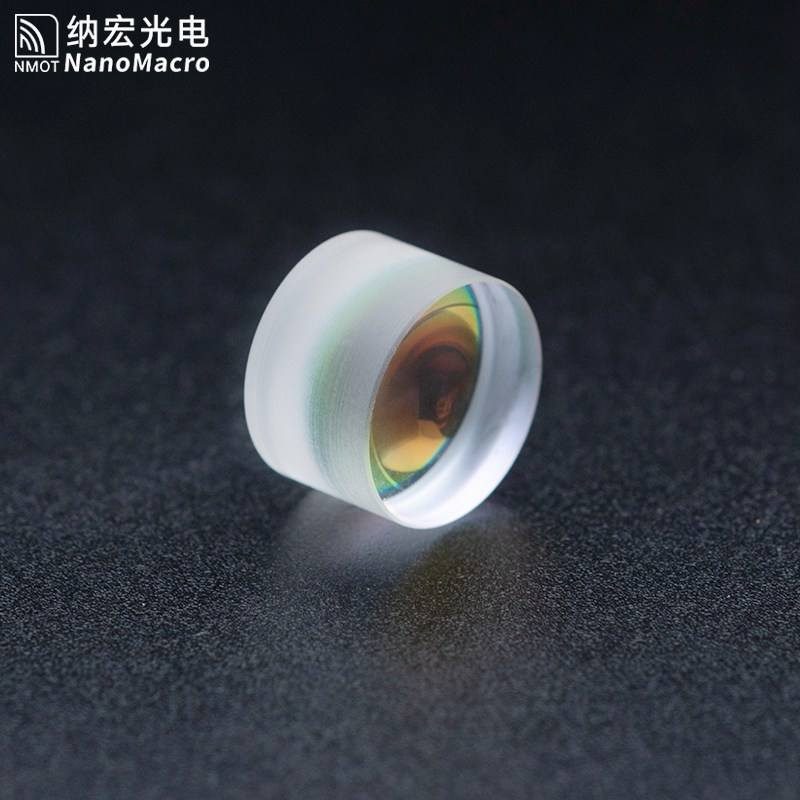

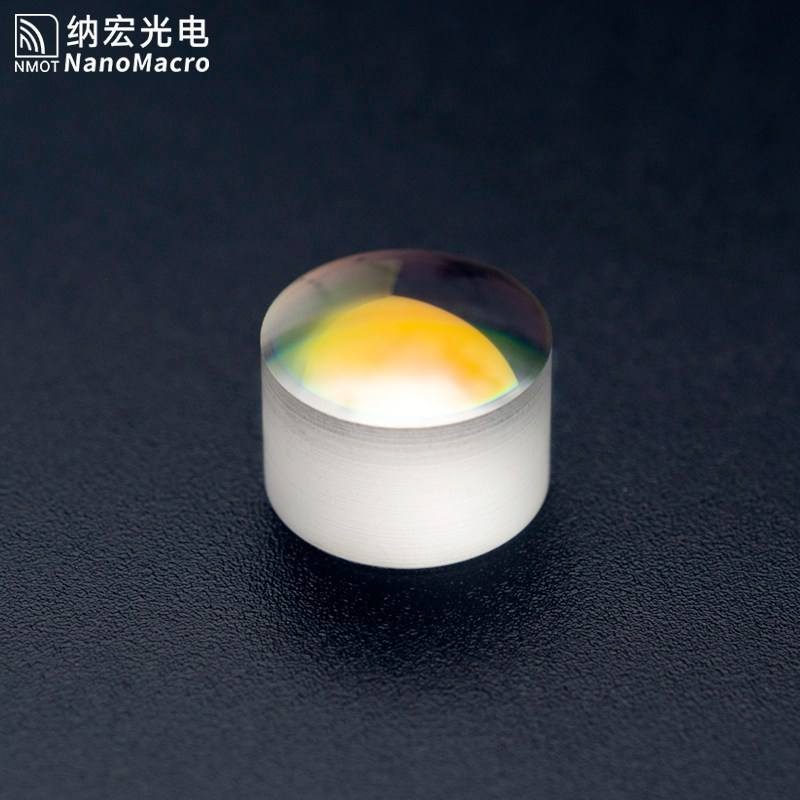

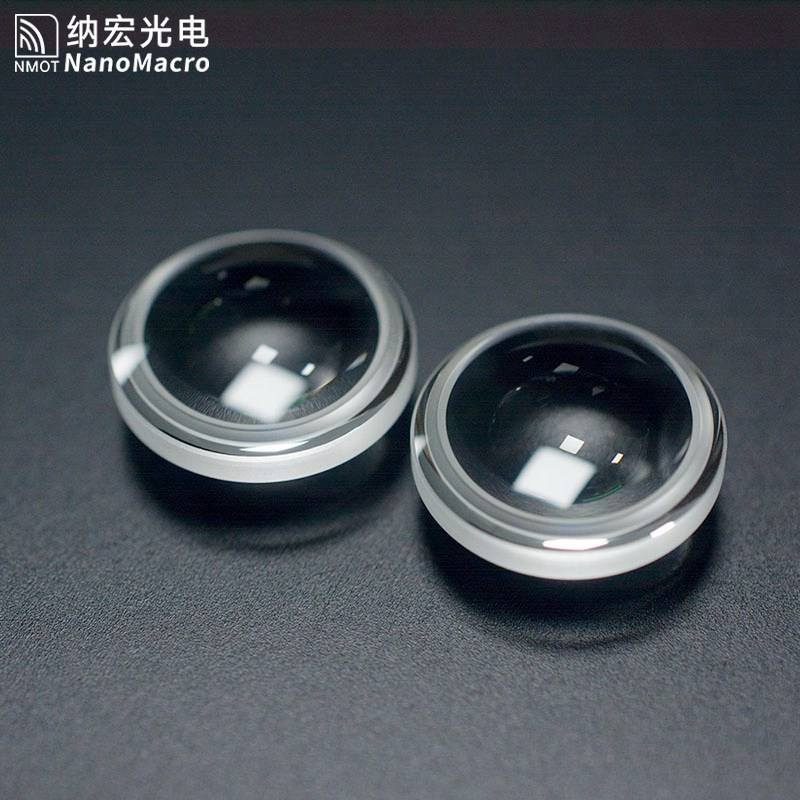

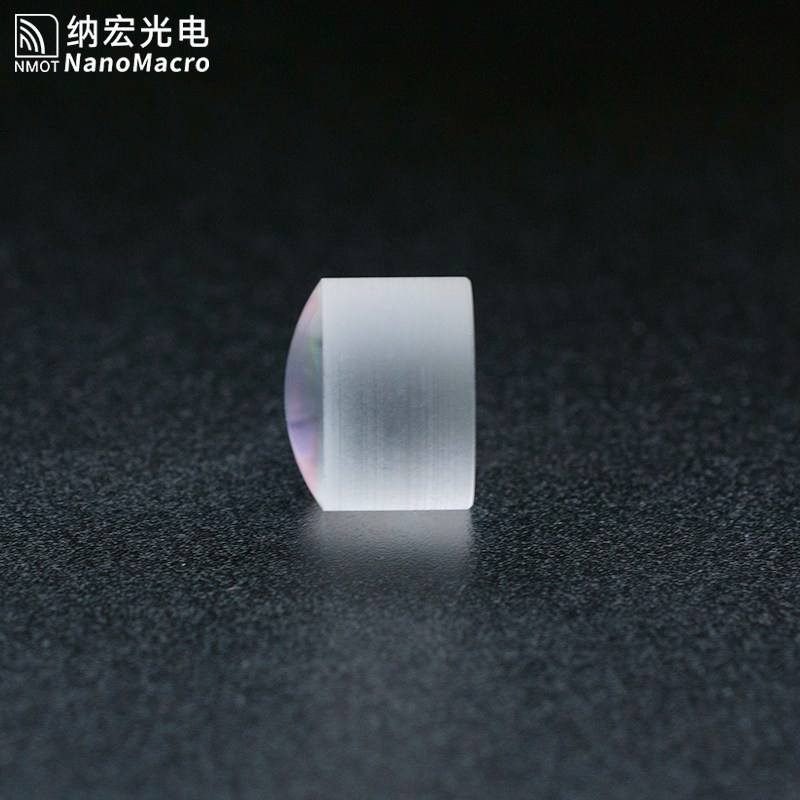

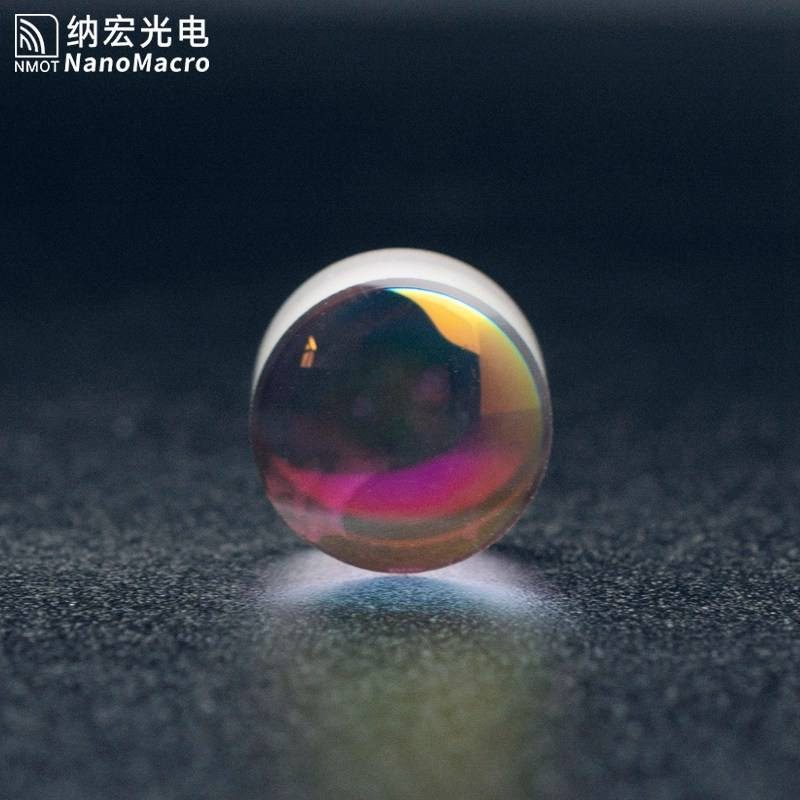

9x12 mm SF Flint Glass Achromatic Lens, AR Coated

Product description

This achromatic lens is designed for applications in medical, collimation, and imaging fields, effectively transmitting light in the 400-700 nm range. With diameters ranging from 9.0 mm to 25.0 mm and effective focal lengths of 12.0 mm to 50.0 mm, it provides versatility for various optical setups. The lens features an anti-reflective coating, ensuring optimal performance in visible and near-infrared applications. Custom sizes and prototypes are available, making it suitable for specific project needs.

Key Features

Achromatic design reduces chromatic aberration for clearer images.
Available in diameters from 9.0 mm to 25.0 mm for diverse applications.
Focal lengths of 12.0 mm to 50.0 mm allow flexibility in optical systems.
AR coating enhances transmittance and minimizes reflections.
Custom OEM and ODM support available for tailored solutions.

Available Sizes

Diameter x Focal Length (mm)
17 x 31

Applications

Medical, Collimation, Imaging

Specification Summary

Item	Value
Material	SF Flint Glass
Shape	Achromatic
Diameter	9 mm
Focal Length	12 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens; Aspherical Achromatic Lenses
Customized Support	OEM, ODM
Weight	0.1KG
Sample	Offered
Wavelength	425-675nm

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including variant sizes from 17.0 mm to 31.0 mm.

What is the minimum order quantity?

The minimum order quantity (MOQ) is not specified; please inquire for details.
