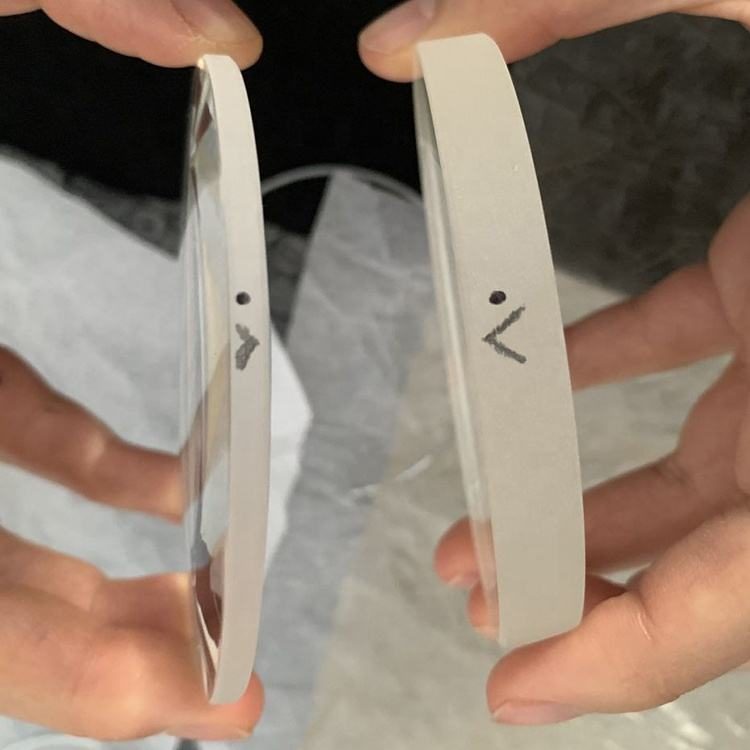

80x500 mm Silicon Achromatic Lens, AR Coated

Product description

This achromatic lens is designed for applications in medical imaging and other optical systems operating within the 0.7-1.7 μm and 400-700 nm wavelength ranges. With a diameter of 80 mm and focal lengths between 500 mm and 900 mm, it provides high performance for various imaging tasks. The lens features anti-reflective (AR) coatings, enhancing transmittance and reducing glare, making it ideal for precision applications.

Key Features

Diameter of 80 mm ensures compatibility with standard optical systems.
Focal lengths of 500 mm to 900 mm provide versatility for different imaging needs.
AR coatings enhance light transmission, improving image quality.
Convex shape supports a wide range of applications in medical and imaging fields.
OEM customization available to meet specific project requirements.

Available Sizes

Diameter x Focal Length (mm)
80 x 700

Applications

Medical, Imaging

Specification Summary

Item	Value
Material	Silicon
Shape	Achromatic
Diameter	80 mm
Focal Length	500 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM
Warranty	1 months
Weight	0.5
Flatness	None
Centration	None
Tolerance	None

FAQ

What sizes are available for customization?

The lens is available in a standard diameter of 80 mm, with potential for variant sizes up to 100 mm.

What is the minimum order quantity (MOQ)?

The specific MOQ is not provided, but options for OEM support may be available.
