1 / 6Optical Mirrors

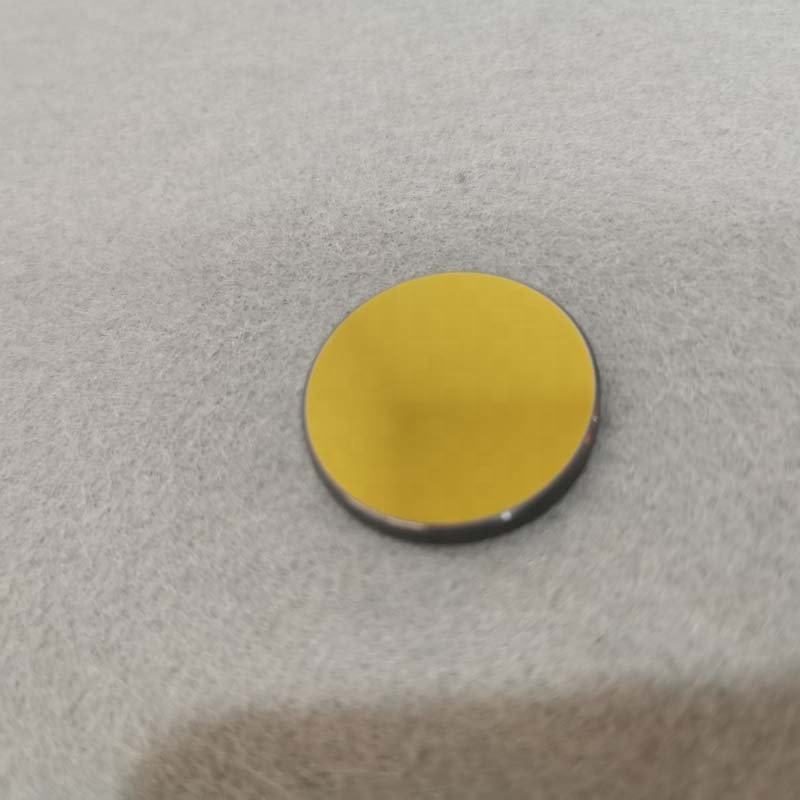

Custom Size Silicon Custom Optical Mirror
Custom silicon optical mirrors for infrared applications, featuring gold coatings and tailored specifications.
Core attributes
- Material
- Silicon
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Coating
- gold, dielectric HR
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Silicon
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Coating
- gold, dielectric HR
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
Product description
This custom silicon optical mirror is designed for infrared applications, offering exceptional reflection performance across a range of wavelengths from 1.2 to 12.0 μm. It is ideal for laser systems and thermal imaging equipment, featuring high surface accuracy and stability. Available with gold or dielectric HR coatings, this mirror can be tailored to fit specific project needs, ensuring optimal performance in demanding environments.
Key Features
- Wavelength Range: 1.2-12.0 μm for versatile application in infrared systems.
- Surface Flatness: Lambda 4 or better ensures high wavefront quality.
- Coating Options: Gold coating available for enhanced reflectance and durability.
- Customized Support: OEM, ODM, and OBM services for tailored solutions.
- High-Quality Material: Precision polished silicon for stable optical performance.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Shape | Custom |
| Size | Custom |
| Thickness | Custom |
| Coating | gold, dielectric HR |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Mirror |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 1 |
| Product Type | Infrared Optical Mirror |
| Wavelength Range | 1.2-12.0 μm |
| Surface Flatness | Lambda 4 or Better |
| Coating Type | Gold Coating Available |
| Manufacturing Service | OEM Custom Optical Components |
FAQ
Can I get custom sizes for this mirror?
Yes, custom diameter, thickness, and surface accuracy options are available.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering.
