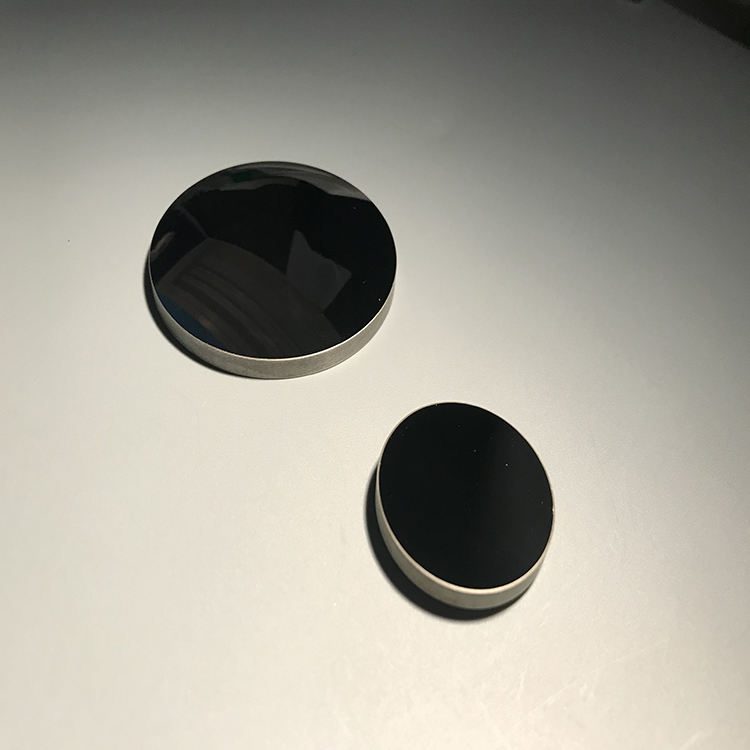

12.5x16 mm Silicon Meniscus Lens

Product description

This meniscus lens made from monocrystalline silicon is ideal for applications in thermal imaging and general imaging within the 400-700 nm wavelength range. With a diameter of 12.5 mm and a focal length of 16.0 mm, it offers excellent performance for various optical systems. The lens features a surface quality of 60/40 and a flatness specification of 1/4@633nm, ensuring high precision in imaging applications. Its uncoated design allows for versatile use in environments where coating may not be suitable.

Key Features

Diameter of 12.5 mm for compatibility with standard optical setups.
Focal length of 16.0 mm, providing flexibility in design for imaging systems.
Surface quality of 60/40 ensures minimal distortion for clear imaging.
Flatness of 1/4@633nm supports high-performance applications.
OEM customization available for tailored solutions.

Available Sizes

Diameter x Focal Length (mm)
12.5 x 16

Applications

Thermal Imaging, Imaging

Specification Summary

Item	Value
Material	Silicon
Shape	Meniscus
Diameter	12.5 mm
Focal Length	16 mm
Thickness	2.5 mm
Surface Quality	60/40
Coating	uncoated
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	meniscus lens
Customized Support	OEM
Warranty	3 months
Weight	0.5kg(1.10lb)
Surface Flatness	1/4@633nm
Parallel	30 Arc Sec
Certification	ISO9001

FAQ

Is custom sizing available?

Yes, custom sizes are supported with variant sizes including 12.5 mm and 16.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement.
