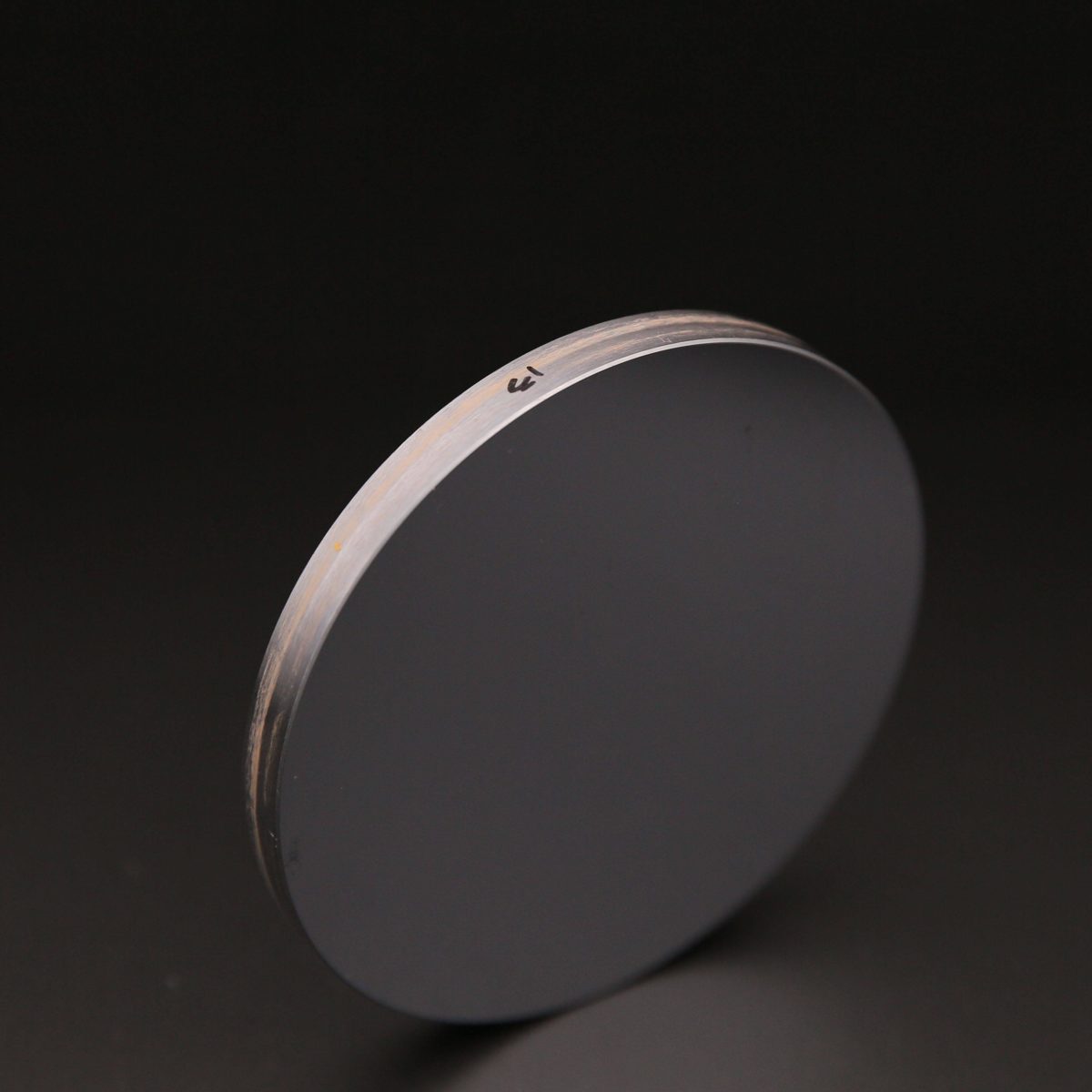

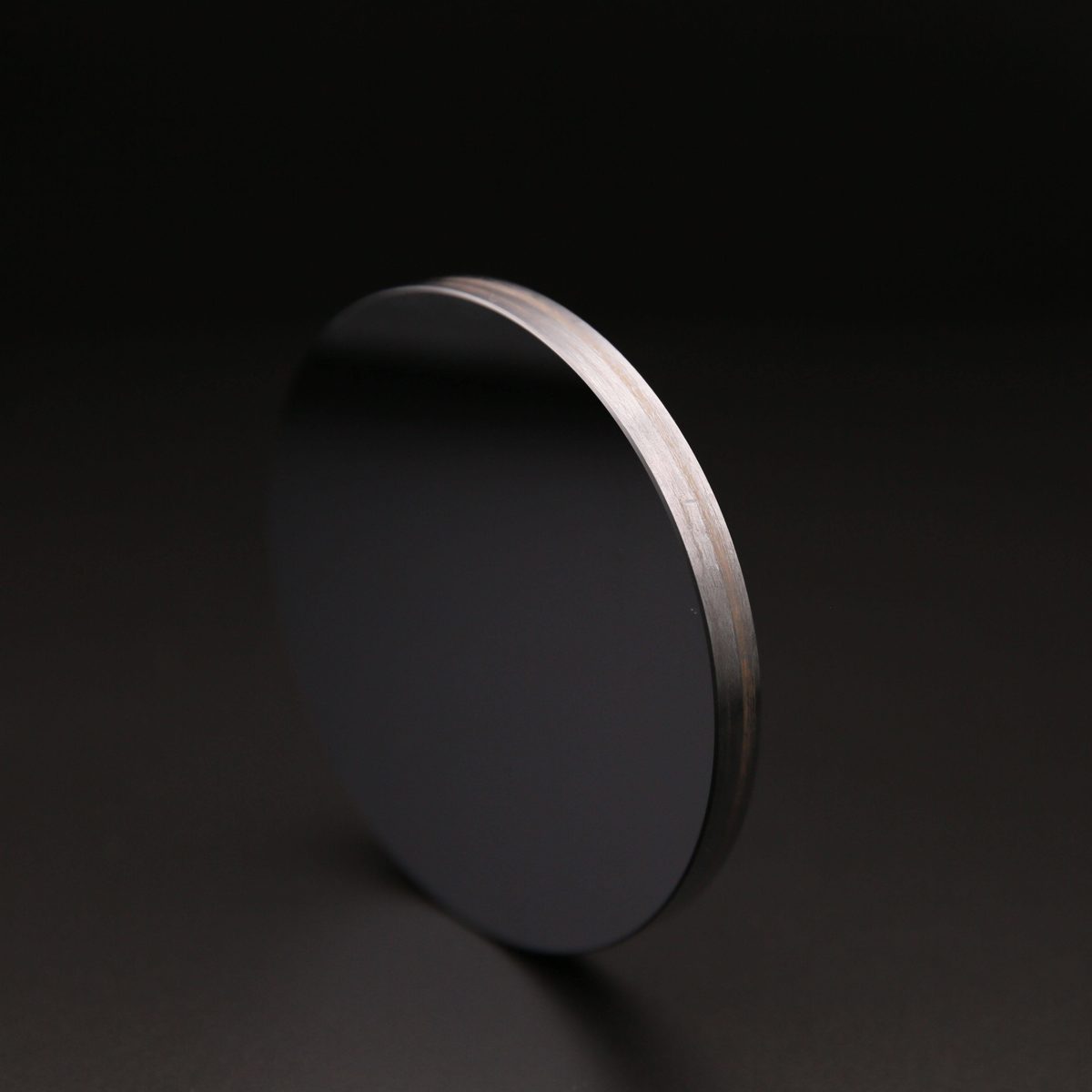

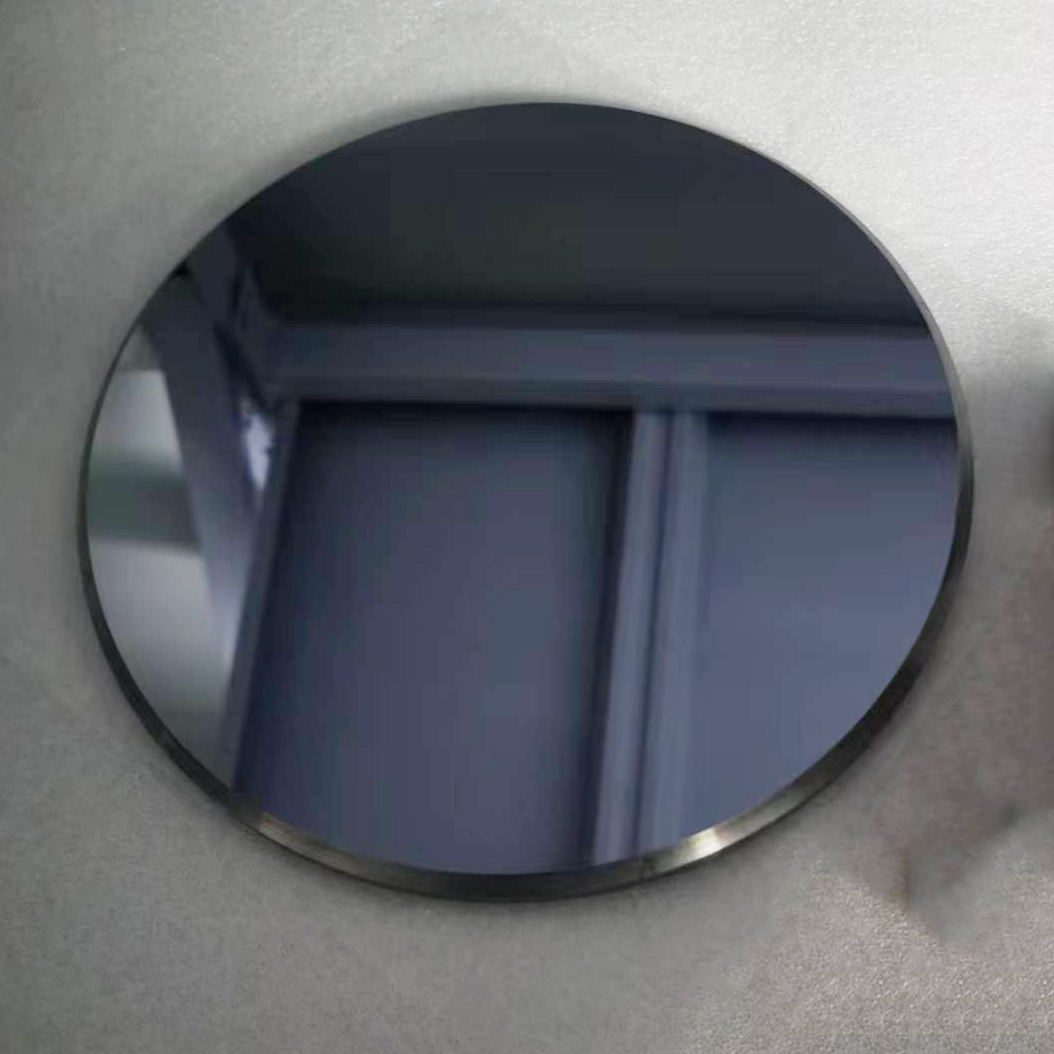

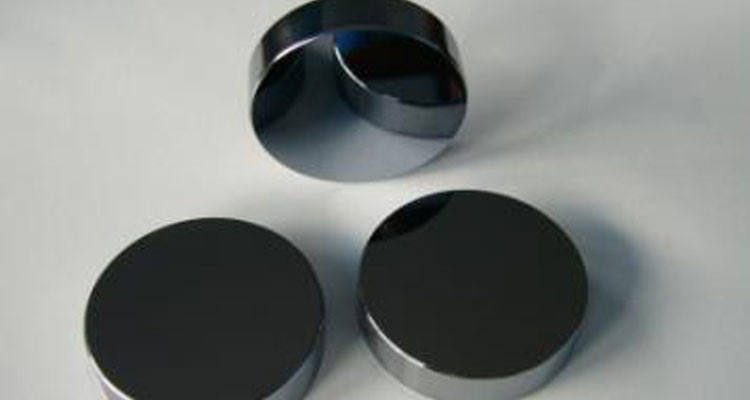

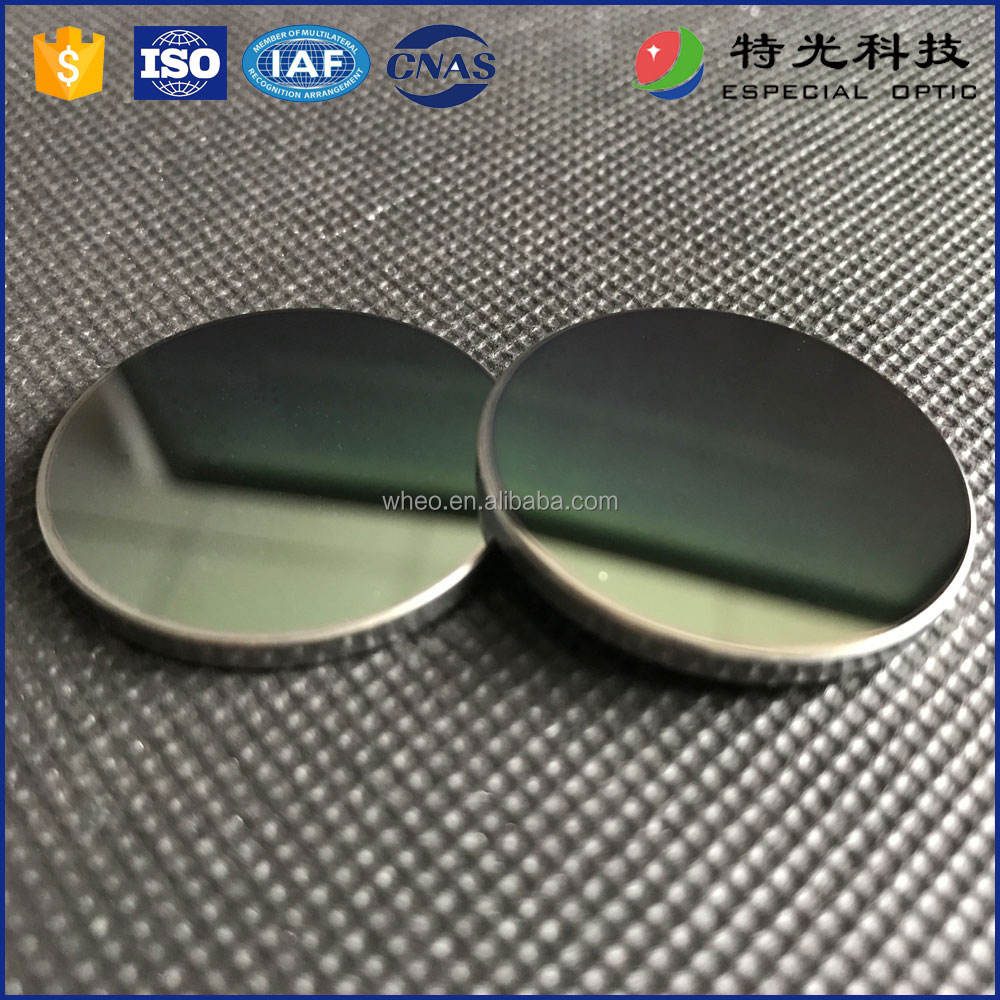

100 mm Silicon Optical Window, AR Coated

Product description

The Silicon Optical IR Window is designed for applications in thermal imaging, security, and medical devices, providing reliable performance in the 3-5 μm and 8-14 μm spectral bands. With a diameter of 100 mm and advanced AR coatings, this window ensures high transmittance and durability, making it an excellent choice for demanding infrared applications. Its customizable options enhance compatibility with various optical designs.

Key Features

Broad IR Transmission: Effective across 3-5 μm and 8-14 μm bands for versatile application use.
Customizable Support: OEM, ODM, and OBM options available for tailored solutions.
Dimension Tolerance: ±0.2 mm ensures precise fitting in optical systems.
High Clear Aperture: ≥90% for optimal light transmission and performance.
Stable Thermal Performance: Maintains consistent optical properties across varying temperatures.

Applications

Thermal Imaging, Security, Medical

Specification Summary

Item	Value
Material	Silicon
Diameter	100 mm
Thickness	Custom
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	Optical Ge window
Customized Support	OEM, ODM, OBM
Weight	0.003
Dimension Tolerance	±0.2mm
Parallelsim	<3 arcmin
Clear Aperture	≥90%
Surface Flatness	1 Lambda- Lambda/8

FAQ

Can I get custom sizes for the Silicon Optical IR Window?

Yes, customizable options are available, including OEM and ODM support.

What is the dimension tolerance for this product?

The dimension tolerance is ±0.2 mm, ensuring precise fitting.
