1 / 6Optical Windows

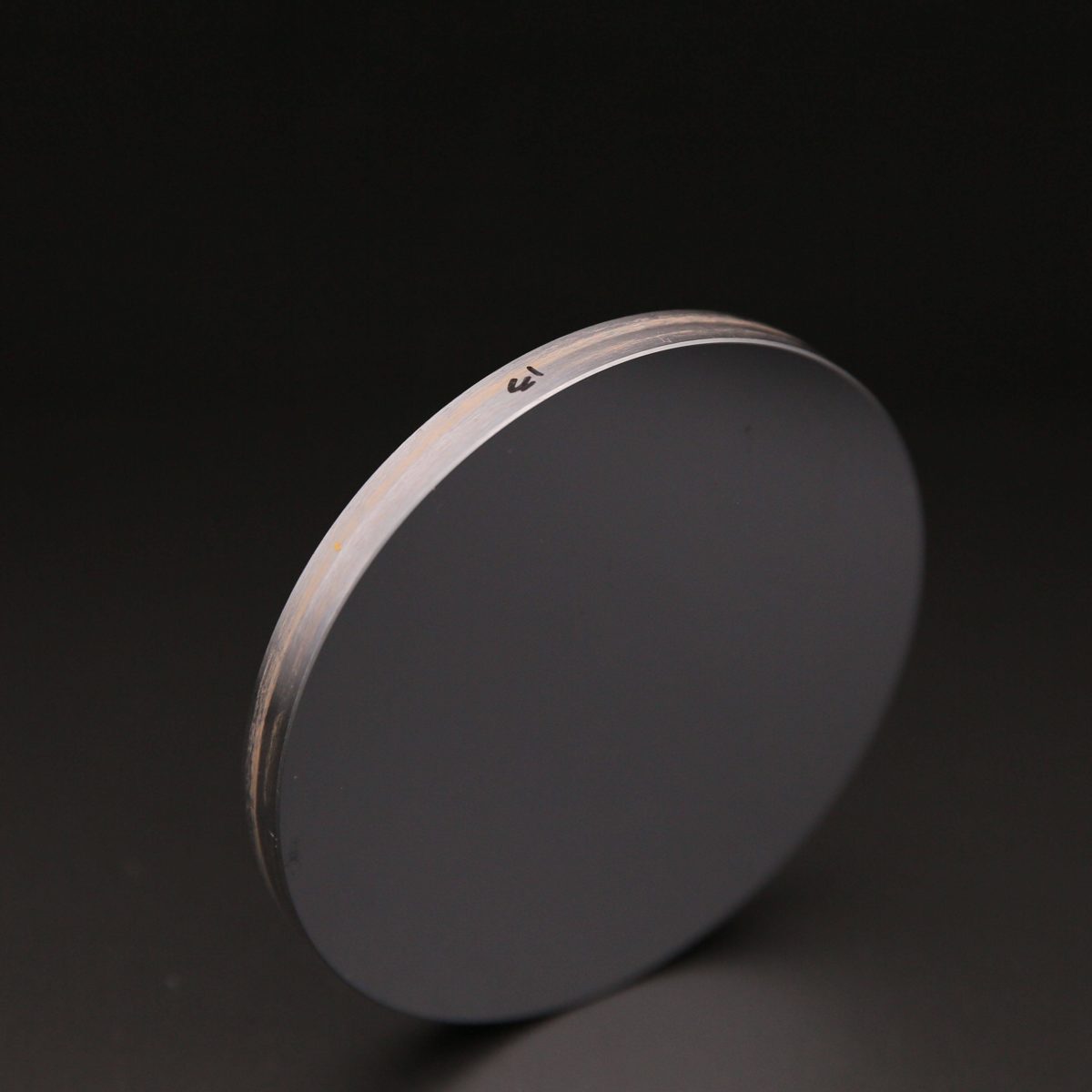

100 mm Silicon Optical Window, AR Coated
High-quality Optical Ge window in Silicon with 90% clear aperture and customizable options for IR imaging and LIDAR applications.
Core attributes
- Material
- Silicon
- Diameter range
- 100 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Silicon
- Diameter range
- 100 mm
- Coating
- ar
Product description
The Optical Ge window made from high-quality Silicon is designed to meet the demanding requirements of IR imaging and LIDAR applications. With a clear aperture of ≥90% and exceptional anti-reflective coatings, it ensures optimal light transmission and minimal glare. Its dimensional precision of ±0.2mm makes it suitable for various custom applications, ensuring reliability and consistency in performance.
Key Features
- High transmittance with ≥90% clear aperture for superior optical performance.
- Anti-reflective coating reduces glare, enhancing visibility.
- Dimensional tolerance of ±0.2mm ensures high accuracy.
- Surface flatness of 1 Lambda - Lambda/8 for consistent performance.
- Customizable solutions available through OEM, ODM, and OBM options.
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Diameter | 100 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Ge window |
| Customized Support | OEM, ODM, OBM |
| Weight | 0.003 |
| Dimension Tolerance | ±0.2mm |
| Parallelsim | <3 arcmin |
| Clear Aperture | ≥90% |
| Surface Flatness | 1 Lambda- Lambda/8 |
FAQ
What are the available customization options?
Custom solutions are available as OEM, ODM, and OBM.
What is the dimensional tolerance for this window?
The dimensional tolerance is ±0.2mm.
