10x2 mm Silicon Optical Window

Product description

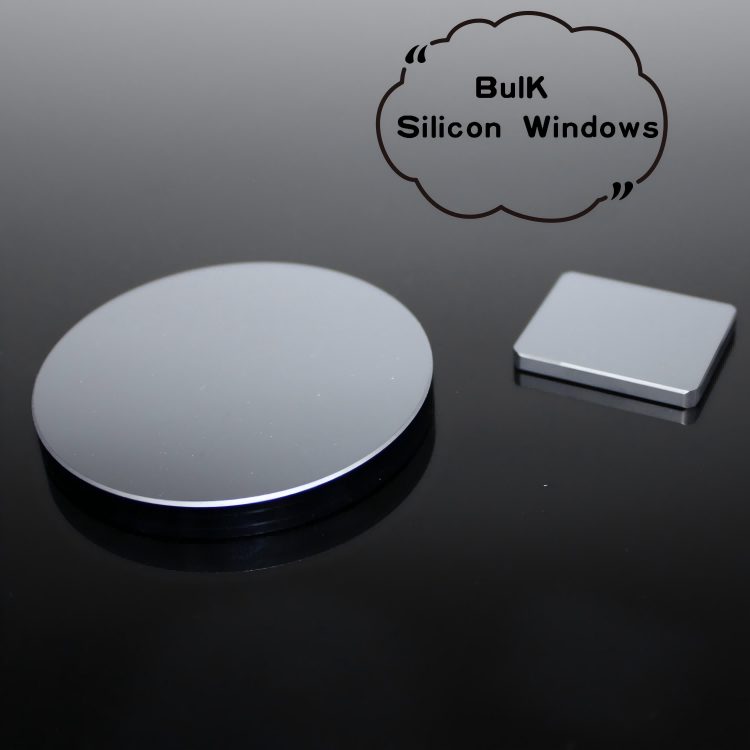

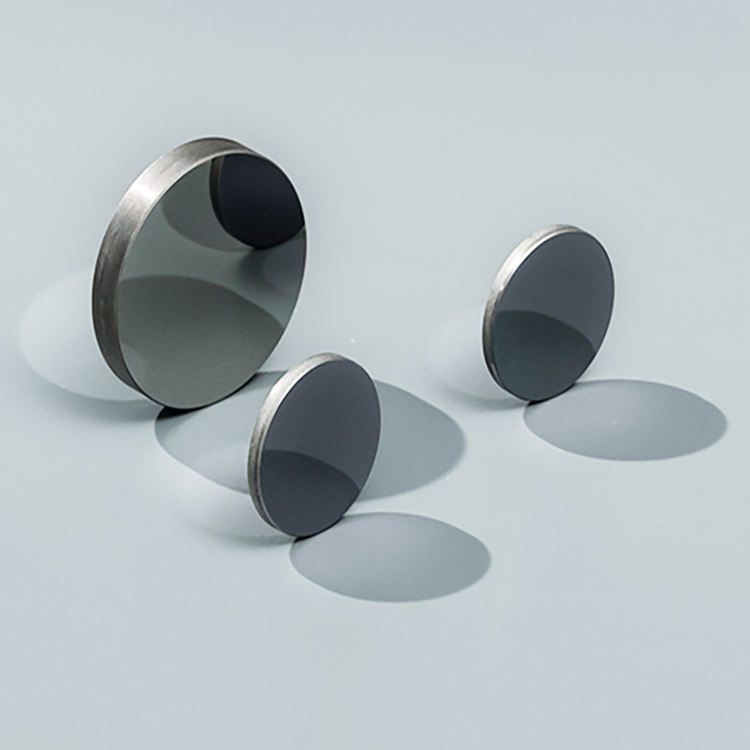

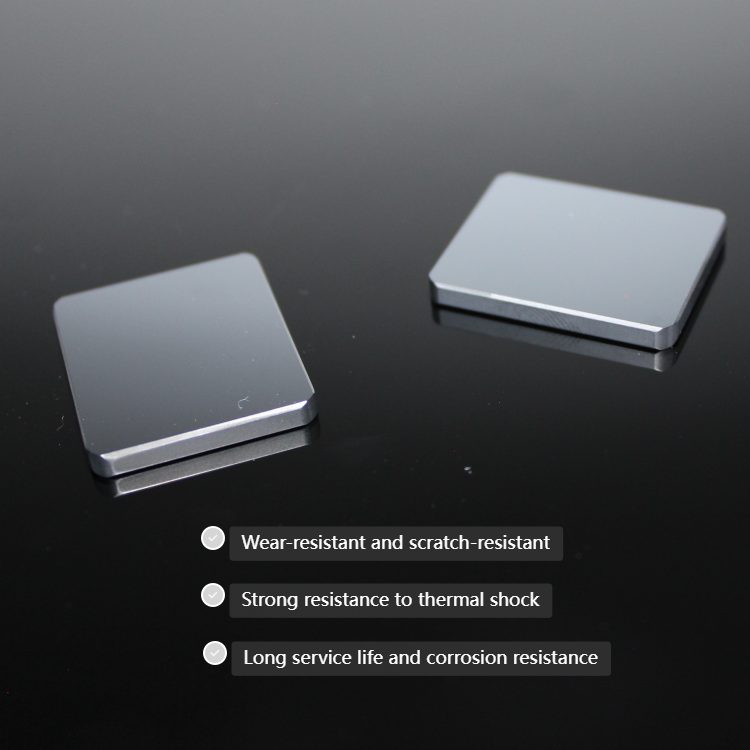

This optical window, made from high-quality monocrystalline silicon, is designed specifically for thermal imaging applications. With a diameter of 10 mm and a thickness of 2 mm, it ensures optimal performance in demanding environments. The window features a surface quality of 60/40 and is available in both uncoated and high-reflective (hr) coatings, making it suitable for various optical setups. Its precise diameter tolerance of ±0.05 mm guarantees reliable integration into your systems.

Key Features

Diameter of 10 mm with a thickness of 2 mm for compact applications.
Surface quality of 60/40 ensures minimal distortion for clear imaging.
Available in uncoated and hr coatings for versatile application needs.
Diameter tolerance of ±0.05 mm for precise fitting and batch consistency.
Customized support for OEM and ODM projects to meet specific requirements.

Available Sizes

Diameter x Thickness (mm)
10 x 2

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Silicon
Diameter	10 mm
Thickness	2 mm
Surface Quality	60/40
Coating	uncoated, high-reflective (HR)
MOQ	—

Full Specifications

Parameter	Value
Type	optical Windows
Customized Support	OEM, ODM
Warranty	3 Years
Weight	0.5kg(1.10lb)
Diameter Tolerance	0.01mm
Clear Aperture	95%
Certification	ISO9001

FAQ

What are the available coatings for this optical window?

The optical window is available in uncoated and high-reflective (hr) coatings.

What is the diameter tolerance of the optical window?

The diameter tolerance is ±0.05 mm, ensuring precise fitting.
