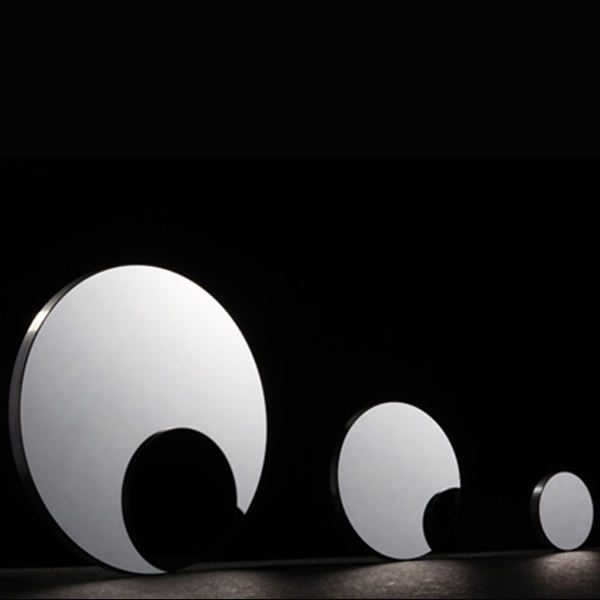

12.5 mm Silicon Optical Window
Silicon optical window for thermal imaging, 12.5 mm diameter, 40/20 surface quality, customizable options available.
Core attributes
- Material
- Silicon
- Diameter range
- 12.5 mm
Product facts
Key attributes
- Material
- Silicon
- Diameter range
- 12.5 mm
Product description
This optical window made from silicon is designed for thermal imaging applications, effectively transmitting wavelengths in the 3-5 μm and 400-700 nm bands. With a surface quality of 40/20, it ensures minimal distortion and high performance in demanding environments. Its compact 12.5 mm diameter and lightweight design make it suitable for various optical setups, enhancing system reliability and efficiency.
Key Features
- Surface quality of 40/20 ensures high clarity and minimal distortion.
- Diameter tolerance of +0.0/-0.1 mm guarantees precise fitting in optical systems.
- Lightweight at only 0.011 kg (0.02 lb) facilitates easy integration into devices.
- Parallelism of <1’ ensures accurate alignment in optical applications.
- OEM and ODM support available for customized solutions.
Applications
Thermal Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Diameter | 12.5 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmission bands | MWIR (3-5 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 12 months |
| Weight | 0.011kg(0.02lb) |
| Parallelism | <1' |
| Diameter Tolerance | +0.0/-0.1mm |
| Bevel | 0.2mm*45degree |
FAQ
Is custom sizing available?
Custom sizing options are available through OEM and ODM support.
What are the tolerances for the diameter?
The diameter tolerance is +0.0/-0.1 mm.
