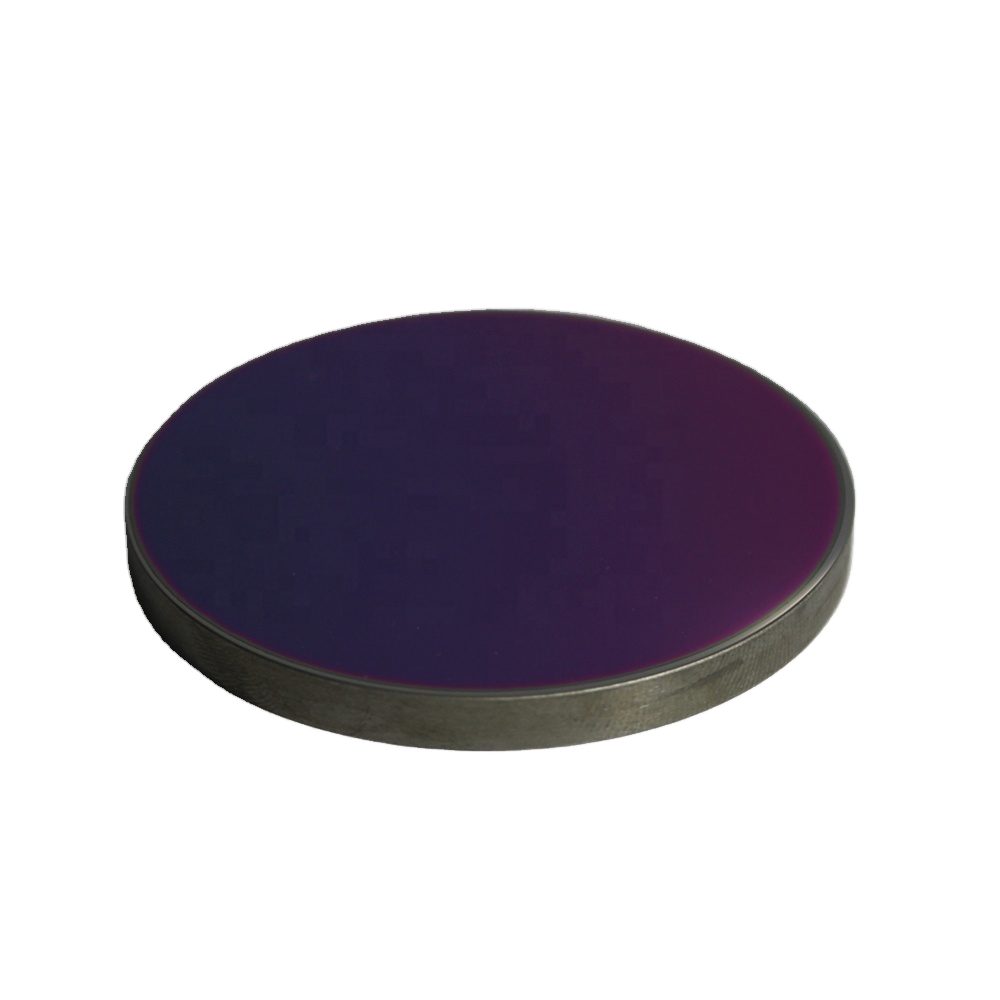

16x1 mm Silicon Optical Window, AR Coated

Product description

This optical window, crafted from optical grade silicon, is ideal for thermal imaging applications. With a diameter of 16 mm and a thickness of 1 mm, it provides excellent surface quality and accuracy, ensuring reliable performance in demanding environments. The AR coating enhances transmittance, optimizing light transmission for thermal imaging systems. Its robust design and precise specifications make it suitable for various applications in R&D and industrial settings.

Key Features

Diameter of 16 mm with a tolerance of ±0.05 mm for precise fitting.
Thickness of 1 mm, compatible with a range of optical systems.
Surface quality rated at 1/4 Lambda, ensuring minimal distortion.

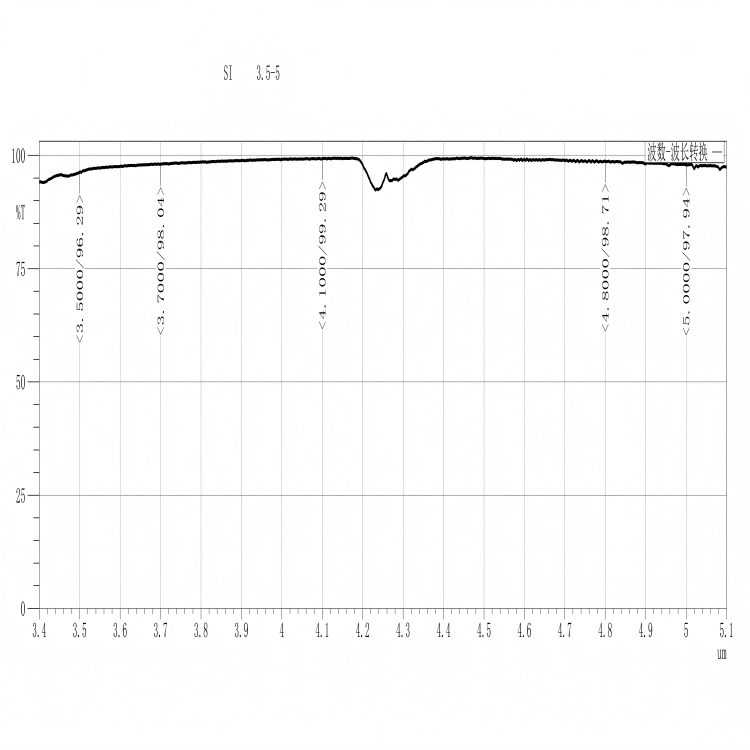

AR coating enhances transmittance for improved imaging performance.
Customized support available for OEM and ODM projects.

Available Sizes

Diameter x Thickness (mm)
16 x 1

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Silicon
Diameter	16 mm
Thickness	1 mm
Surface Quality	1/4
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	optical Windows
Customized Support	OEM, ODM
Warranty	1 Year
Weight	0.5kg(1.10lb)
Parallel	30 Arc Sec
Certification	ISO9001

FAQ

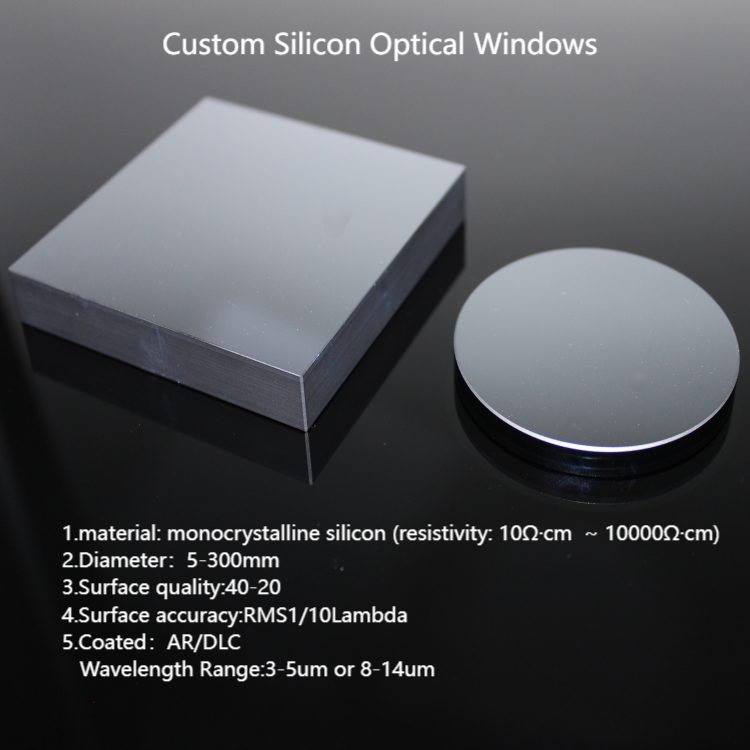

What are the available custom sizes?

Currently, the variant size available is 16 mm in diameter and 1 mm in thickness.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
