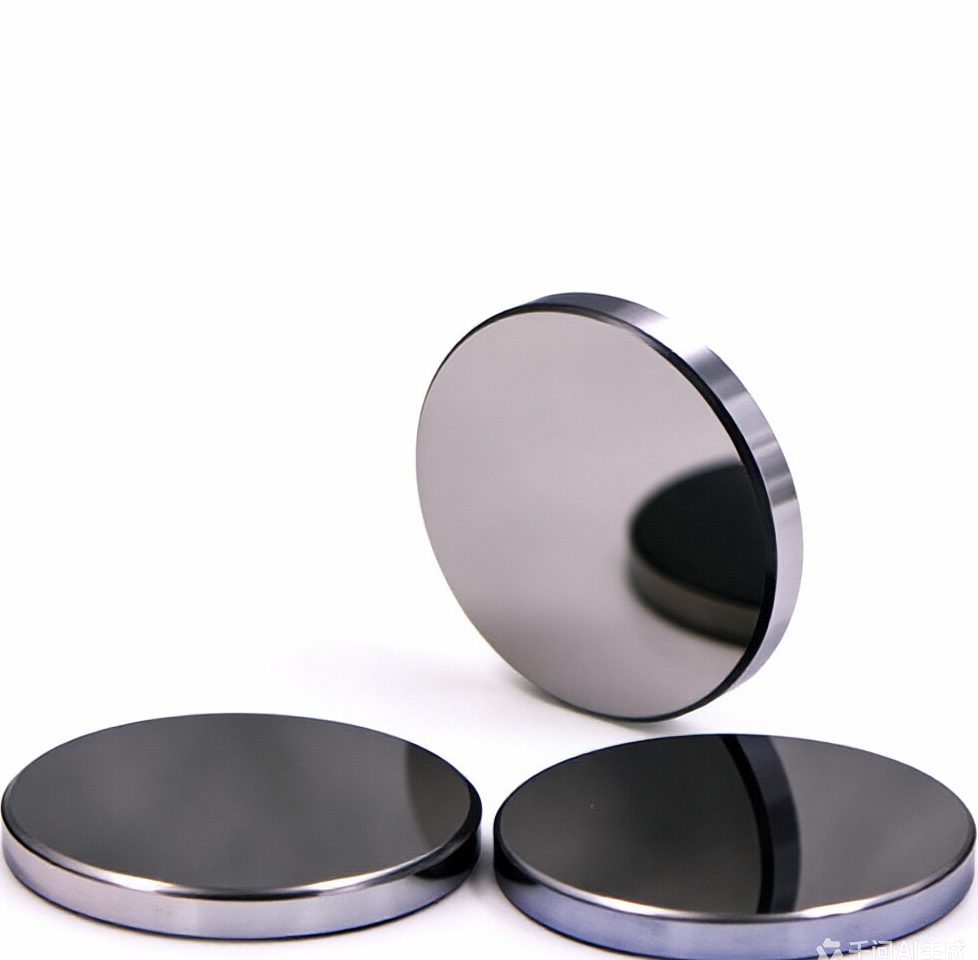

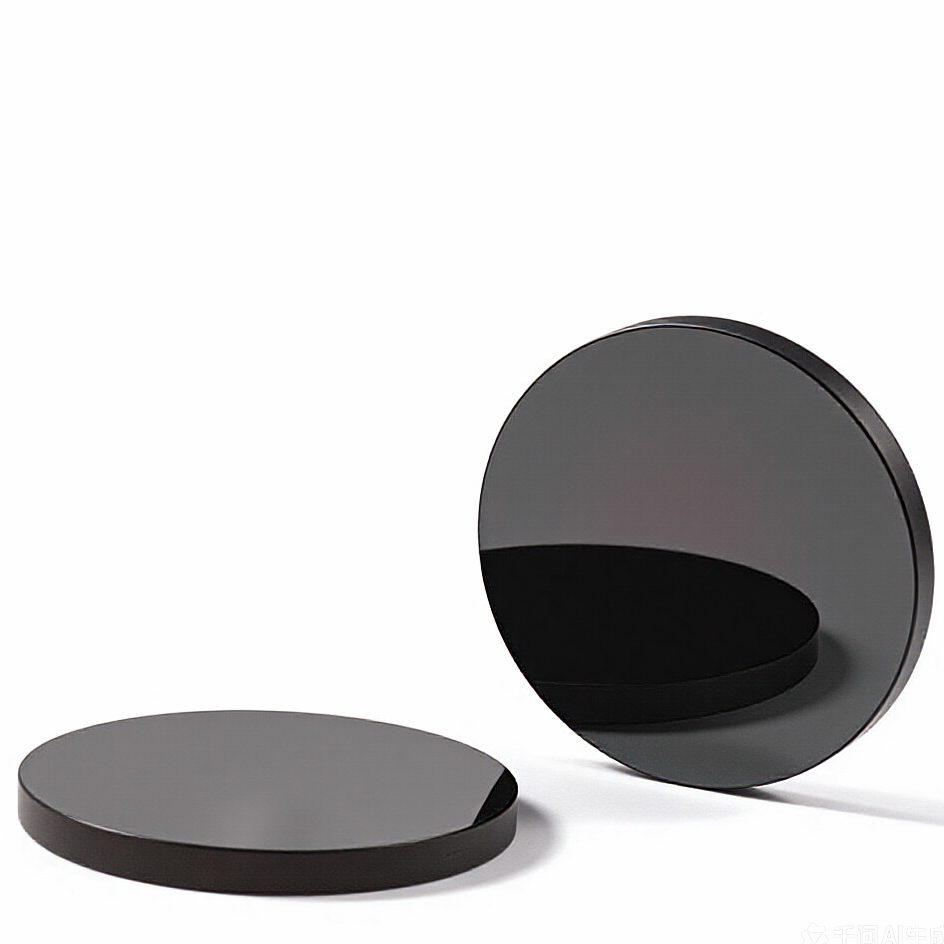

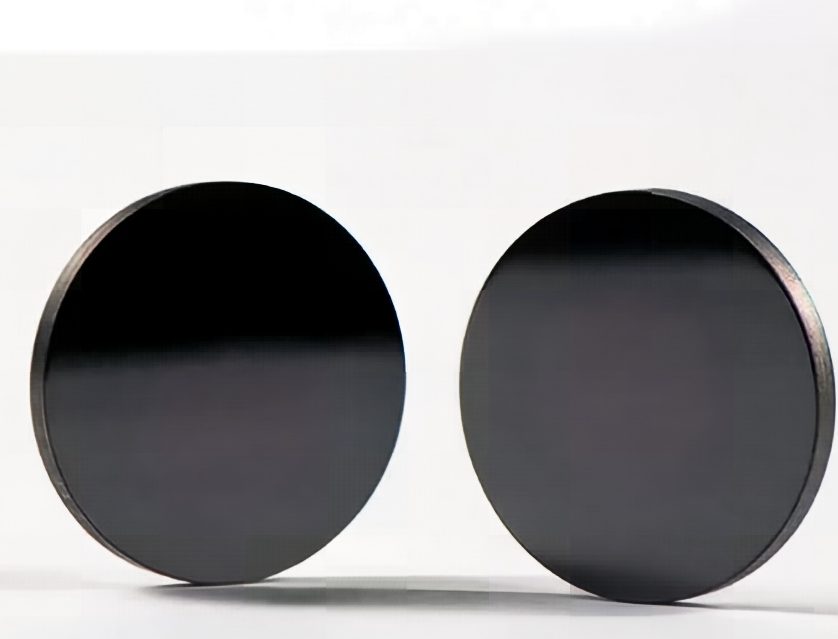

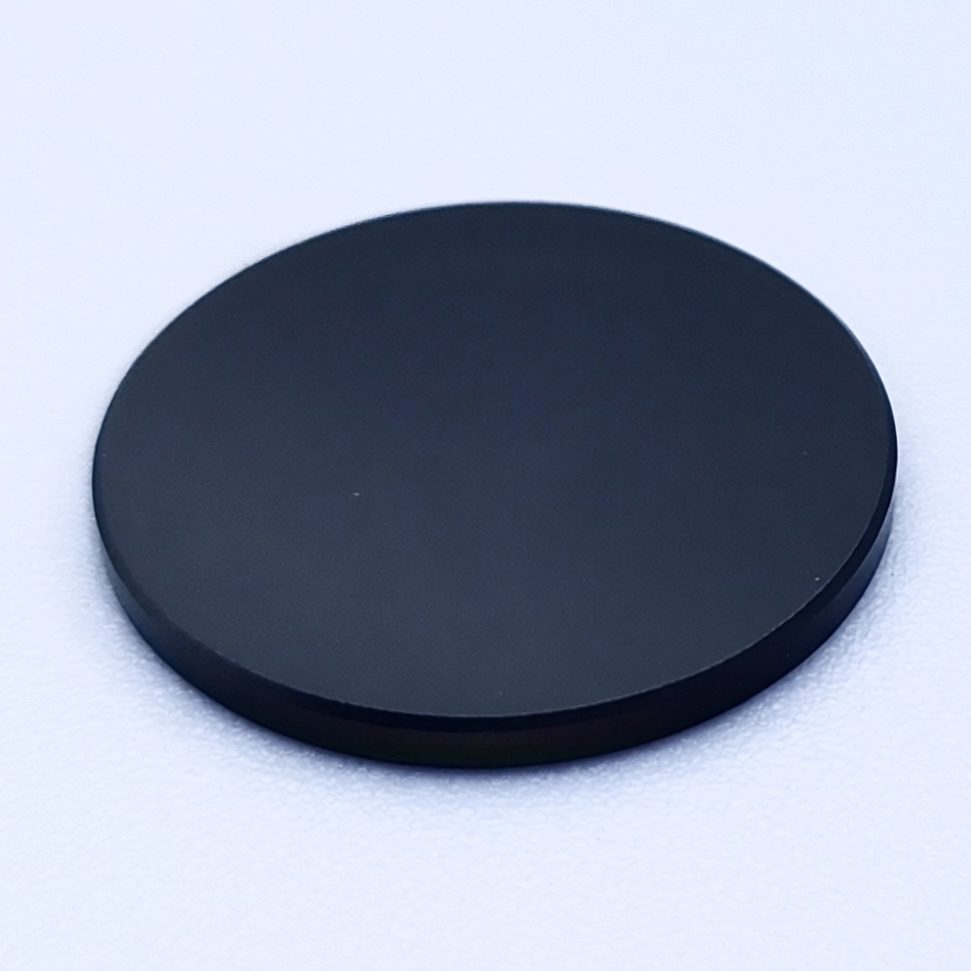

1x0.5 mm Silicon Optical Window, AR Coated

Product description

IR Silicon windows are designed for applications in thermal imaging, security, and medical devices, covering the 3-5 μm wavelength range. These windows offer a diameter range of 1.0 to 300.0 mm and thickness from 0.5 to 20.0 mm, making them versatile for various optical needs. With features such as Lambda/4 flatness and <3 arc min parallelism, they ensure high optical performance and reliability in demanding environments.

Key Features

Diameter range: 1.0 - 300.0 mm for versatile applications.
Thickness range: 0.5 - 20.0 mm to fit specific design requirements.
Flatness of Lambda/4 ensures minimal distortion for precise imaging.
Parallelism of <3 arc min enhances alignment in optical systems.
Custom sizes available, supporting OEM, ODM, and OBM services.

Available Sizes

Diameter x Thickness (mm)
150.5 x 10.2

Applications

Thermal Imaging, Security, Medical

Specification Summary

Item	Value
Material	Silicon
Diameter	1 mm
Thickness	0.5 mm
Coating	anti-reflective (AR)
Transmission bands	MWIR (3-5 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	IR Silicon windows
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.3
Flatness	Lambda/4
Bevel	Protective Bevel
Parallelism	<3 arc min

FAQ

Can I get custom sizes?

Yes, custom sizes are available ranging from 1 mm to 300 mm in diameter.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible ordering based on project needs.
