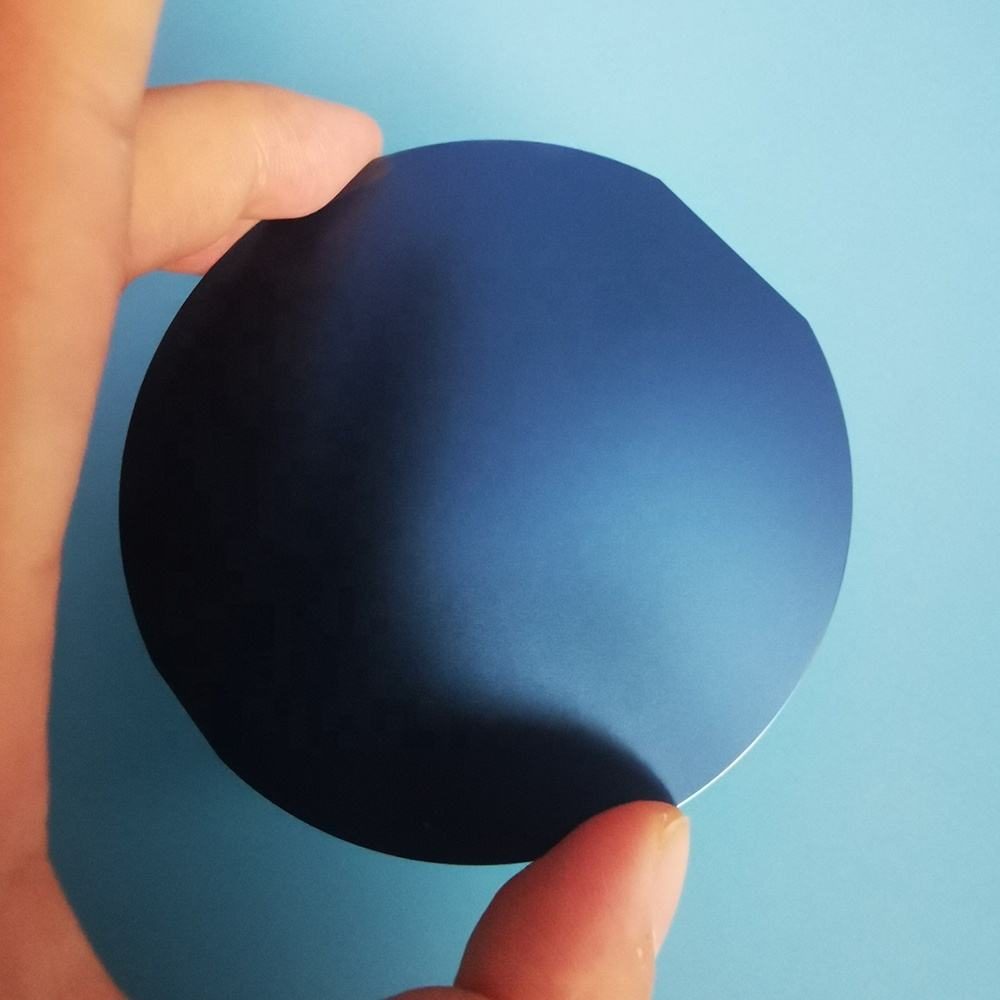

1 mm Silicon Optical Window

Product description

The IR infrared optical silicon window is designed for applications in medical and infrared systems, providing excellent transmission from 1.2 to 7.0 μm. Its polished surfaces ensure minimal distortion, making it ideal for isolating different physical environments while allowing light to pass. With a low density and high thermal conductivity, this silicon window is both robust and lightweight, addressing key requirements for optical systems.

Key Features

Diameter range from 1.0 mm to 250.0 mm, accommodating various application needs.
Clear aperture greater than 85%, ensuring effective light transmission.
Flatness of λ/4, providing high precision for optical performance.
Surface quality of 60/40, suitable for demanding optical applications.
Diameter tolerance of +/-0.1 mm, ensuring batch consistency.

Applications

Medical

Specification Summary

Item	Value
Material	Silicon
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
MOQ	—

Full Specifications

Parameter	Value
Type	Si Wafer
Weight	0.02
Diameter Tolerance	+/-0.1mm
Clear Aperture	> 85%
Flatness	L/4
Bevel	0.25 mm*45°

FAQ

Can I get custom sizes for the silicon window?

Yes, the silicon window is available in a diameter range from 1.0 mm to 250.0 mm, allowing for custom sizing.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible purchasing options.
