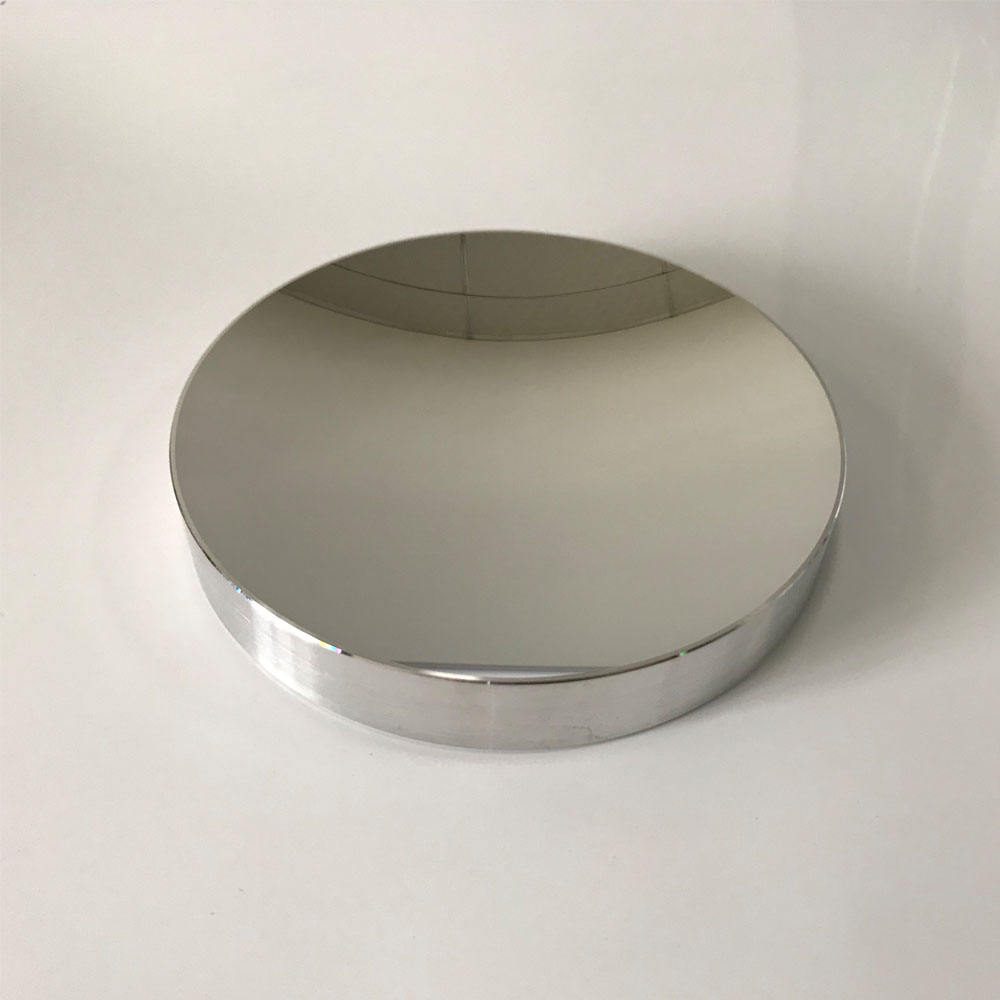

200x1 mm Silicon Optical Window, AR Coated

Product description

The Si Window is designed for applications requiring high precision and reliability in optical performance. With a diameter of 200 mm and thickness options ranging from 1 mm to 50 mm, this window is suitable for various wavelengths and applications in IR imaging, LIDAR, and laser systems. The anti-reflective coating enhances transmittance, making it ideal for demanding optical environments. Its customizable features ensure it can meet specific project requirements.

Key Features

Diameter of 200 mm with a tolerance of ± 0.1 mm for precise fit.
Thickness options from 1 mm to 50 mm, allowing for versatility in applications.
Clear aperture of 90% ensures minimal obstruction of light.
Parallelism of 3 Arcmin for improved optical performance.
Customizable support available for OEM, ODM, and OBM projects.

Available Sizes

Diameter x Thickness (mm)
200 x 25.5

Specification Summary

Item	Value
Material	Silicon
Diameter	200 mm
Thickness	1 mm
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Si Window
Customized Support	OEM, ODM, OBM
Weight	0.01kg(0.02lb)
Diameter Tolerance	± 0.1mm
Thickness Tolerance	± 0.1mm
Clear Aperture	90%
Parallelism	3 Arcmin
Bevel	0.1-0.3mm X45 Degree

FAQ

What are the available custom sizes?

The window can be customized up to a diameter of 200 mm and thickness from 1 mm to 50 mm.

What are the tolerances for diameter and thickness?

The diameter tolerance is ± 0.1 mm and the thickness tolerance is also ± 0.1 mm.
