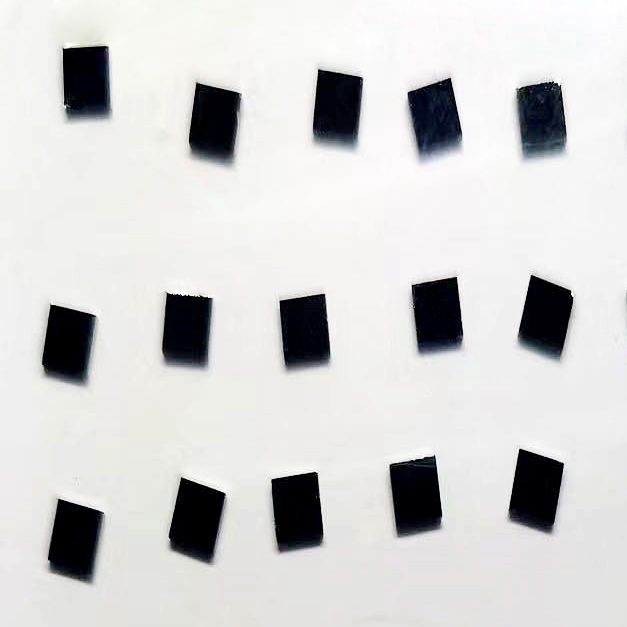

2x0.5 mm Silicon Optical Window

Product description

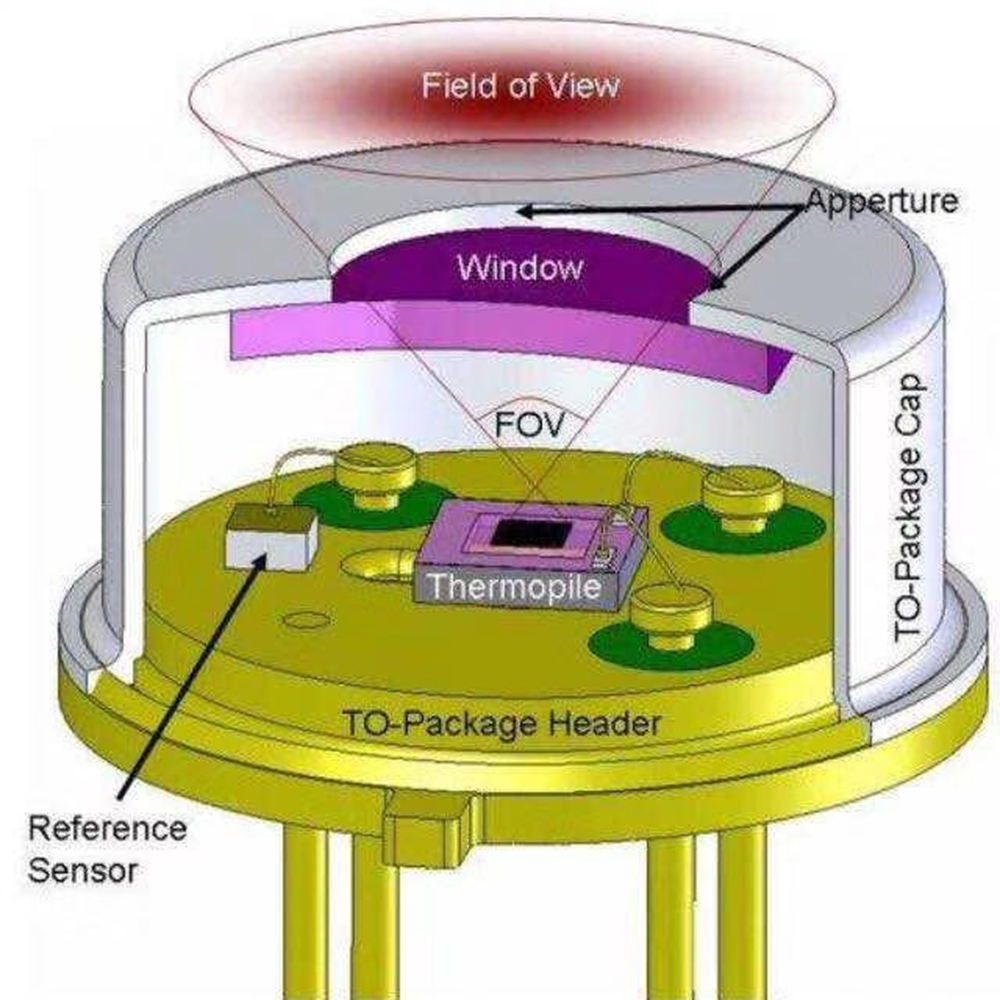

The IR Pass Filter made from optical grade silicon is ideal for applications in the medical field, particularly for body temperature detection and infrared light switches. With a transmission band of 8-14 μm, it ensures precise infrared filtering, making it suitable for devices like infrared thermometers. The filter is available in a range of sizes, from 2 mm to 80 mm in diameter and 0.5 mm to 10 mm in thickness, accommodating various design requirements.

Key Features

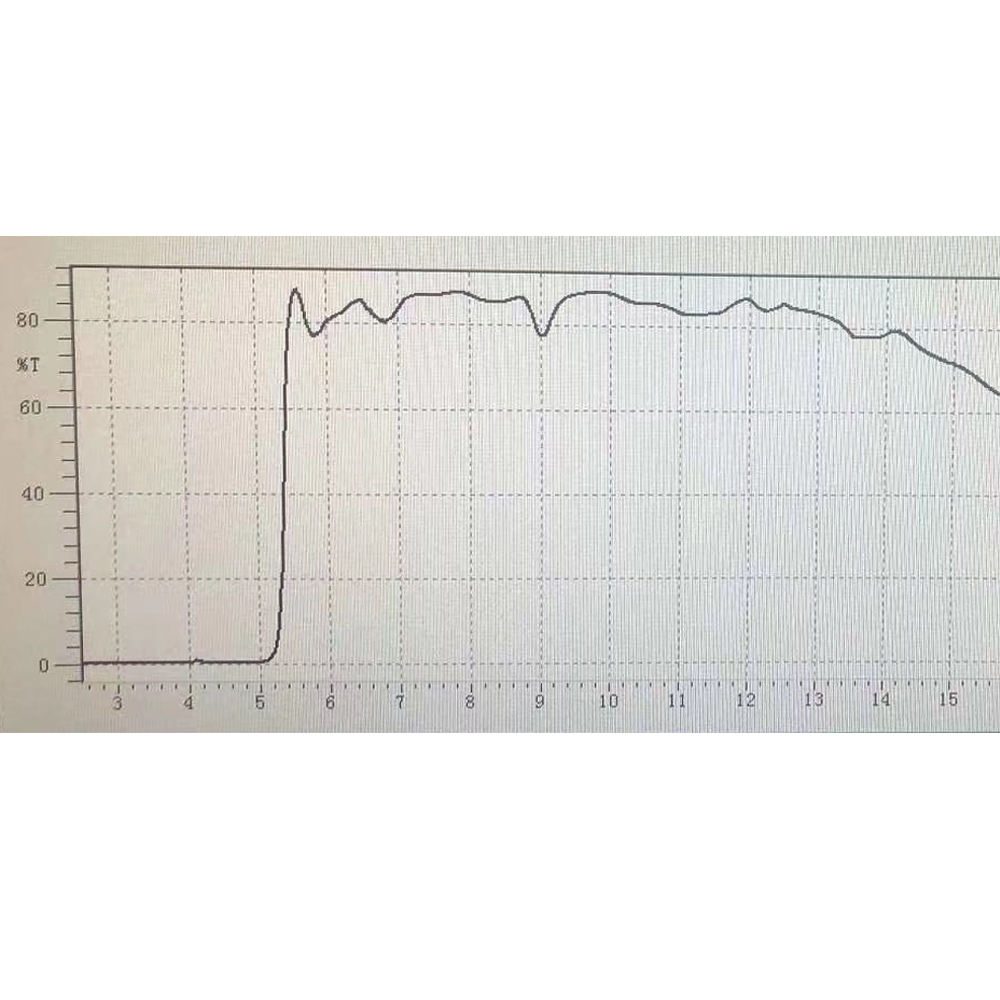

Transmission band of 8-14 μm for effective infrared filtering.
Available in diameters from 2 mm to 80 mm, allowing for versatile applications.
Thickness options range from 0.5 mm to 10 mm for customized fitting.
Surface quality rated at 60/40, ensuring reliable performance.
Customized bevel options available to meet specific design needs.

Available Sizes

Diameter x Thickness (mm)
41 x 5.2

Applications

Medical

Specification Summary

Item	Value
Material	Silicon
Diameter	2 mm
Thickness	0.5 mm
Surface Quality	60/40
Transmission bands	LWIR (8-14 μm)
MOQ	—

Full Specifications

Parameter	Value
Color	black
Substrate	Optical grade silicon
Use	body temperature detection, automatic induction, infrared light switch
Bevel	Customized

FAQ

Can I get custom sizes?

Yes, the filter is available in a range of diameters from 2 mm to 80 mm and thicknesses from 0.5 mm to 10 mm.

What are the tolerances for this filter?

The filter has a tolerance of ±0.1 mm, ensuring precision in manufacturing.
