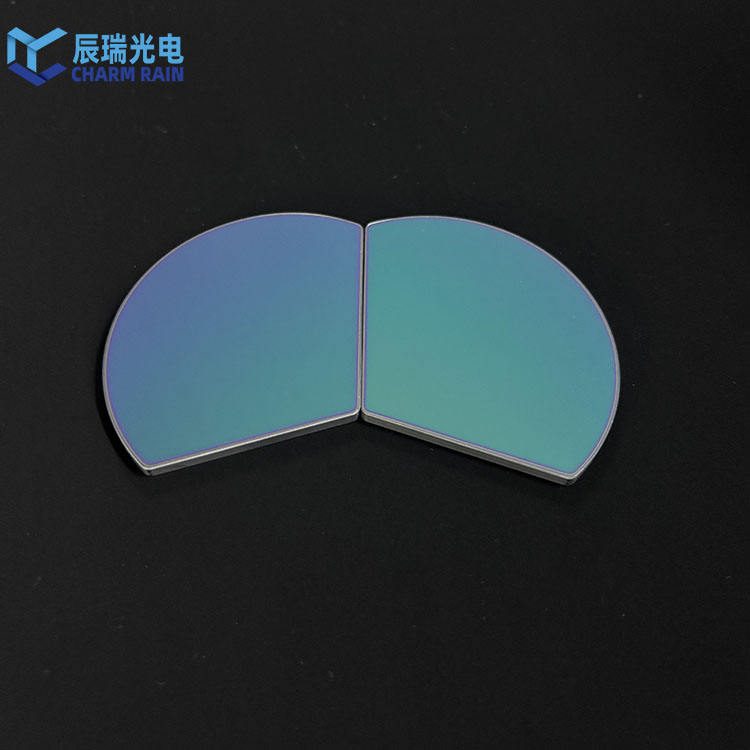

5 mm Silicon Optical Window, AR Coated
Monocrystalline silicon optical windows for 8-14 μm applications, customizable sizes, and high-quality AR coating.
Core attributes
- Material
- Silicon
- Diameter range
- 5–400 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Silicon
- Diameter range
- 5–400 mm
- Coating
- ar
Product description

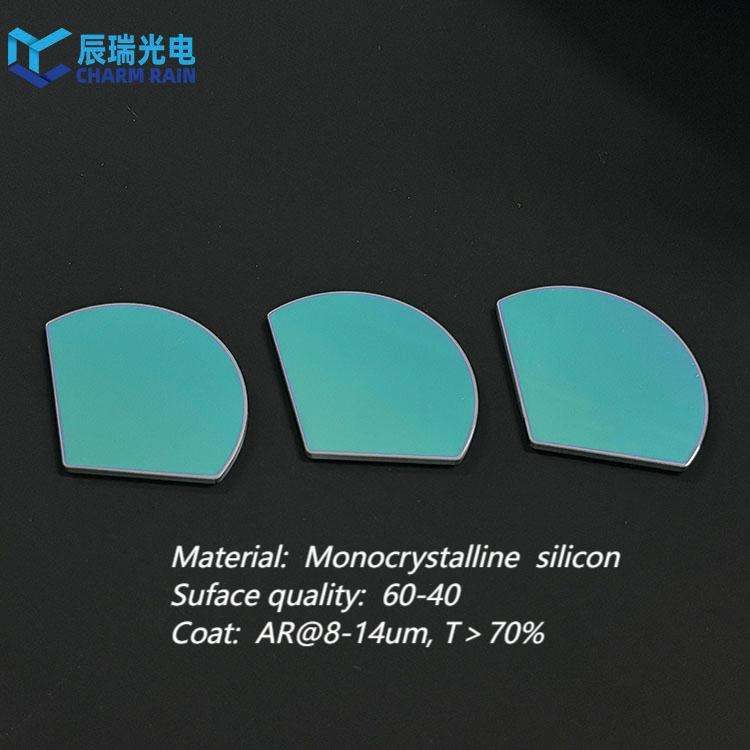

These optical windows made from monocrystalline silicon are designed for applications in the 8-14 μm wavelength range, ideal for thermal imaging and LIDAR systems. With diameters ranging from 5.0 mm to 400.0 mm, they provide versatility for various optical setups. The AR coating ensures high transmittance, making them suitable for demanding optical applications.
Key Features
- Diameter range: 5.0 mm to 400.0 mm for versatile application fit.
- Surface quality rated at 60/40 ensures reliable performance.

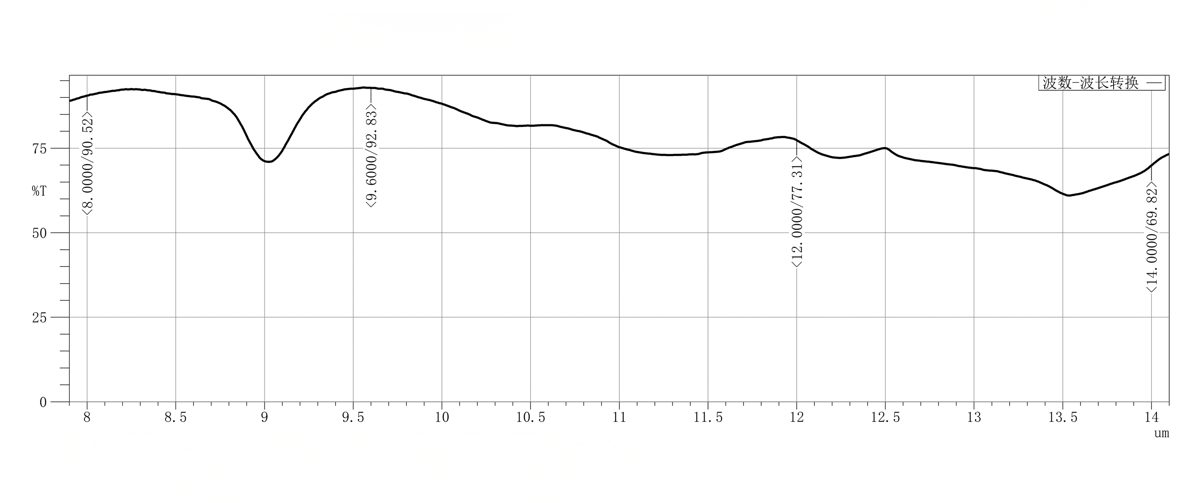

- AR coating optimized for 8-14 μm enhances transmittance over 70%.
- Surface flatness of 1/10 @ 633 nm for superior optical clarity.
- Manufactured under ISO9001 certification for consistent quality.
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM |
| Warranty | 3 months |
| Weight | 0.5kg |
| Diameter Tolerance | 0/-0.05mm |
| Surface Flatness | 1/10@633nm |
| Parallel | 30 Arc Sec |
| Certification | ISO9001 |
FAQ
Can I get custom sizes?
Yes, the optical windows are available in diameters from 5.0 mm to 400.0 mm, allowing for custom sizing.
What are the tolerances for diameter?
The diameter tolerance is +/-0.05 mm, ensuring precise fit for your applications.
