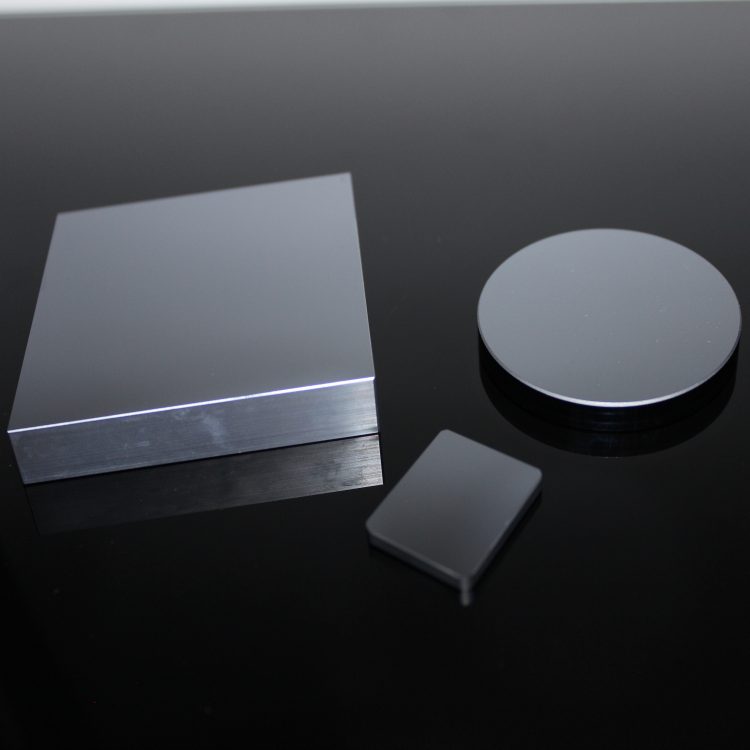

5 mm Silicon Optical Window, DLC Coated
Optical windows in silicon for thermal imaging, 8-14 μm, 5-300 mm diameter, AR/DLC coated, ISO9001 certified.
Core attributes
- Material
- Silicon
- Diameter range
- 5–300 mm
- Coating
- dlc, ar
Product facts
Key attributes
- Material
- Silicon
- Diameter range
- 5–300 mm
- Coating
- dlc, ar
Product description

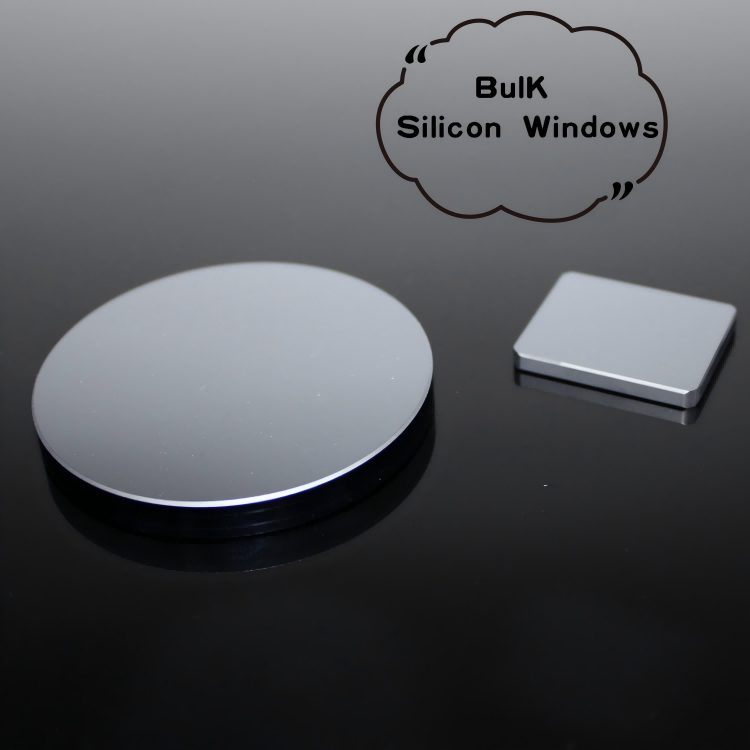

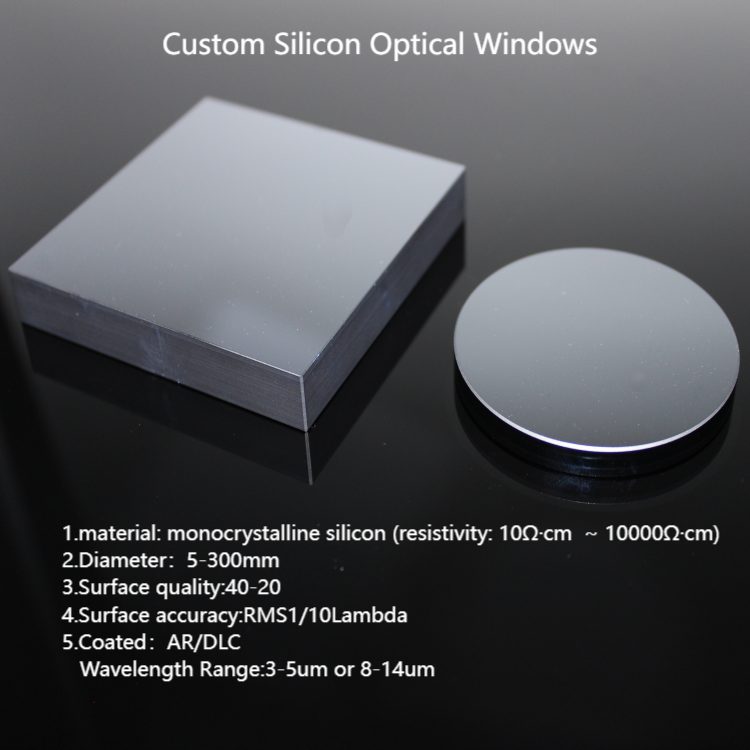

These optical windows made from monocrystalline silicon are designed for thermal imaging applications in the 8-14 μm wavelength range. With a diameter range of 5 to 300 mm and high surface quality, they ensure optimal performance in demanding environments. The windows feature AR and DLC coatings for enhanced durability and transmittance, making them suitable for various advanced optical systems.
Key Features
- Diameter range of 5-300 mm allows for versatile application in thermal imaging systems.
- Surface quality of 60/40 ensures minimal distortion for precise imaging.

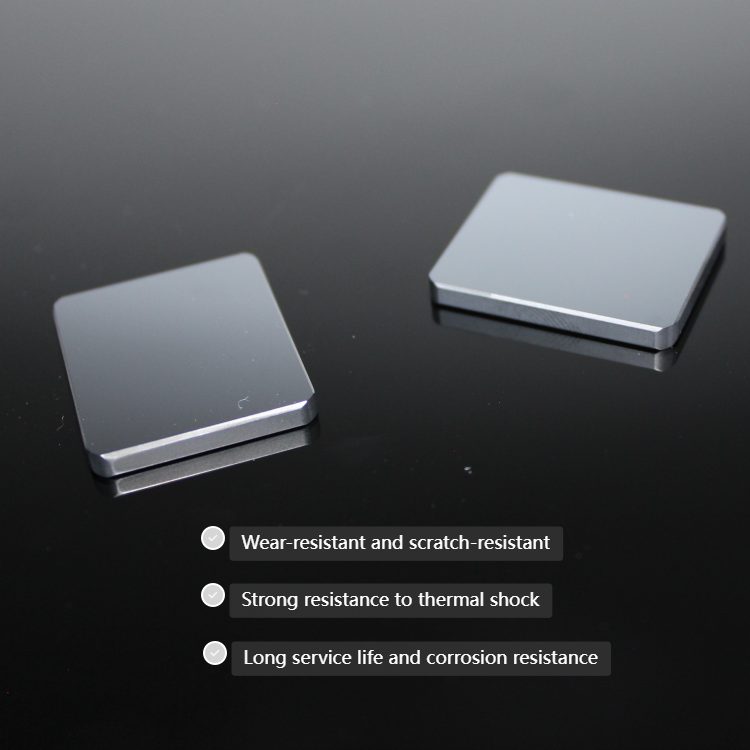

- AR and DLC coatings enhance durability and performance in harsh conditions.
- Diameter tolerance of +/-0.01 mm supports high precision requirements.
- Manufactured in Jiangsu, certified ISO9001 for consistent quality assurance.
Applications
Thermal Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | diamond-like carbon (DLC), anti-reflective (AR) |

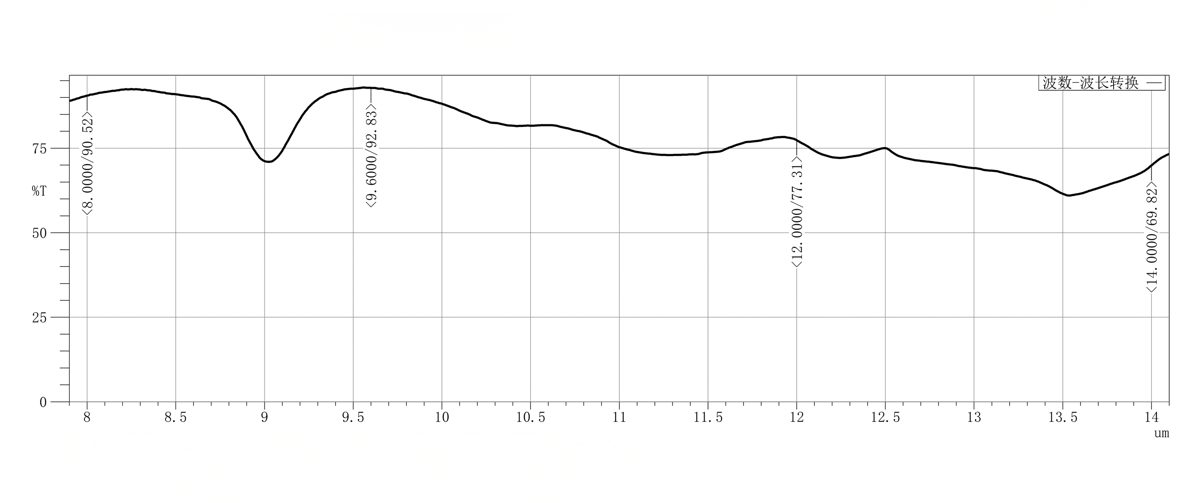

| Transmission bands | LWIR (8-14 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM |
| Warranty | 3 months |
| Weight | 0.5kg |
| Diameter Tolerance | +/-0.01mm |
| Surface Flatness | 1/10@633nm |
| Parallel | 30 Arc Sec |
| Certification | ISO9001 |
FAQ
Can I get custom sizes?
Custom sizes are available, with a diameter range from 5 mm to 300 mm.
What are the tolerances for the optical windows?
The diameter tolerance is +/-0.01 mm, ensuring high precision.
