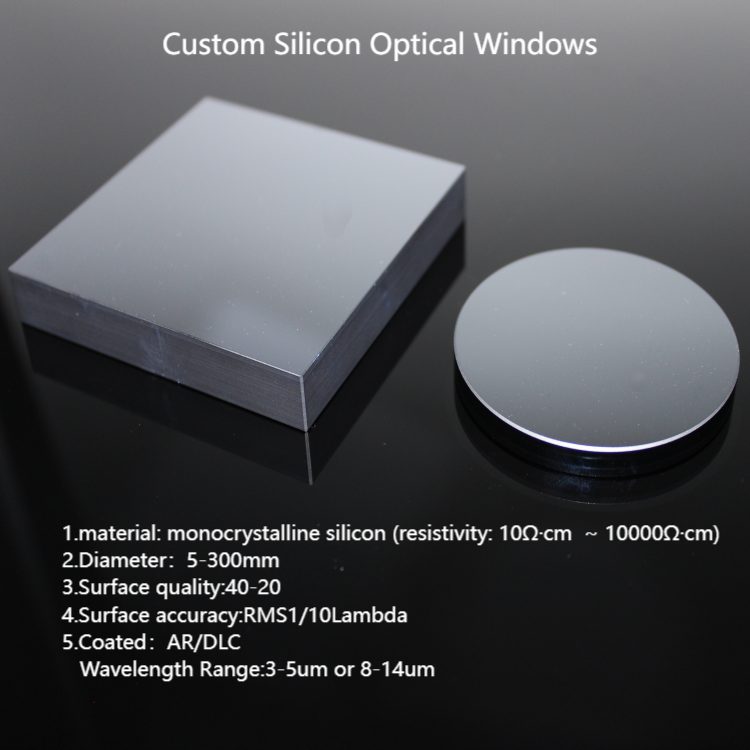

5 mm Silicon Optical Window, DLC Coated

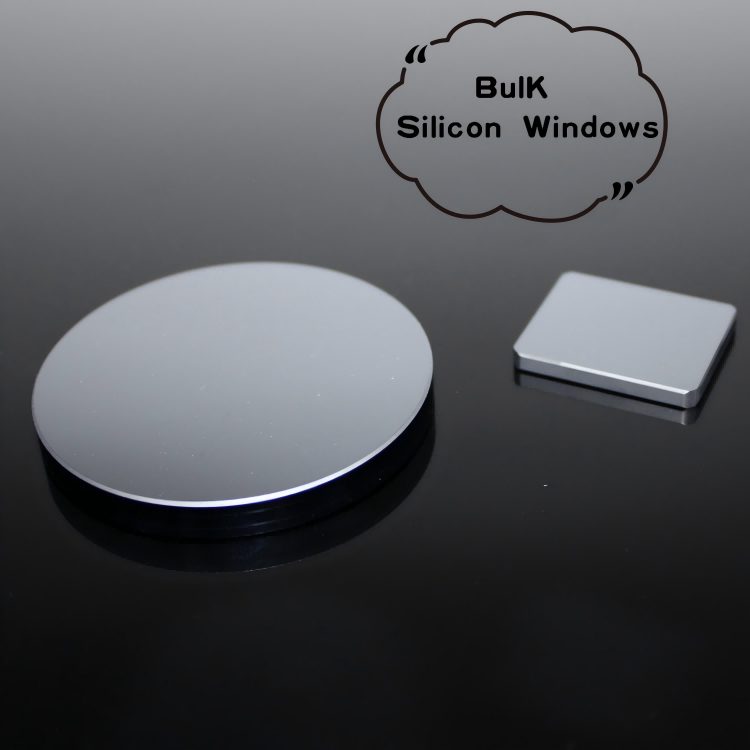

Monocrystalline silicon optical windows for 3-5 μm and 8-14 μm applications, with high quality and custom sizing options.
Core attributes
- Material
- Silicon
- Diameter range
- 5–300 mm
- Coating
- dlc
Product facts
Key attributes
- Material
- Silicon
- Diameter range
- 5–300 mm
- Coating
- dlc
Product description
These optical windows made from monocrystalline silicon are ideal for applications in the 3-5 μm and 8-14 μm wavelength ranges. They deliver high surface quality (60/40) and excellent flatness (1/10 @ 633 nm), making them suitable for demanding optical systems. With a diameter range of 5 mm to 300 mm, they can fit various setups, ensuring optimal performance in IR imaging, LIDAR, and laser applications.
Key Features
- Diameter range of 5 mm to 300 mm for versatile application fit.
- Surface quality of 60/40 ensures minimal optical distortion.
- Surface flatness of 1/10 @ 633 nm for high precision imaging.

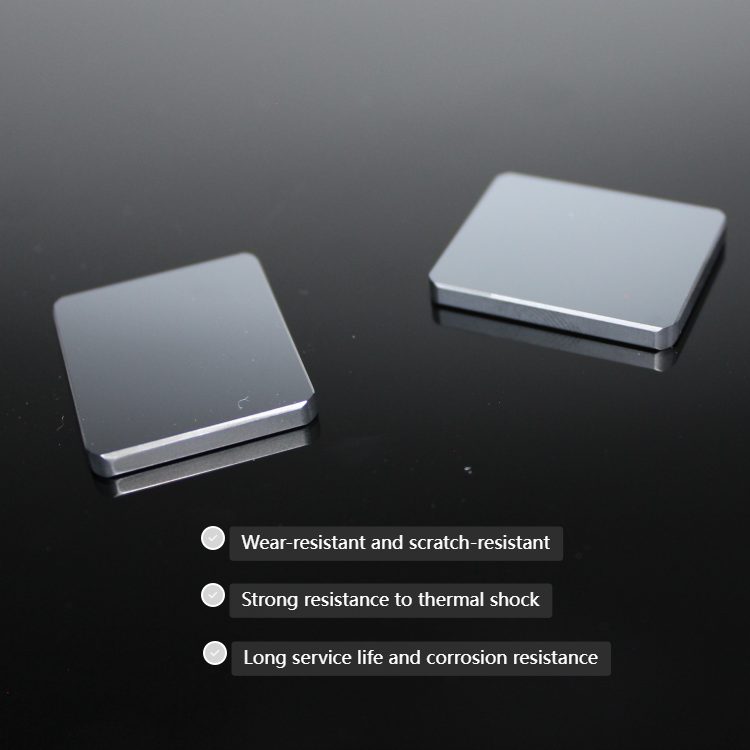

- DLC coating enhances durability and performance.
- Custom OEM support available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | diamond-like carbon (DLC) |

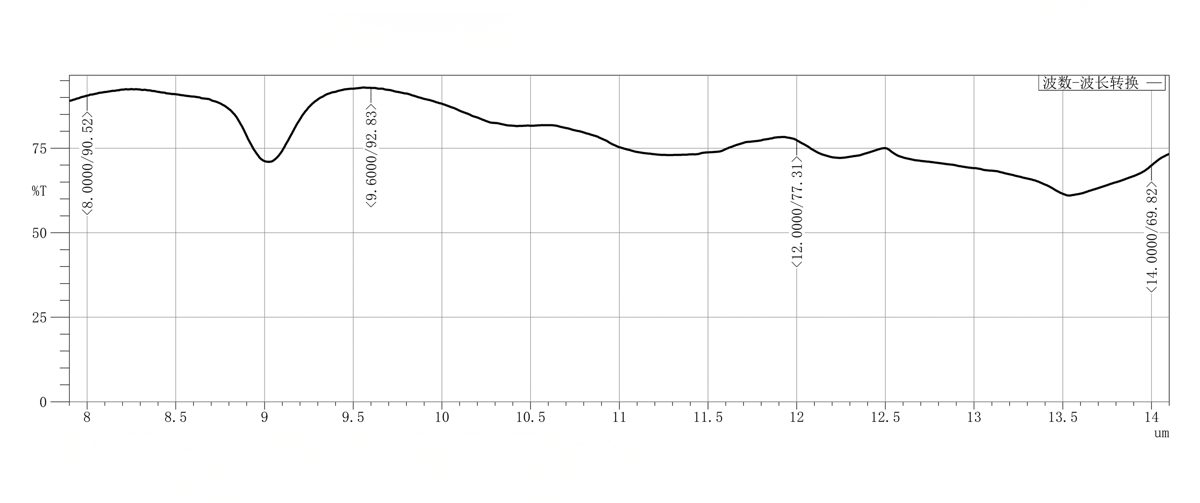

| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM |
| Warranty | 3 months |
| Weight | 0.5kg(1.10lb) |
| Diameter Tolerance | +/-0.01mm |
| Surface Flatness | 1/10@633nm |
| Parallel | 30 Arc Sec |
| Certification | ISO9001 |
FAQ
What is the diameter tolerance?
The diameter tolerance is +/-0.01 mm, ensuring precise fitting.
Is custom sizing available?
Yes, OEM support is available for customized optical window sizes.
