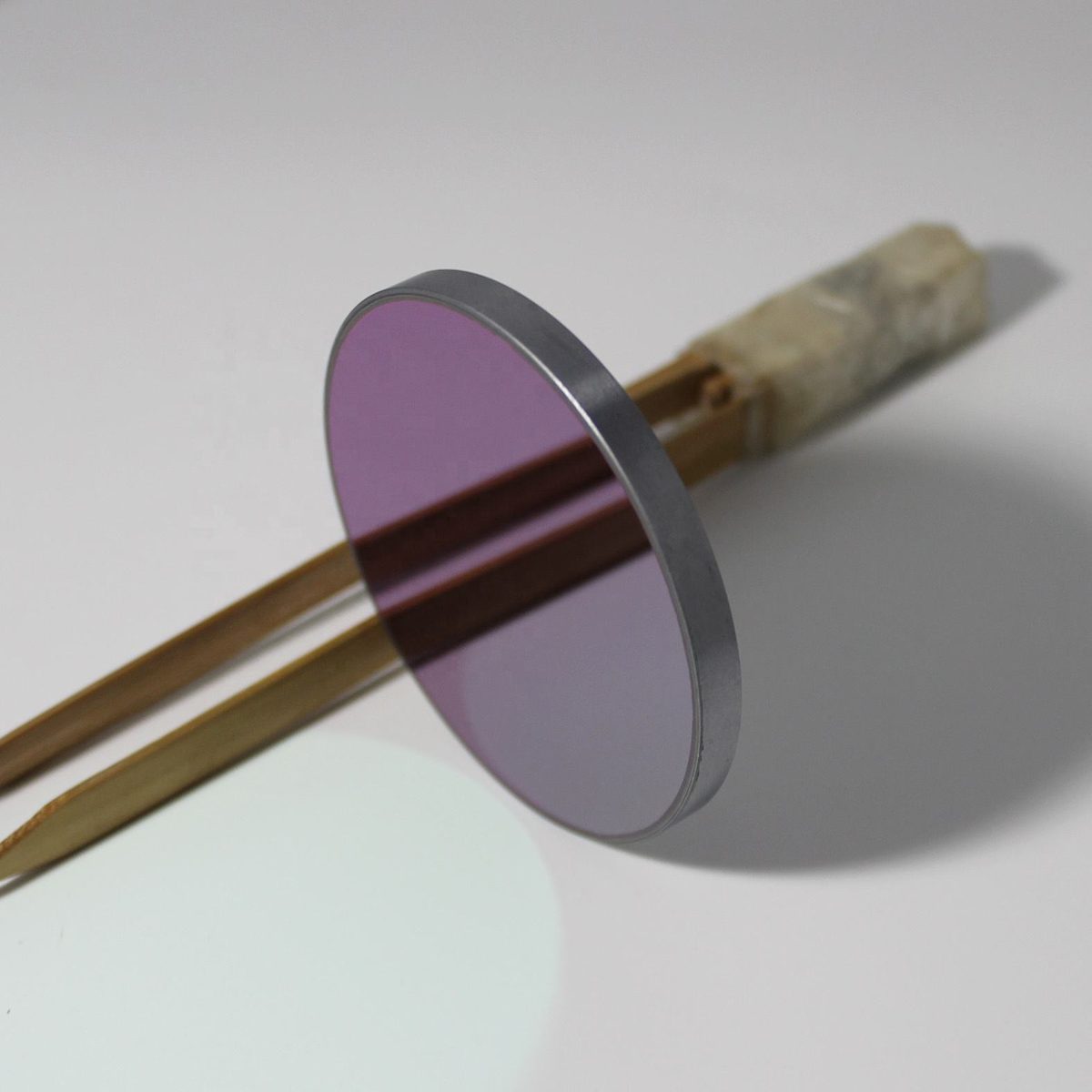

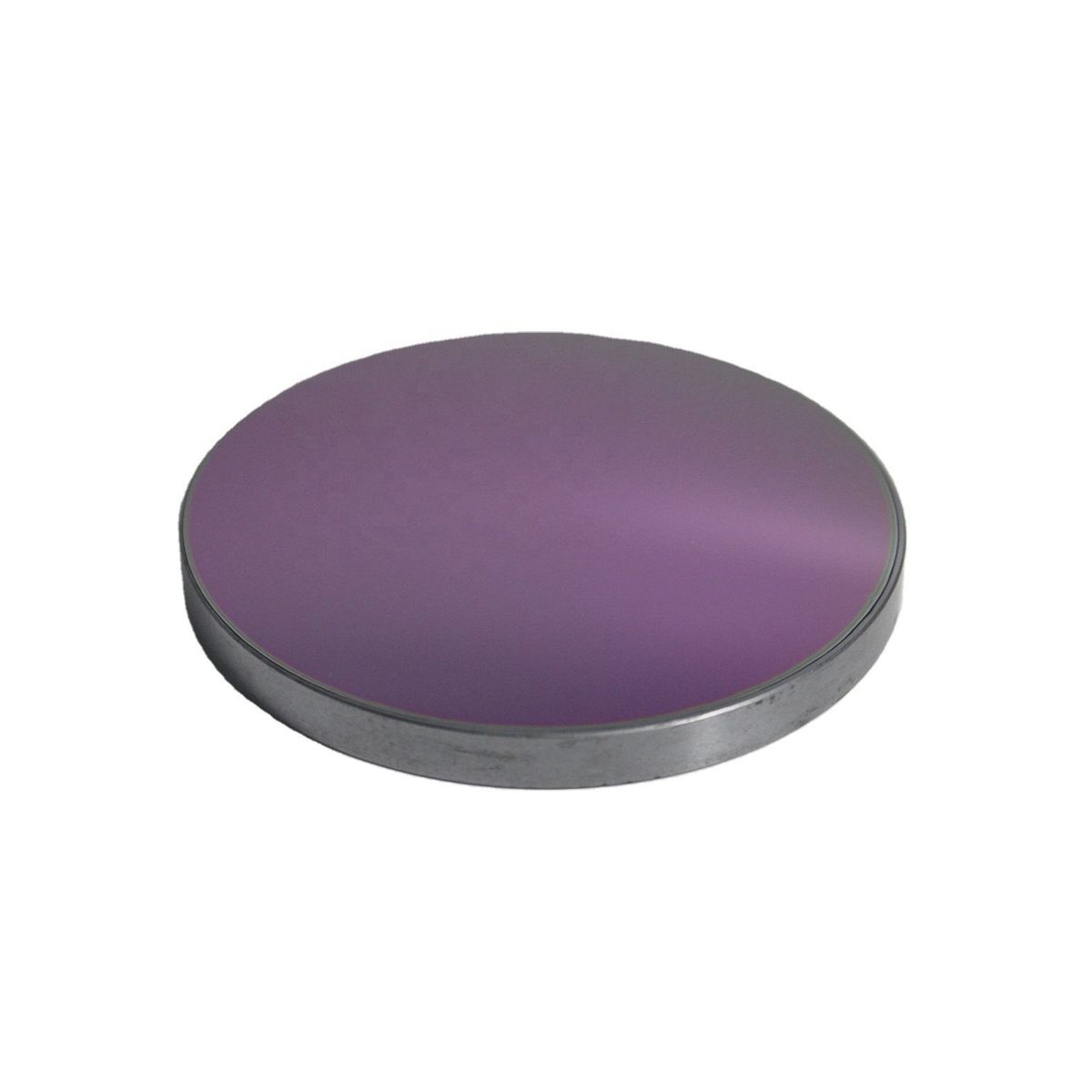

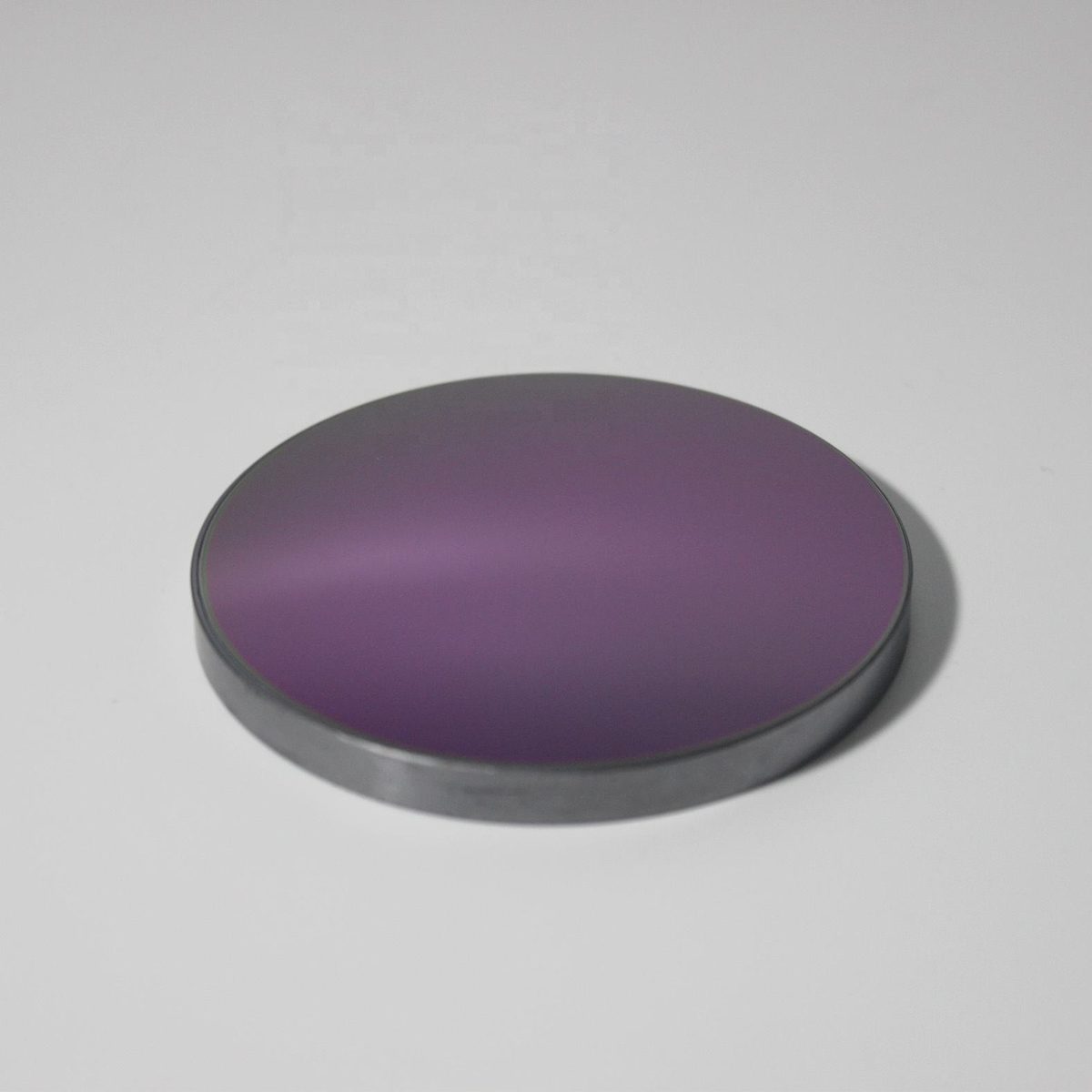

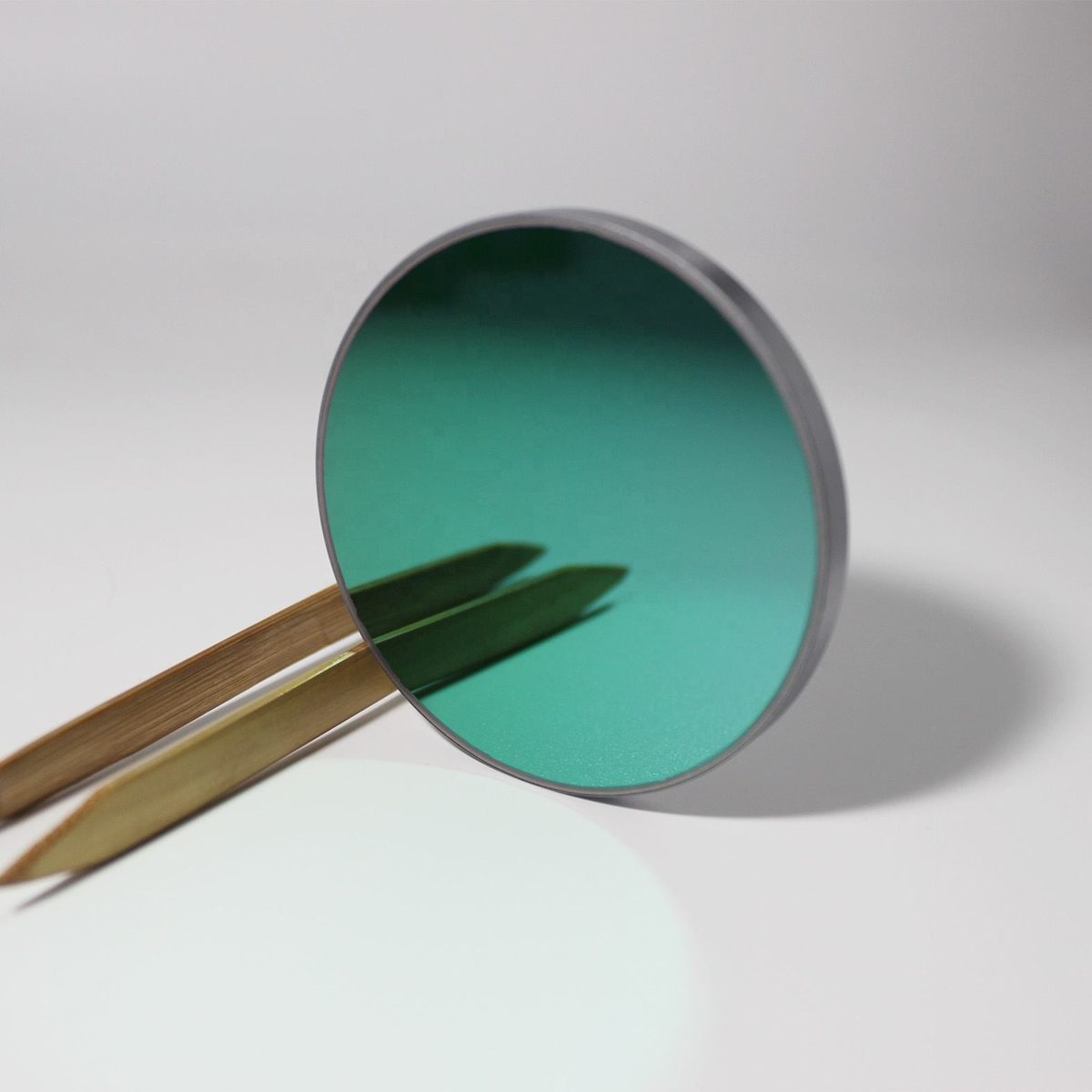

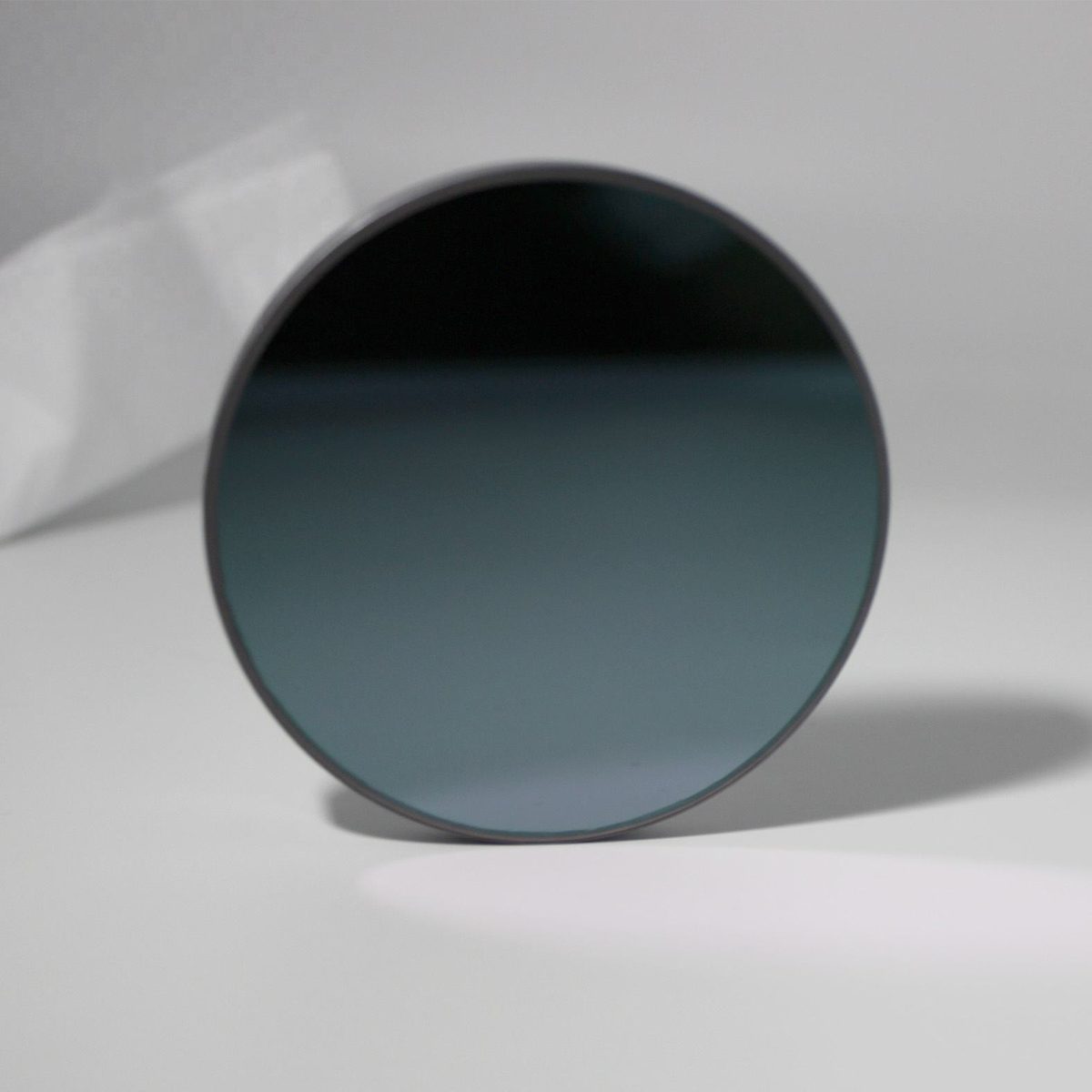

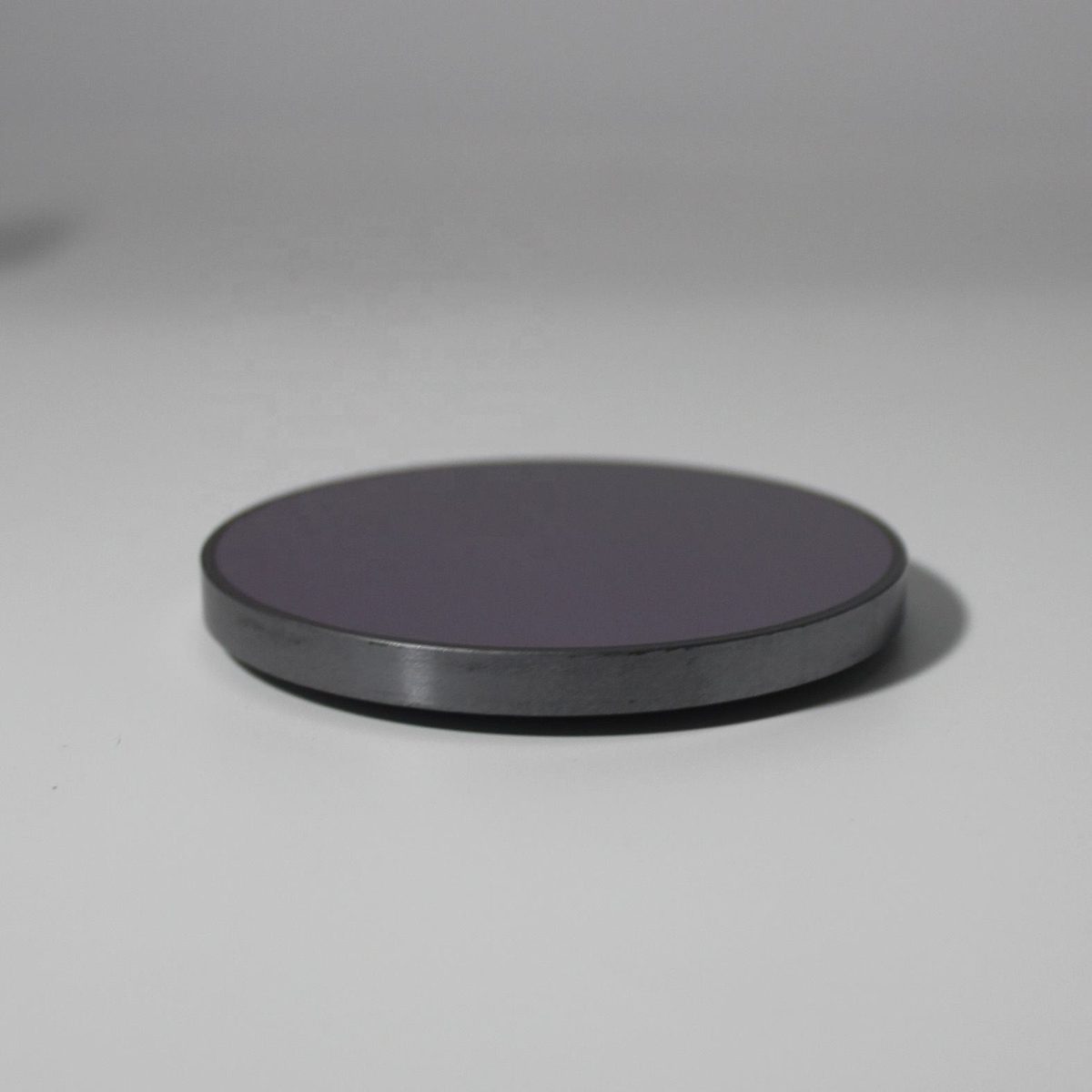

3 mm Silicon Plano-convex Lens, AR Coated

Product description

This plano-convex silicon lens is designed for imaging applications, providing excellent optical performance with a diameter range of 3.0 mm to 460.0 mm. With a surface quality of 60/40 and available anti-reflective coatings, it ensures effective light transmission. The lens can be customized to meet specific size requirements, making it a versatile choice for various optical systems.

Key Features

Diameter range: 3.0 mm to 460.0 mm for diverse applications.
Surface quality of 60/40 ensures reliable imaging performance.
Customizable options available for OEM and ODM projects.
Dimension tolerance of +/- 0.1 mm for precise fitting.
Anti-reflective coating enhances light transmission efficiency.

Applications

Imaging

Specification Summary

Item	Value
Material	Silicon
Shape	Plano-convex
Diameter	3 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Window
Customized Support	OEM, ODM
Warranty	Available
Weight	Custom
Dimension Tolerance	+/- 0.1mm,+/- 0.01mm
Parallelism	+ / - 30"
Bevel	0.1-0.3mm x45 degree

FAQ

Can I get custom sizes for this lens?

Yes, the lens is customizable with a diameter range from 3.0 mm to 460.0 mm.

What are the tolerances for dimensions?

Dimension tolerance is +/- 0.1 mm, with additional tolerances of +/- 0.01 mm.
