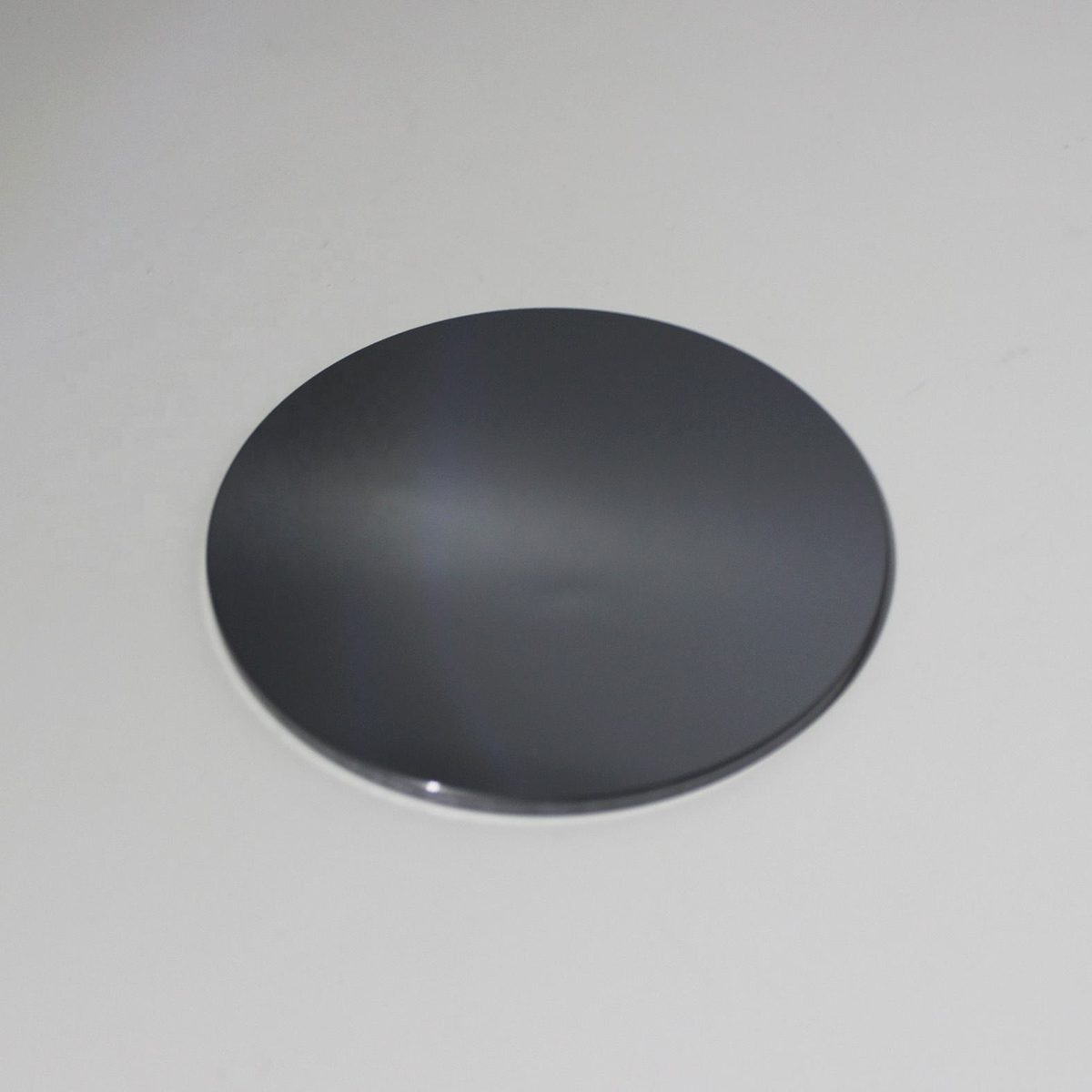

5 mm Silicon Plano-convex Lens, AR Coated

Product description

This plano-convex lens made from silicon is designed for applications in thermal imaging, medical systems, and other infrared technologies operating in the 8-14 μm wavelength range. Its low absorption coefficient and high thermal shock resistance make it ideal for high-power CO2 laser systems. The lens features anti-reflective coatings to enhance transmittance, ensuring optimal performance in demanding environments.

Key Features

Material: Silicon for low absorption and high thermal shock resistance.
Diameter: Available in 5.0 mm, customizable for specific applications.
Surface Quality: 60/40, ensuring adequate performance for imaging applications.
Dimension Tolerance: +/- 0.1 mm for precise fitting in optical systems.
Customized Support: OEM and ODM options available for tailored solutions.

Applications

Thermal Imaging, Medical, Imaging

Specification Summary

Item	Value
Material	Silicon
Shape	Plano-convex
Diameter	5 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm)

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM
Warranty	as per usage
Weight	as request
Dimension Tolerance	+/- 0.1mm,+/- 0.01mm
Parallelism	+ / - 30"
Bevel	0.1-0.3mm x45 degree

FAQ

What are the available custom sizes?

Custom diameters include 12mm, 18mm, 19.05mm, 20mm, 25mm, 25.4mm, 30mm, and 38.1mm.

What is the dimension tolerance?

The dimension tolerance is +/- 0.1 mm for diameter and +/- 0.1 mm for thickness.
