1 / 6Optical Filters

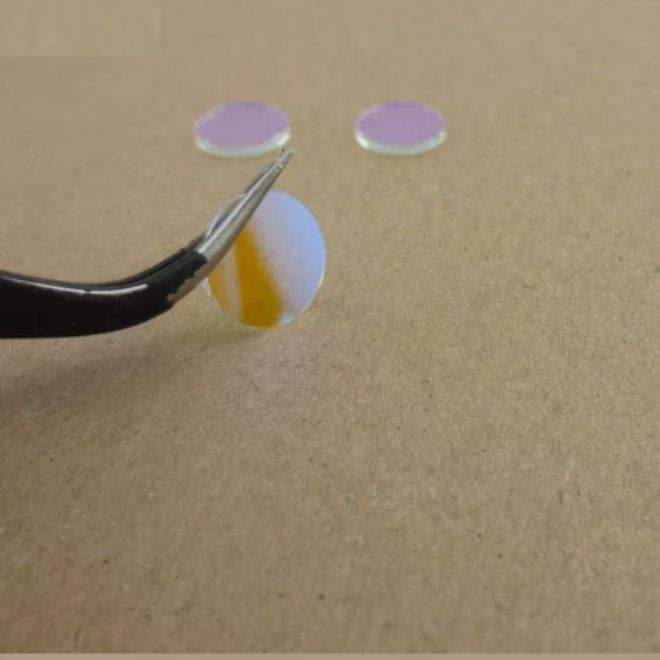

2 mm Silicon Round Optical Filter
Explore our Longpass Filter with high transmittance and customizable sizes for fluorescence and machine vision applications.
Core attributes
- Material
- Silicon
- Shape
- Round
- Size
- 2 mm
- Thickness
- Custom
- Filter Type
- longpass
- Coating
- hard-coat, iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Silicon
- Shape
- Round
- Size
- 2 mm
- Thickness
- Custom
- Filter Type
- longpass
- Coating
- hard-coat, iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description

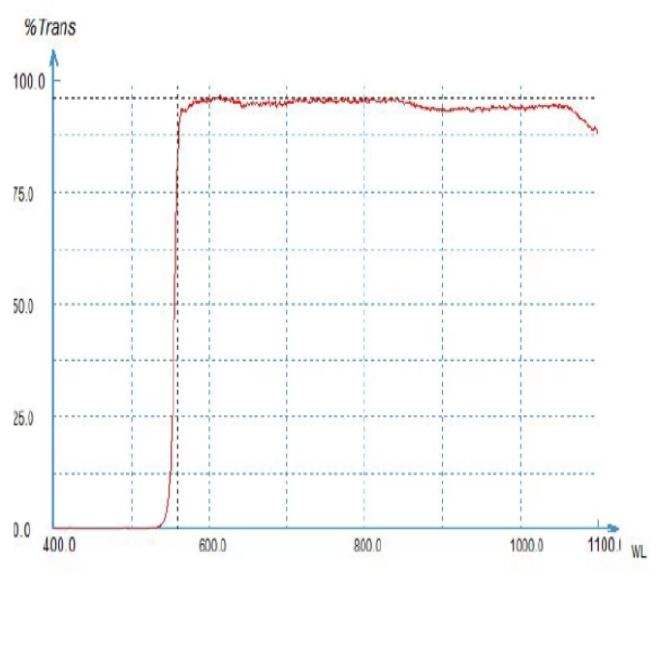

The Longpass Filter is engineered for applications in fluorescence microscopy, machine vision, and medical imaging. It features a precise 560nm cut-on wavelength, ensuring high transmittance for green, yellow, red, and near-infrared light (560-1100nm). This filter effectively blocks UV and blue light (200-550nm) with deep cutoff performance, enhancing signal-to-noise ratios and improving detection accuracy. Its hard-coat and IAD-PVD coatings provide durability and resistance to environmental factors, making it suitable for rigorous applications.
Key Features
- High transmittance of 99% for wavelengths from 560-1100nm, enhancing optical signal clarity.
- OD4-OD6 blocking of UV and blue light (200-550nm), reducing noise interference.
- Customizable sizes from 2mm to 200mm, accommodating various optical module designs.
- Durable hard-coat and IAD-PVD coatings for scratch resistance and temperature stability.
- Stable performance within -20℃ to +80℃, ensuring longevity in demanding environments.
Applications
Fluorescence, Machine Vision, Laser, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Shape | Round |
| Size | 2 mm |
| Thickness | Custom |
| Filter Type | longpass |
| Coating | hard-coat, iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 99 |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
FAQ
Can I get custom sizes?
Yes, sizes can be customized from 2mm to 200mm in diameter.
What is the minimum order quantity?
The minimum order quantity is not specified; please inquire for details.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
